1.50" Round Acrylic Outdoor LED Lighting Tube ~ Model Cascade38

SKU: LED-CASCADE38-W-MP-3
Color
Length
Contents
Note: This option requires freight shipping due to its length. Shipping charges will be higher than for shorter lengths.
$120.99 USD
Shipping calculated at checkout.

Buy in bulk and save

By becoming a wholesale customer, you can save money on your orders. Apply here.

Compatible Components and Accessories

View all

Helpful Tools & Resources

Channel Kit BuilderStart building a channel kit with this channel. Compare this ProductSee how this product’s specs compare to others. LED Power Supply Calculator LED Strip Voltage Drop Calculator

20+ YEARS LED EXPERIENCE

20+ YEARS LED EXPERIENCE

SHIPPED FROM TENNESSEE

SHIPPED FROM TENNESSEE

COMMERCIAL GRADE QUALITY

COMMERCIAL GRADE QUALITY

EXPERT TECH SUPPORT

EXPERT TECH SUPPORT

Diffuser tube only ~ end caps, LED strip and all other accessories

Please contact us for a custom complete LED fixture using tube

Description

The Cascade38 series is a round acrylic LED lighting tube with a 1.50" diameter manufactured in the USA. It features a slot that allows our aluminum LED heatsink Model Yukon to slide in, acting as a physical carrier and heat sink for the LED strip.

These LED tubes are similar to our Smokies38 polycarbonate tubes, but instead they are crafted from high-quality, shatter-resistant acrylic that is designed to withstand the elements and is safe to use in outdoor applications as it is UV stable.

When unlit, the tubes appear as a solid white color, but they take on the LED's color when illuminated, creating a visually striking effect, especially when combined with RGB or RGB pixel LED strips.

These tubes boast robust construction, enabling them to be self-supporting for versatile installations. They can be suspended horizontally from both ends as a tube light or vertically from one end as a pendant light. They can be used as freestanding floor lamps or column lights or mounted on walls as fixtures.

General specifications

  • Made in USA
  • Maximum LED strip width: 12mm
  • Maximum LED power 20w/m
  • Outside diameter: 38mm (1.50")
  • Color: White (Opal)
  • Materials:
    • Diffuser tube: Acrylic
    • Heat dissipation plate: Aluminum (Yukon)

Downloads

Important notes

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We can also assemble a plug and play light fitting with this profile according to your specifications.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request.

Product comparison

Small Round Methacrylate LED Diffuser Tube ~ Model Oslo Mini - Wired4Signs USA - Buy LED lighting online
Small Round Methacrylate LED Diffuser Tube ~ Model Oslo Mini
View details
1.50" Round Polycarbonate LED Lighting Tube ~ Model Smokies38 - Wired4Signs USA - Buy LED lighting online
1.50" Round Polycarbonate LED Lighting Tube ~ Model Smokies38
View details
A 1.50 clear plastic tubing (Model Smokies38 Clear) for LED lights, shown as a bright yellow circle with a gray line and inward-pointing yellow arrows, on a white background.
1.50" Clear Plastic Tubing for LED Lights ~ Model Smokies38 Clear
View details
A 1.50" round acrylic LED tube (Model Sierra38) is shown as a yellow circle with a small black and yellow keyhole shape and stylized bridge-like lines at the bottom center, set against a white background.
1.50" Round Acrylic LED Tube ~ Model Sierra38
View details
Round Methacrylate LED Diffuser Tube ~ Model Oslo - Wired4Signs USA - Buy LED lighting online
Round Methacrylate LED Diffuser Tube ~ Model Oslo
View details
Product variants
Product variantsColor
  • White Frosted
Length
  • 6" Sample,
  • 609mm (24"),
  • 1m (39"),
  • 2m (78"),
  • 2390mm (94"),
  • 3m (118") - pickup only
Color
  • White,
  • Black
Length
  • 2m (78"),
  • 1.5m (59"),
  • 1m (39"),
  • 609mm (24"),
  • 6" Sample,
  • 2390mm (94"),
  • 3m (118") - pickup only
Contents
  • Tube with LED mounting plate
Length
  • 2m (78"),
  • 1m (39"),
  • 609mm (24"),
  • 2390mm (94"),
  • 3m (118") - pickup only,
  • 6" Sample
Contents
  • Tube with LED mounting plate
Color
  • White,
  • Black
Length
  • 2m (78"),
  • 1.5m (59"),
  • 1m (39"),
  • 609mm (24"),
  • 6" Sample,
  • 3m (118") - pickup only,
  • 2390mm (94")
Contents
  • Tube with LED mounting plate
Color
  • Black,
  • White
Length
  • 2m (78"),
  • 1m (39"),
  • 609mm (24"),
  • 2390mm (94"),
  • 6" Sample,
  • 3m (118") - pickup only
Special features
Special features
Tube Profile
-
-
-
Tube Profile

Press releases

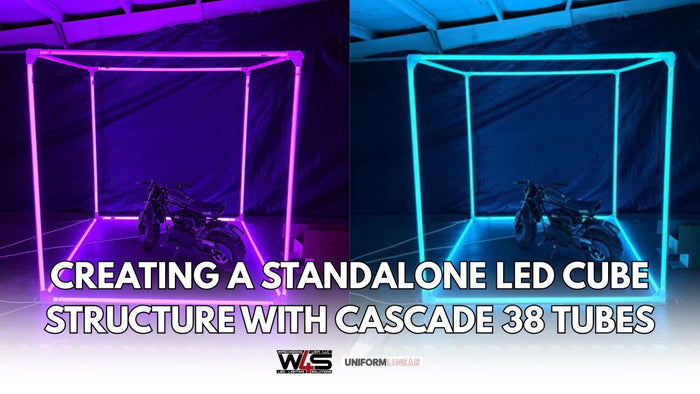

  • Freestanding illuminated LED cube structure made from round acrylic tubes
