1.50" Round Polycarbonate LED Lighting Tube ~ Model Smokies38

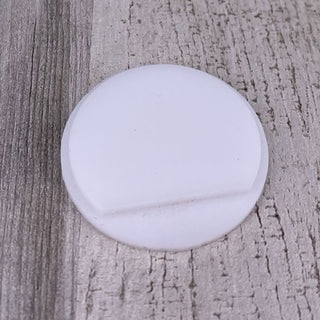

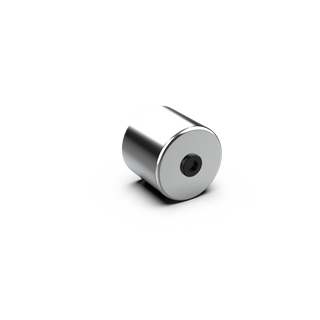

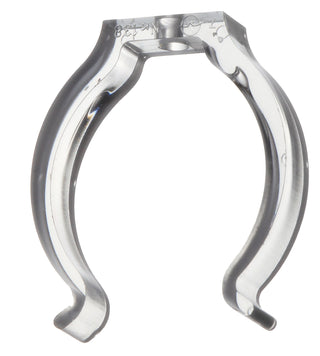

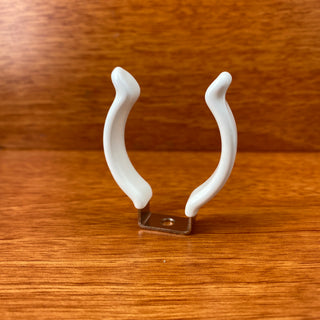

Diffuser tube only ~ end caps, LED strip and all other accessories are sold separately

Please contact us for a custom complete LED fixture using this tube.

Description

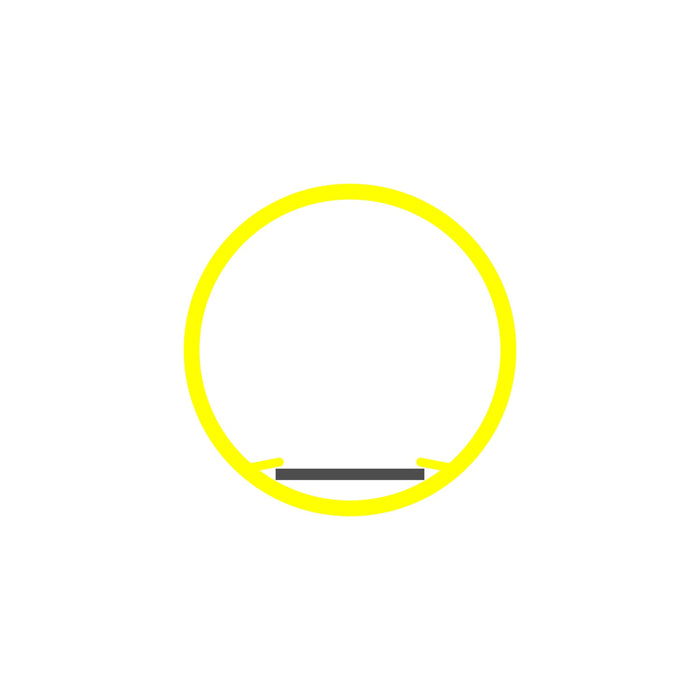

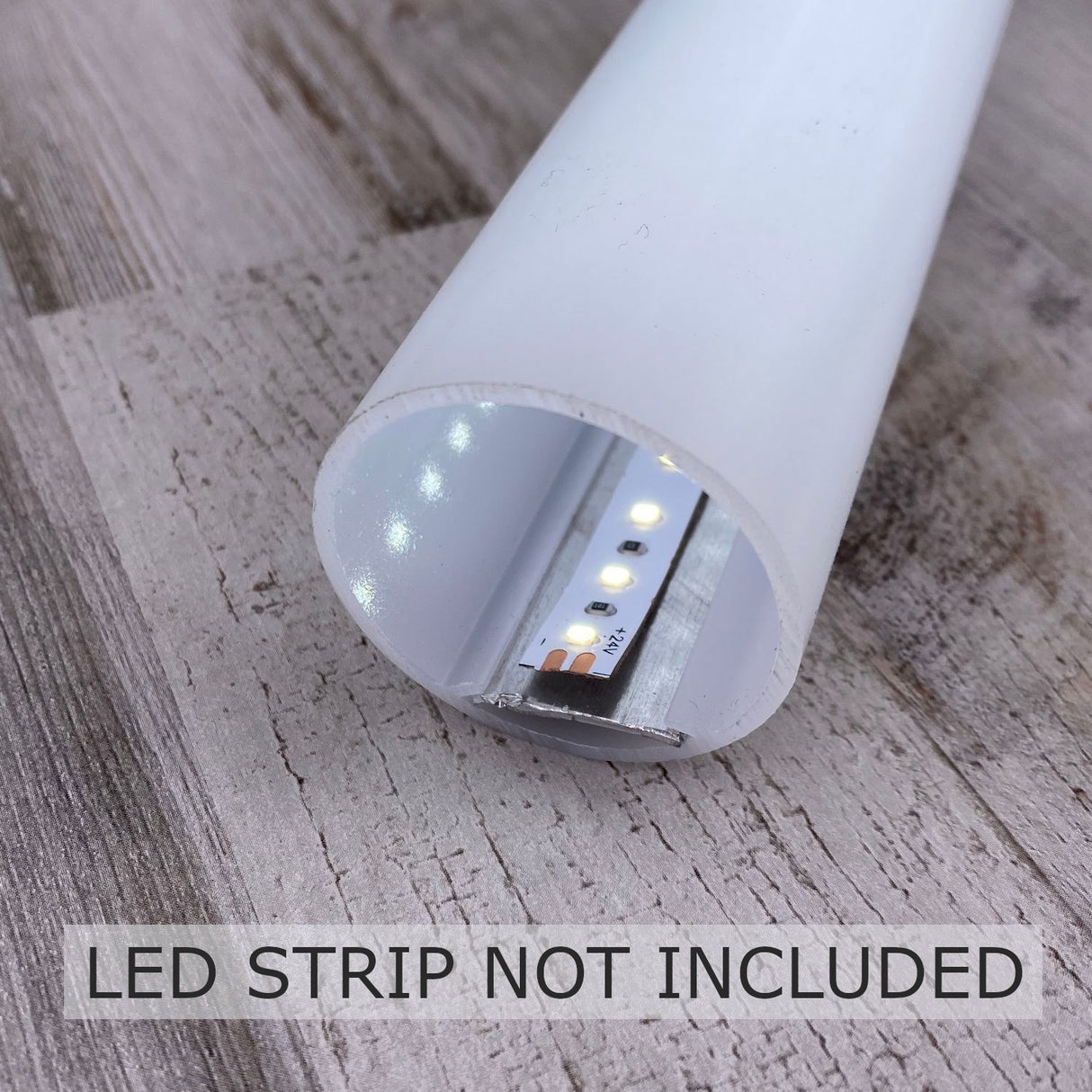

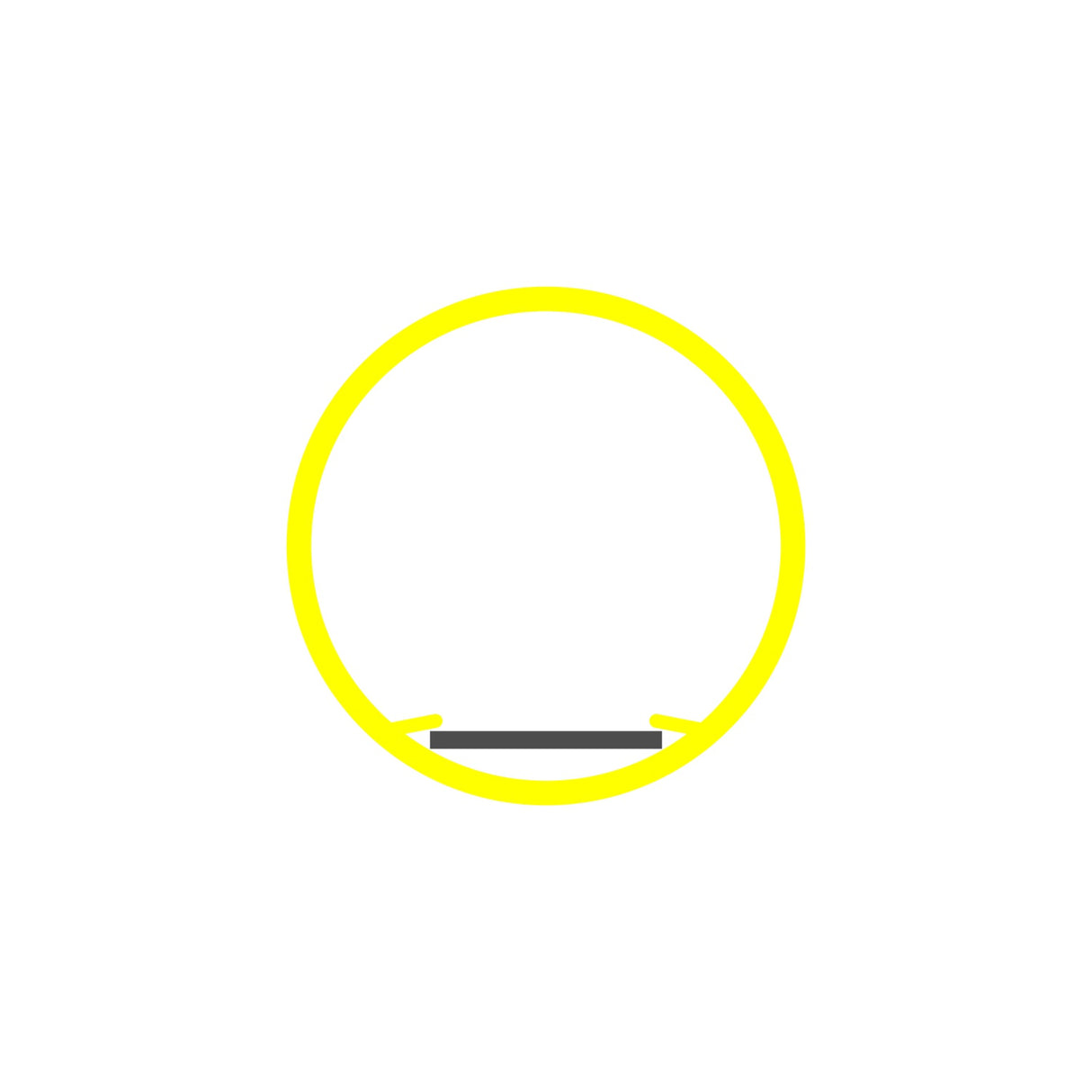

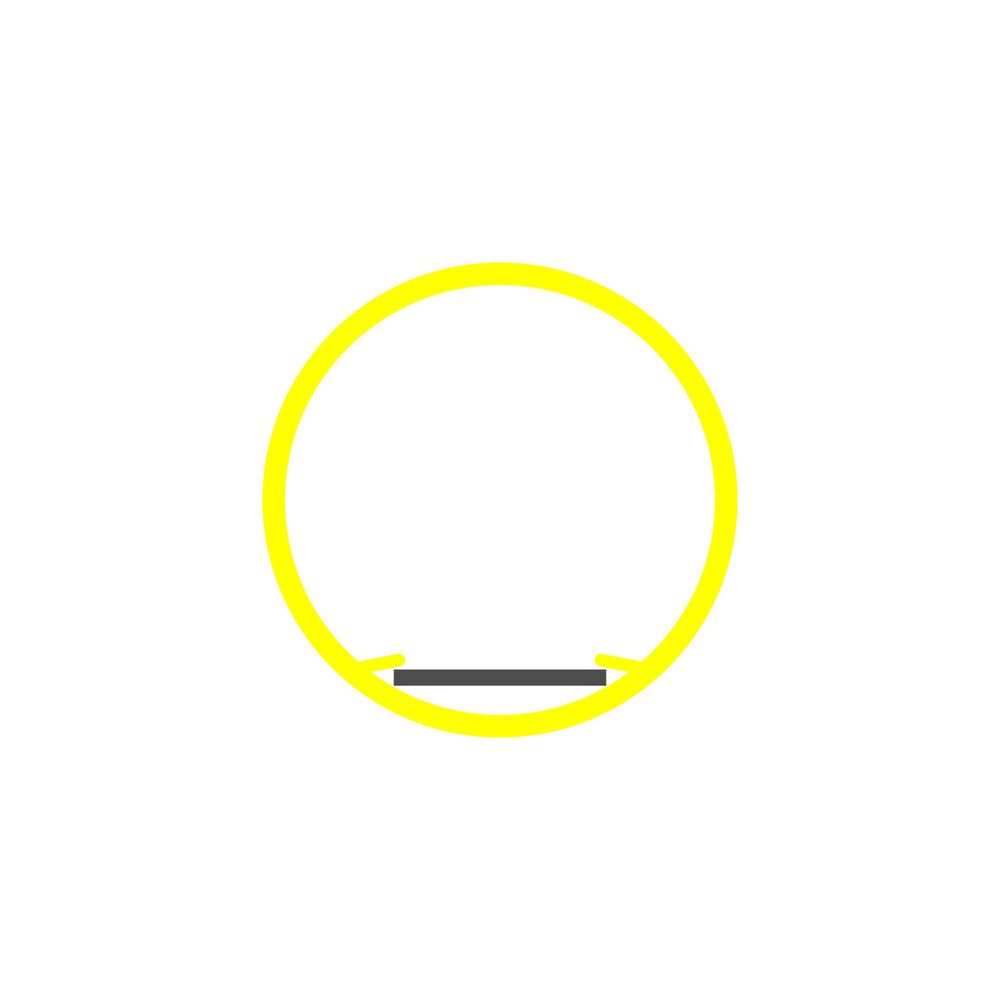

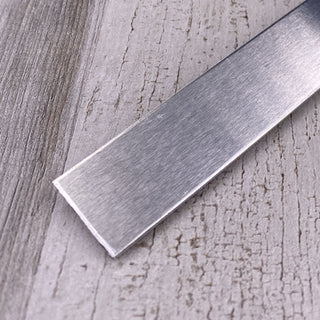

Our Smokies38 series is a 1.50" diameter round polycarbonate LED diffuser tube with a slot for an aluminum LED mounting plate (Fix12). The LED mounting plate slides into the plastic tube and acts as the physical carrier and heat sink for the LED strip.

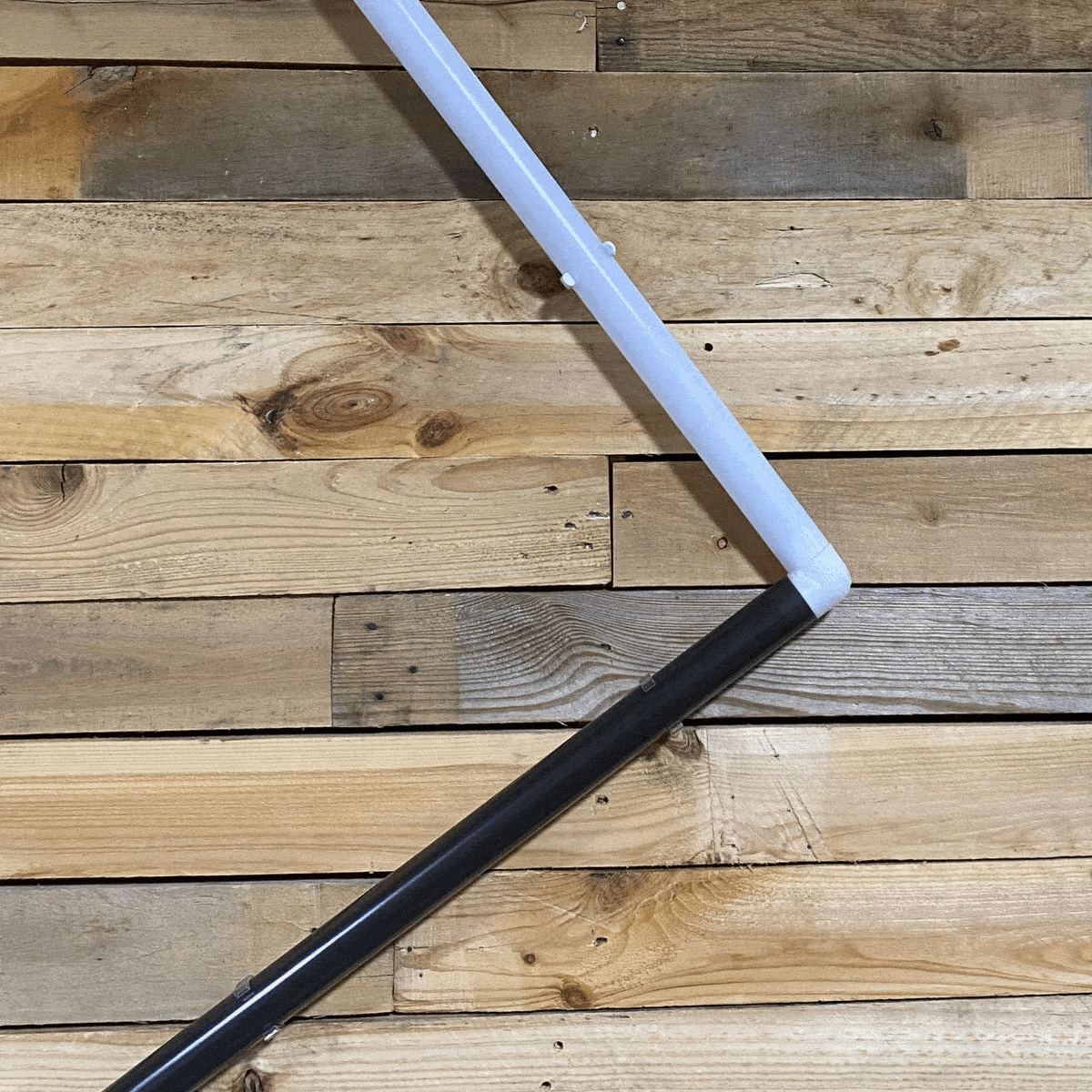

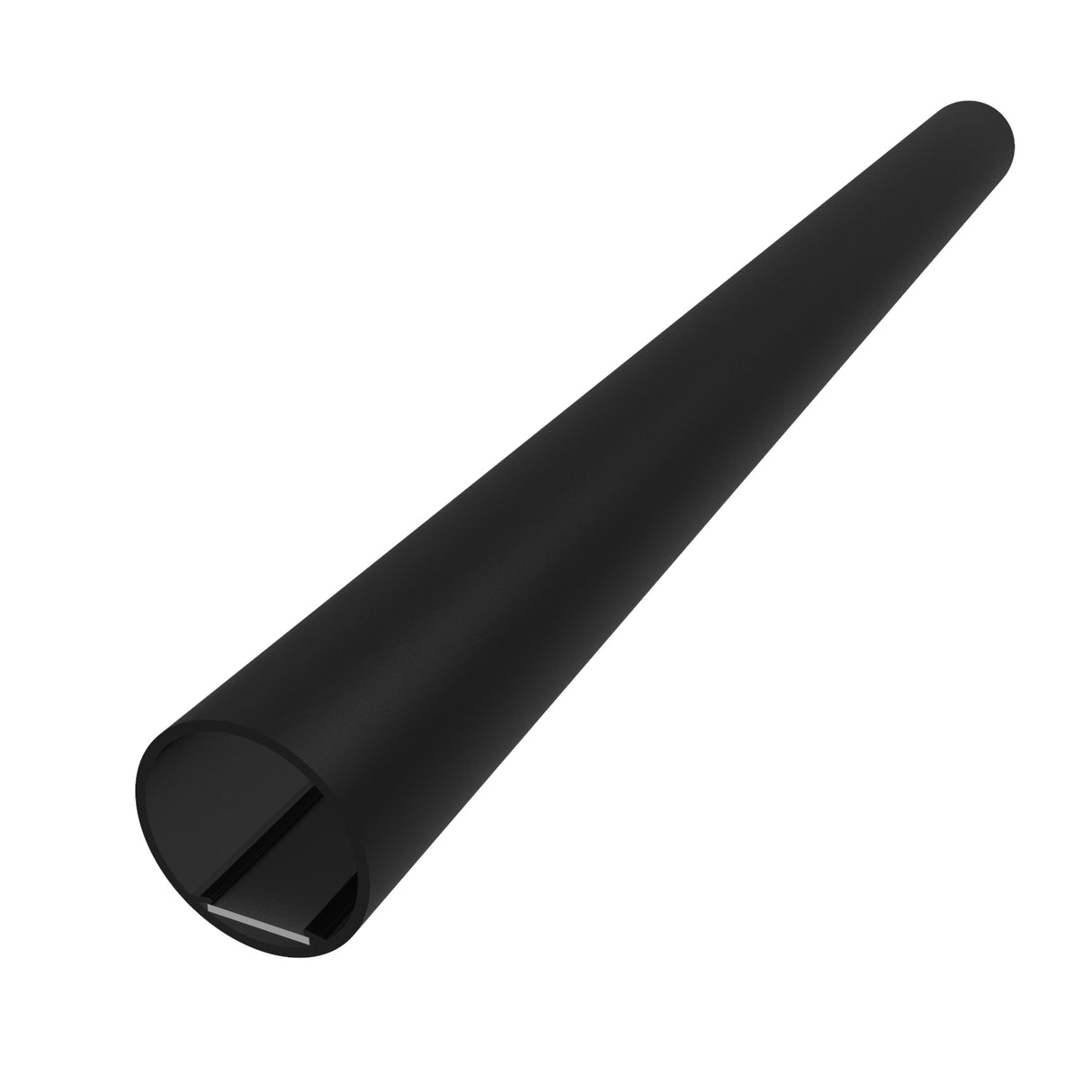

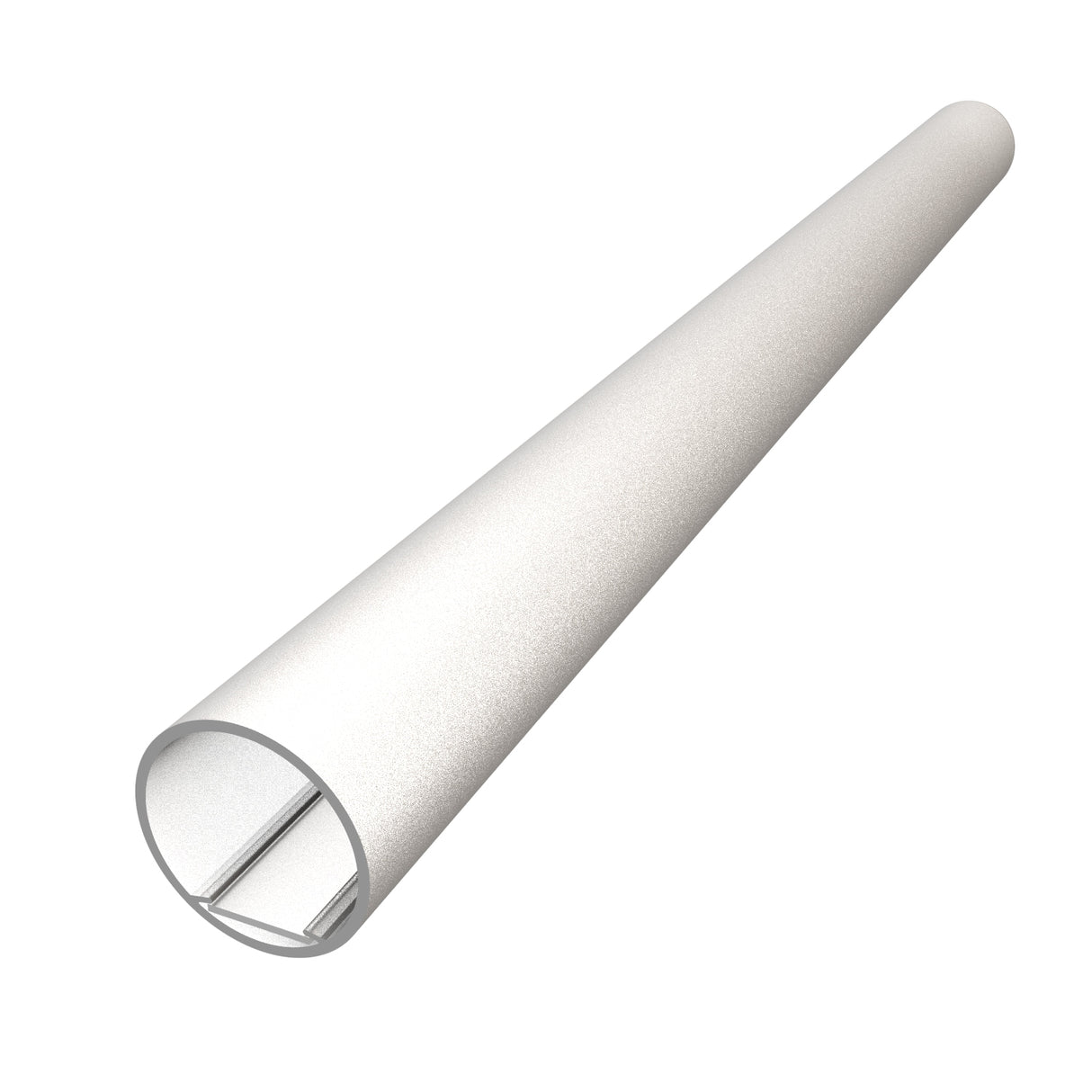

Our Smokies38 tubes are made of strong polycarbonate and are available in frosted white (opal) or black (smoky gray) options to suit your application. The tubes appear as solid white or black when they are unlit, and take on the LED color when illuminated. This is particularly effective when combined with an RGB or RGB pixel LED strip. Our polycarbonate LED tubes are a suitable replacement for frosted acrylic (PMMA) lighting cylinders.

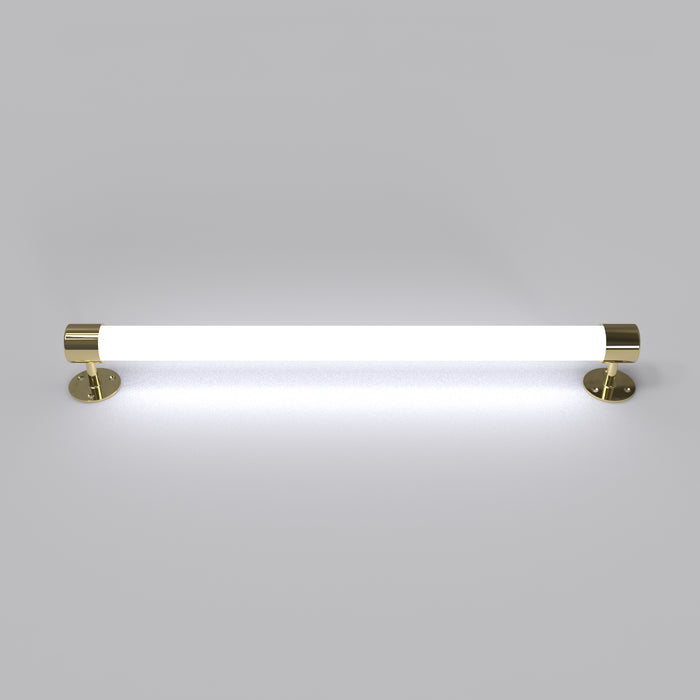

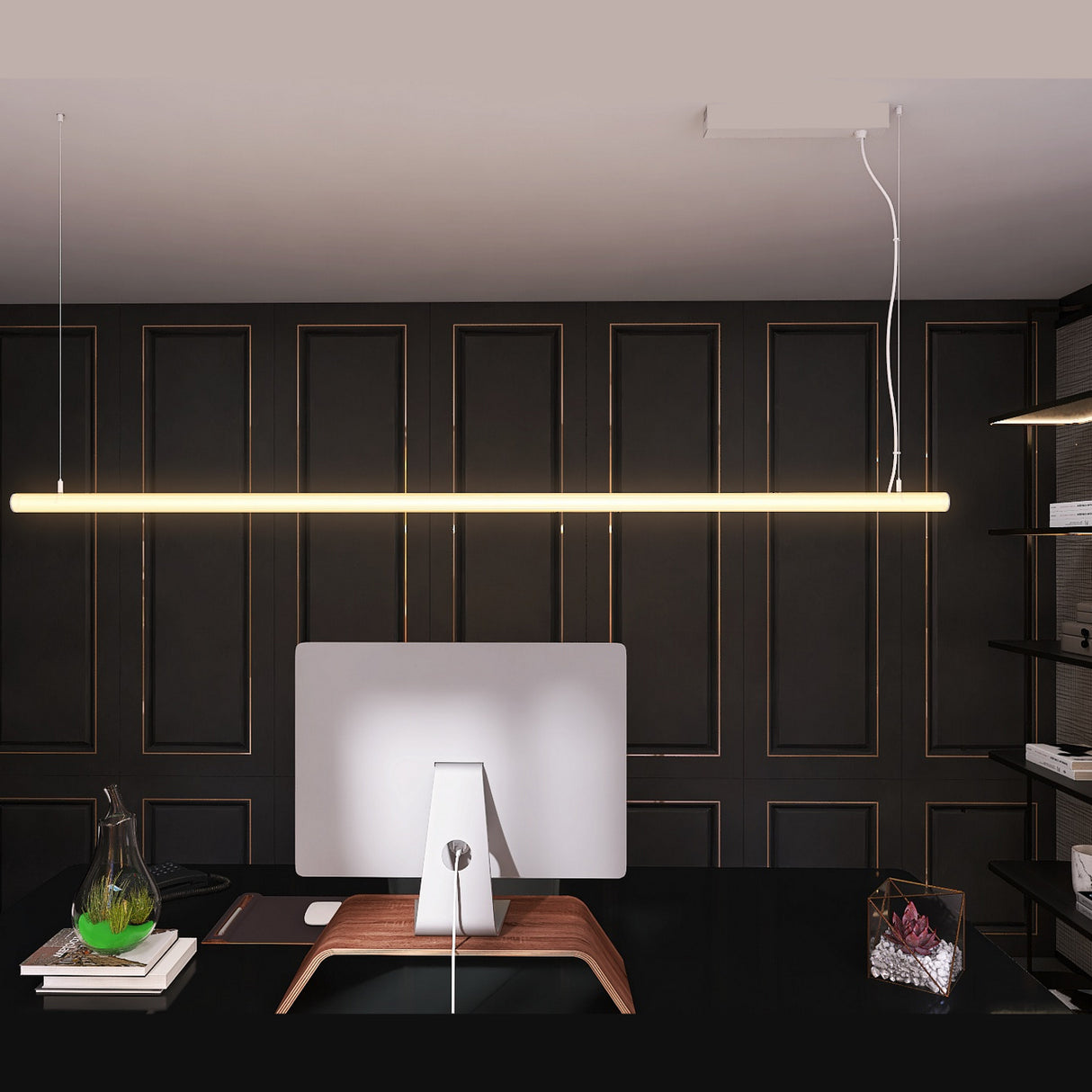

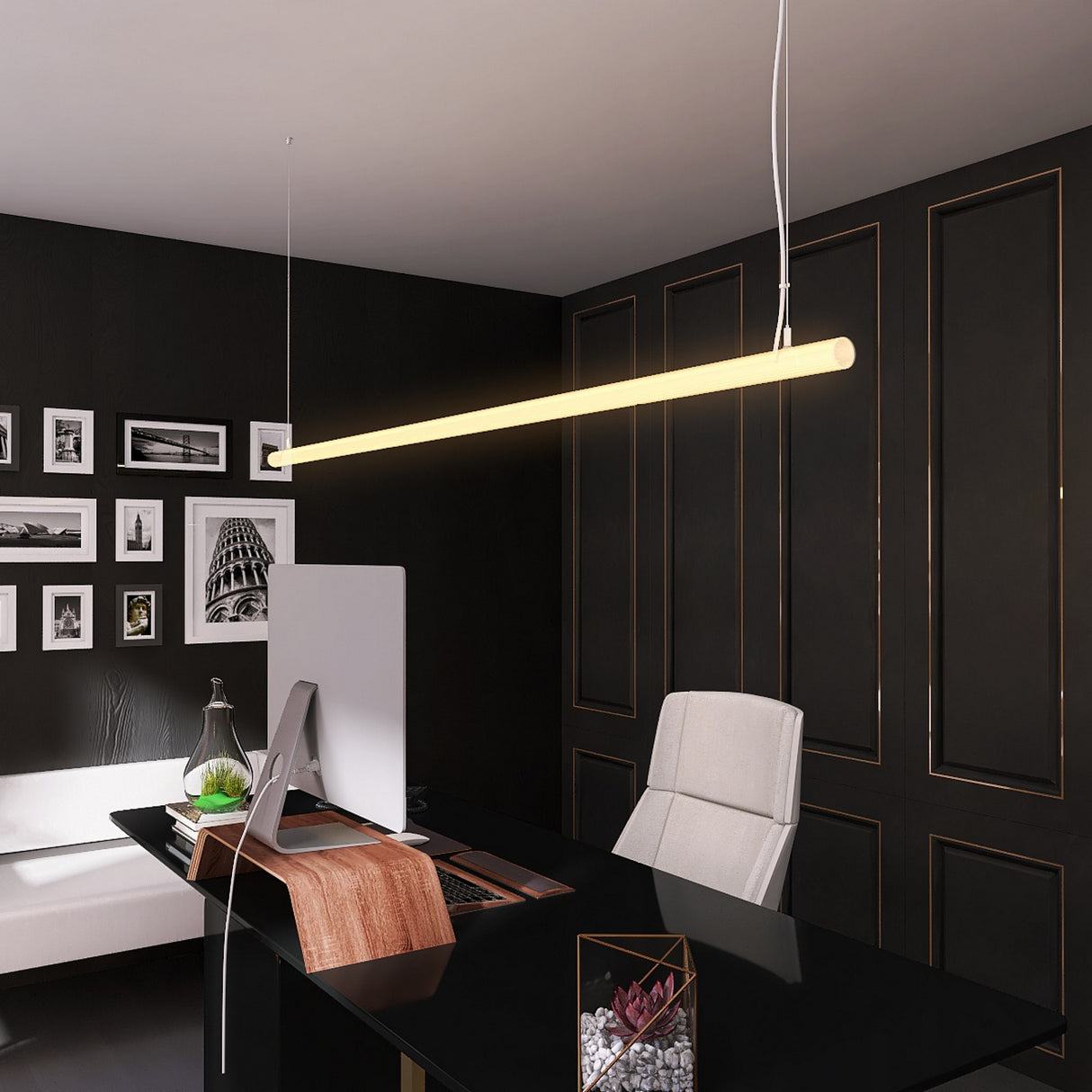

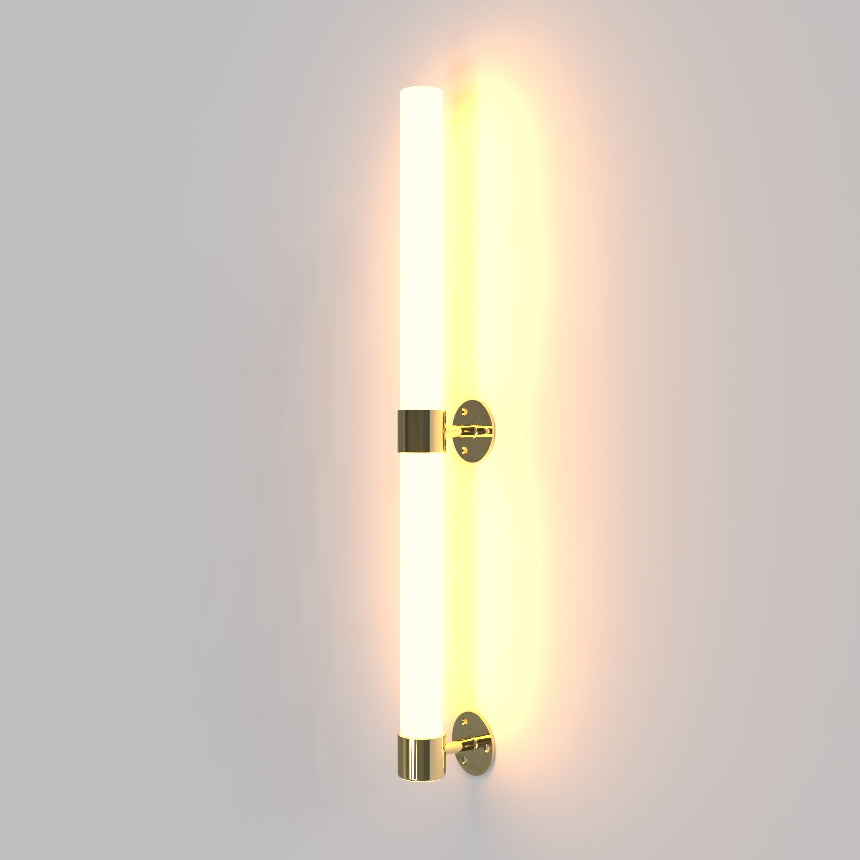

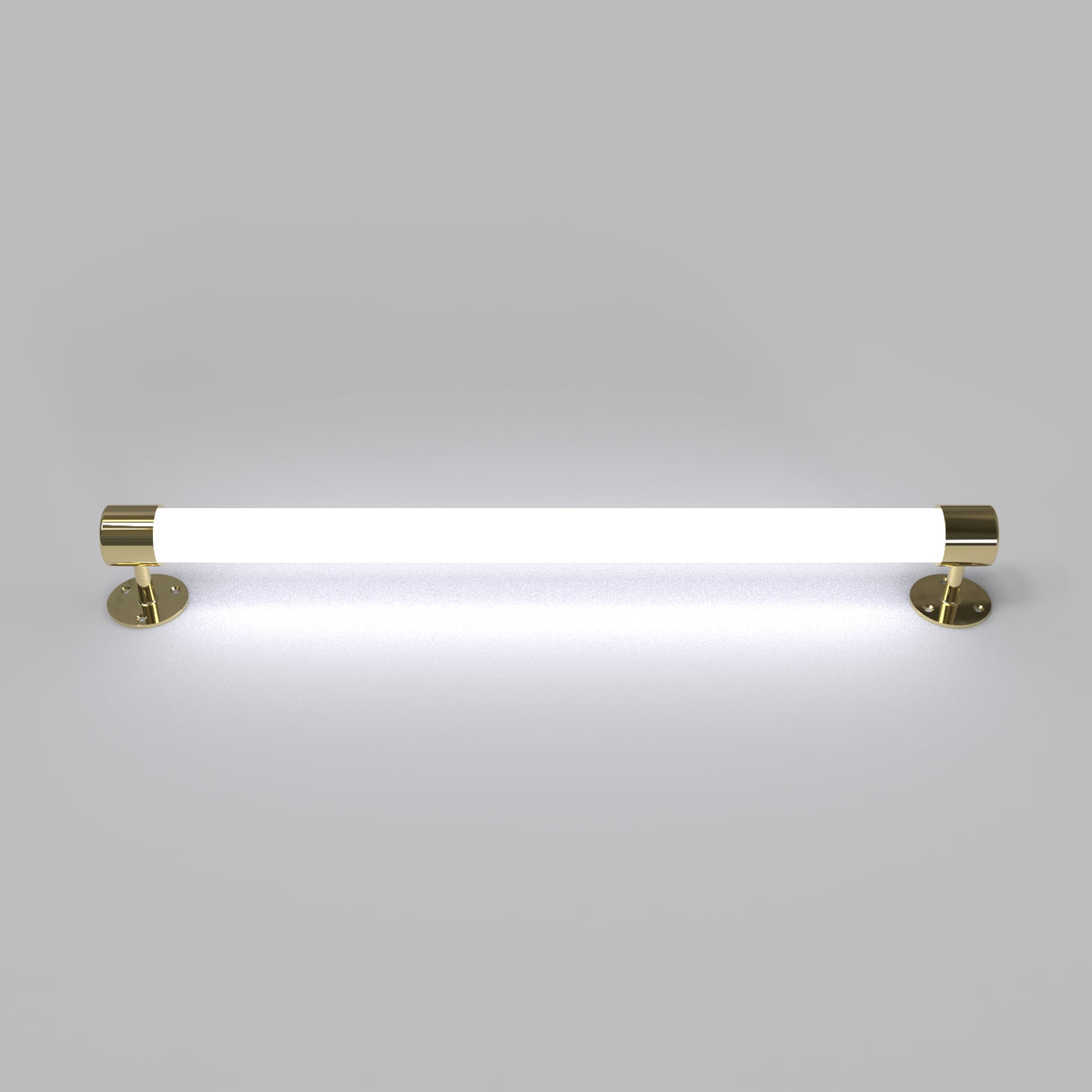

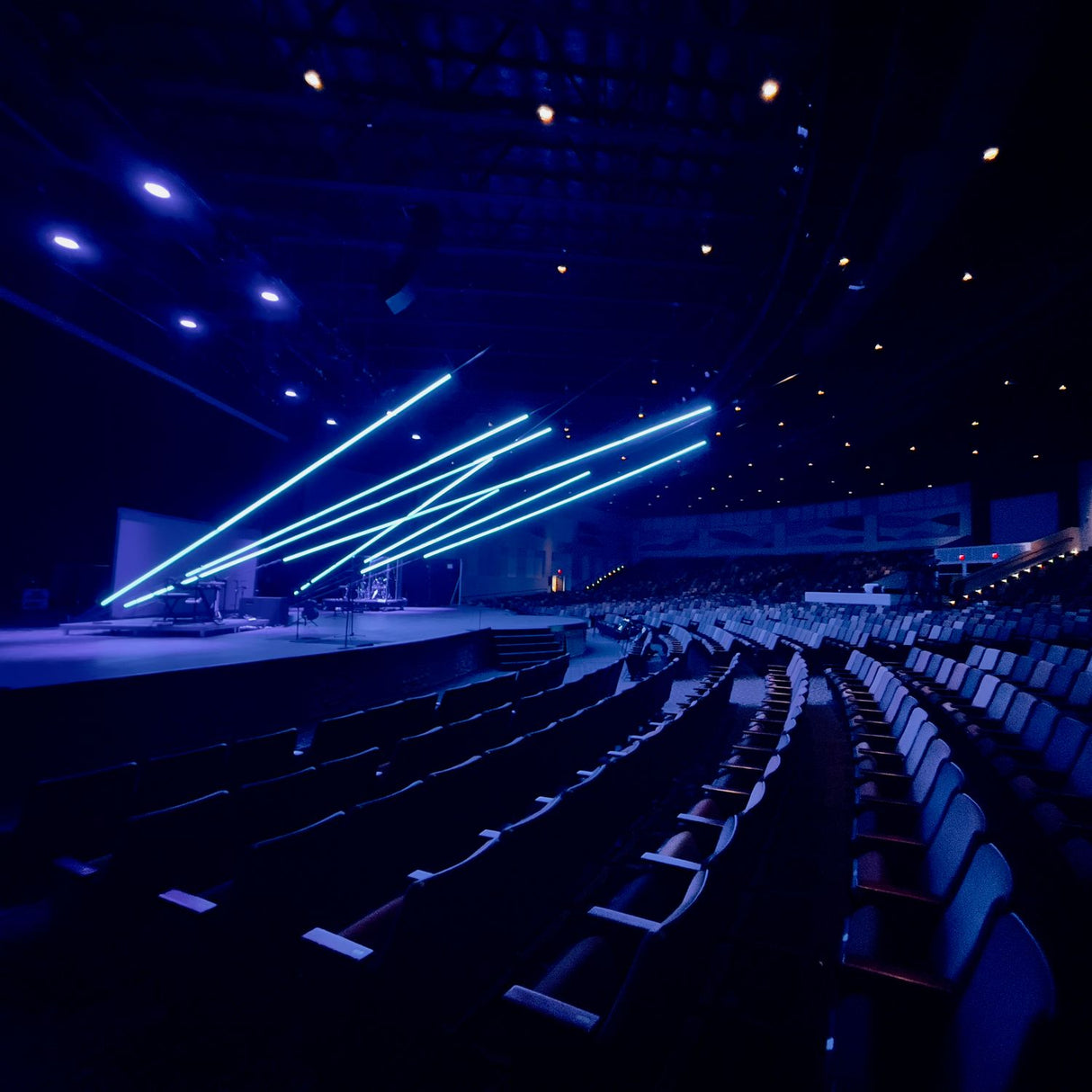

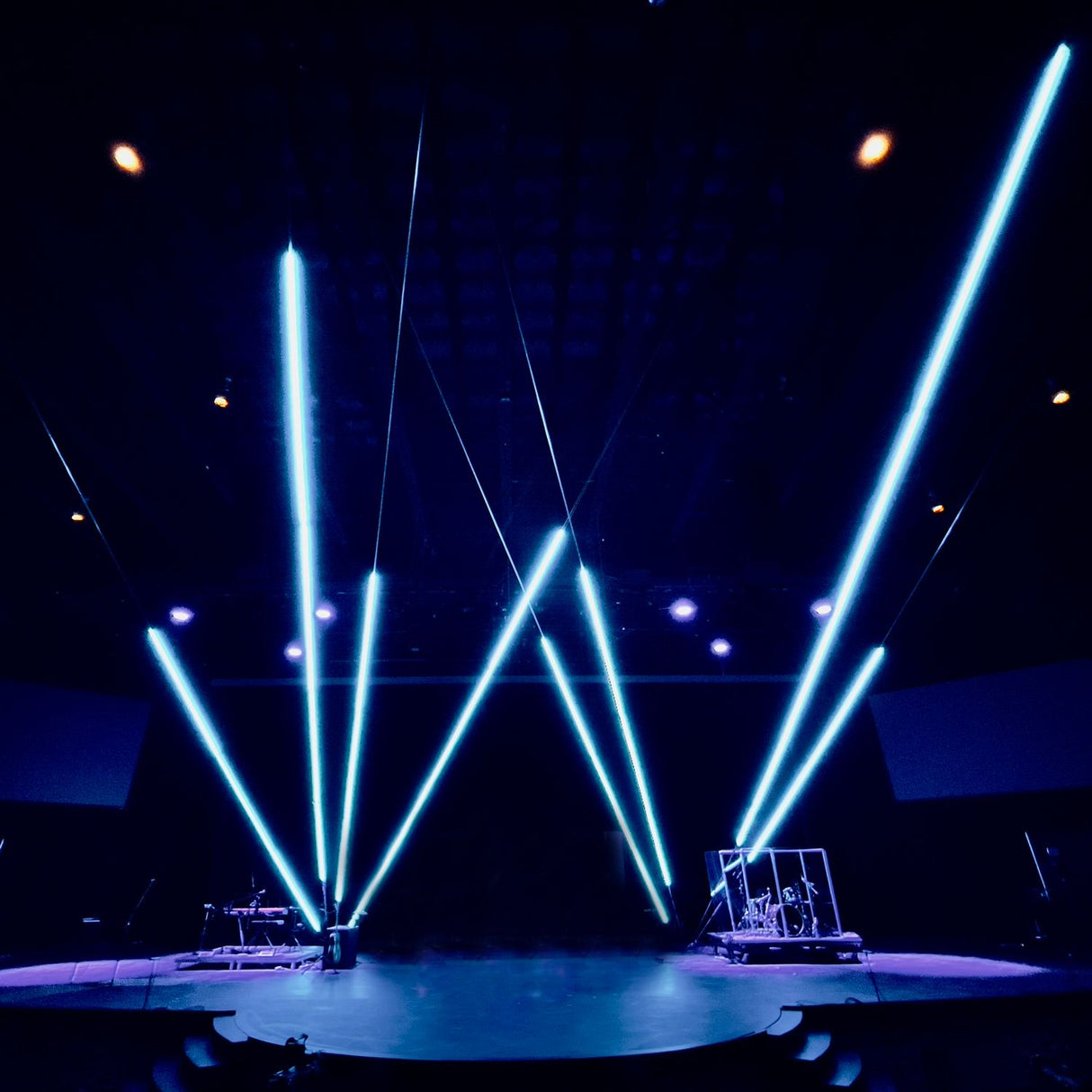

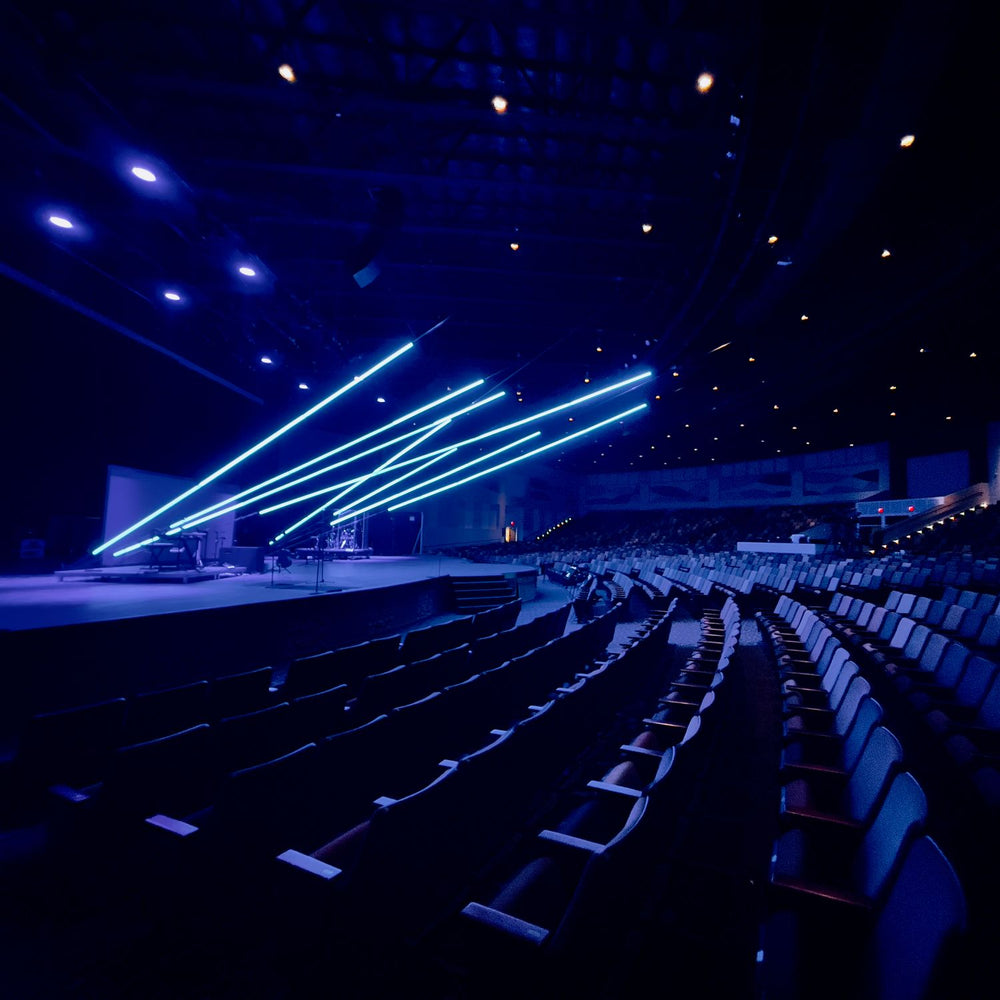

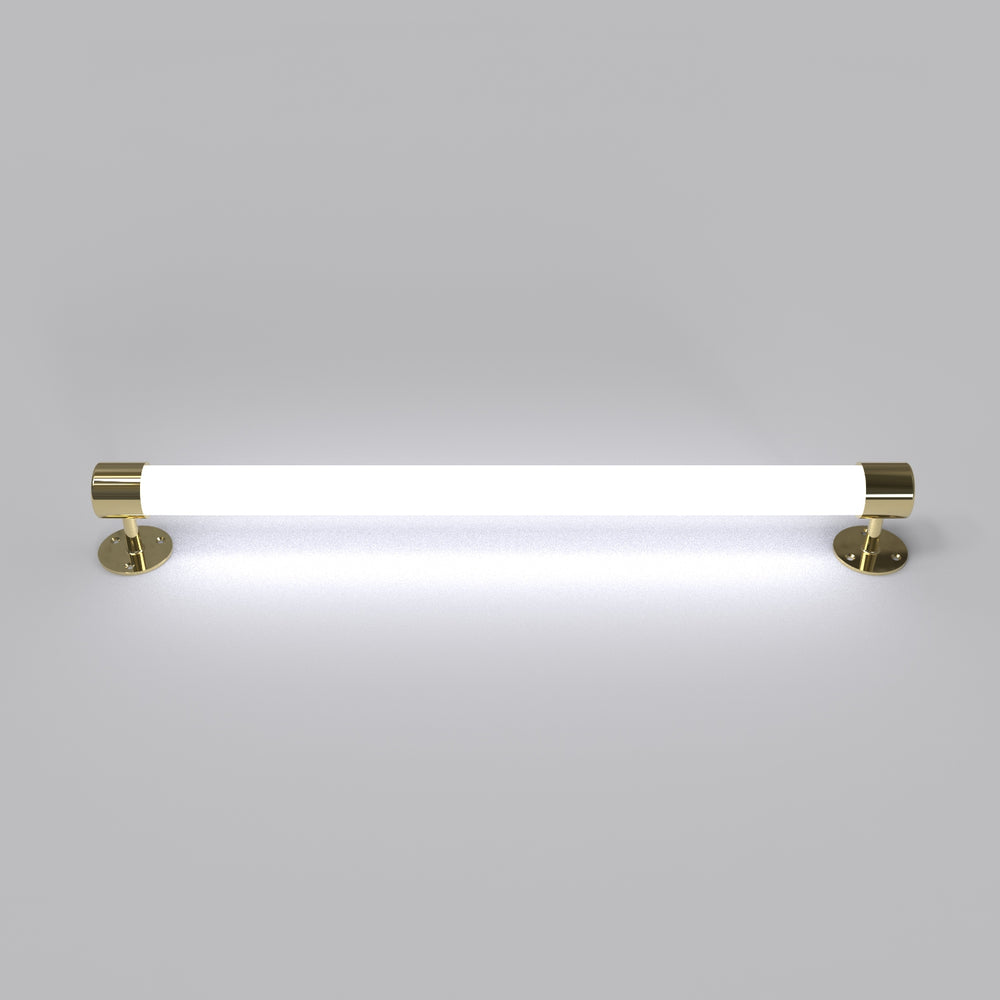

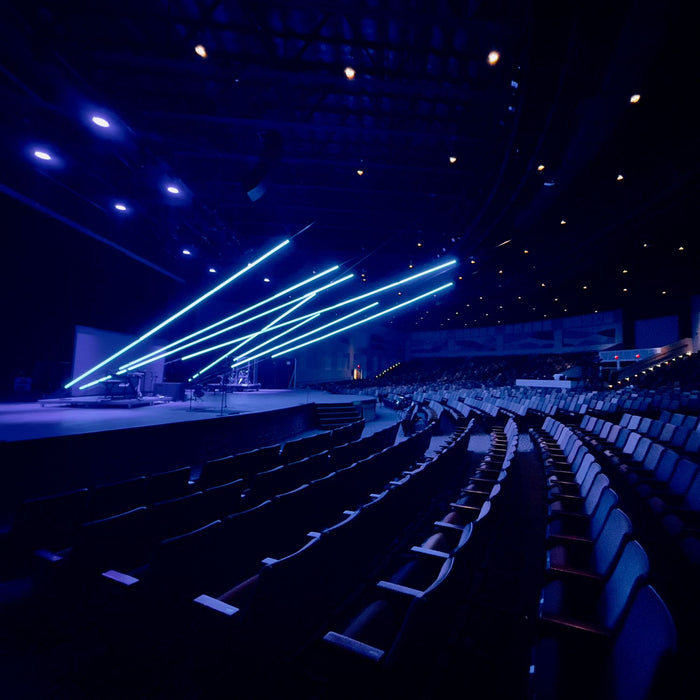

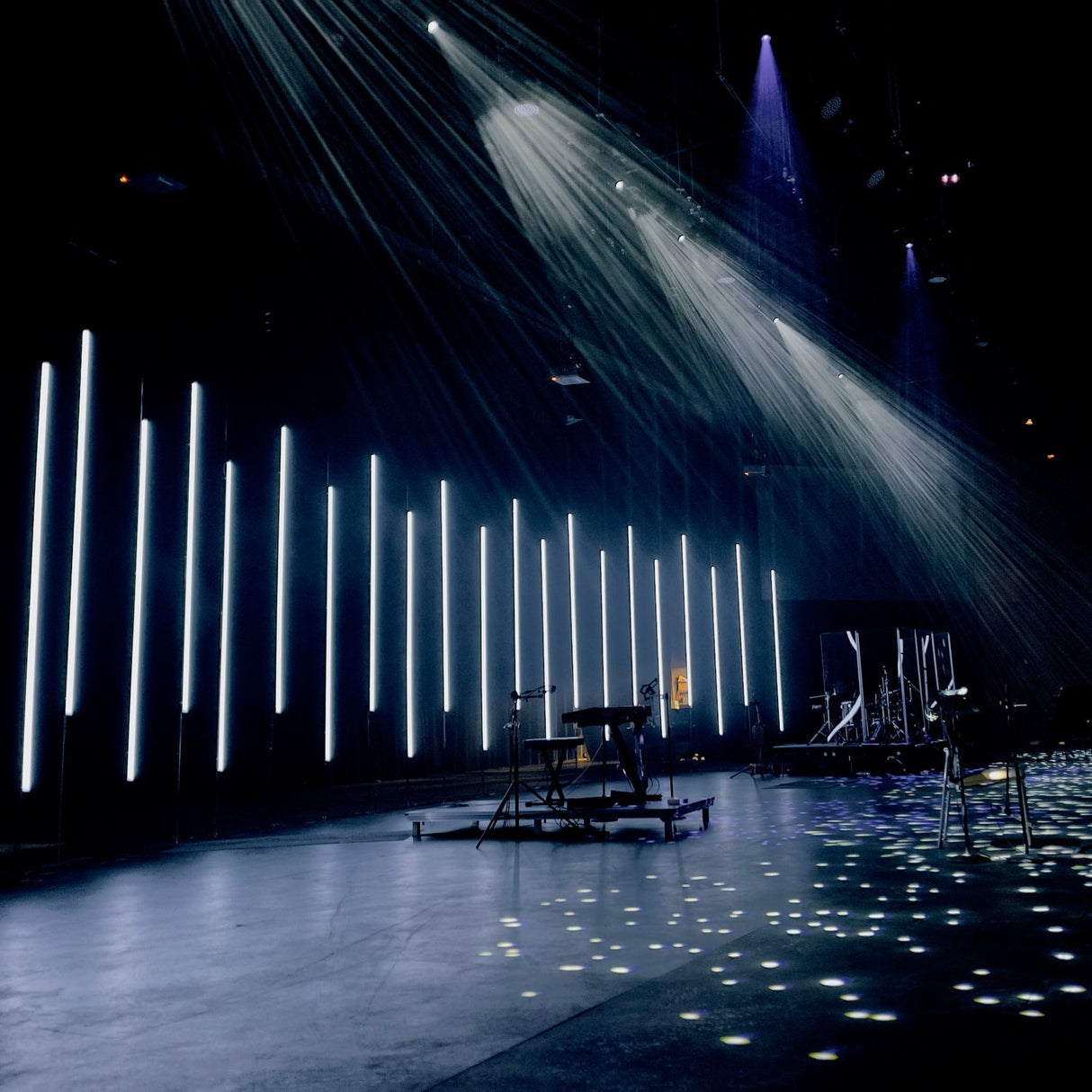

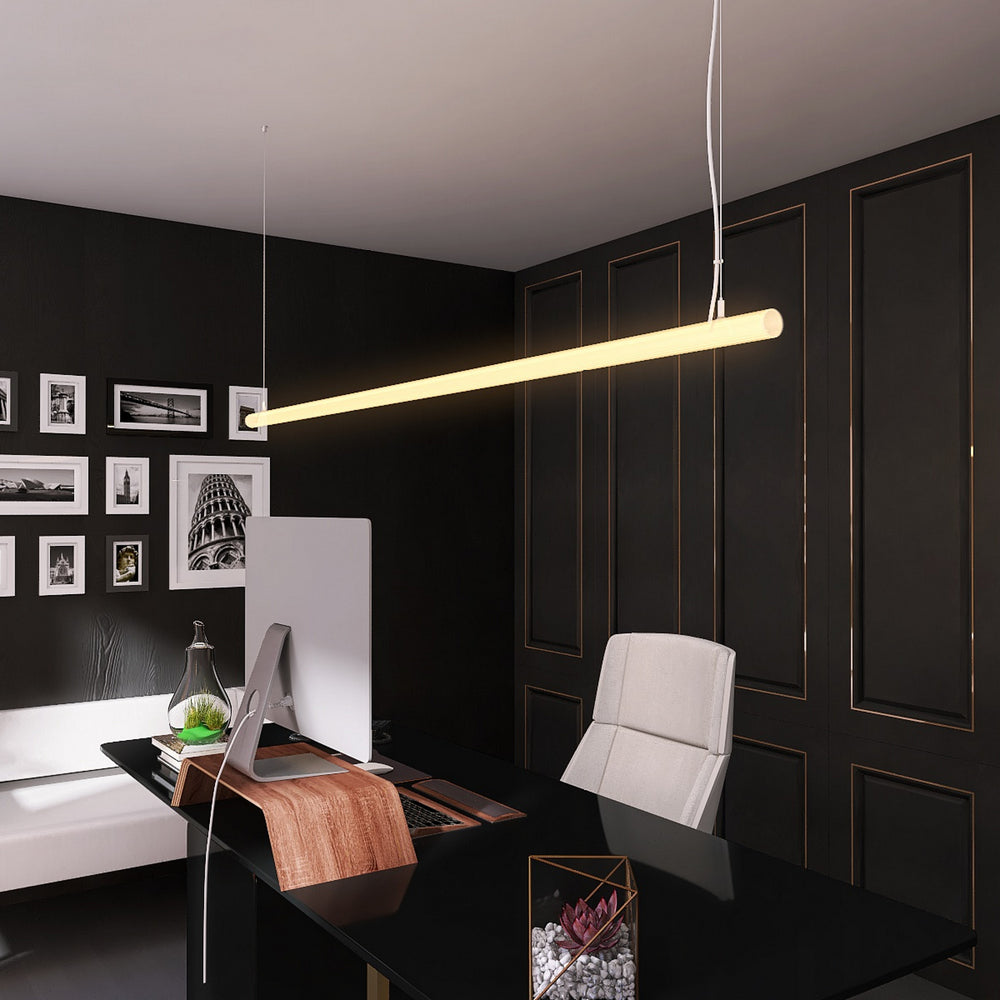

These LED diffuser tubes are strong enough to be self-supporting, which allows for many imaginative installations such as a horizontally suspended tube light (from each end) or a vertical pendant light (from one end), as a floor standing column or pillar light, or simply as a wall-mounted fixture.

We also offer this Smokies38 series acrylic diffuser tube profile as a completely clear LED tube.

We do not recommend to use polycarbonate for outdoor applications because it may discolor when exposed to high UV levels.

General specifications

• Maximum LED strip width: 15mm
• Maximum LED power 20w/m

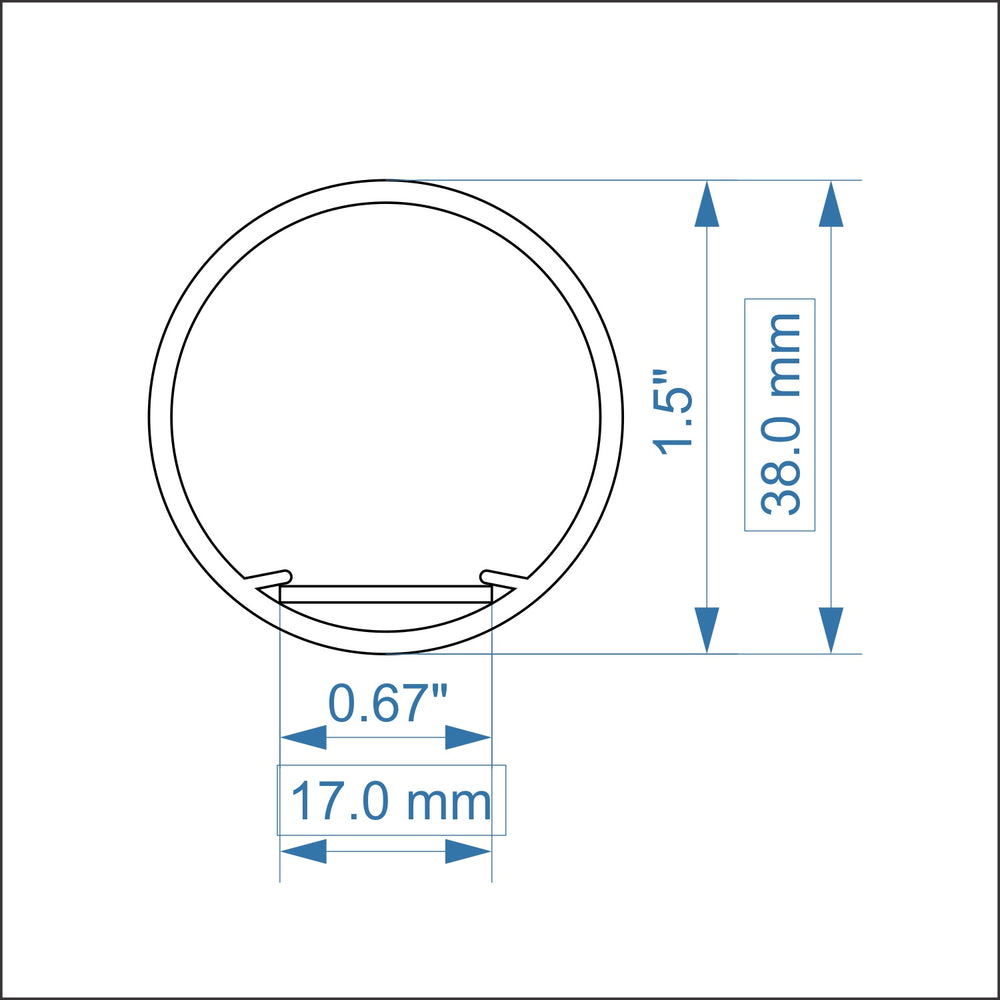

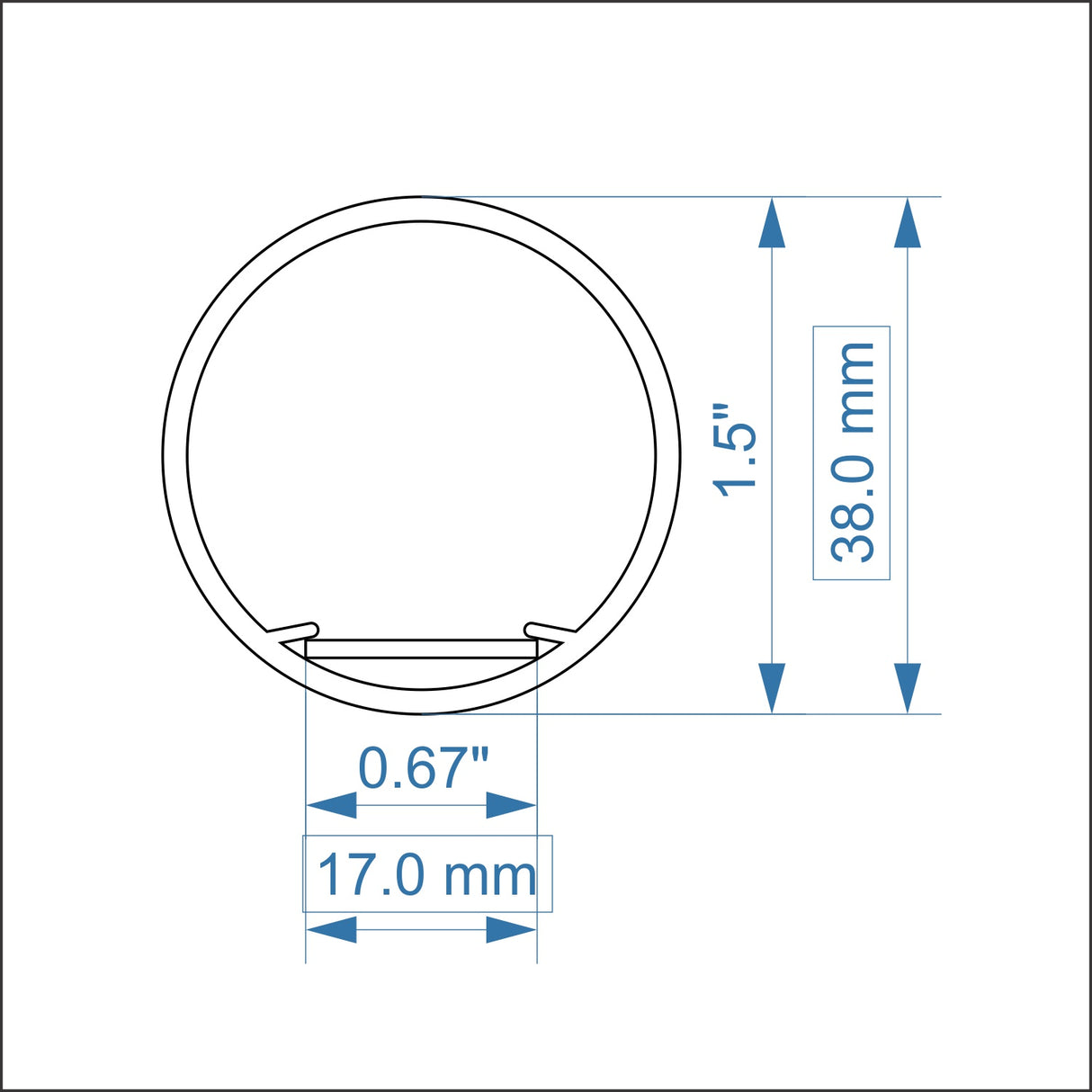

• Outside diameter: 38mm (1.50")
• Colors: White (Opal) and Black (Smoky gray)
• Materials:
  • Diffuser tube: Polycarbonate
  • Heat dissipation plate: Aluminum (Fix12)


Note: We do not recommend to use Polycarbonate for outdoor applications as it discolors when exposed to UV.

Downloads

• Smokies38 cut sheet
• Example of suspending Smokies38 lights with electrical suspension cable

Important notes

• Please note that raw or natural profiles channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug and play light fitting with this profile according to your specifications.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
