0.53" Small Recessed LED Channel ~ Model Frankfurt

Profile only ~ diffusers and all other accessories are sold separately

Description

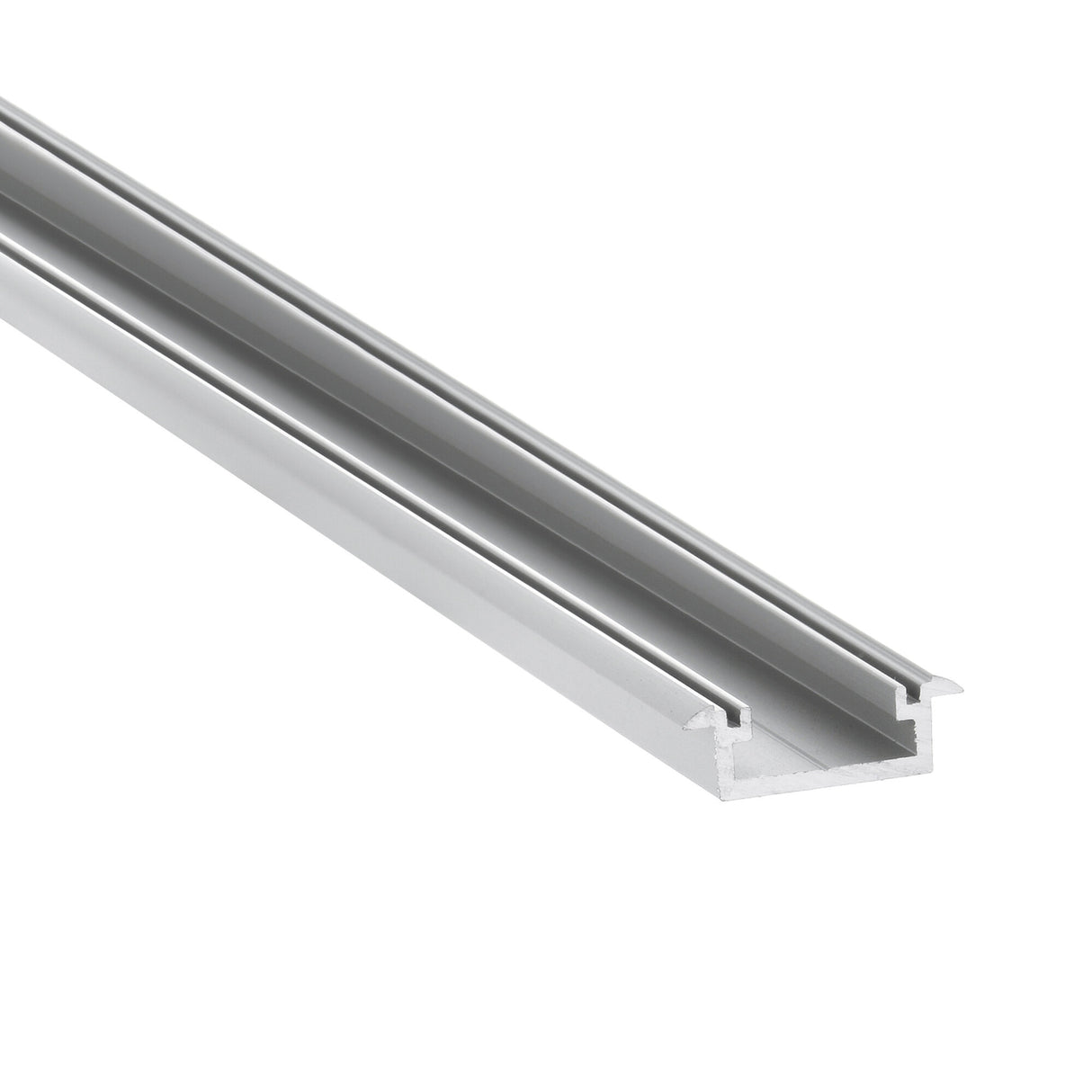

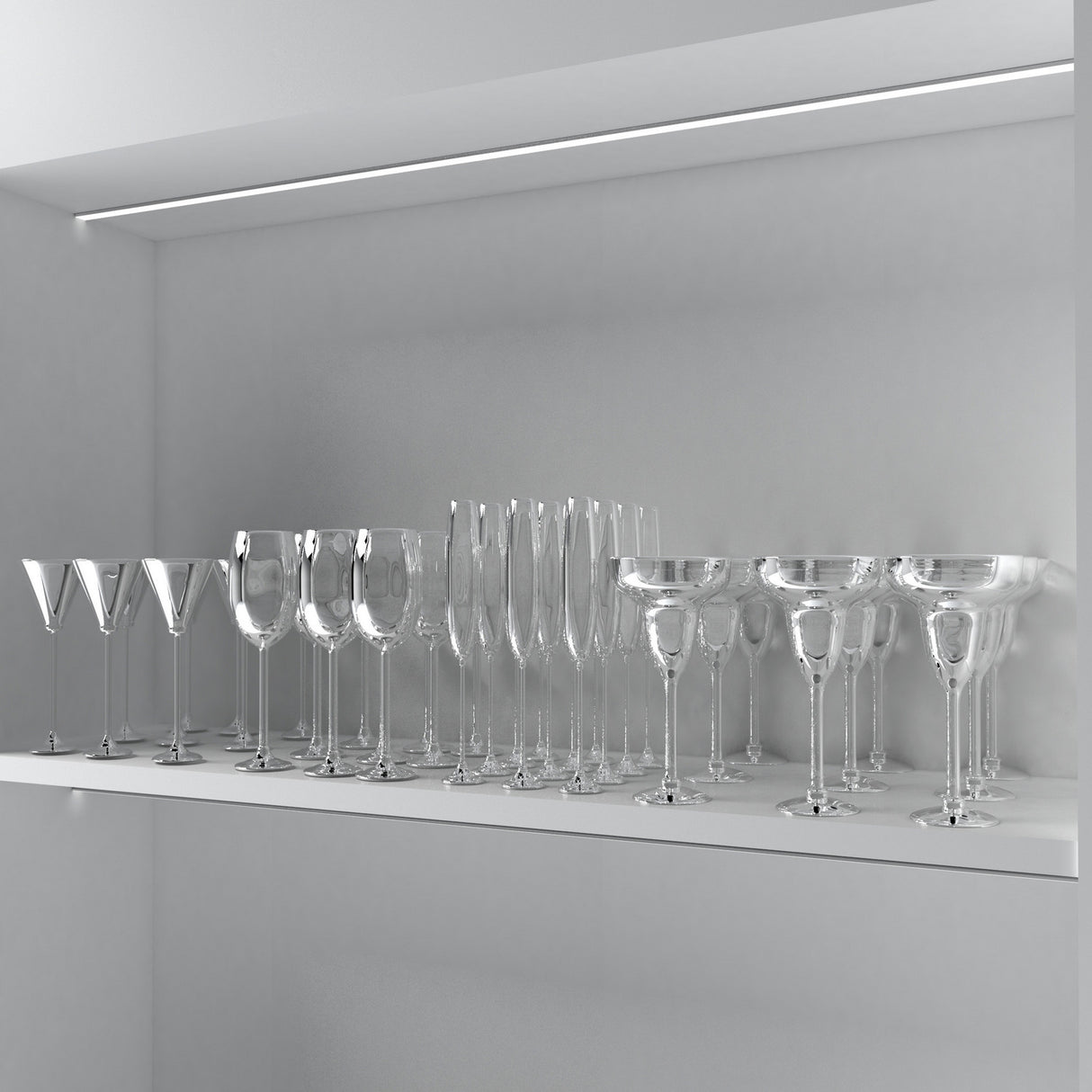

The Frankfurt LED channel is a professional recessed LED profile designed for minimalist lighting applications. With a height of just 7.5mm (0.83”), it is ideal for embedding in furniture, shelving, and other compact spaces. Made from high-purity aluminum, it is available in silver, black anodized, and textured white painted finishes.

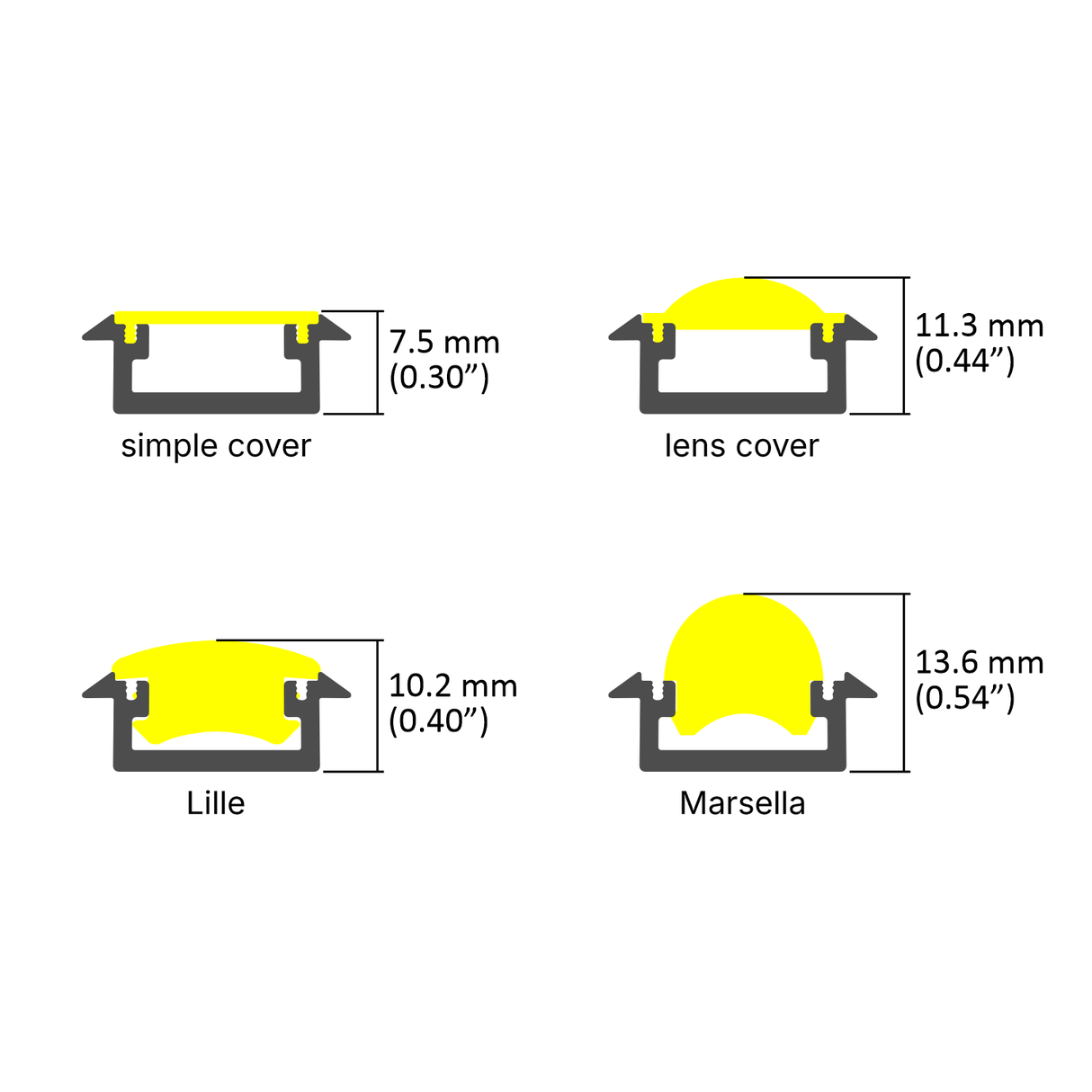

Its "Easy-On" cover, when combined with this minimalist LED profile, provides an IP65 rating to the luminaire, making it suitable for humid environments such as bathrooms, kitchens, gyms, spas, cold storage chambers, fridges and similar.

The Frankfurt LED profile is compatible with LED strips up to a maximum width of 12mm, with a recommended power level of up to 15W/m. This ensures a clean, seamless lighting installation with a modern, professional finish.

General specifications

• Material: Aluminum

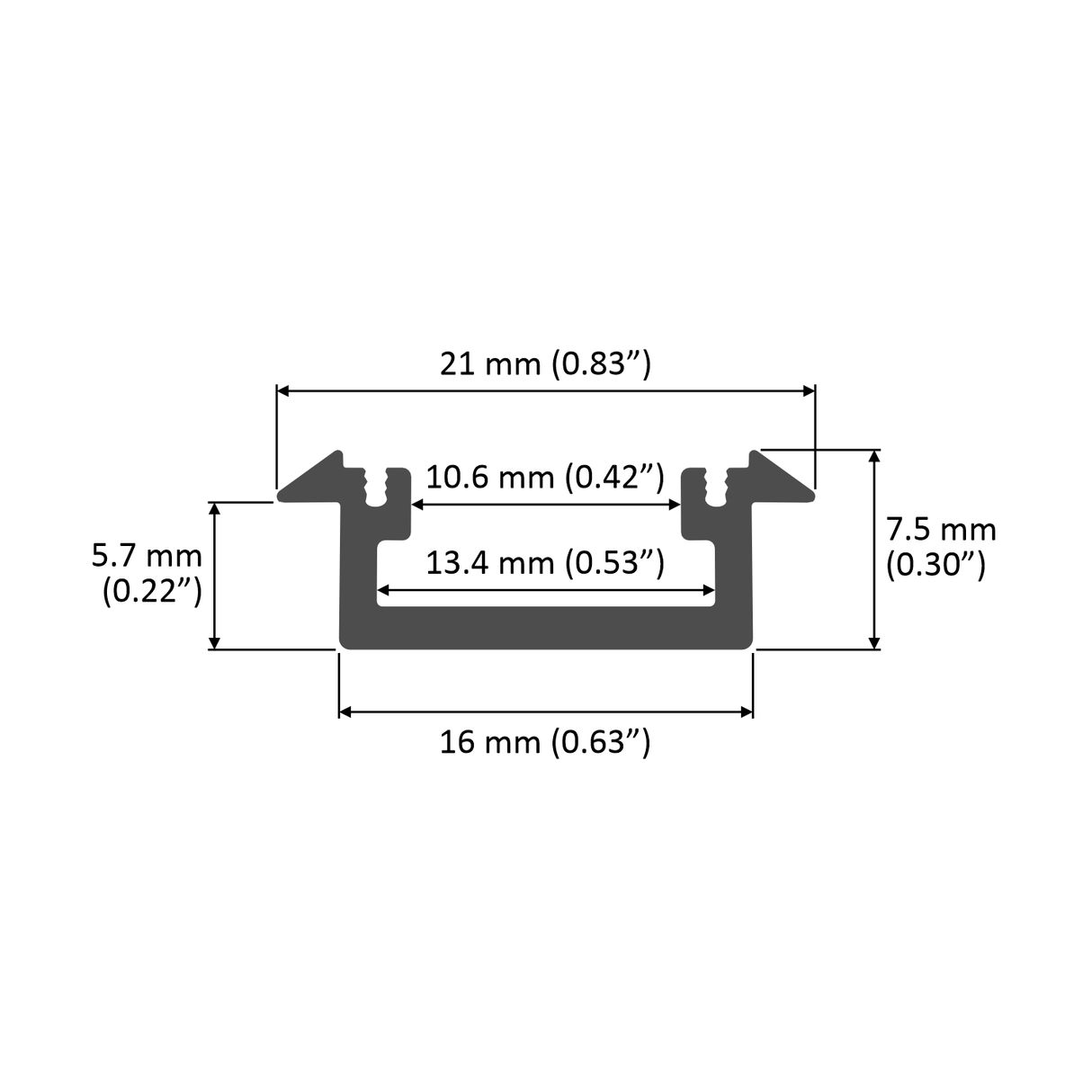

• Overall dimensions: 21mm x 7.5mm (0.83” x 0.30”)
• Maximum LED strip width: 12mm

Downloads

• Frankfurt cut sheet

Important notes

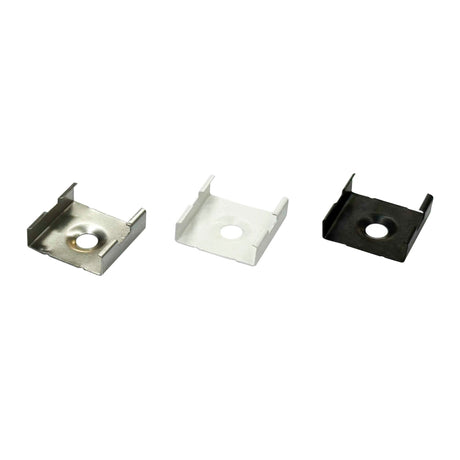

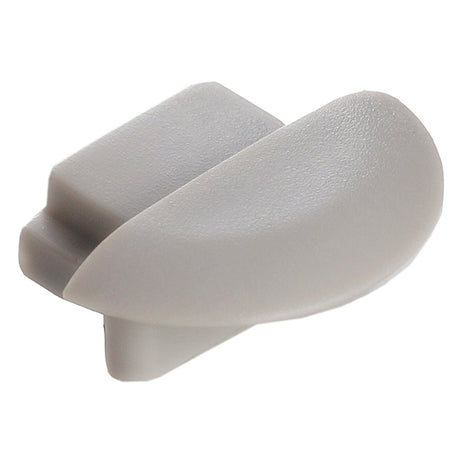

• LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
