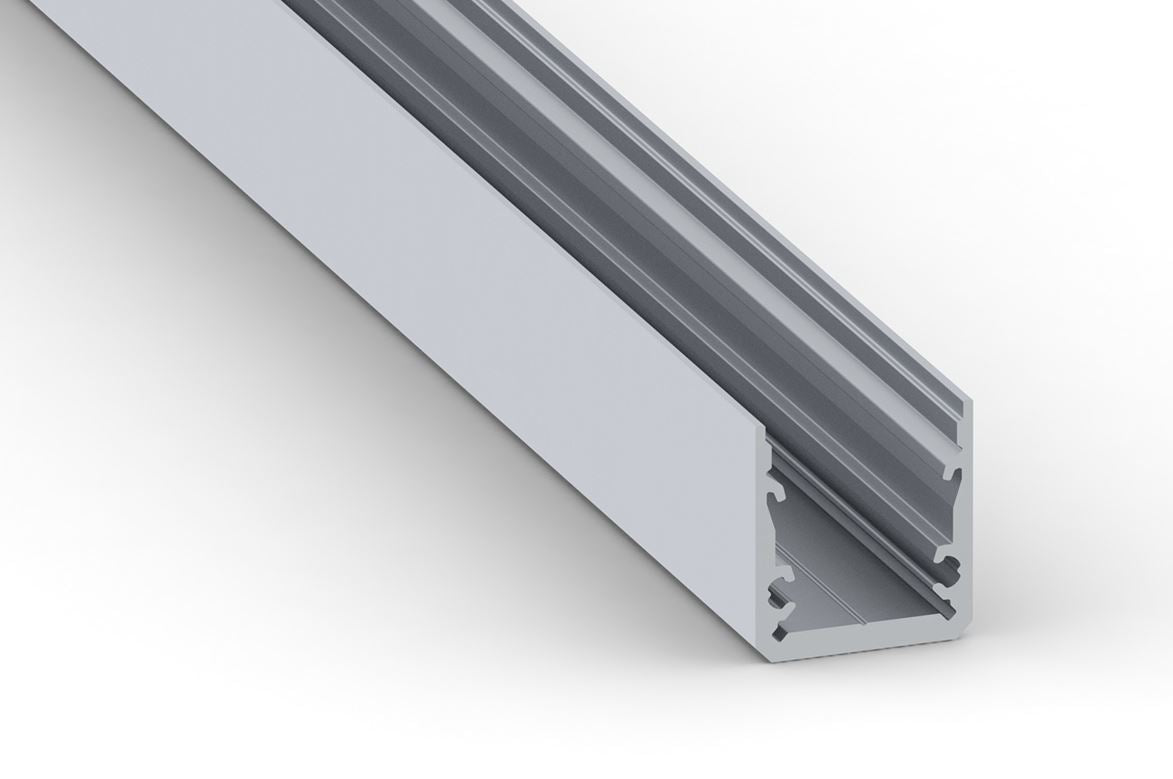

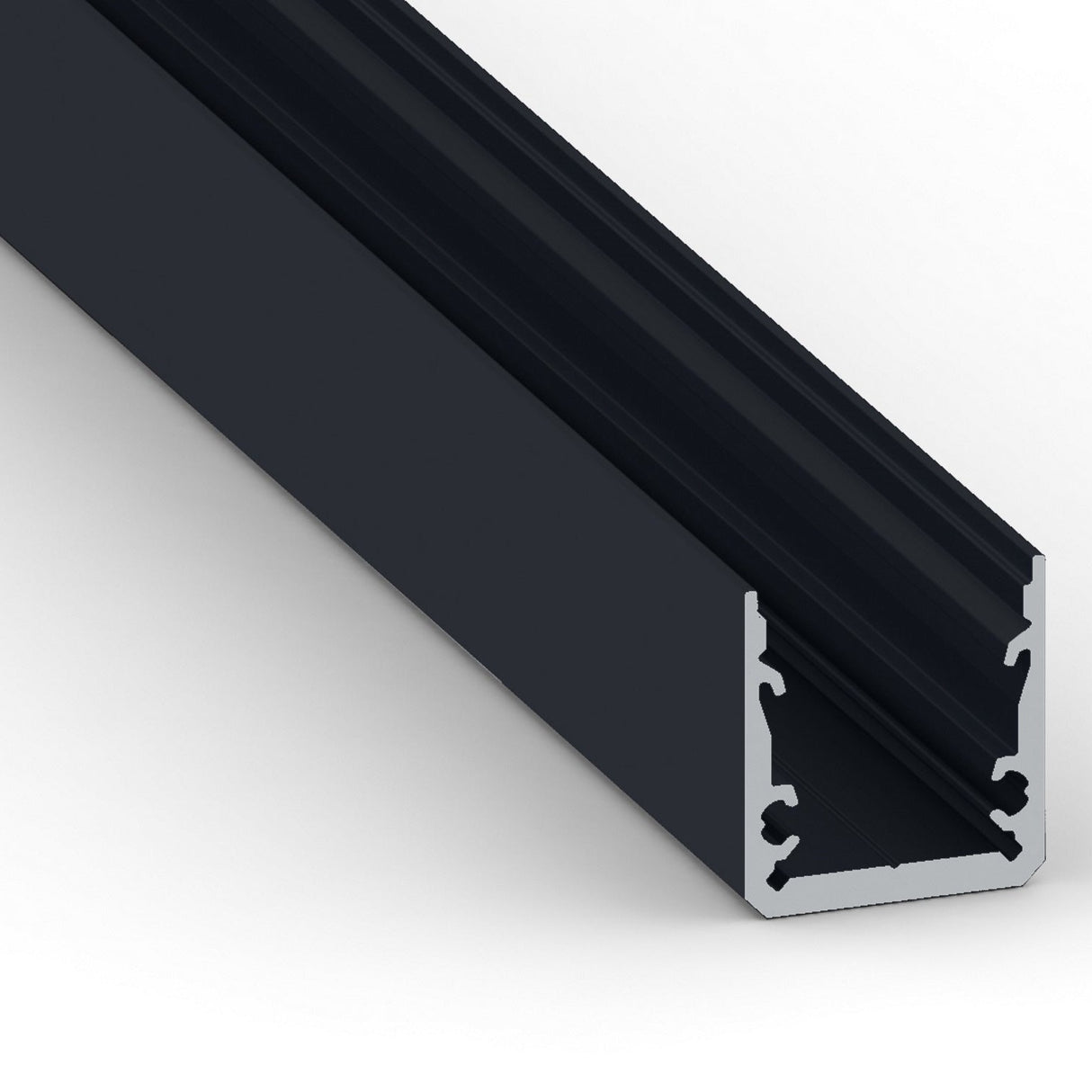

0.69" Slim Line LED Channel ~ Model SL15-FL

SKU LED-AL-SL15 FL-3
Original price - Original price
Original price
-
Current price
Shipping notes

Items over 2.4m (8ft) in length require LTL freight shipping which is more expensive than regular parcel service. Please refer to our Shipping Policy for further information.

Profile only ~ diffusers and all other accessories are sold separately

Description

The Slime Line 15 FL is a modified version of a well known, high quality SL15 profile. The design has been improved in order to meet higher requirements and provide best efficiency. It can be equipped with 15 degree focusing lens in order to create narrow line light.

This solution can be completed with polished aluminum reflectors providing high coefficient of reflectivity (<95%), capable of increasing light output up to 20%. In addition we offer two flat surface - walk over safe diffusers (clear and opal). Together with them comes an option to use micro-prismatic film which will slide into the clear/opal standard diffuser (UGR>19). The frosted diffuser has a 'LED dot free' effect and provides a soft, uniform light on the whole surface

General specifications

  • Material: Aluminum

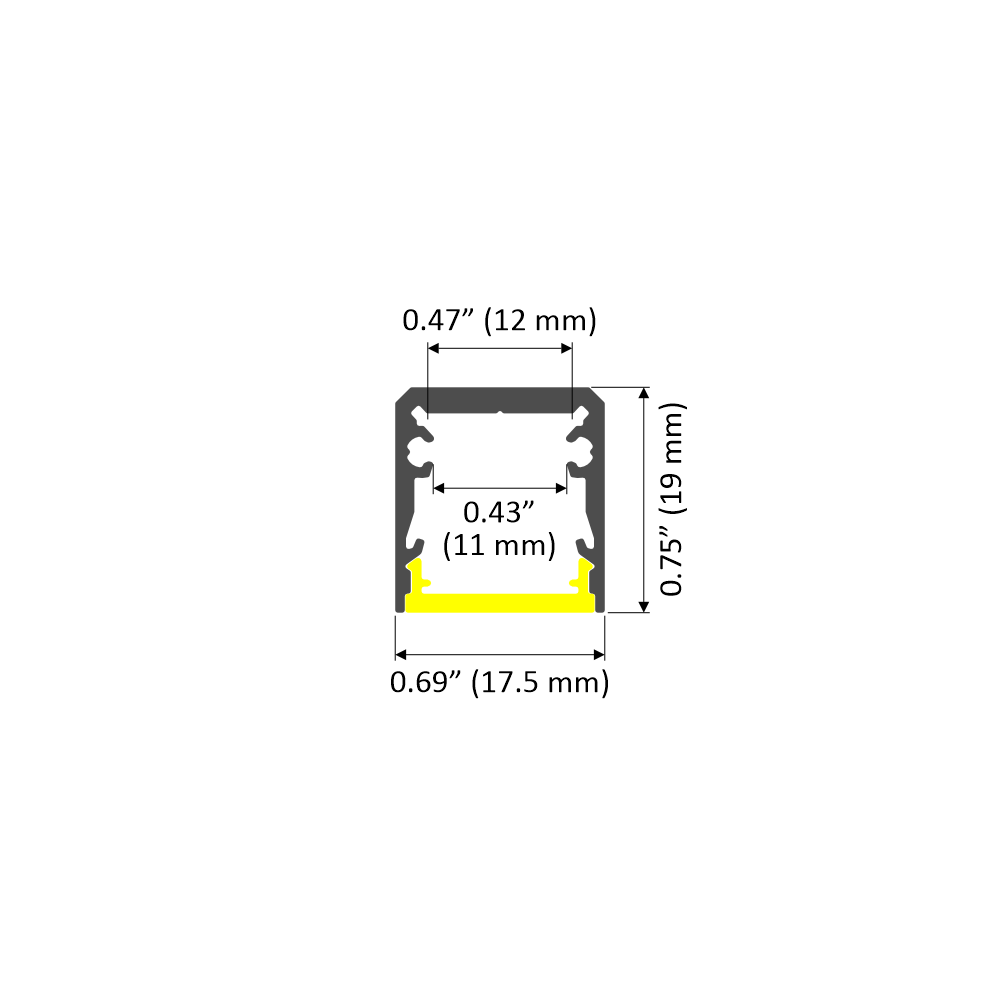

  • Overall dimensions: 17.5mm x 19mm (0.68" x 0.74")
  • Maximum LED strip width: 12mm

Downloads

Important notes

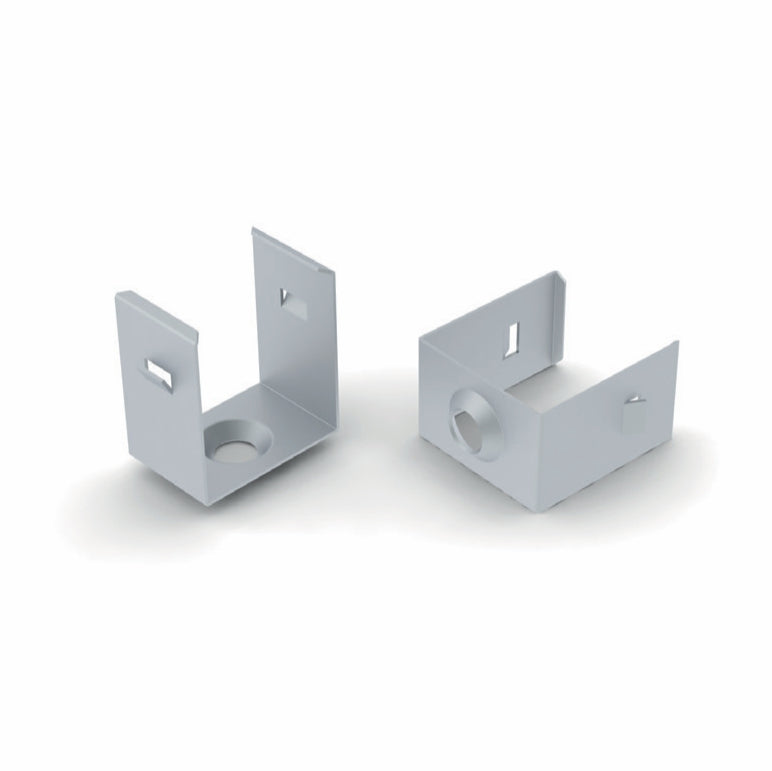

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request

Common search terms

Slim LED profile, LED aluminum channel, Aluminum profile for LED strip lighting, LED strip light channel, LED light channel

SL15-FL System
