5" Wi-Fi Touchscreen Smart Home Control Panel ~ controlPanelM by Blebox

Smart home control panel only ~ all other accessories are sold separately

Description

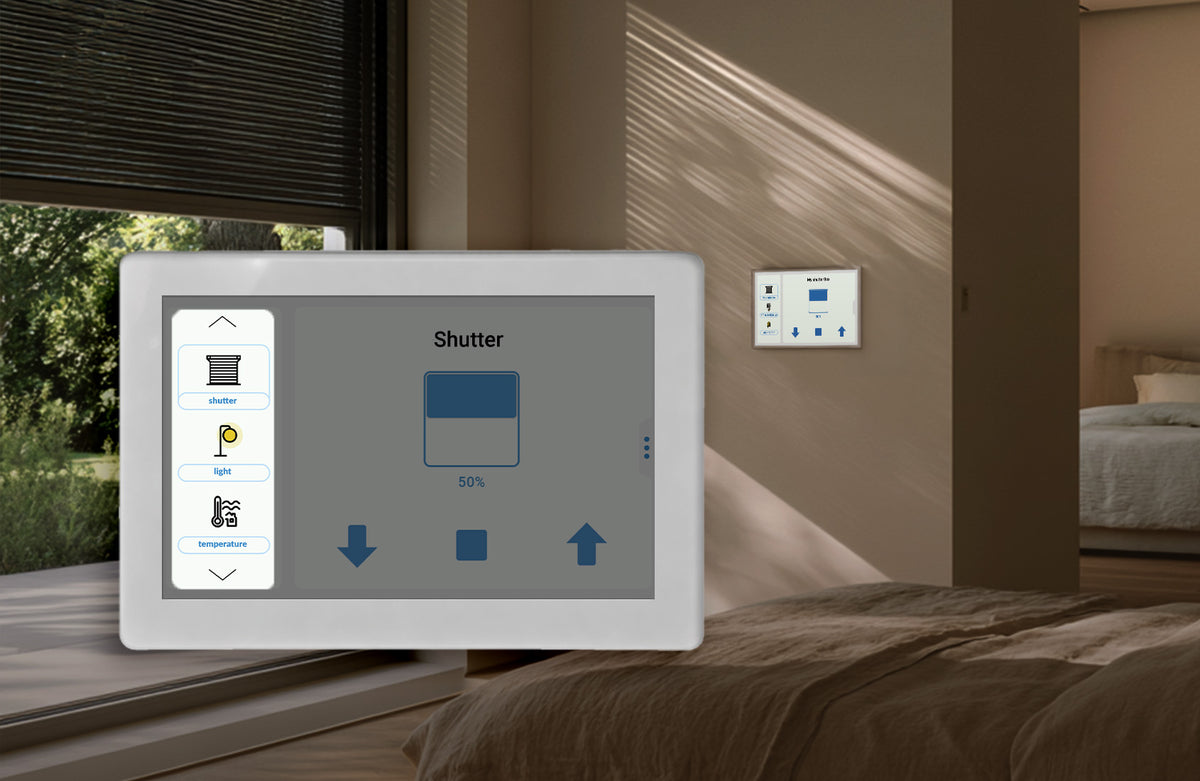

The controlPanelM is a 5-inch color IPS touchscreen panel with built-in WiFi that provides centralized control of compatible BleBox smart home devices. It supports up to 10 BleBox and BleBox inside controllers, allowing users to manage lighting, blinds, switches, sensors, and other connected devices through a customizable, easy-to-use interface. The IPS display offers wide viewing angles, while the capacitive touchscreen delivers smooth and responsive operation.

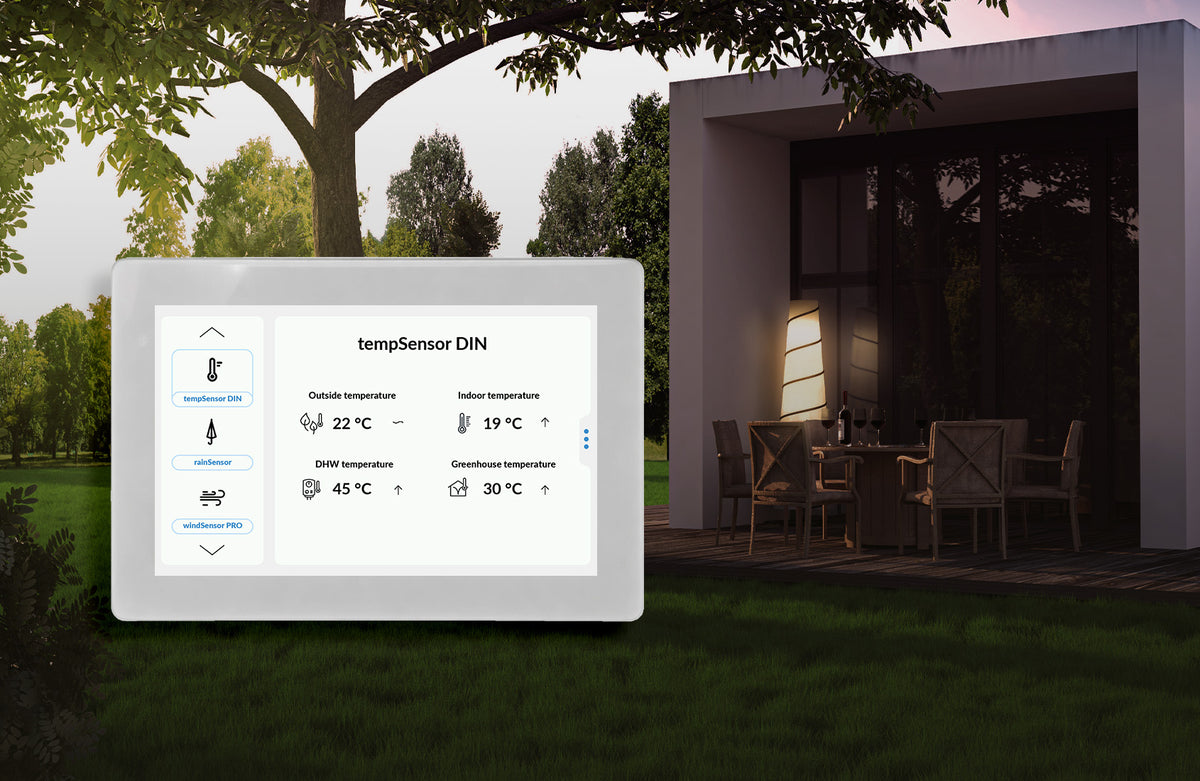

The smart panel communicates directly with devices over the local WiFi network without relying on cloud services, ensuring faster response times, reliable performance, and continued operation even without an internet connection. It can also function as an HMI display by monitoring compatible sensors, including temperature, humidity, air quality, sunlight, weather conditions, and the status of windows, doors, gates, and other connected devices.

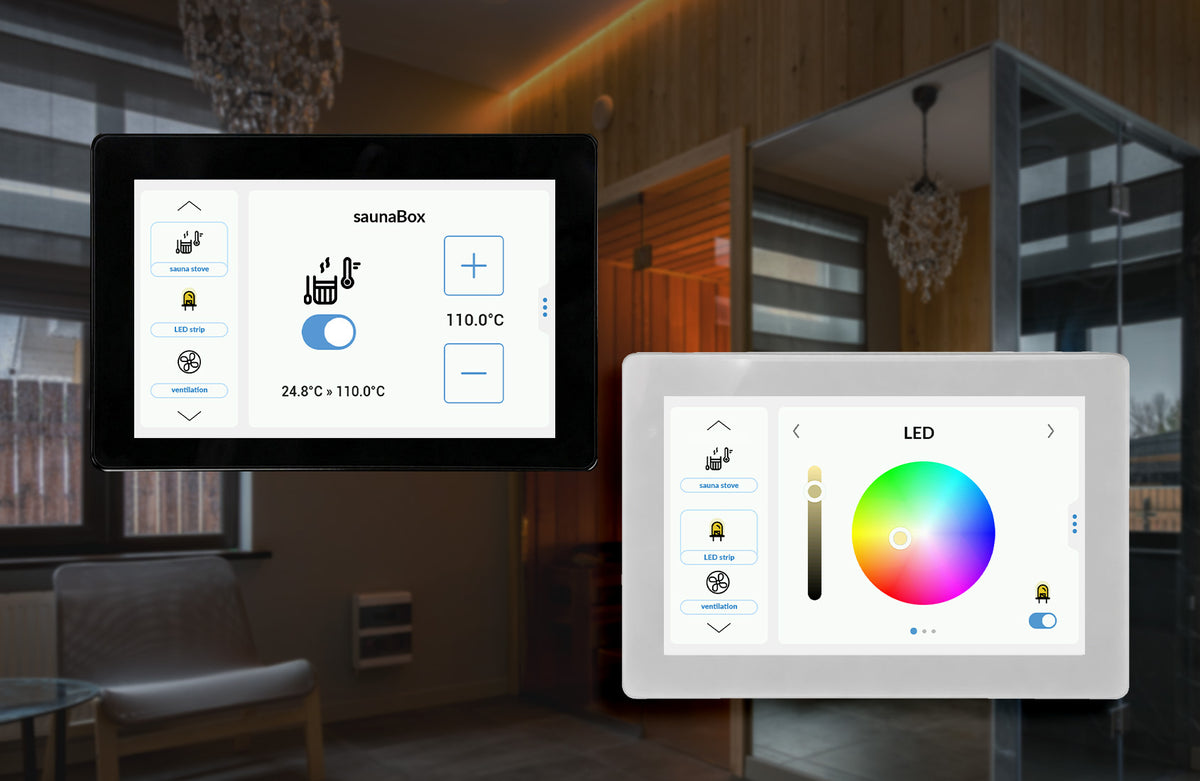

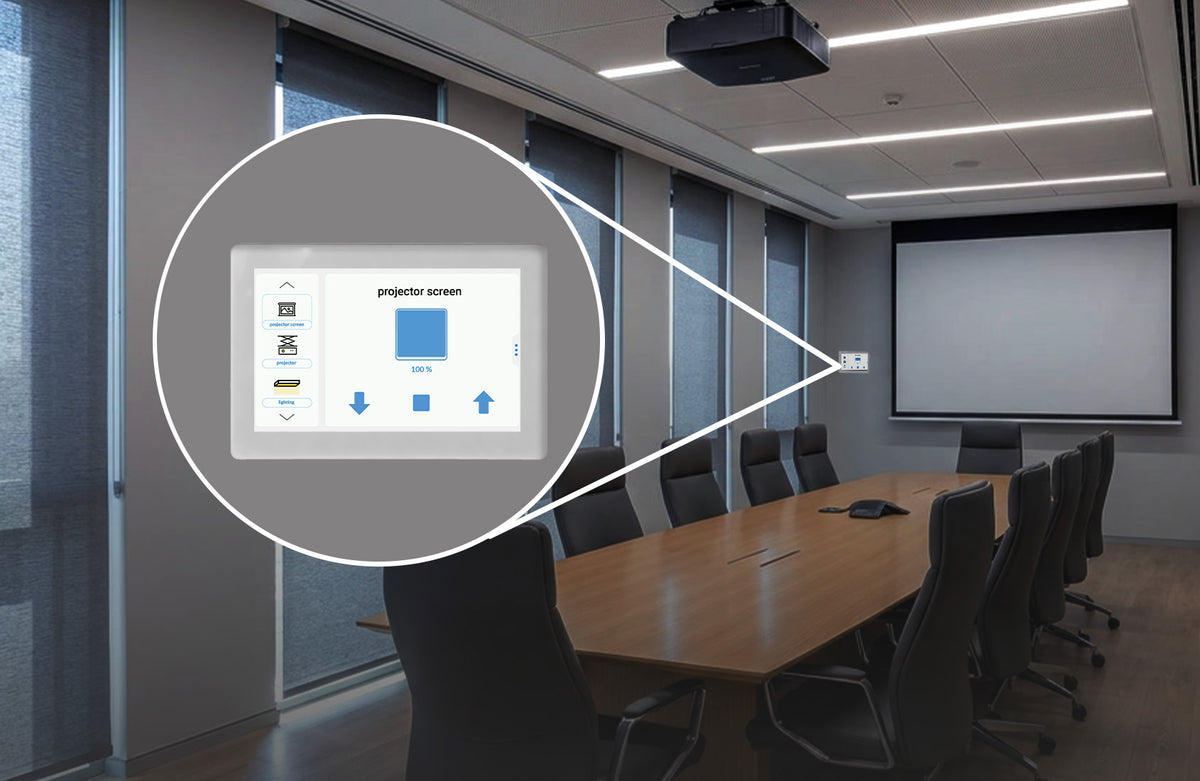

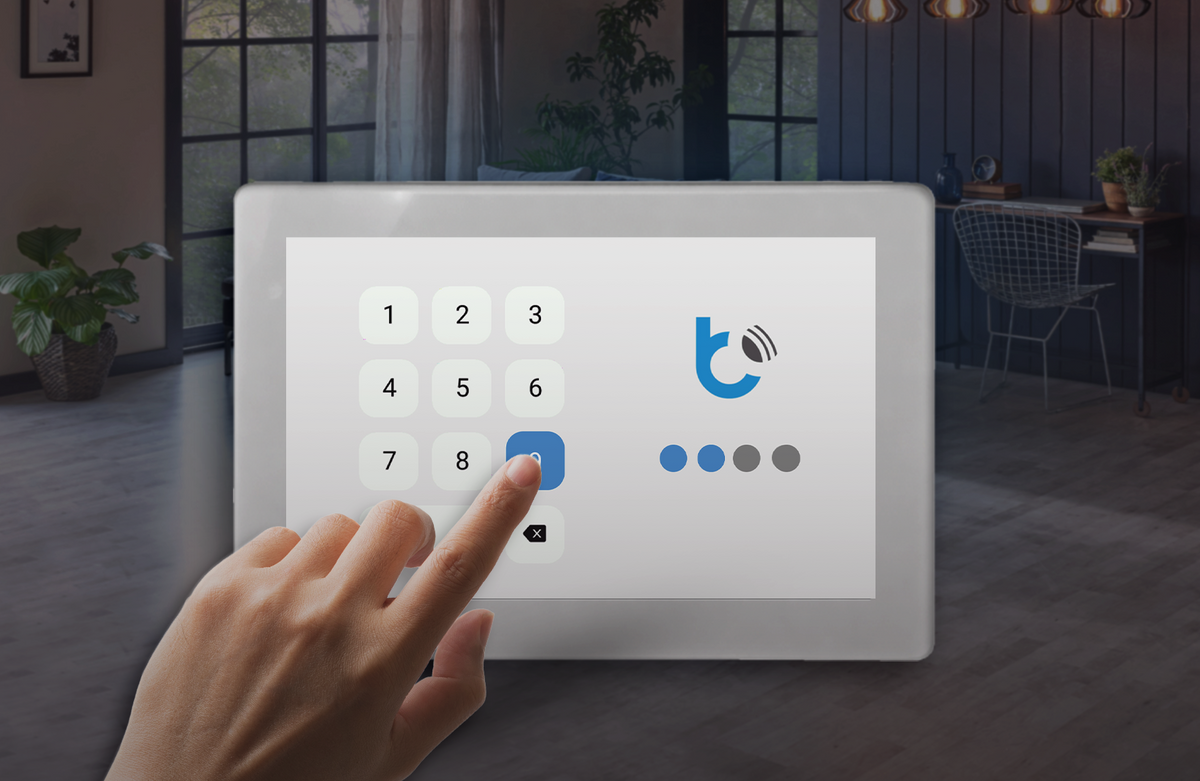

Designed for homes, offices, conference rooms, hotels, and wellness facilities, the controlPanelM replaces multiple wall switches with a single touchscreen for convenient control of lighting, blinds, projector screens, ventilation, sauna functions, and LED lighting. Audible and haptic feedback provide confirmation with every touch, while PIN code protection helps prevent unauthorized access in shared or public spaces.

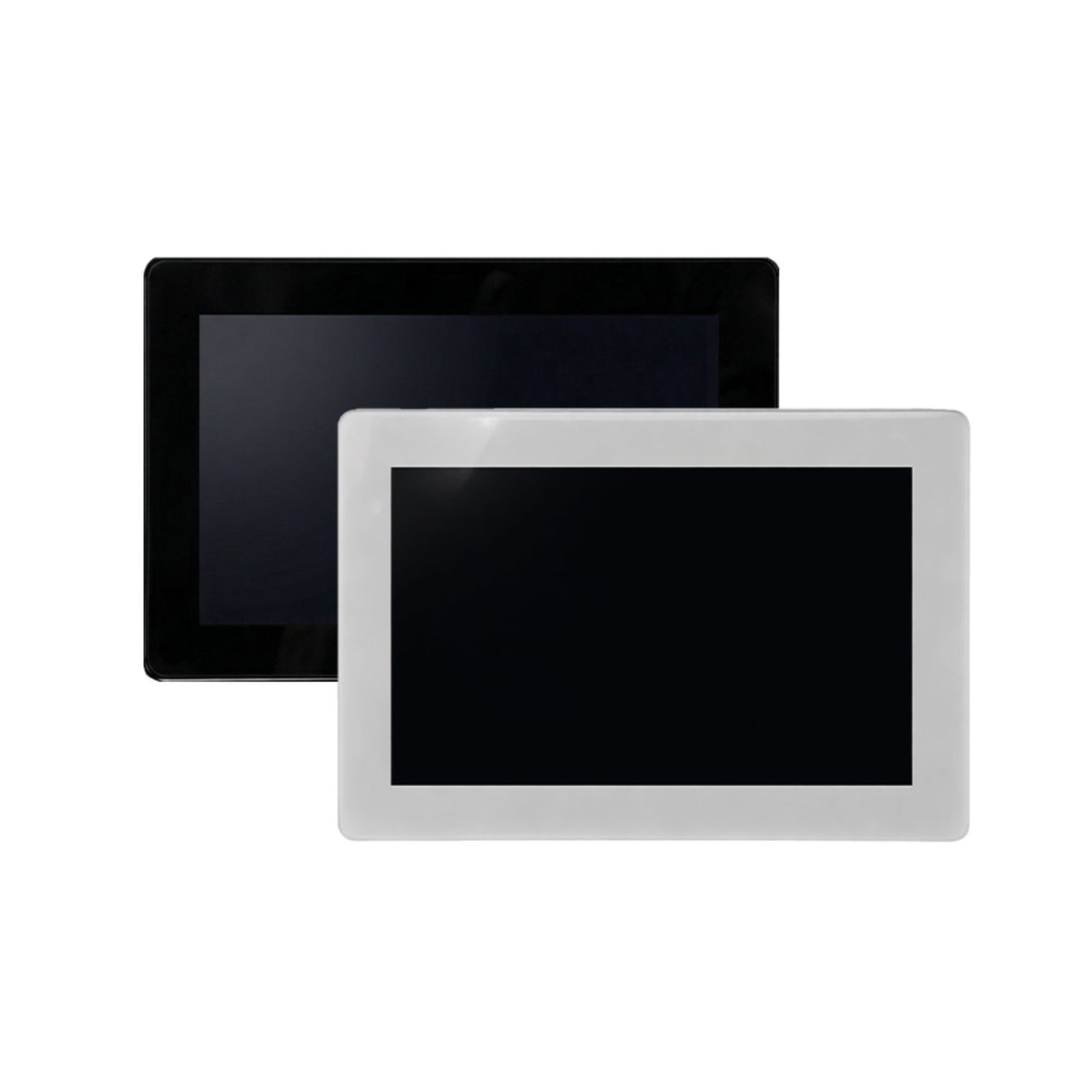

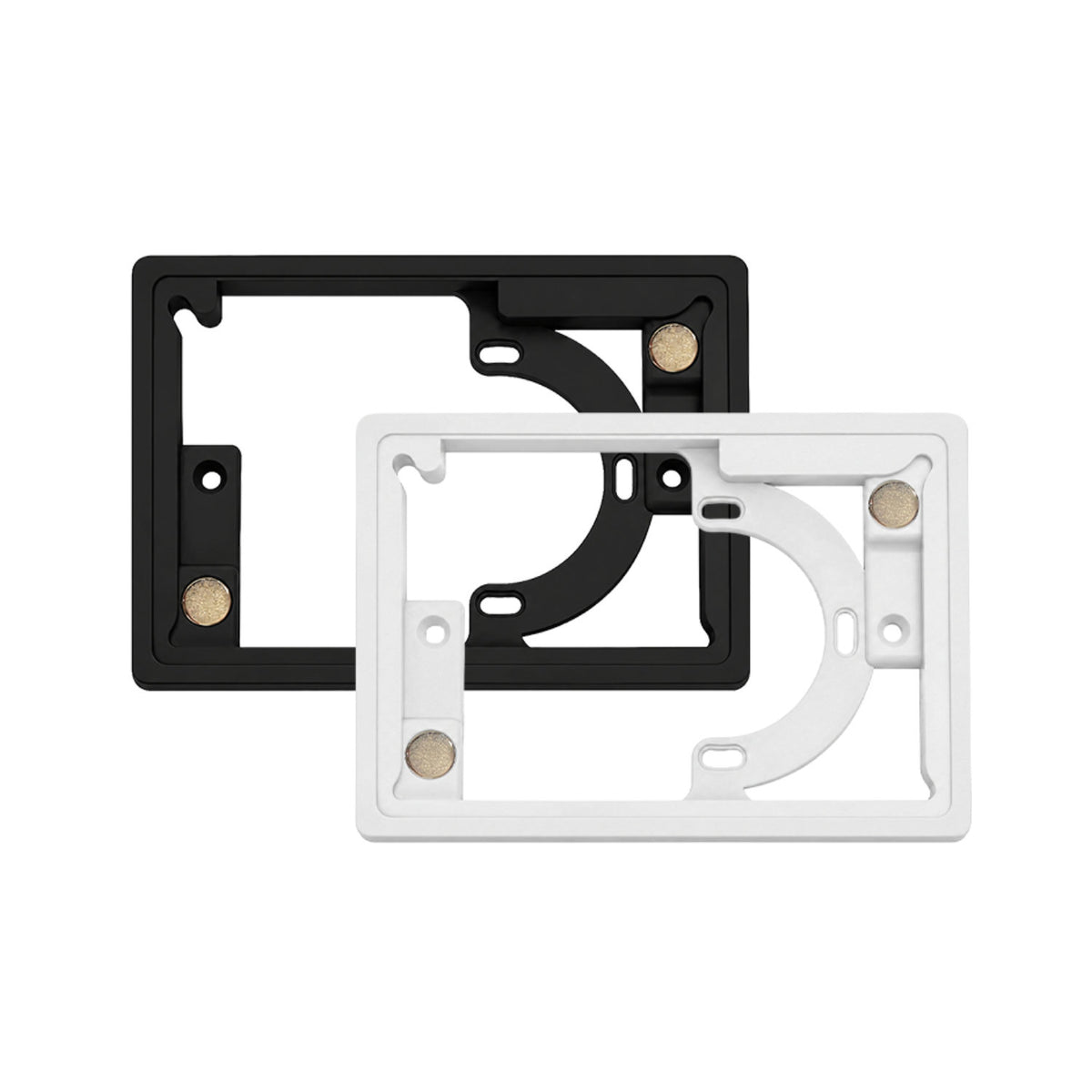

Available in black or white, the controlPanelM supports flush or surface mounting with the optional BleBox framePanelM accessory. Powered by a safe 12–24V DC supply, it is suitable for FELV, PELV, and SELV installations, making it a reliable WiFi smart home touchscreen panel for residential and commercial automation systems.

General specifications

• Supply voltage: 12 - 24V DC
• Power consumption in idle mode: < 1W
• Maximum energy consumption: < 4W
• Protection type: Short circuit, reverse polarity
• Power connection: Integrated cables 2 x 0.5 mm², 15 cm long
• Screen size: 5" (127mm)
• Resolution: 800 x 480 pixels
• Matrix type: IPS (glossy coating)
• Panel type: Capacitive, multi-touch
• Brightness: Manually adjustable
• Screen saver: Automatic dimming; configurable time
• Screen lock: Automatic or manual; unlocked with a configurable PIN; can be disabled
• Touch signal: Haptic (vibrations when touched) and sound (built-in buzzer)
• Mounting method: Flush/recessed installation - the screen is glued into the mounting hole using integrated self-adhesive tape
• Protection rating: IP20
• Controller operating temperature: from 0°C to +40°C (32°F to 104°F)
• Maximum number of supported BleBox devices: 10
• Radio frequency: 2.4 GHz
• Transmission type: Bi-directional, encrypted
• Dimensions: 134 x 90 x 12mm (5.28” × 3.54” × 0.47”)

Downloads

• controlPanelM cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
