Wall Mount Frame for controlPanelM Screen ~ framePanelM by Blebox

Wall mount frame only ~ all other components are sold separately

Description

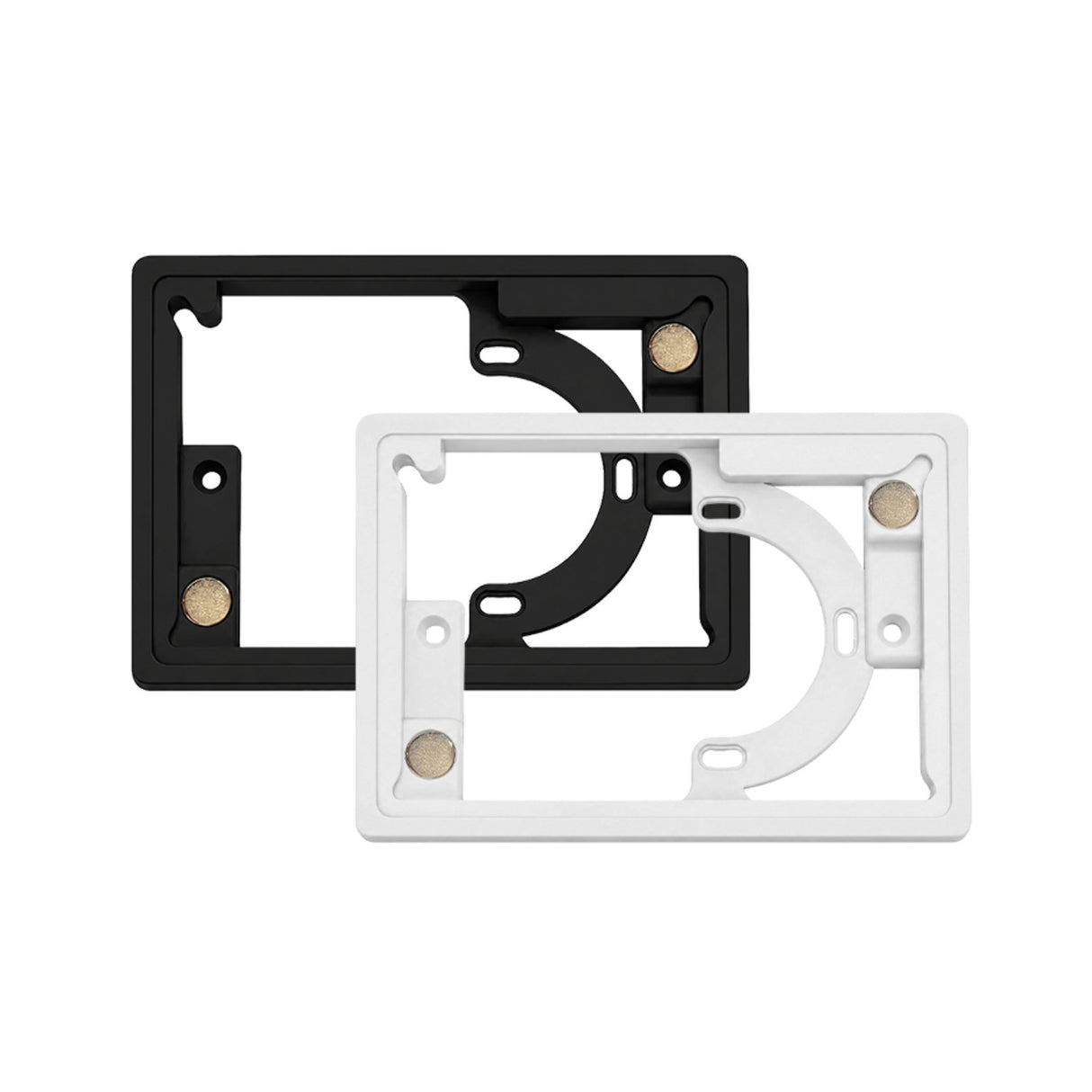

The framePanelM is a wall-mount frame designed specifically for the BleBox controlPanelM WiFi touchscreen. It enables quick, tool-free screen attachment using two strong neodymium magnets and includes a suction cup for easy removal when servicing is needed.

The frame supports surface mounting to a standard Ø60 mm electrical box or direct wall mounting, making it suitable for a wide range of installations. It provides space for a 12–24V DC power supply when mounted to an electrical box and can also be securely installed on concrete, brick, plaster, wood, and other solid surfaces using standard wall plugs or screws.

The frame helps protect the controlPanelM by shielding the glass edges from accidental impacts and everyday wear. Available in black and white, it offers a clean, professional finish and its compact size allows neat installation alongside existing switches and outlets.

General specifications

• Material: High-quality photopolymer material, coated with a decorative protective matte paint finish
• Compatible with: controlPanelM
• Screen attachment method: Magnetic, tool less mounting system – two strong neodymium magnets (Ø 12 mm) factory-bonded in diagonally opposite corners of the frame
• Mounting method:
  • On an electrical box: via 3 through-holes Ø 4mm, arranged on a circle in accordance with the standard Ø 60 mm flush-mounted box (60mm screw spacing)
  • Directly on the wall: via 2 through-holes Ø 4mm, located on the inner side of the shorter edges of the frame (hole spacing 109.50mm)
• Protection rating: IP20
• Controller operating temperature: from 0°C to +40°C (32°F to 104°F)
• Overall dimensions: 144 x 101 x 13mm (5.67” × 3.98” × 0.51”)
