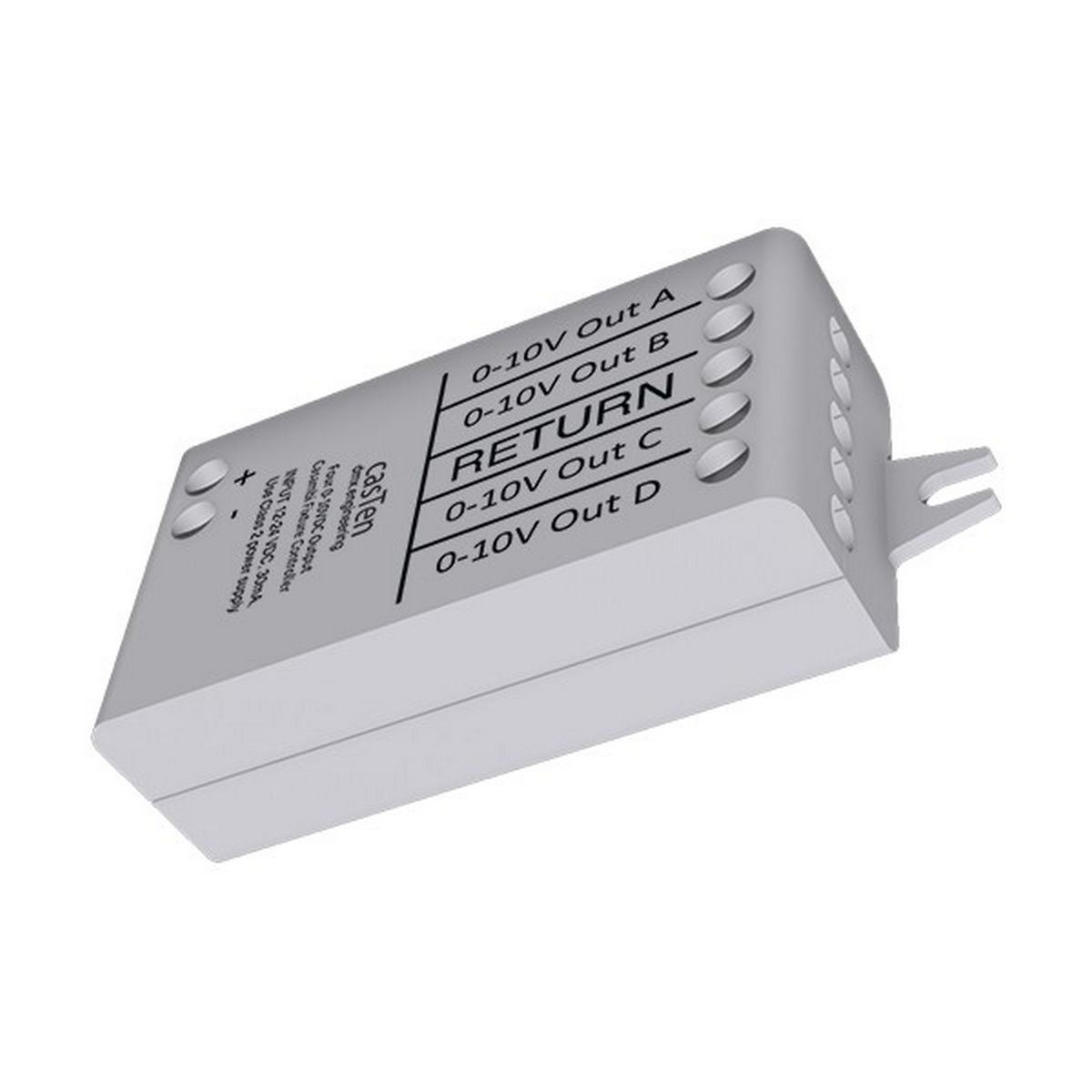

Casambi-enabled Bluetooth 4-Channel 0-10V Controller ~ Model casTen

Casambi Bluetooth Controller only ~ LEDs and all other accessories are sold separately

Description

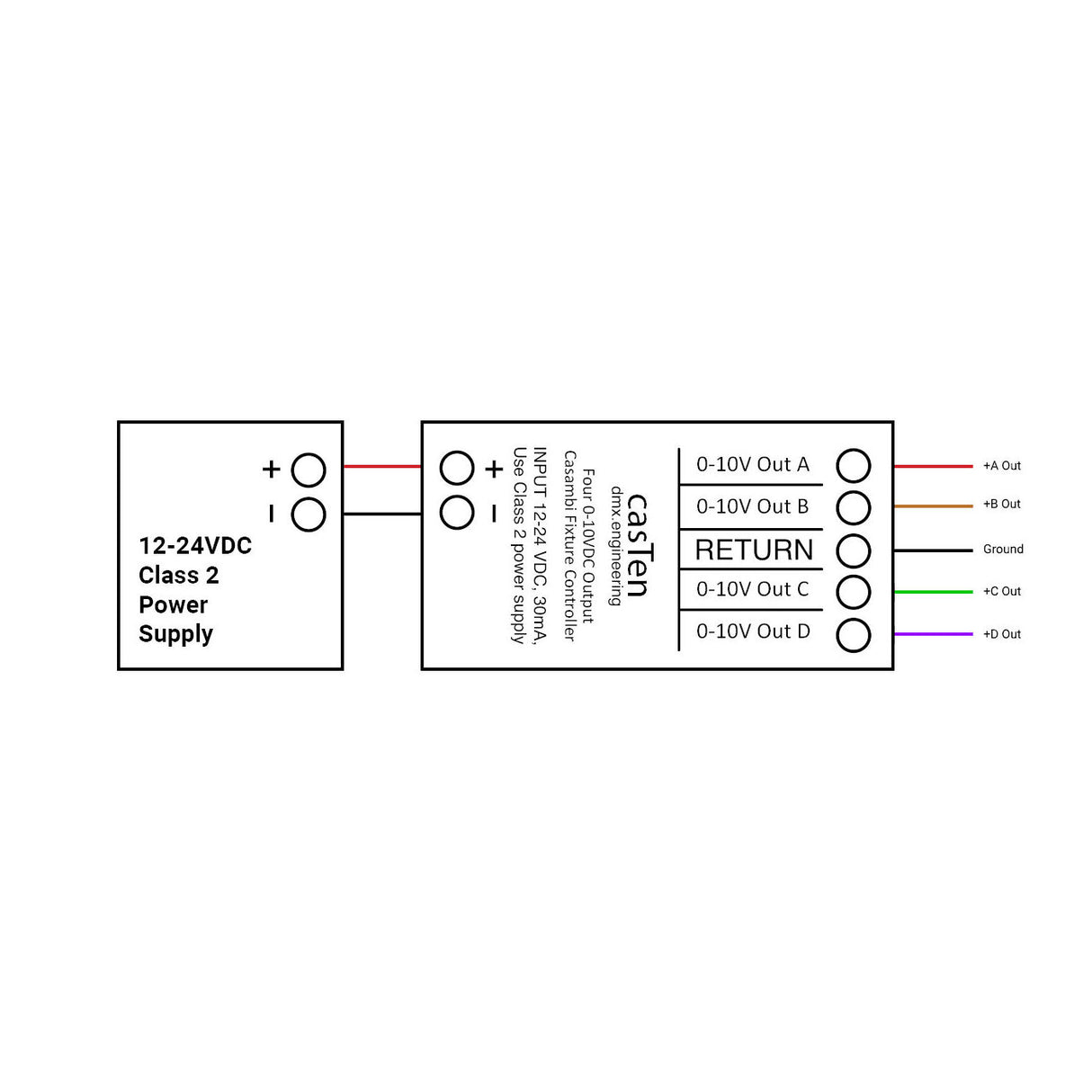

The casTen is a Casambi-enabled, Bluetooth-controlled 4-channel master dimmer, designed to manage multiple lighting zones or fixtures within the Casambi lighting control ecosystem.. It drives up to 20mA per channel to 0-10V DC analog lighting devices and fixtures, making it an ideal choice for RGBW and tunable white (TW) applications. This smart LED controller connects seamlessly between a 12-24V DC Class 2 power supply and provides a non-isolated, common ground across the input and all four outputs.

Designed for flexibility, the casTen LED controller supports up to four analog lighting channels and offers profiles for standard Casambi color pickers and CCT color tuning controls. The Casambi app, available on both the Apple App Store and Google Play Store, enables easy operation, from controlling a single luminaire to managing up to 127 units in an intelligent mesh network.

General specifications

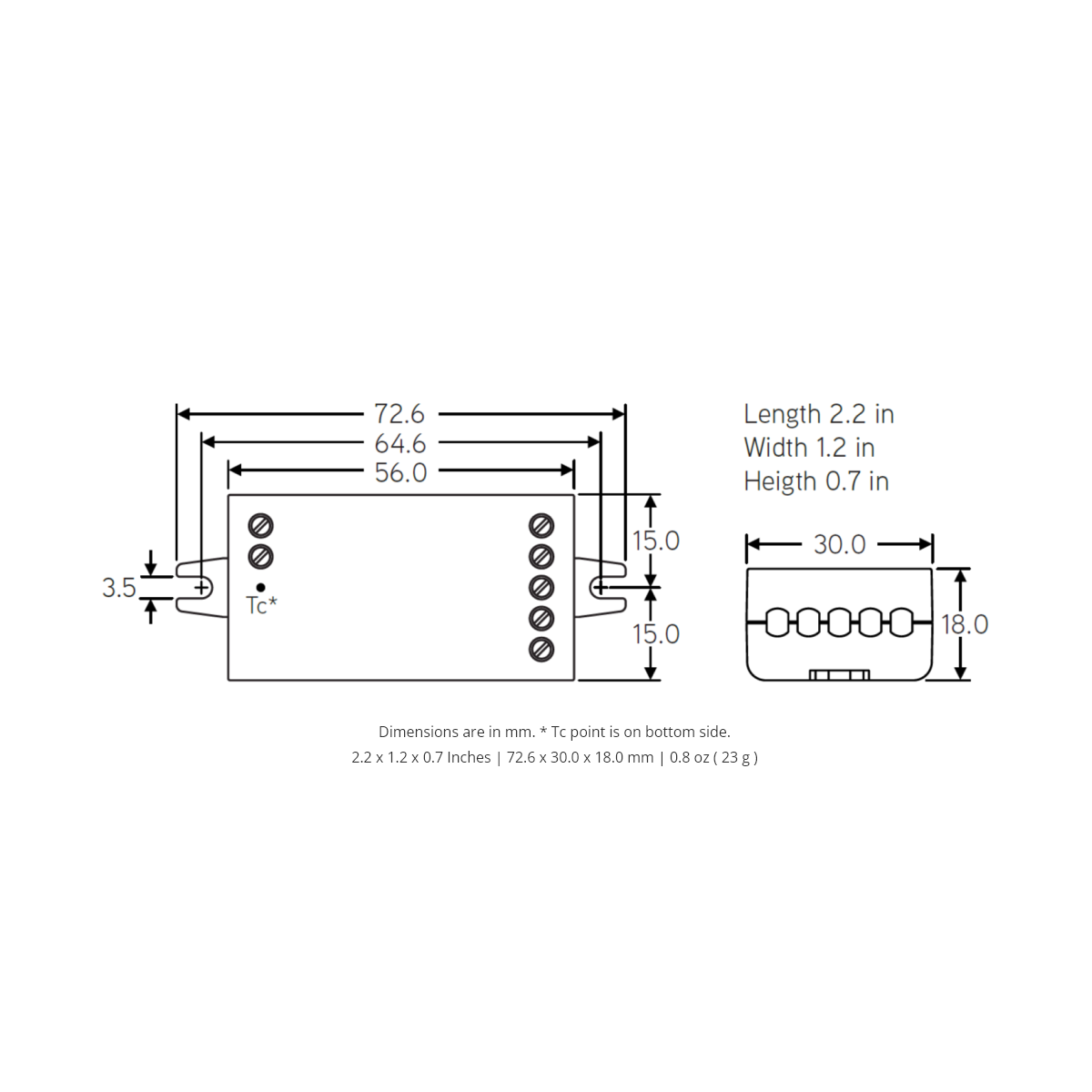

• Dimensions: 72.6 x 30 x 18.0mm (2.2” x 1.2” x 0.7”)
• Channels: 4
• Input voltage: 12-24 V DC, Class 2
• No-load input current: 30 mA
• Casambi CCT and color picker widgets
• Radio transceiver
  • Operating frequencies: 2.401-2.483 Ghz
  • Maximum output power: typ. +0 dBm, +/-3dBm
• Connectors
  • Wire range, solid & stranded: 0.5 – 1.5 mm2
  • 14 – 22 AWG
  • Wire strip length: .25” (6 – 7 mm)
  • Tightening force: 0.4 Nm / 2.6 Lb-in
• Ambient temperature: -25 ~ +45°C (-13 ~ +113°F)
• Storage temperature: -25 ~ +75°C (-13 ~ +167°F )

Downloads

• casTen cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
