Dual Channel 0-10V Dimmer for CCT Lights ~ Zero System

wall switch and/or driver only ~ all other components are excluded

Description

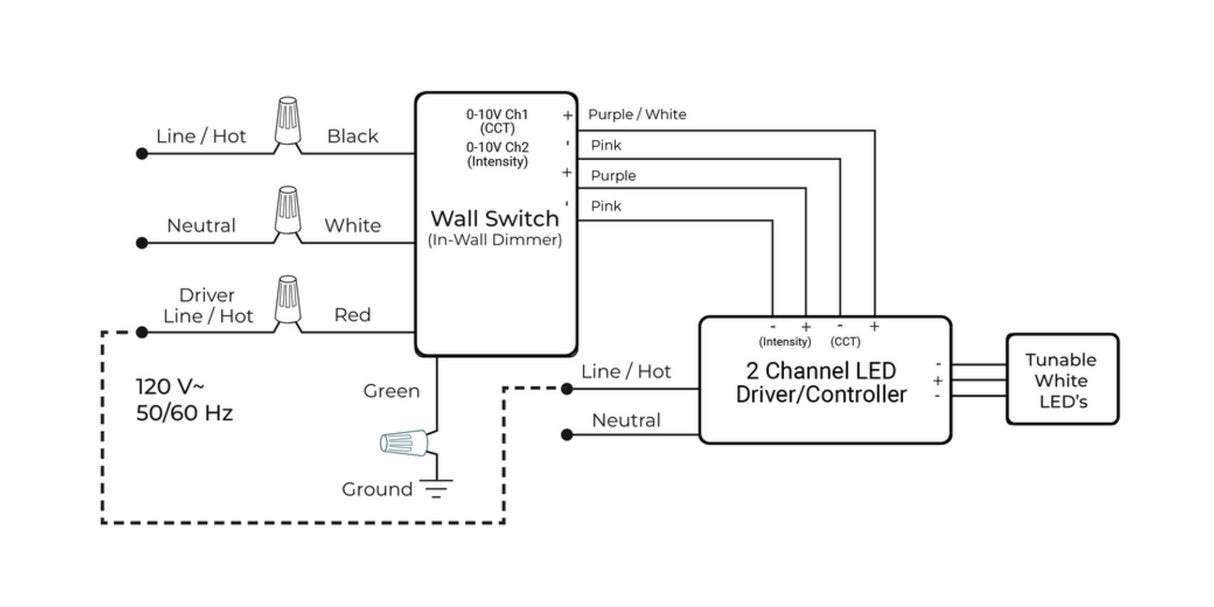

The system offers a ZeroTone dual-channel dimmer wall switch with a switched mains output and two 0-10V dimming output channels. The complementary ZeroDrive LED driver in this system is a 90W dual-channel dimming power supply with 0-10V control inputs. This system is ideal for tunable-white (CCT) LED strips.

In addition to direct control via the color-temperature and dimming sliders on the wall-switch, this system can also be controlled remotely using the Smart Life app.

While the dimming wall switch and 0-10V control LED driver are offered as a system, these components can be purchased separately for integration with other 0-10V control systems if necessary.

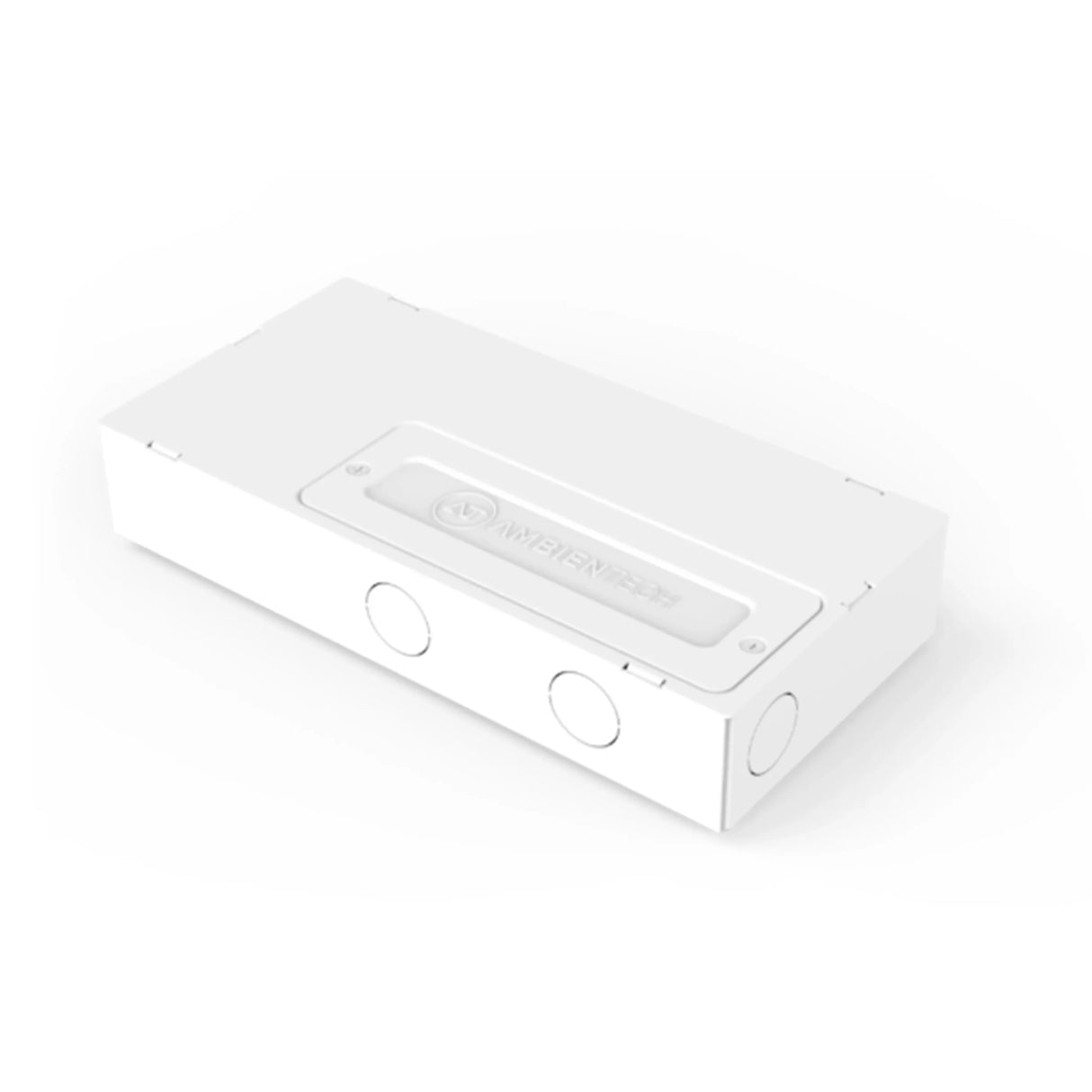

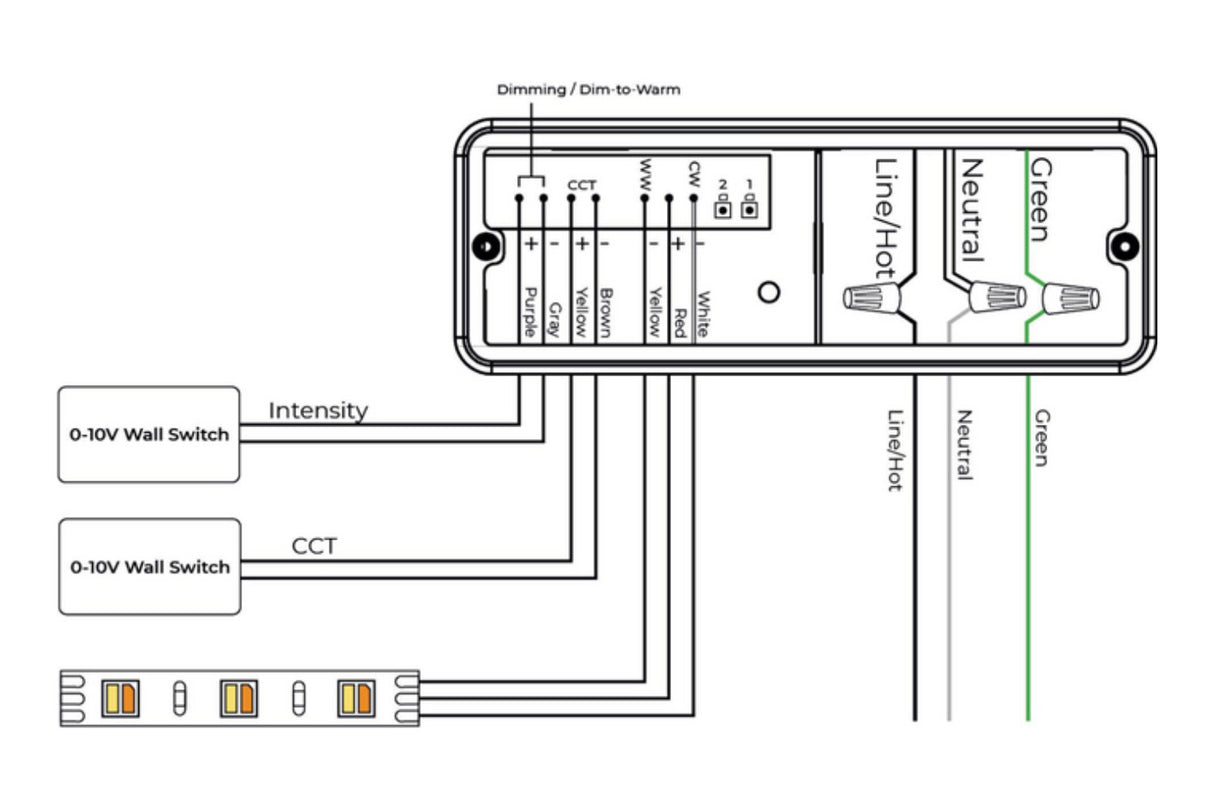

The UL Class 2 LED driver in this system includes a wiring compartment with knockouts for easy and safe wiring, making installation a simple task. This dual-channel power supply can be configured for regular dimming as well as dim-to-warm and tunable-white installations.

General specification

• Kit Contents (optional)
  • 1x ZeroTone dual-channel wall switch
  • 1x ZeroDrive dual-channel LED driver

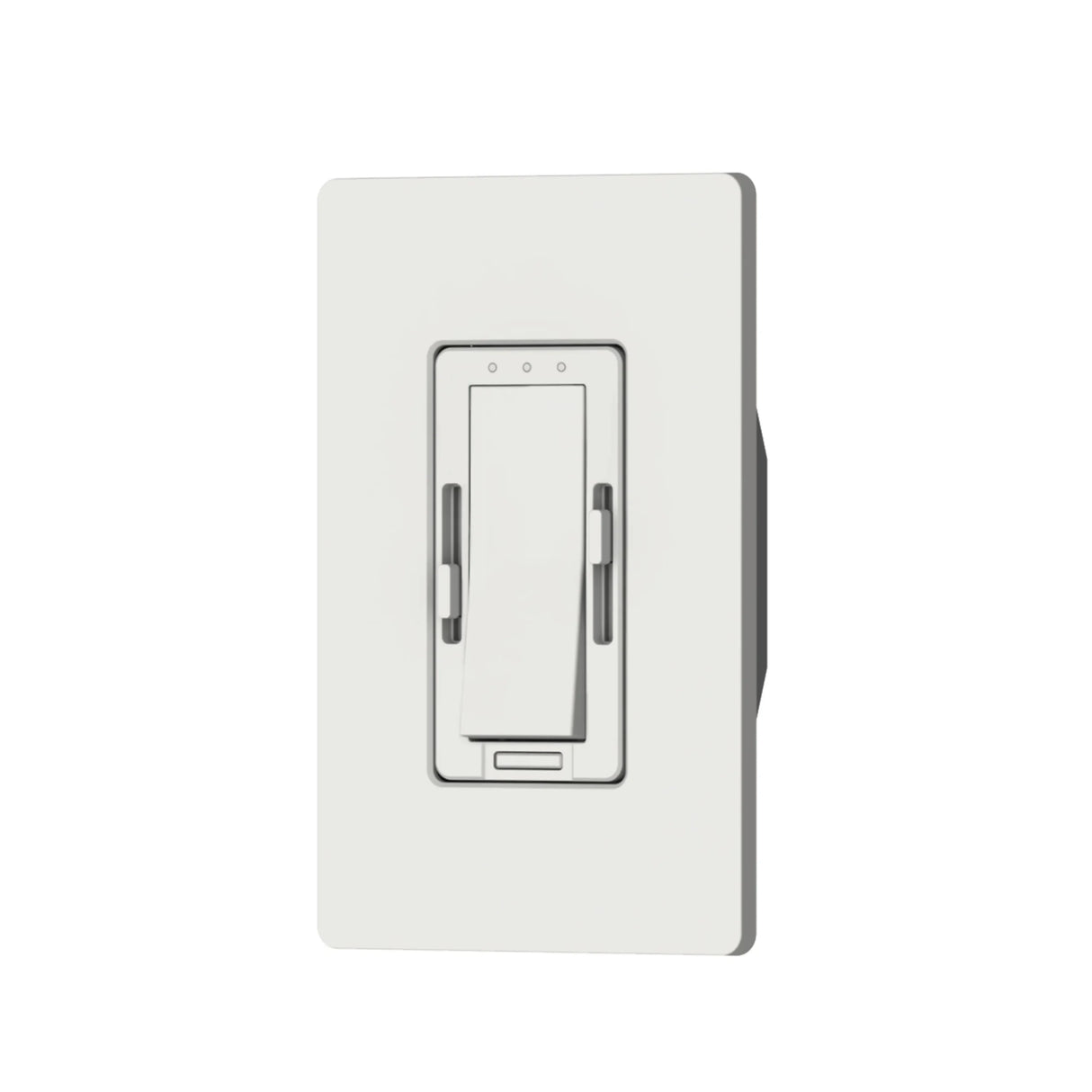

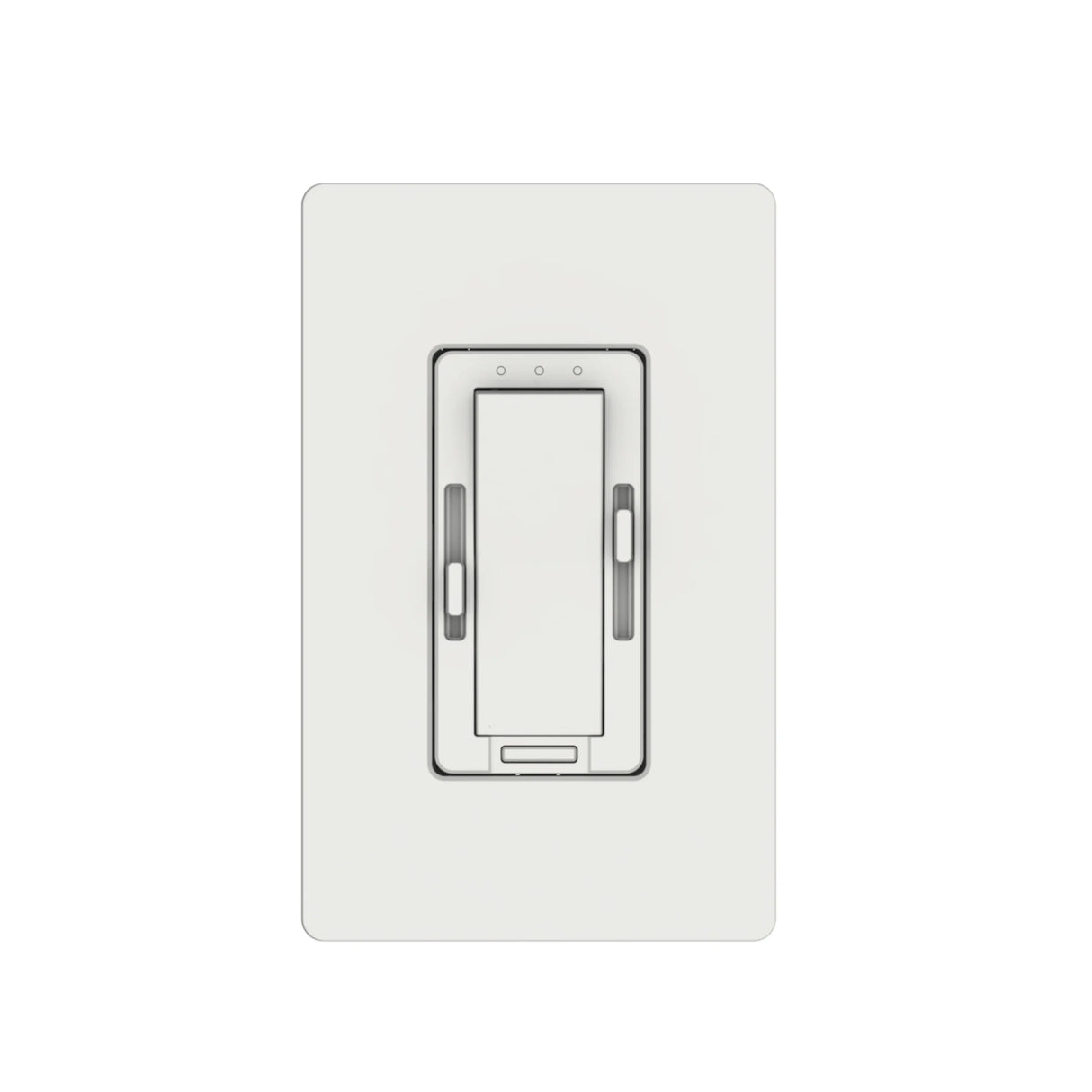

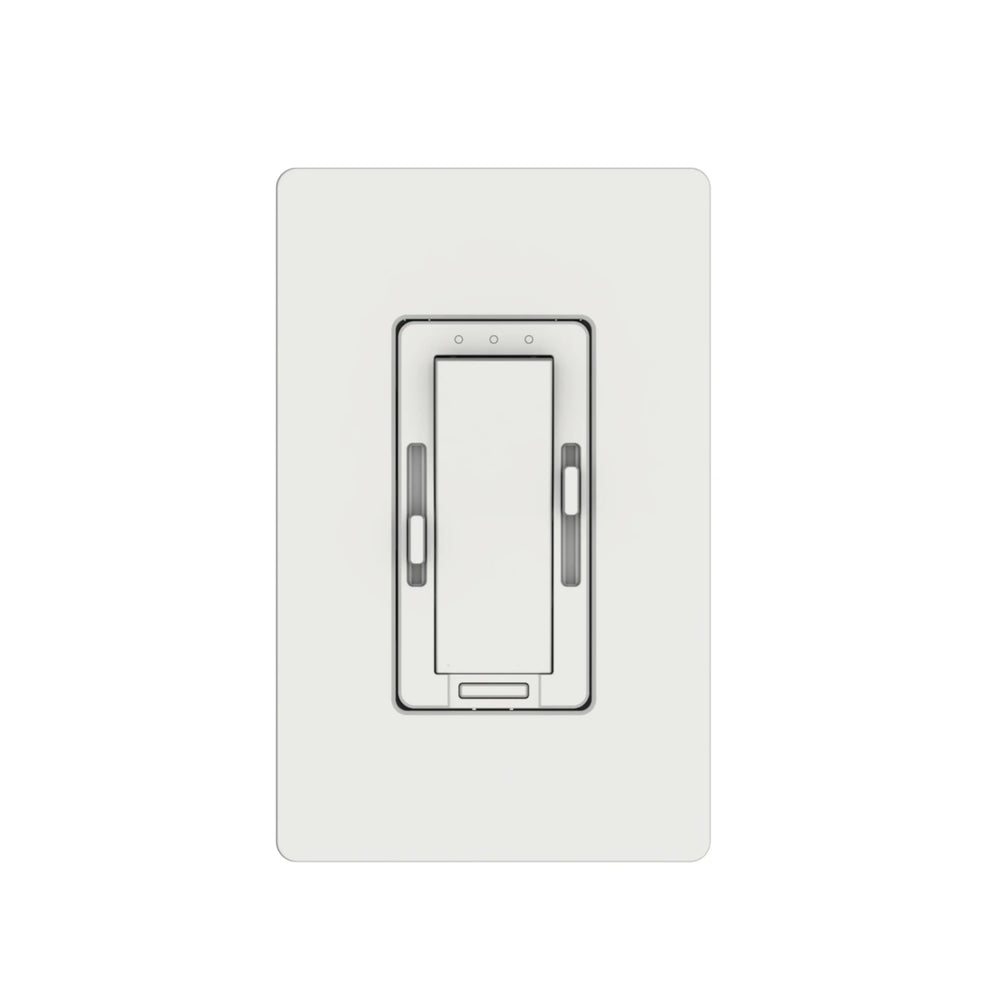

• ZeroTone wall switch
  • Model: ZEROX2-NSW
  • Switched output: 1x 110 VAC 500W max
  • Control outputs: 2-ch, 0-10V
  • Control type: 0-10V source/sink
  • Dimming curve: Linear
  • Certifications: UL Listed UL1472, FCC Class B Part 15

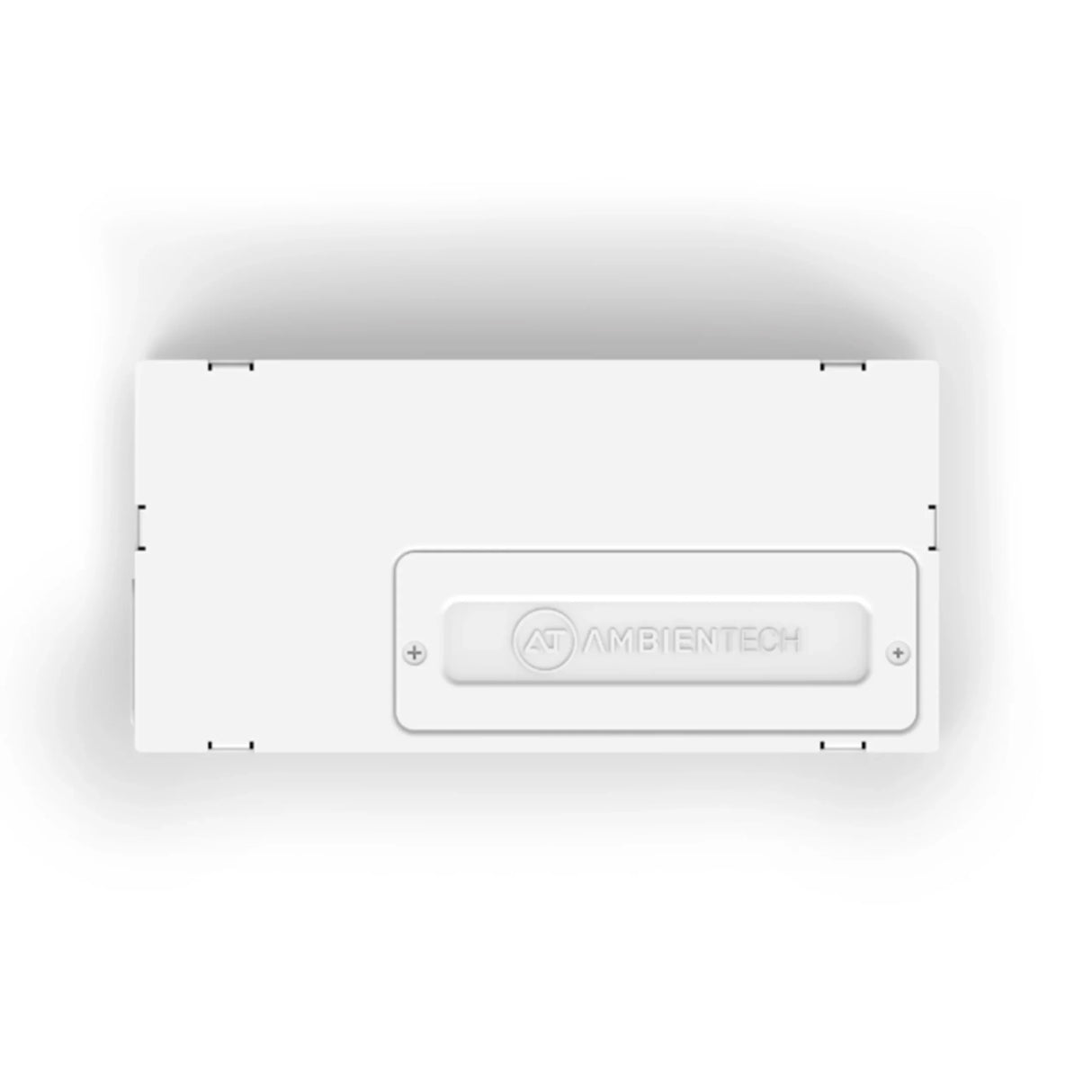

• ZeroDrive LED driver
  • Model: DT-24V-90W-N
  • Input voltage: 120-277 VAC
  • Output voltage: 24V DC
  • Max load: 90W (3.75A)
  • Power factor: PF > 0.96
  • Control input: 2-ch 0-10V
  • Dimming range: 100-0.1% with dim-to-off
  • Dimming method: PWM (2400Hz)
  • Certifications: UL Listed Class 2
  • Compliance: IEEE and Title 24 Flicker Requirements
• Operating Temp: -30°C - +40°C (-86°F- +104°F)

Downloads

• ZeroDrive cut sheet
• ZeroTone cut sheet
• ZeroTone installation instructions
