45 Degree Corner LED Channel ~ Model ALU-45 [Profile Only]

SKU LED-AL-D2-3
Original price - Original price
Original price
-
Current price
Shipping notes

Items over 2.4m (8ft) in length require LTL freight shipping which is more expensive than regular parcel service. Please refer to our Shipping Policy for further information.

Profile only - Accessories sold separately

Description

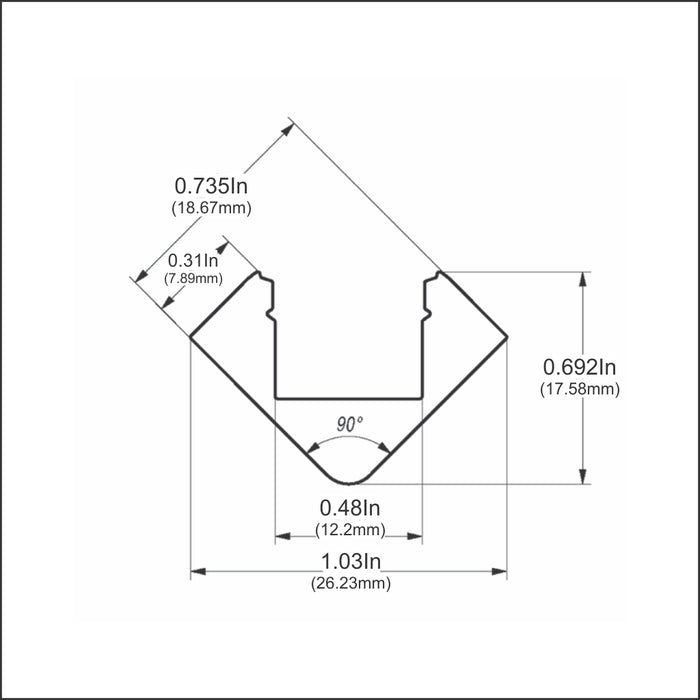

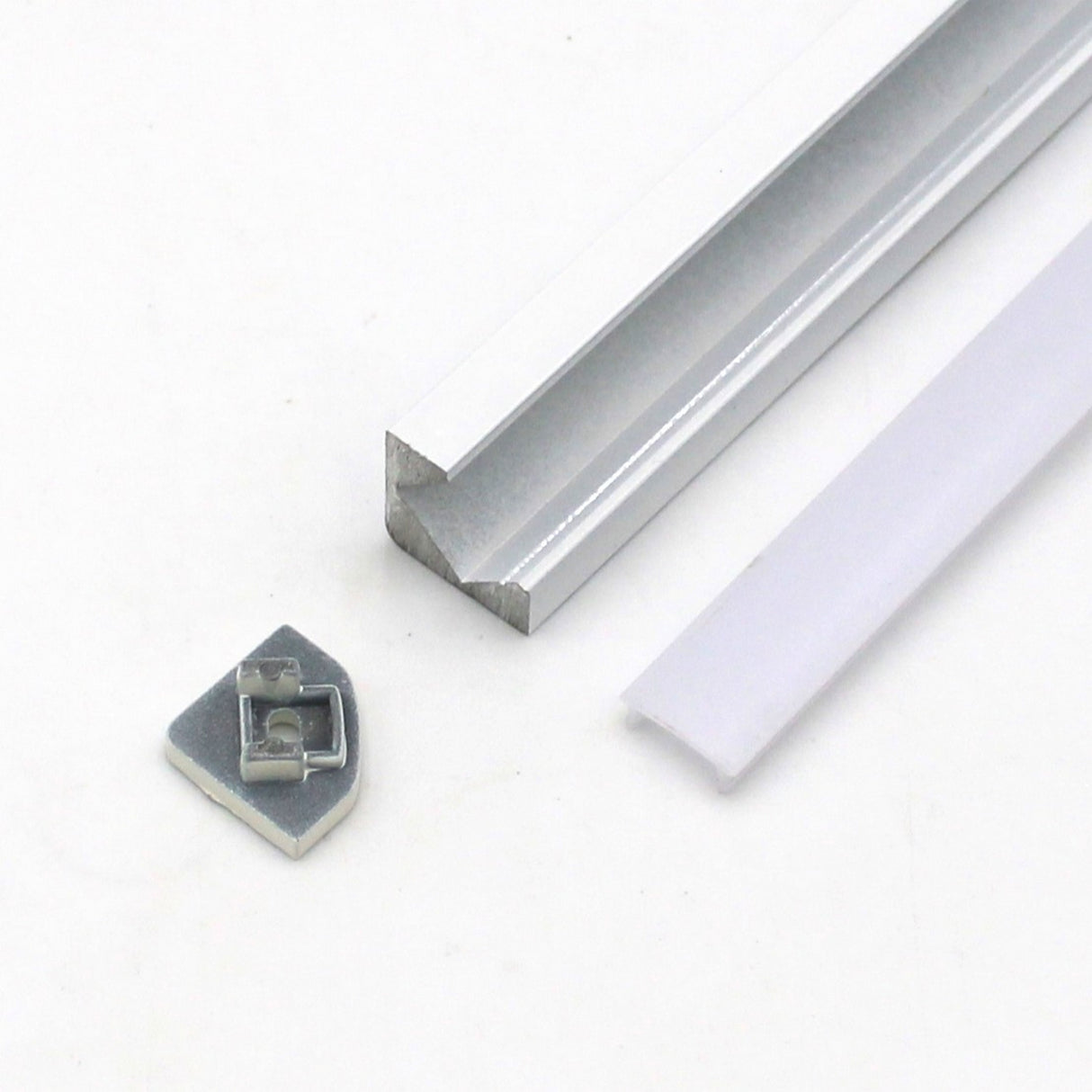

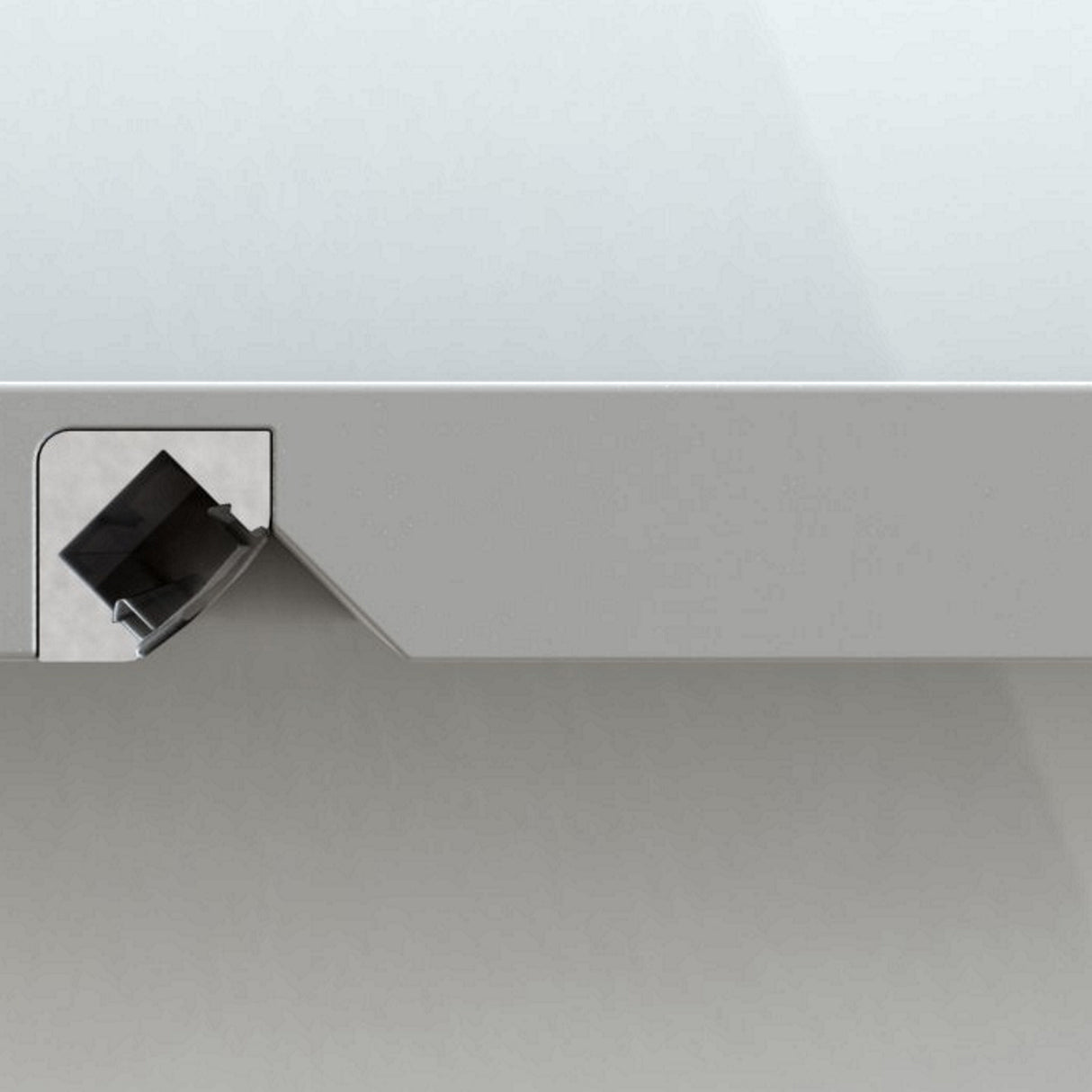

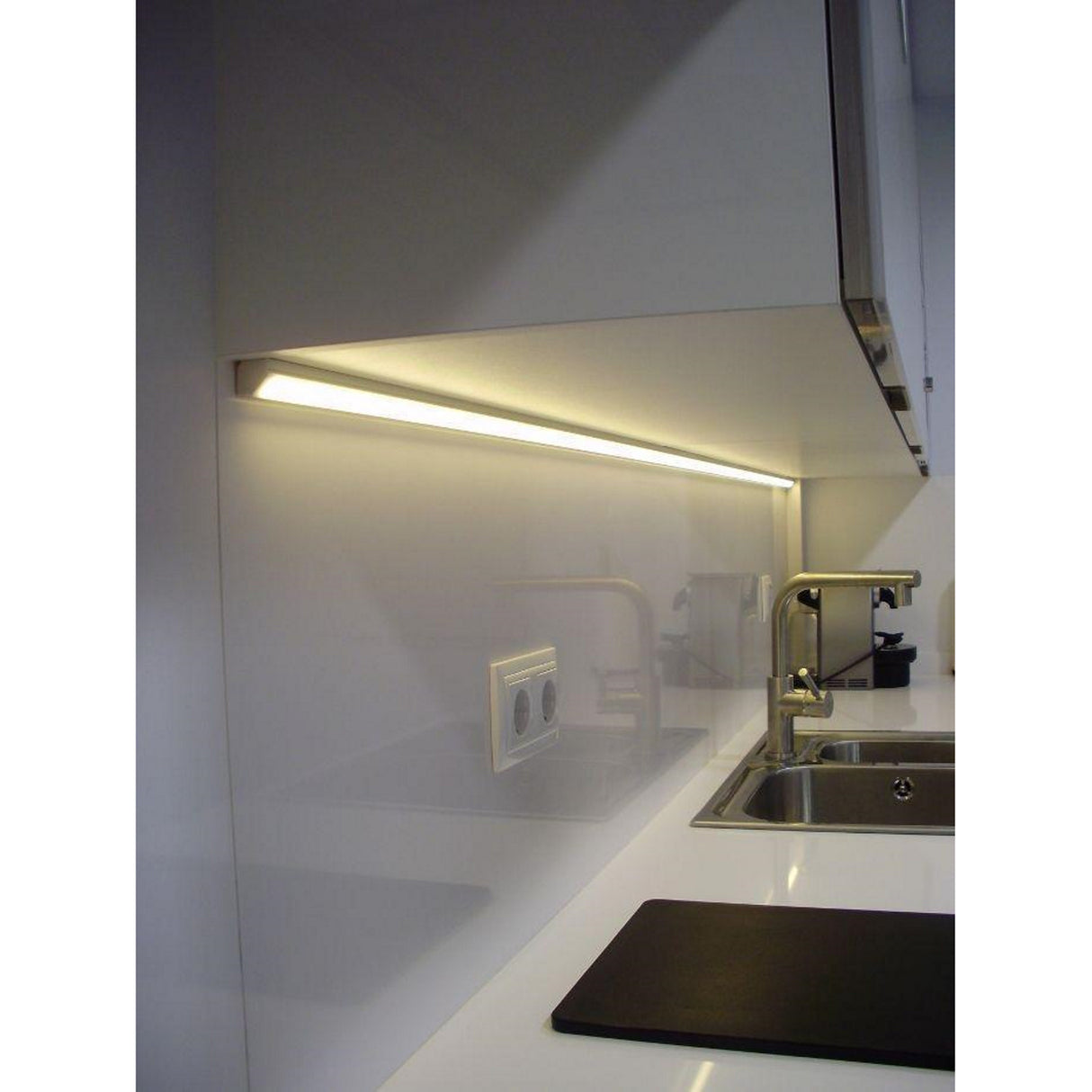

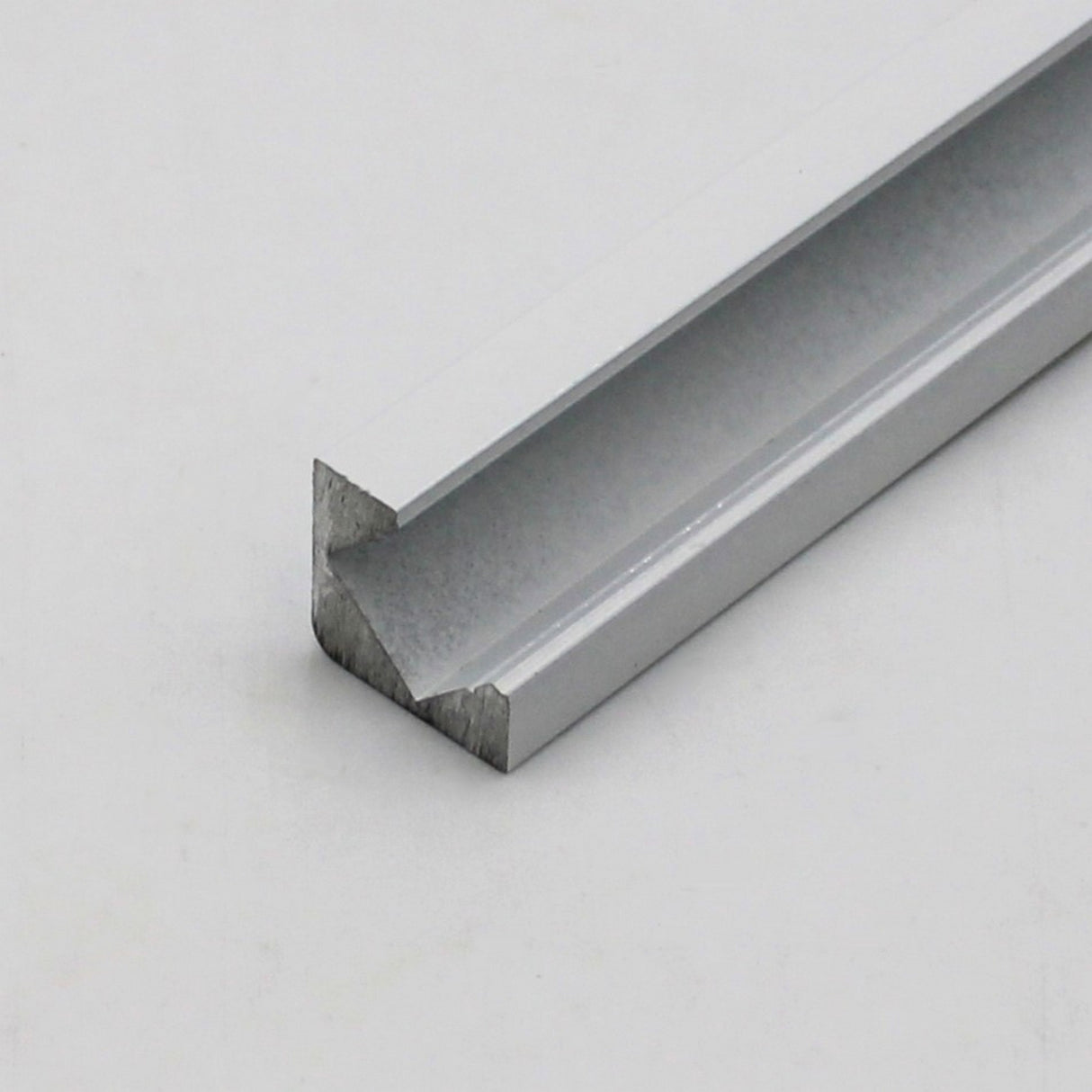

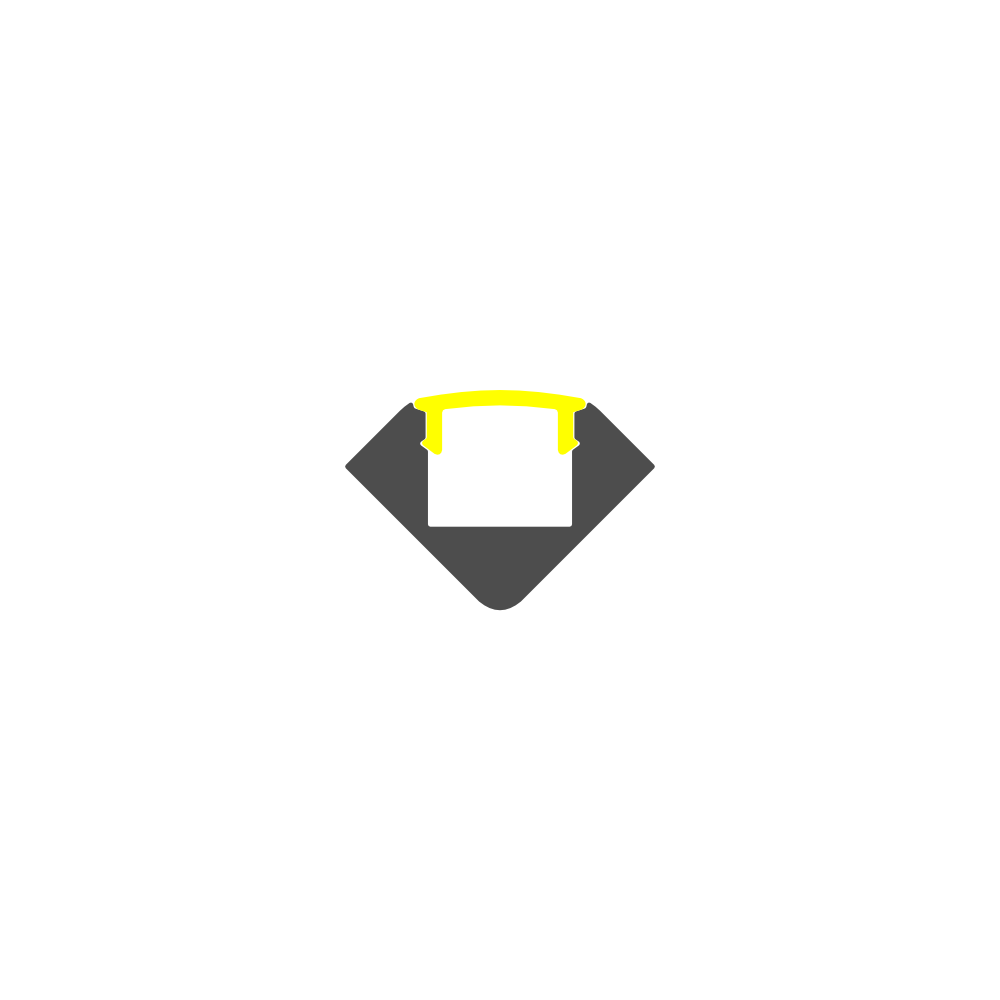

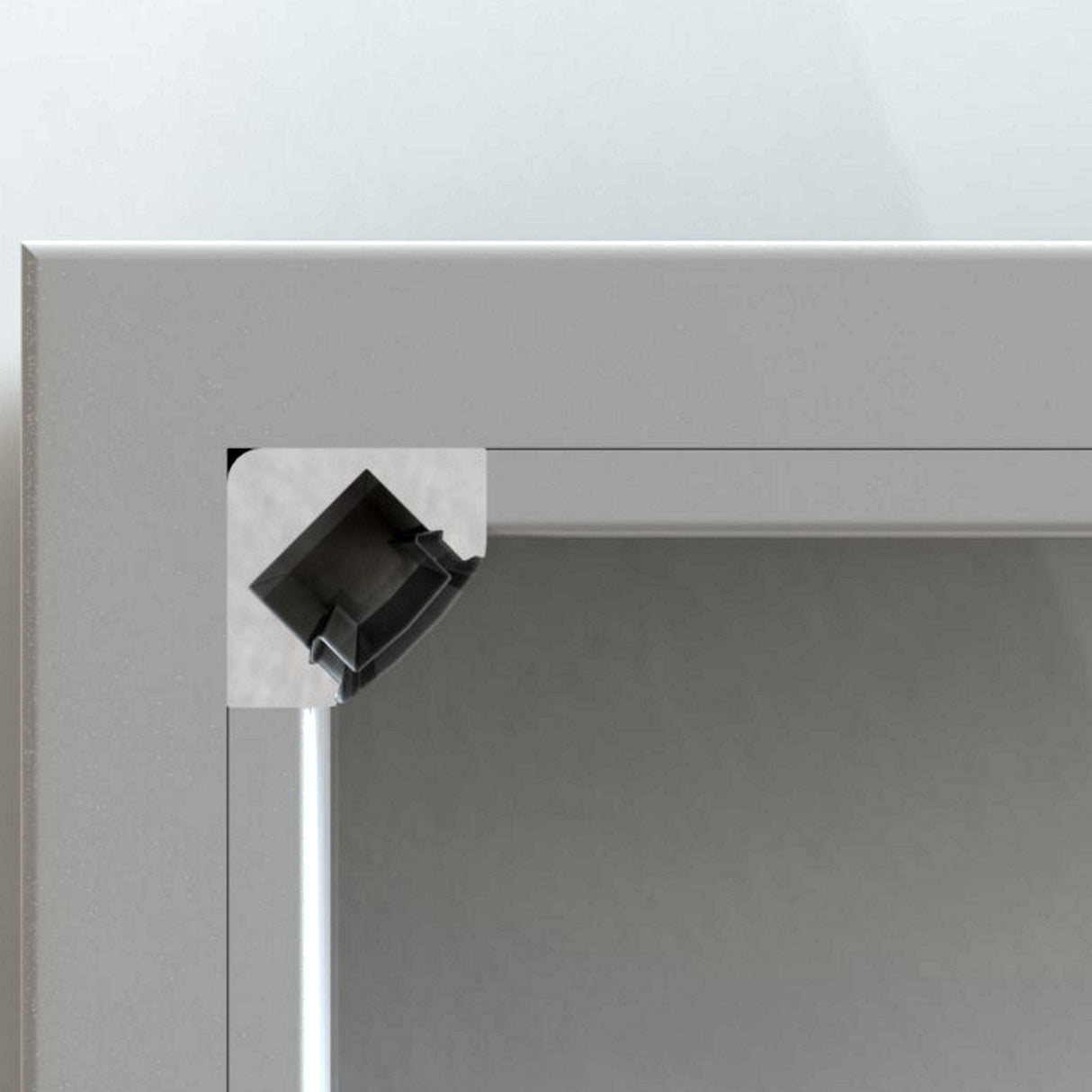

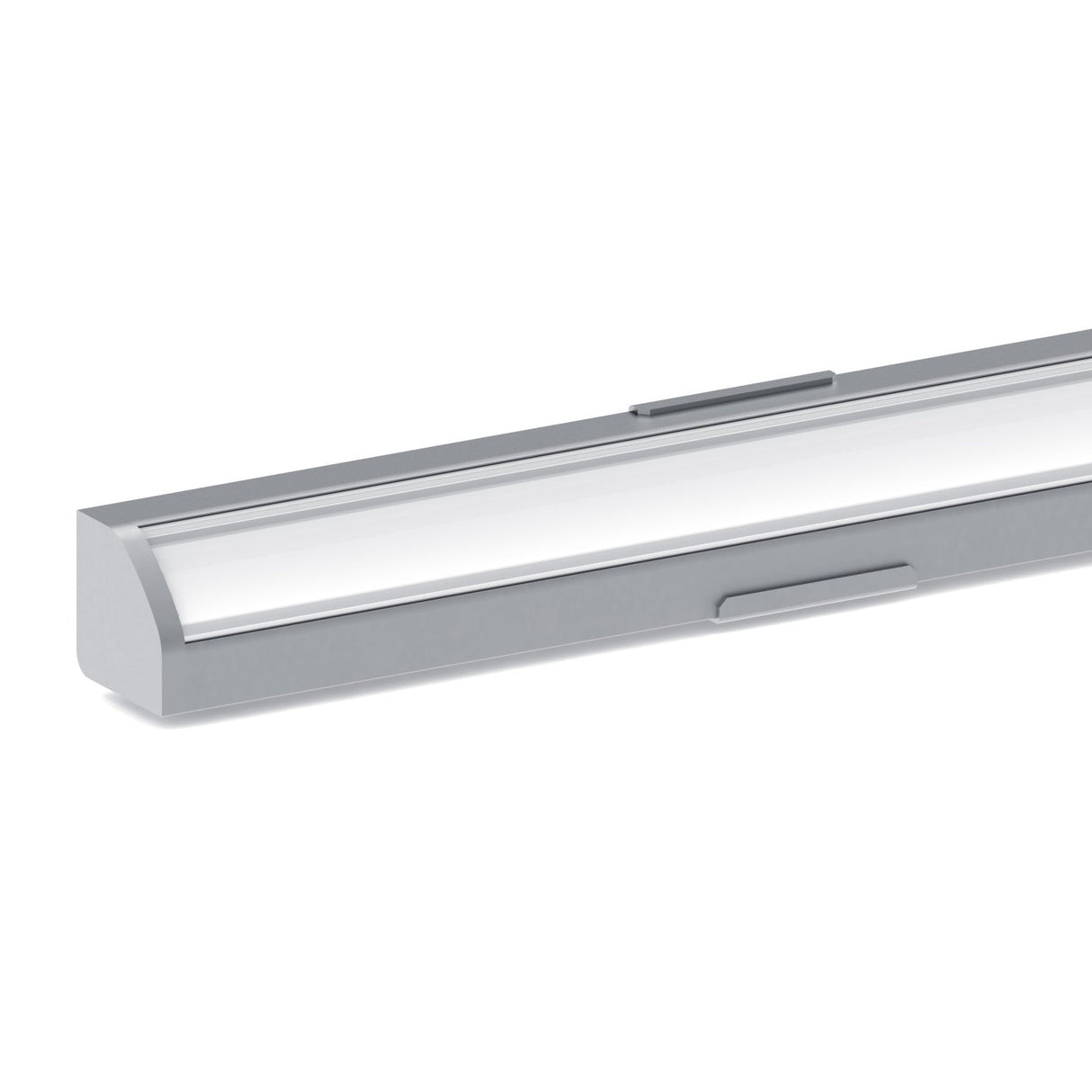

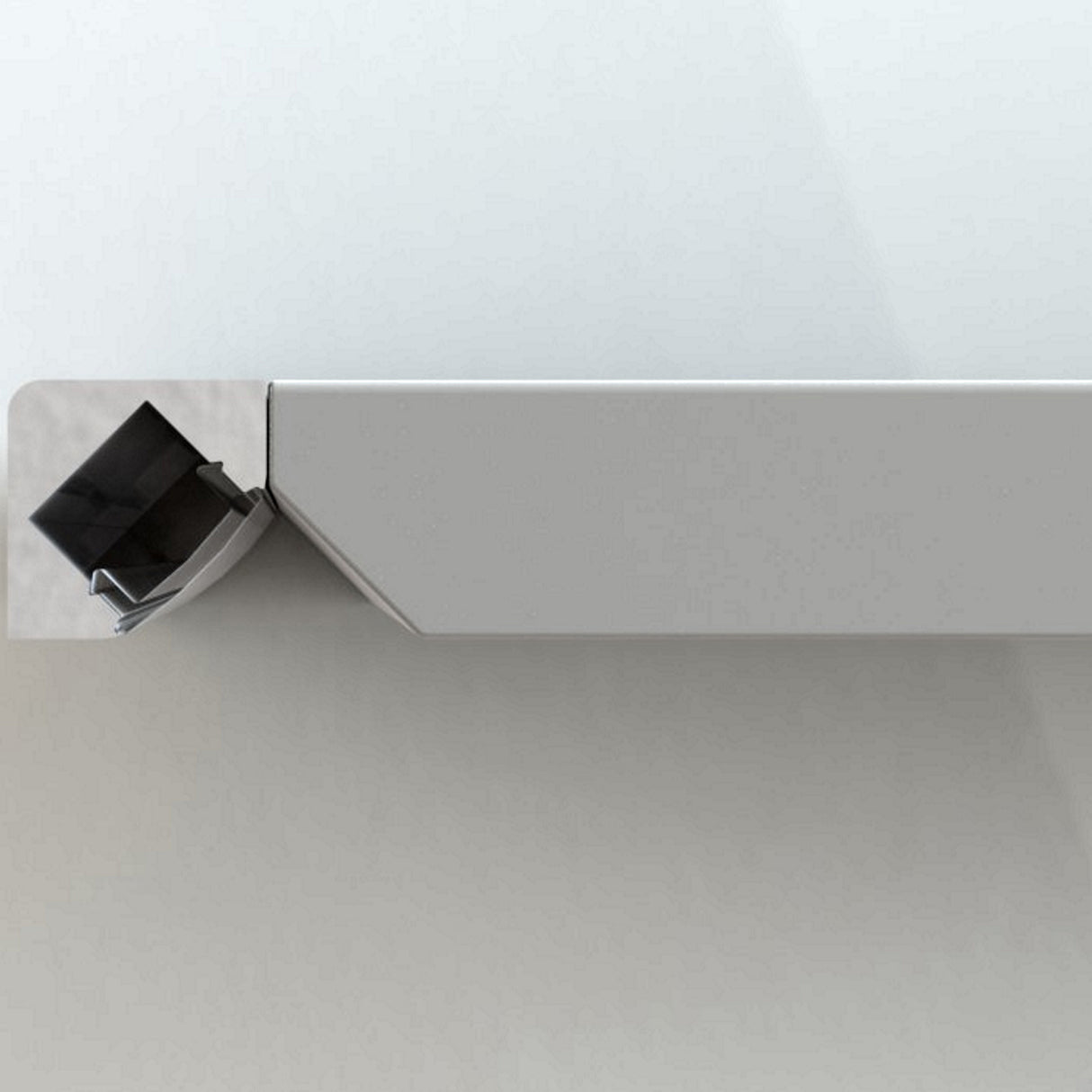

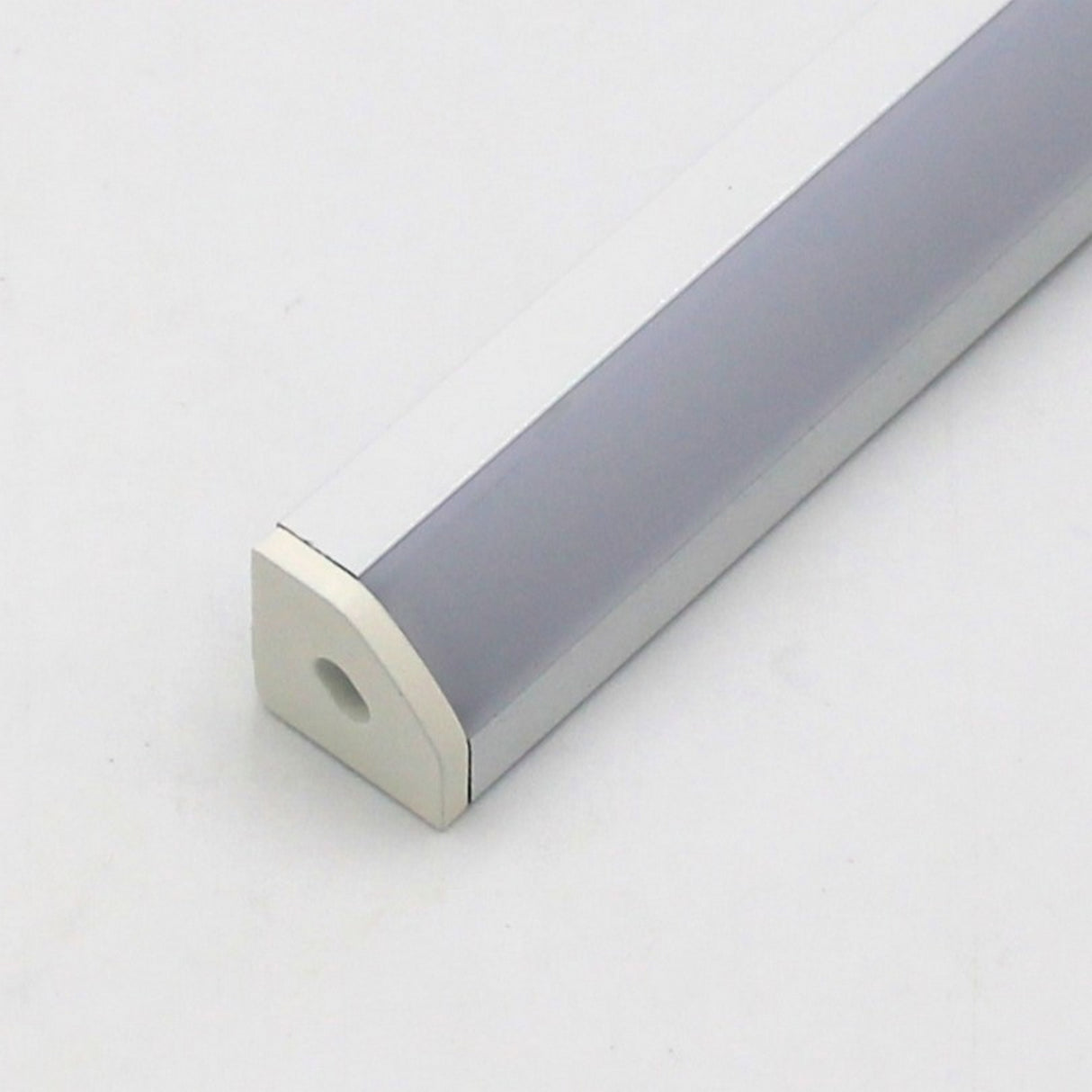

Our 45 Degree Corner LED Channel ~ Model ALU-45 is a quality anodized 45 degree led channel. Alu-45 has been designed to fit any corner LED lighting application. The led corner profile is dedicated for standard LED strips up to 12 mm(1/2")wide. Large weight of aluminum provides an excellent heat sink for the LEDs and keeps a modern and stylish look. ALU-45 is available in White as well as in Silver anodized version.

General specifications

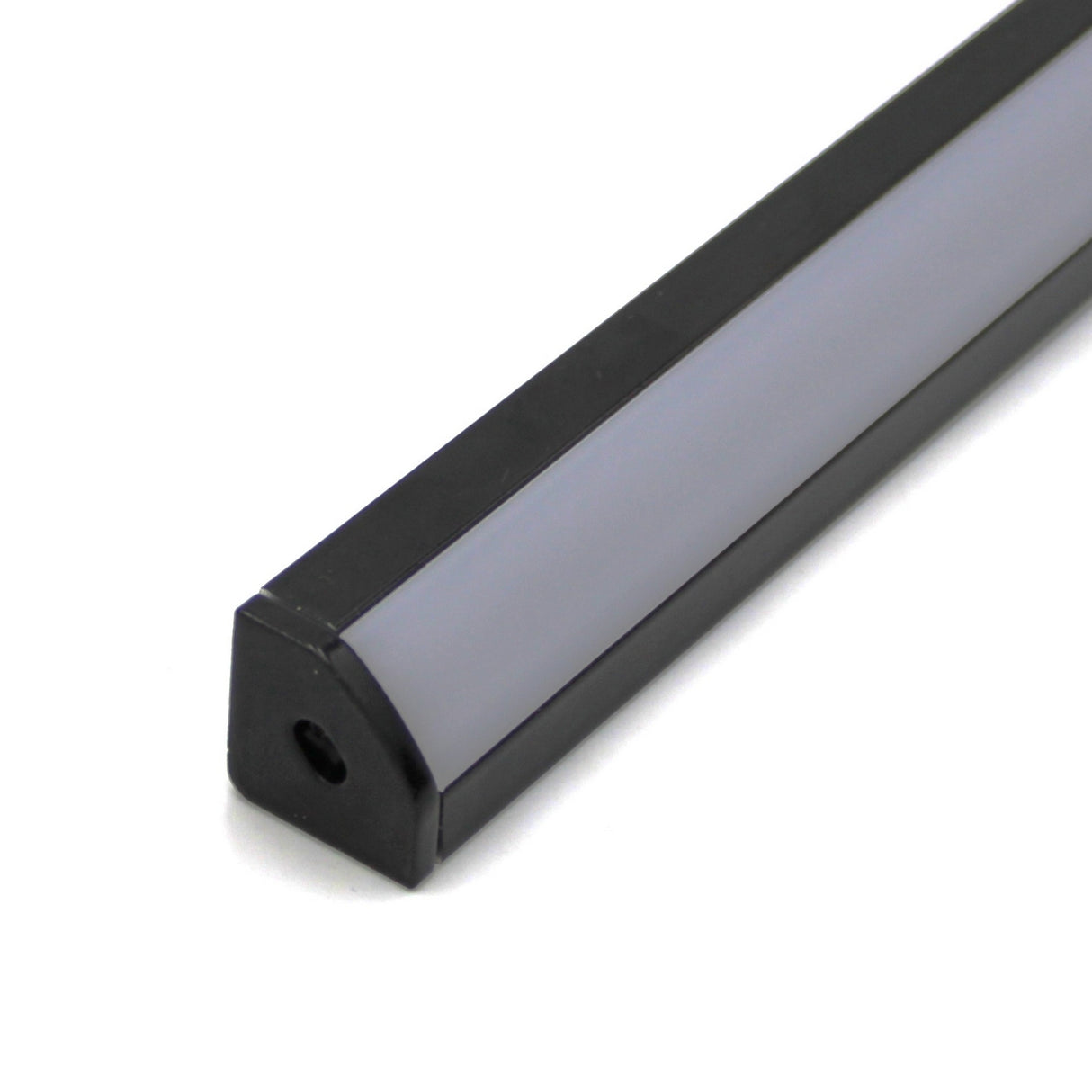

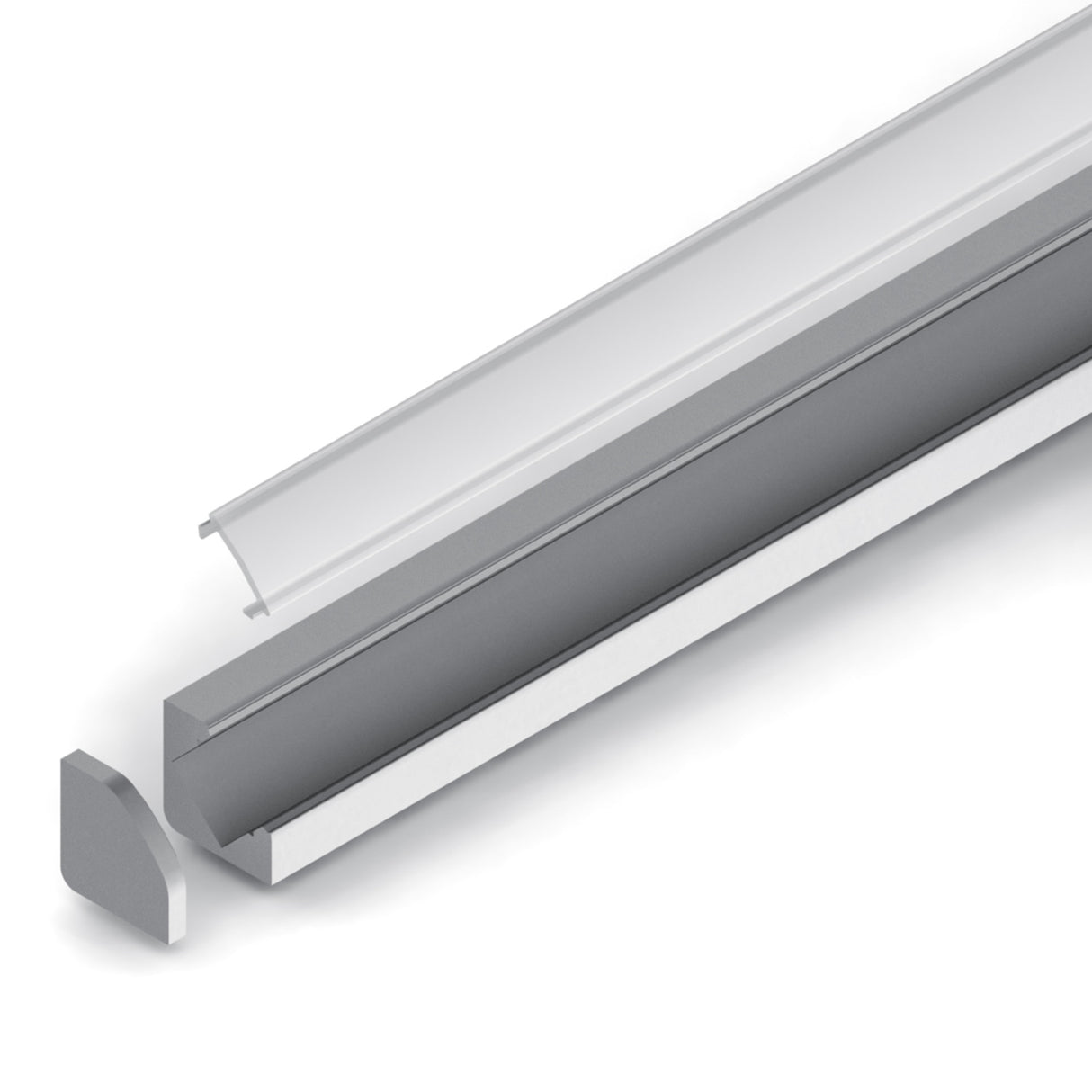

  • There are three different Quality UV resistant, snap-in diffusers adapted to ALU-45:

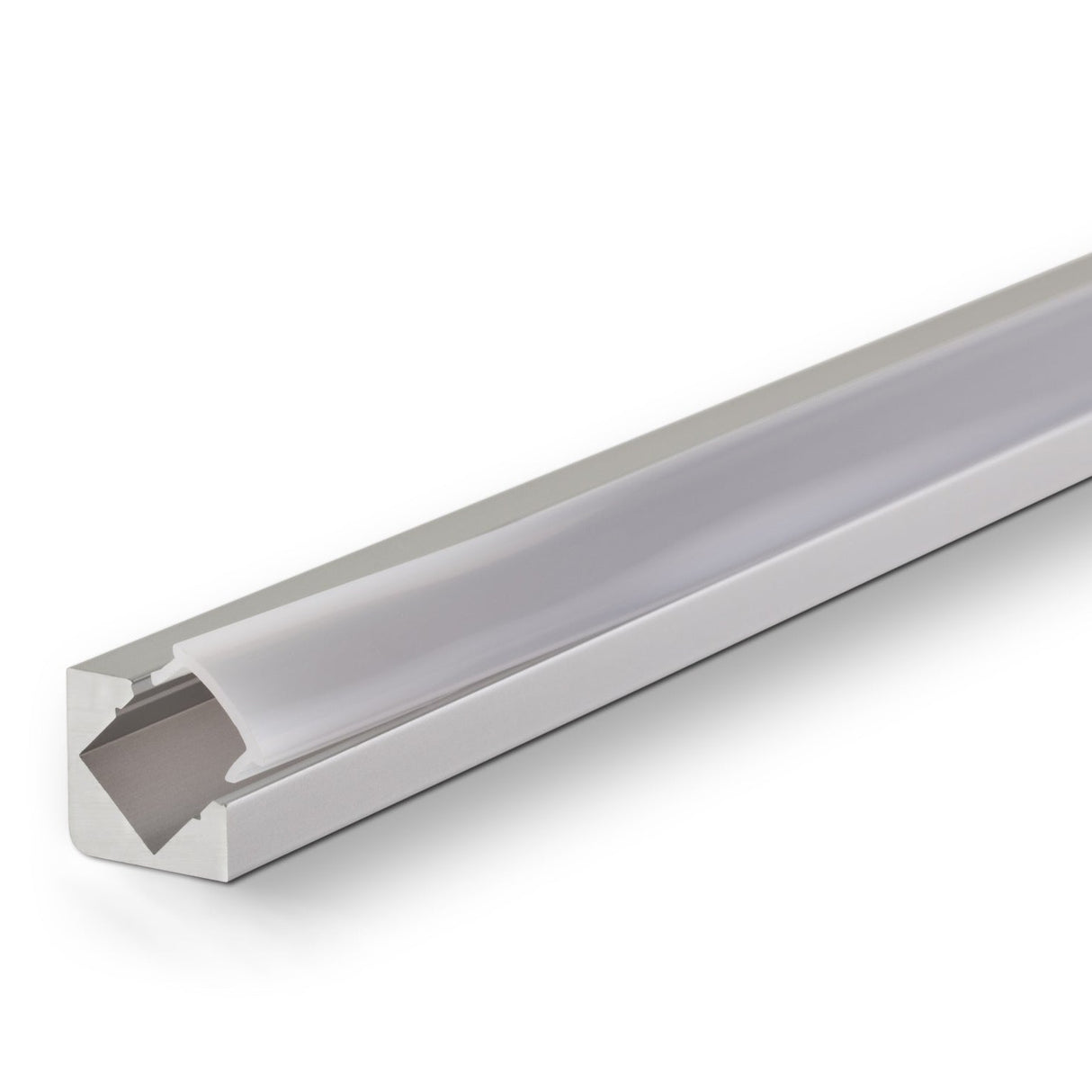

    • frosted
    • 50% frosted
    • Clear

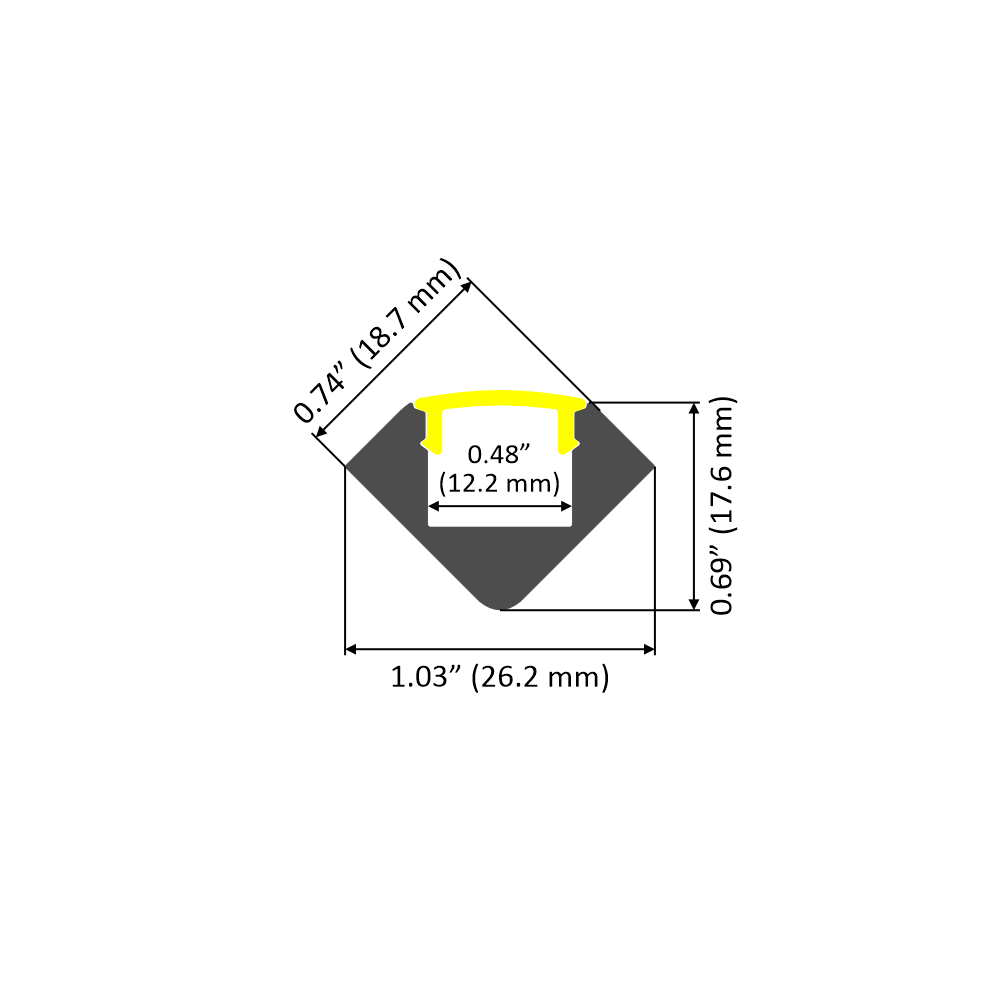

  • Maximum width of LED strip: 12mm
  • Maximum LED strip power: 25W/m
  • Lighting test report for diffusers

Downloads

Important notes

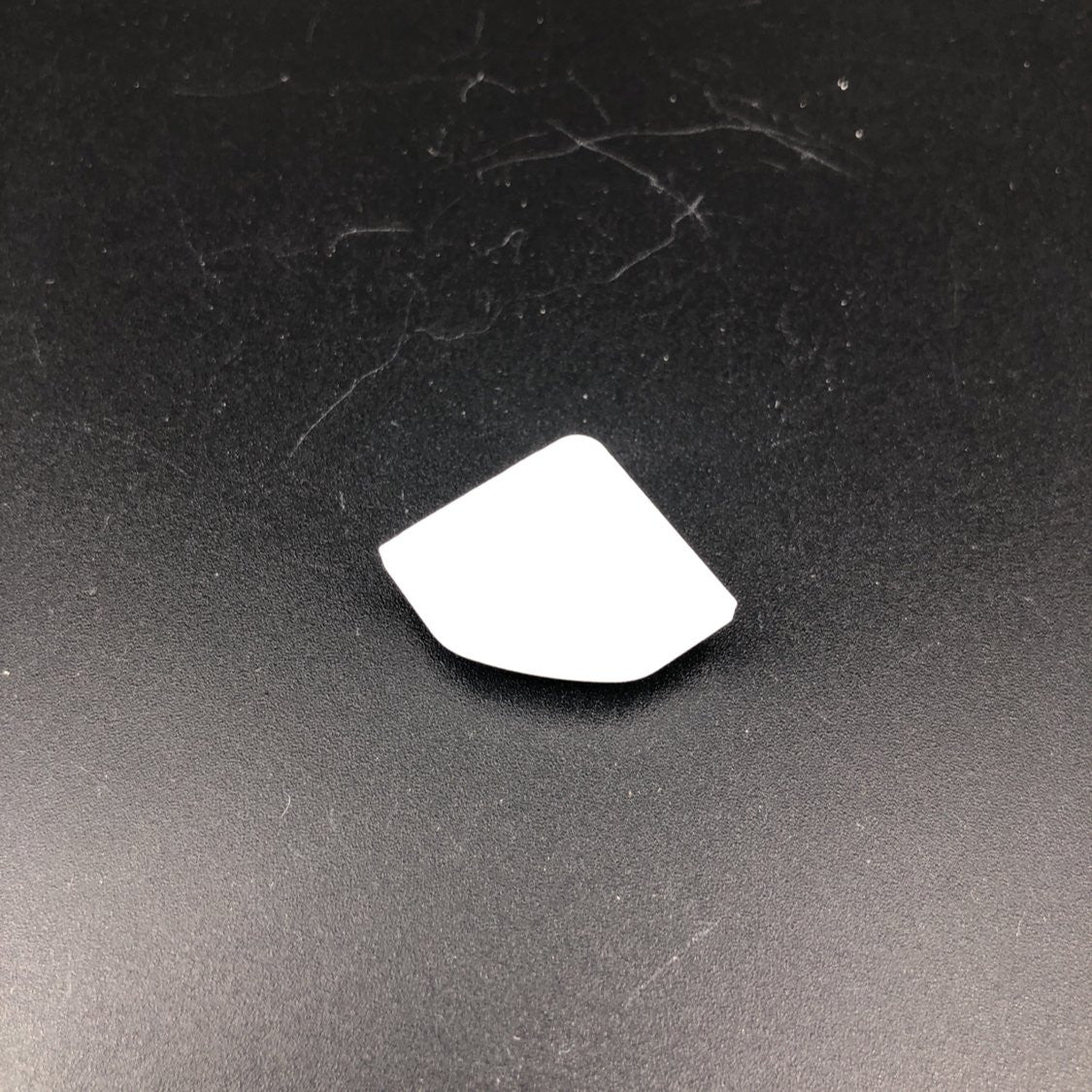

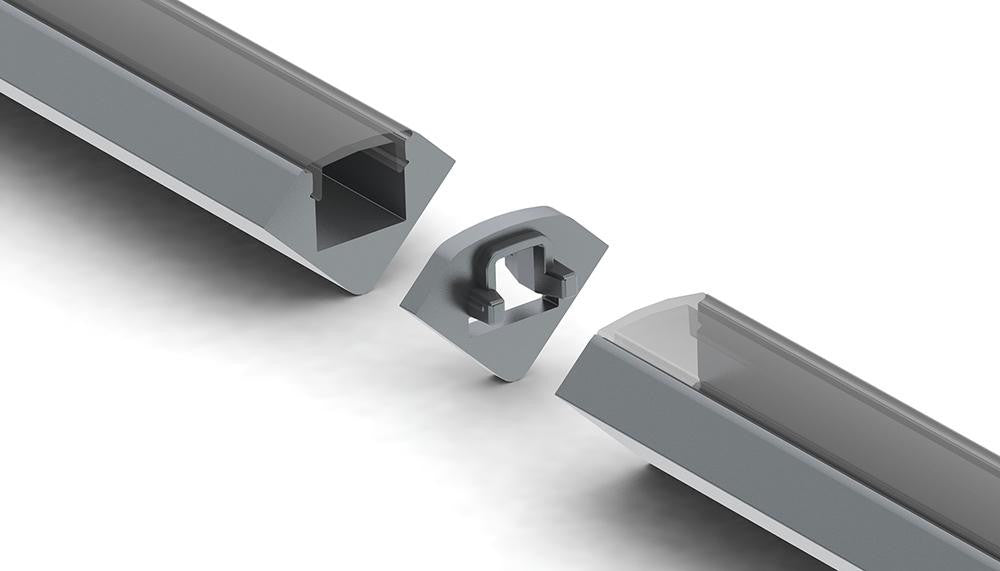

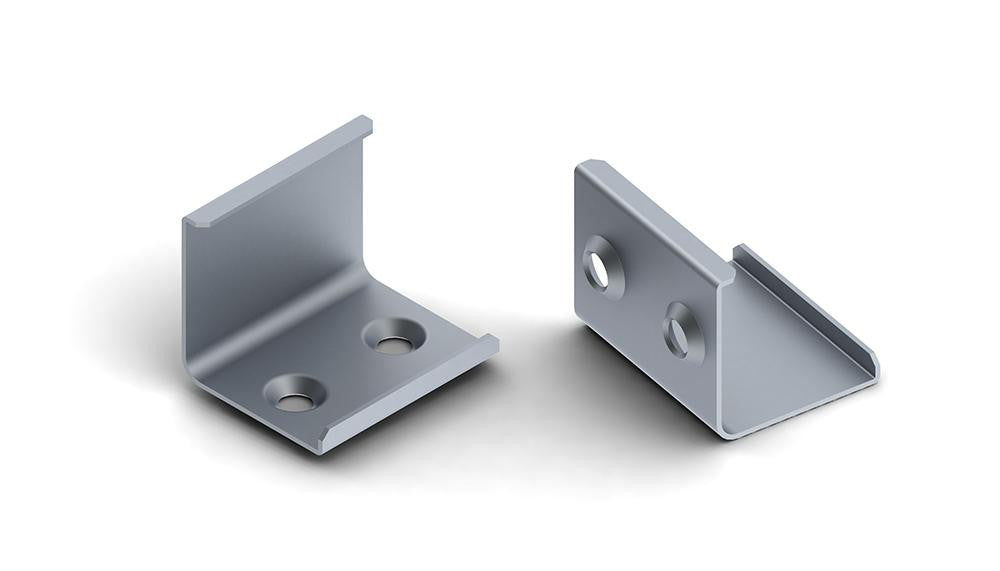

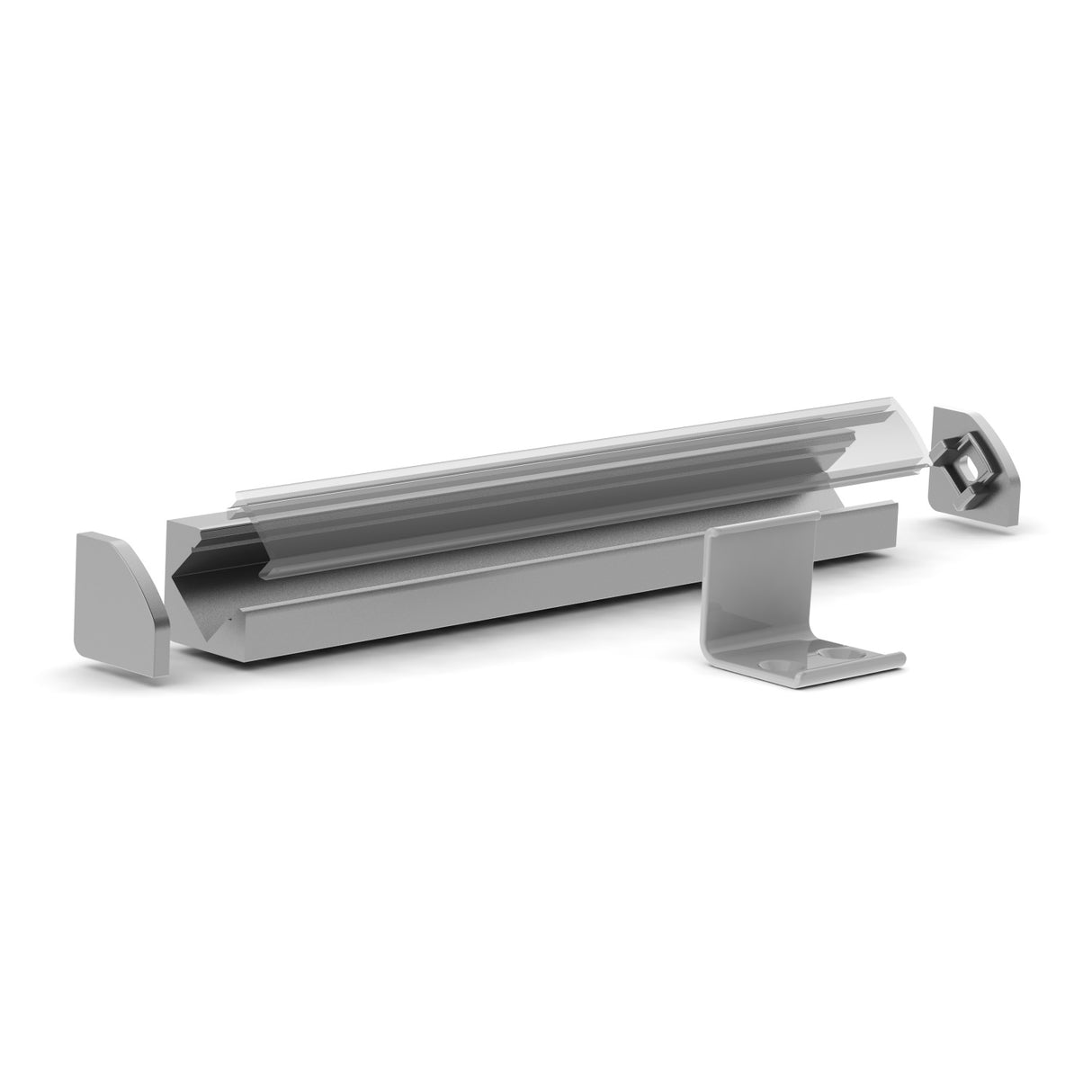

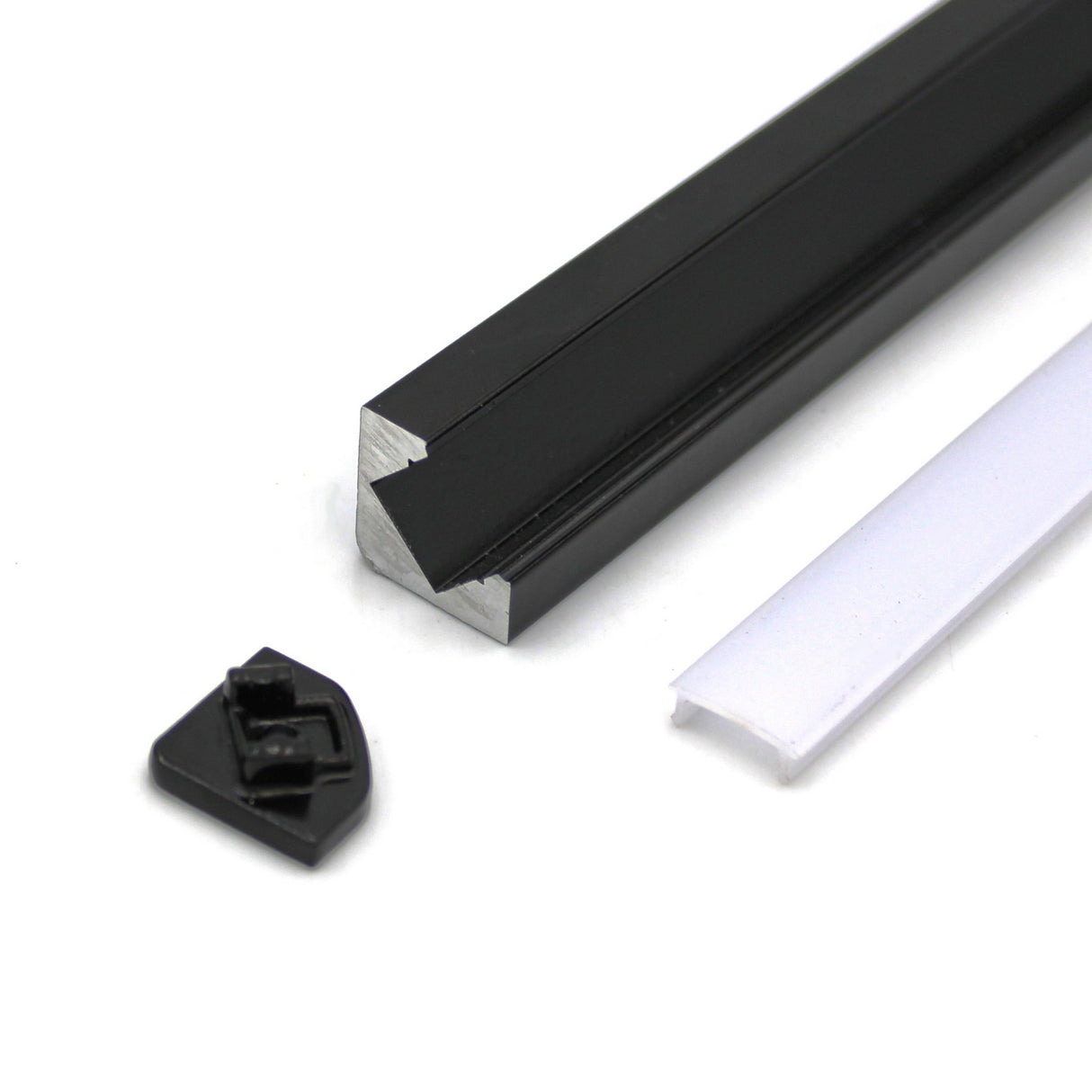

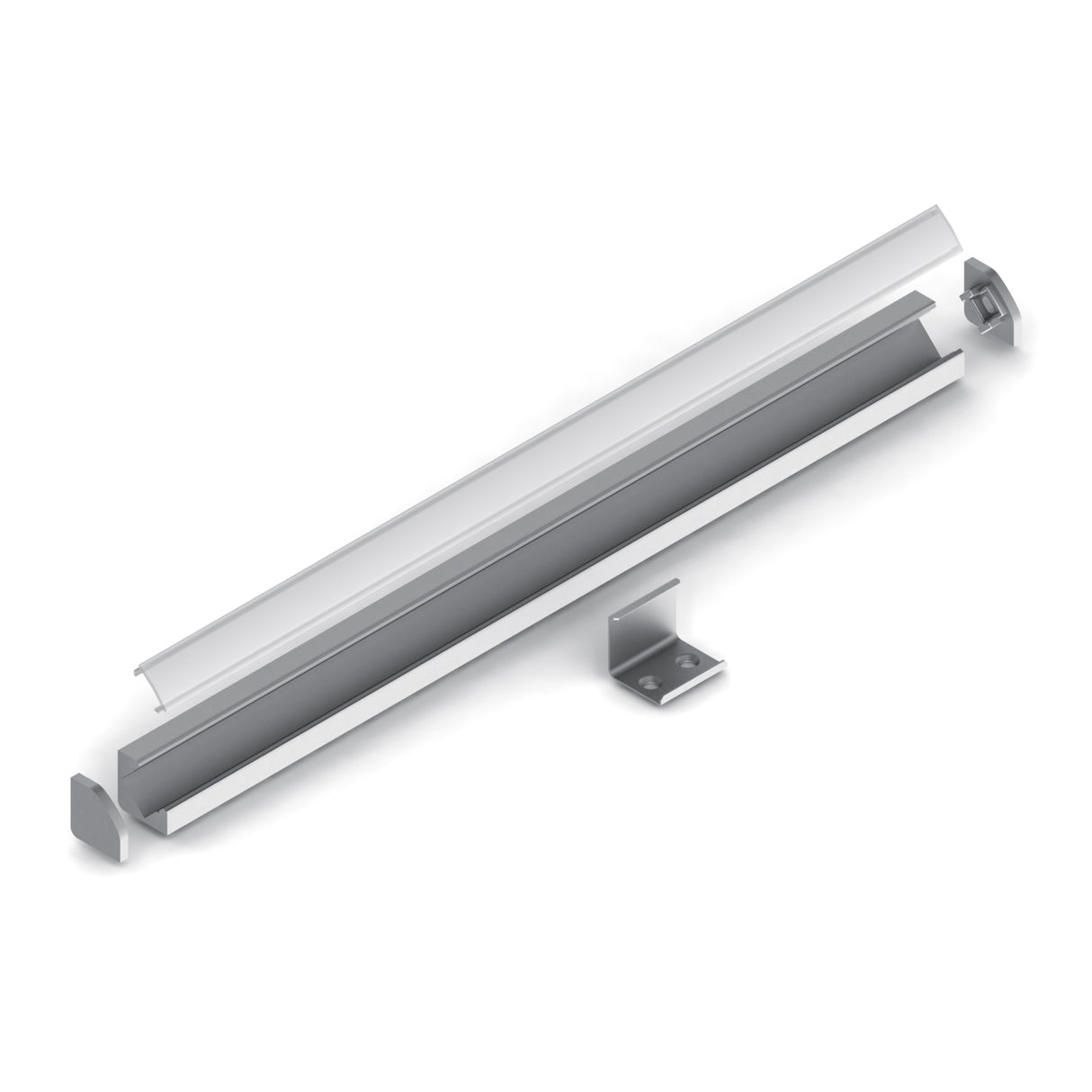

  • LED strip, covers, mounting brackets, endcaps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We can also assemble a plug and play light fitting with this profile according to your specifications.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request



Alu-45 Accessories
