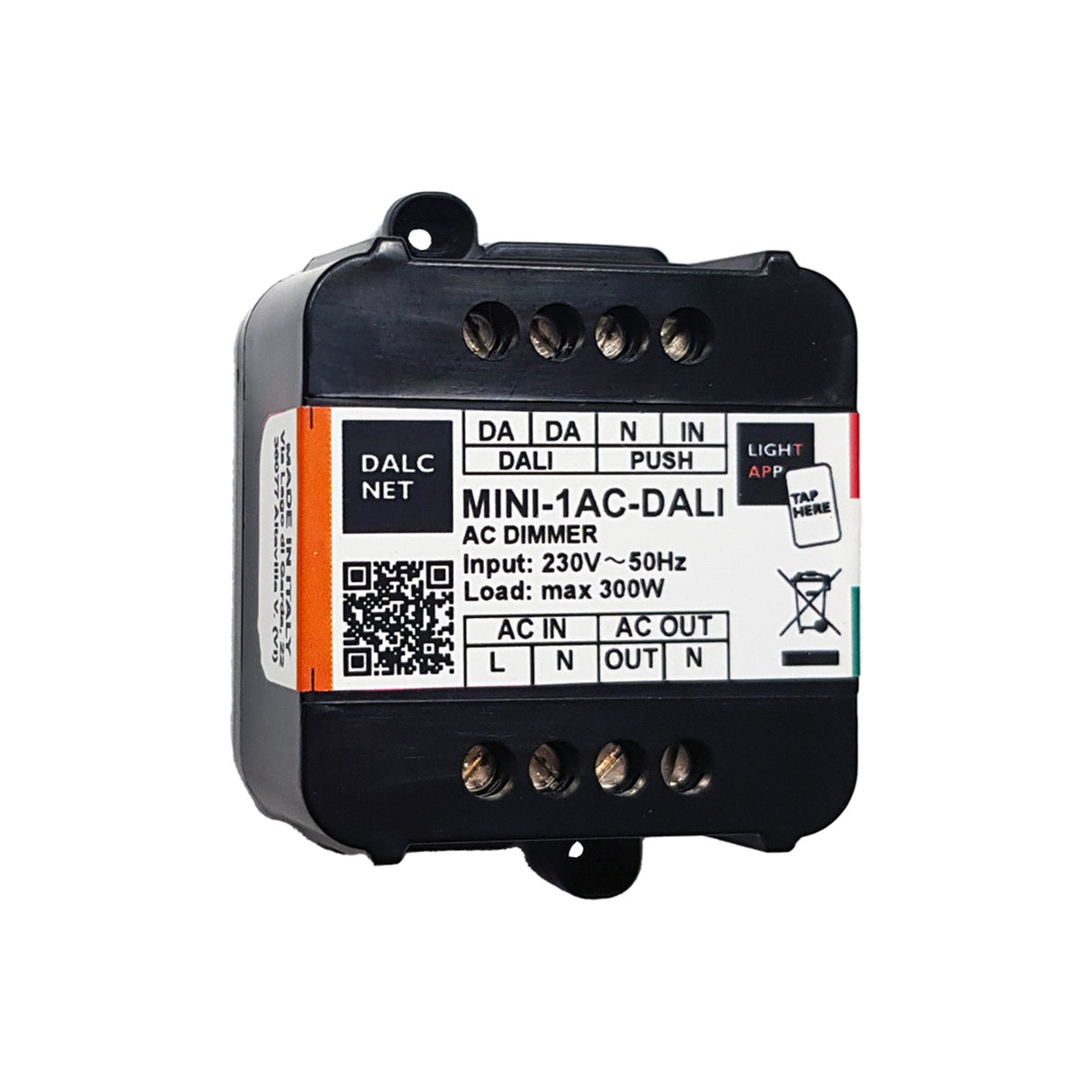

Miniature AC Dimmer with DALI ~ Model MINI-1AC-DALI

controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The MINI-1AC-DALI is a single-channel AC trailing edge dimmer designed for precise brightness control of white and monochrome lighting. It supports 230 Vac input with an internal 1 A fuse and delivers up to 350 W output, compatible with incandescent, halogen, LED switching lamps, linear LED lamps, and dimmable trailing edge drivers.

This MINI-1AC-DALI can be controlled remotely via the DALI bus or locally using a normally open push button. It automatically detects the type of connected control for seamless installation. The device includes protections for input fuse, output short-circuit, open-circuit detection, and short-circuit detection, ensuring safe and reliable operation.

Through the Dalcnet LightApp© mobile app with NFC-enabled smartphones, users can configure dimming curves, maximum and minimum brightness levels, fade-in and fade-out ramps, and perform full DALI commissioning. The MINI-1AC-DALI also features soft switching, memory of the last brightness level, extended temperature operation, and efficiency greater than 95%.

General specifications

• Model: MINI-1AC-DALI
• Input voltage: 230V AC
• Frequency rate: 50 Hz
• Max output power: 350 W
• Output channels: 1
• Working temperature range: -10/+60°C (14 ~ 140°F)
• Protection rating: IP20
• Dimensions: 44 x 57 x 25mm (1.73” x 2.24” x 0.98”)
• Warranty: 5years

Downloads

• MINI-1AC-DALI cut sheet
