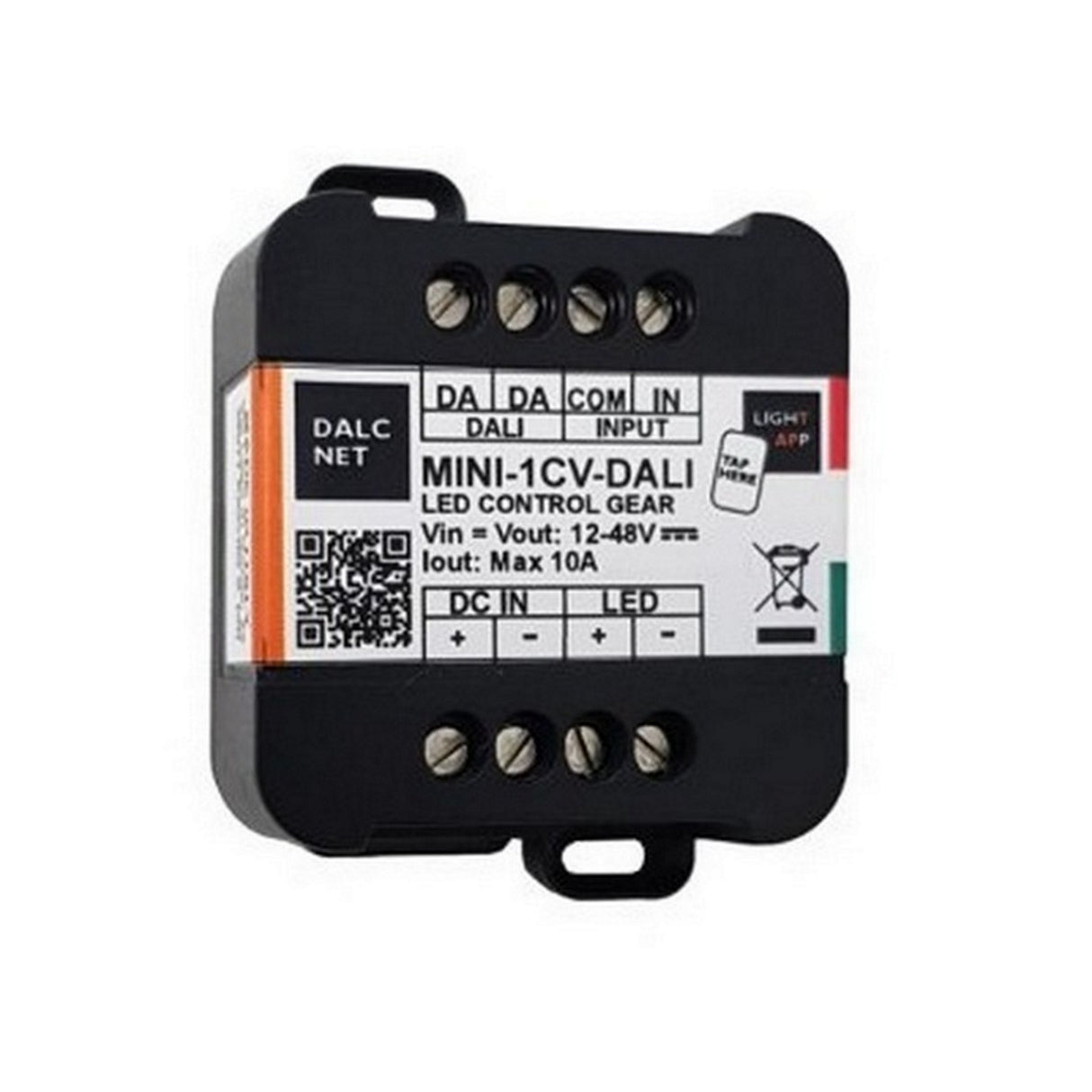

Miniature 1-Channel LED Dimmer with DALI ~ Model MINI-1CV-DALI

Controller only ~ power supply, LEDs and all other components are sold separately.

Description

MINI-1CV-DALI Mini LED Controller is a high-performance and feature-rich lighting control solution designed to meet the demands of modern lighting projects. With its single-channel constant voltage design and compatibility with DALI2 protocol, this dimmer enables seamless integration and precise control of LED lighting systems operating within the 12-48V range.

Equipped with a robust 10A output current, the MINI-1CV-DALI is capable of efficiently handling high-power LED installations, ensuring reliable and consistent performance. With its multi-input control options, including push-button, 0-10V, 1-10V, and Potentiometer, you have the freedom to choose the control method that best suits your needs.

The Mini LED Controller takes remote commissioning to a whole new level with its Light App compatibility. The innovative Light App allows you to pre-configure multiple settings before installation, streamlining the commissioning process.

This feature is particularly valuable in projects where remote control and configuration are essential, saving time and effort while ensuring precise customization according to project requirements.

General specifications

• Model: MINI-1CV-DALI
• Input Range: 12-48Vdc
• Max Output Power: 1x10A
• Channels Output: 1
• Analog Input: 0-10V, 1-10V, POTENTIOMETER
• Size: 46x46x25mm
• Network type: Dali
• Dimensions: 44 x 57 x 25mm 25mm (1.73" x 2.50" x 0.98")

Downloads

• MINI-1CV-DALI cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
