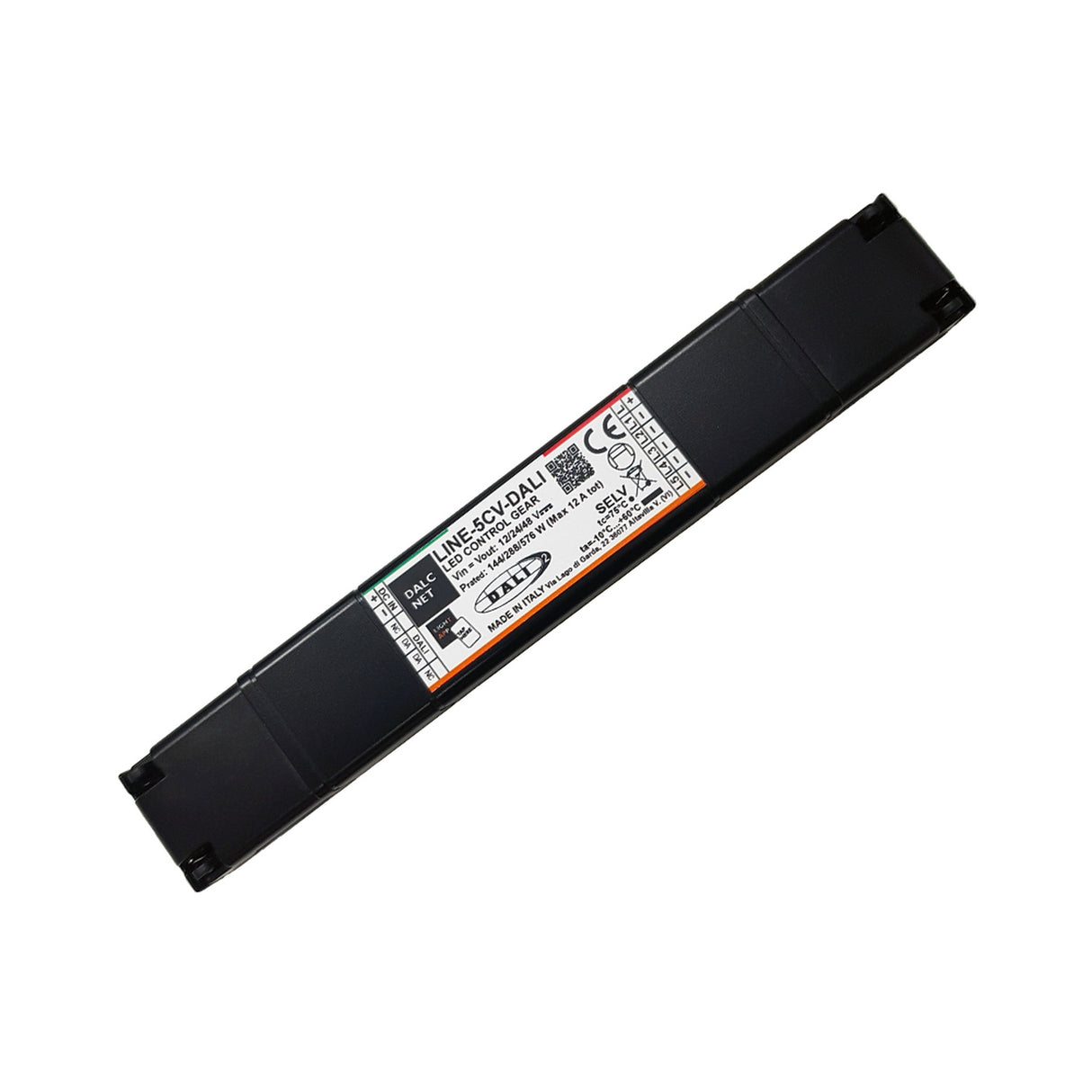

Slimline 5-Channel RGB+TW LED Dimmer with DALI ~ Model LINE-5CV-DALI
Product details
controller only ~ power supply, LEDs and all other accessories are sold separately
Description
The LINE-5CV-DALI is a slimline 5-channel RGB+TW LED dimmer designed for professional lighting control using the DALI (Digital Addressable Lighting Interface) protocol. It provides PWM constant voltage output for LED strips and LED modules, supporting lighting types such as white, single color, RGB, RGB+W, RGB+TW (tunable white), and RGB+WA (white amber).
The LED dimmer operates with a 12–48 Vdc SELV power supply and delivers constant voltage output across five channels (L1–L5). This makes it suitable for architectural, commercial, and residential LED lighting applications that require reliable multi-channel LED control.
This LED dimmer features adjustable PWM modulation frequency from 307 to 4000 Hz to optimize LED performance and reduce flicker. Device parameters can be configured through the DALI interface or through the Dalcnet LightApp mobile application using NFC-enabled smartphones. Adjustable settings include PWM frequency, dimming curve, fade transitions, brightness limits, power-on level, system failure level, and group and scene control.
The LINE-5CV-DALI supports a maximum total output current of up to 12A and includes built-in protection features such as short-circuit protection, open-circuit detection, over-voltage and under-voltage protection, reverse polarity protection, and input fuse protection. It also provides smooth power on/off and soft dimming for stable LED control, is UL Recognized certified, supports Class 2 power input and output when used with Class 2 power supplies, and is designed for reliable operation in dry indoor environments.
General specifications
- Model: LINE-5CV-DALI
- Voltage Range: 12–48V DC
- Output channels: 5
- Working temperature range: -10/+60°C (14 ~ 140°F)
- Maximum total current: 12A
- Protection rating: IP20
- Dimensions: 186 x 29 x 21mm (7.32” × 1.14” × 0.83”)
