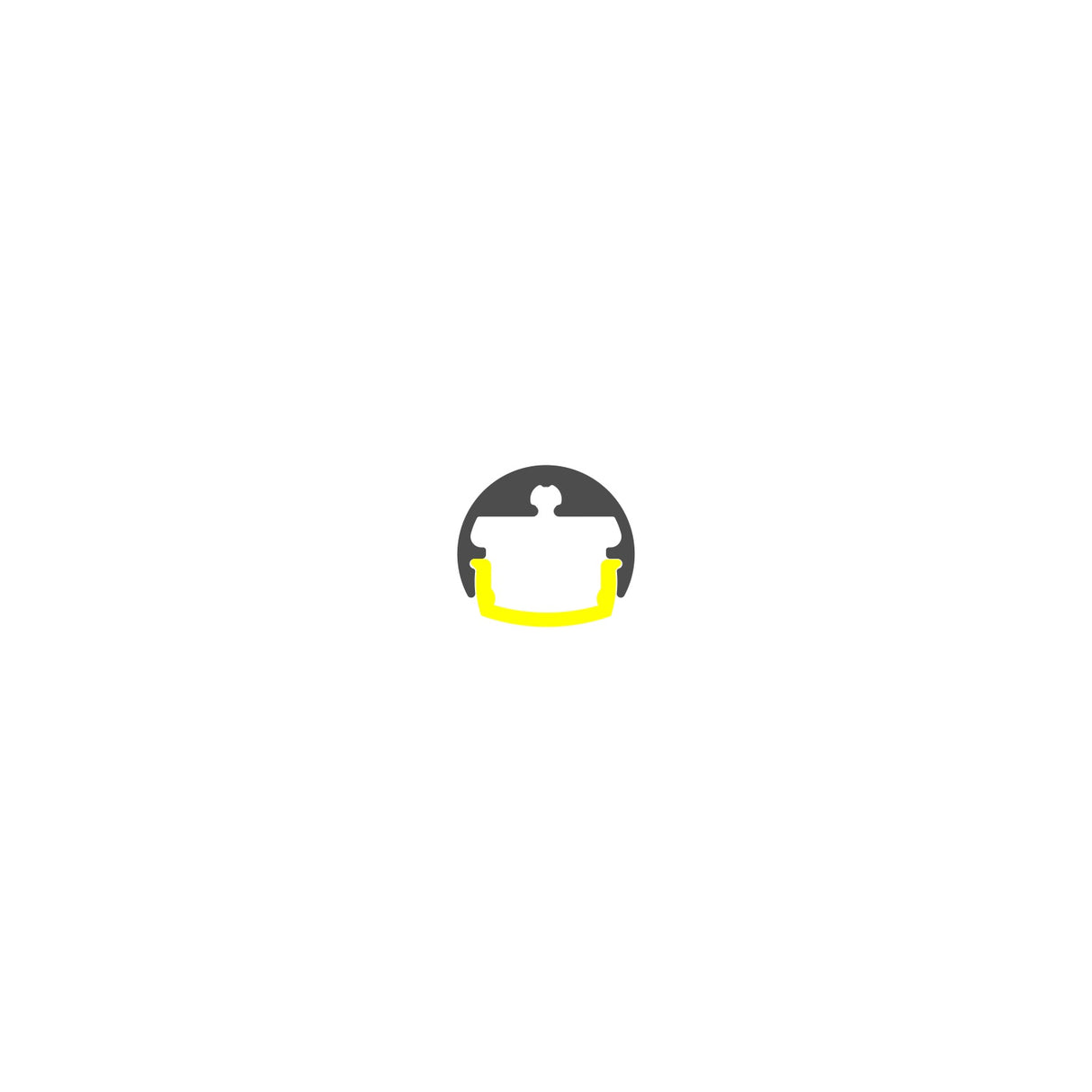

Miniature LED Display Case Lighting Channel ~ Model Pen8

Profile only ~ diffusers and all other accessories are sold separately

Description

The Pen8 miniature round LED lighting channel will direct the light to where it needs to go to create impact when displaying any items at your home or office space.

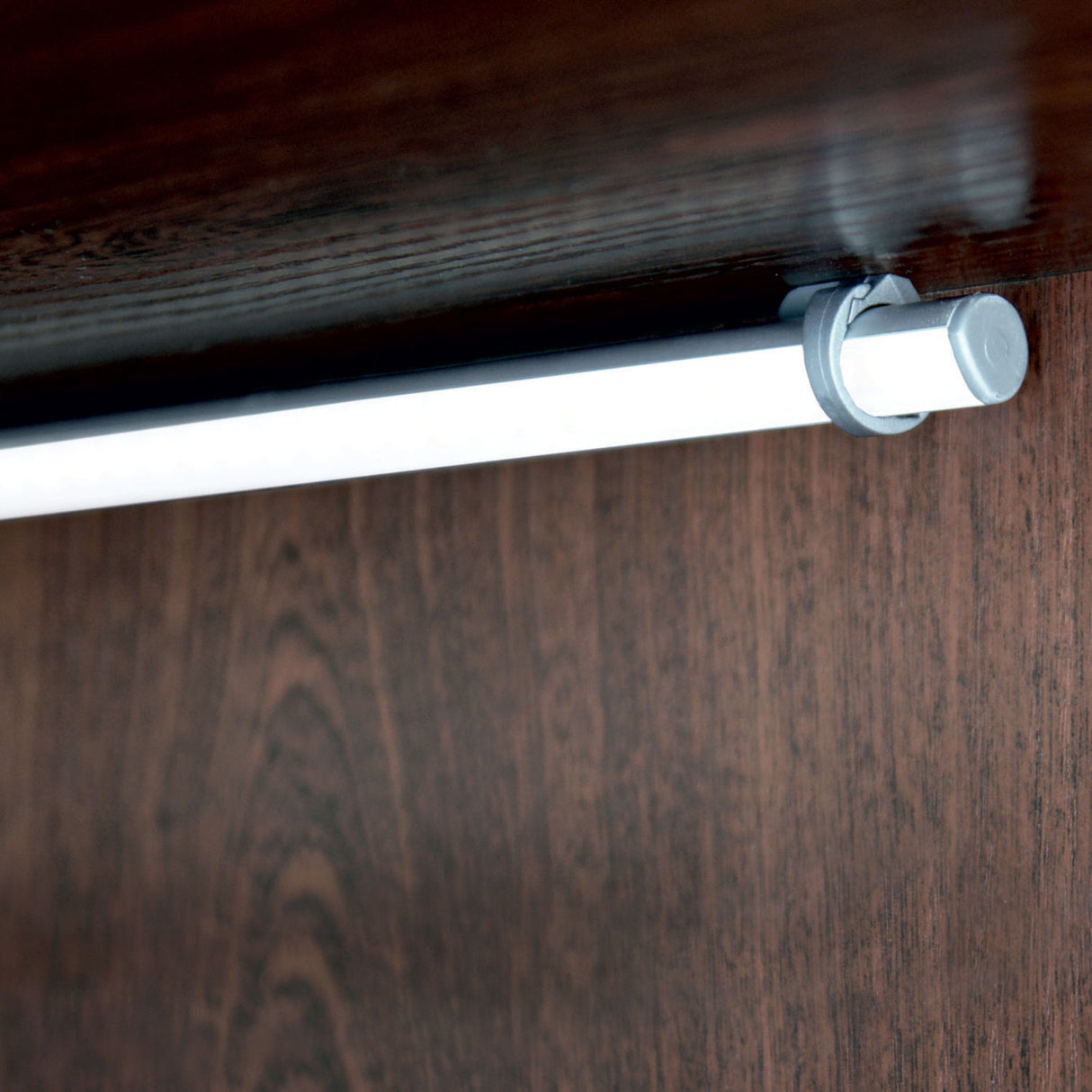

This mini LED profile is perfect for illumination inside glass cabinets, such as trophy case lighting or jewelry showcase lighting. You can install it either at an angle or facing straight down.

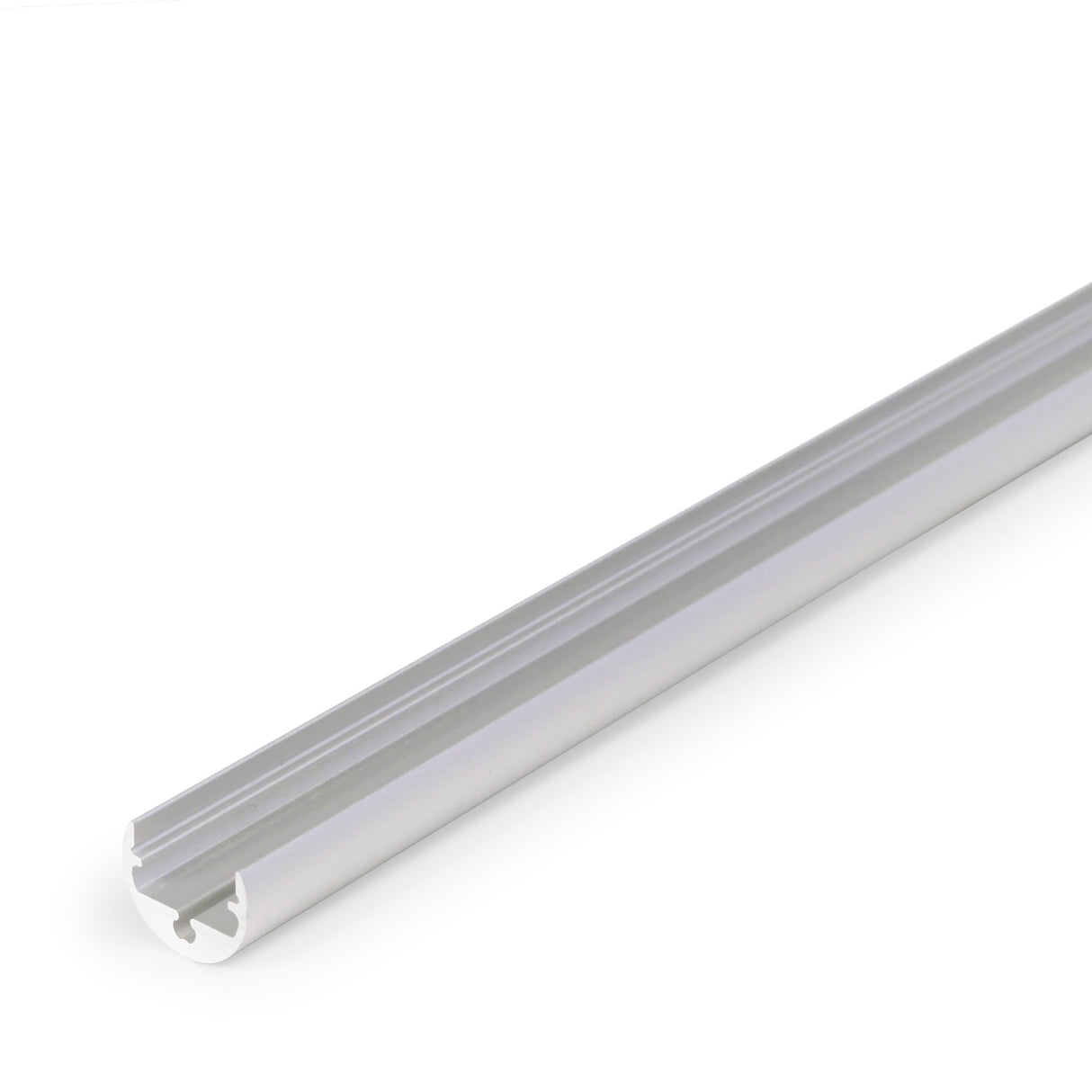

Additionally, the Pen8 focuses the light on a specific area, making it an ideal choice for display case lighting applications. It is made from aluminum and is compatible with LED strips up to 8mm wide.

General specifications

• Mounting options: Surface-mounted

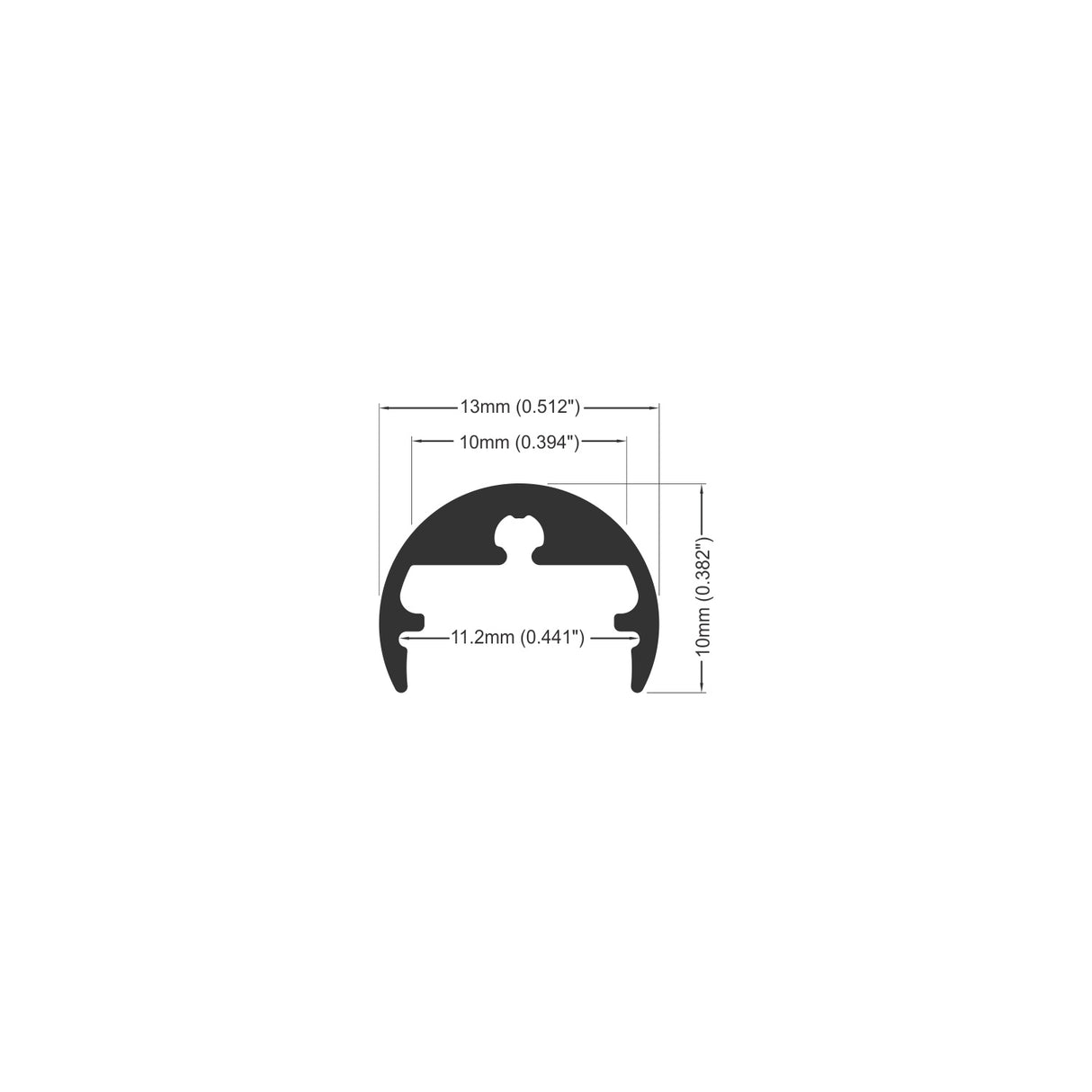

• Overall dimensions: 13mm x 10mm (0.51" x 0.39")
• Maximum LED strip width: 8mm
• Material: Anodized aluminum
• Cover option: Frosted, Opal

Downloads

• Pen8 cut sheet
• Pen8 instructions

Important notes

• You can easily cut LED profiles by hand or by machine.
• We are happy to build a light fitting to your specifications using this product. Please leave detailed instructions in the order comment box.
• For your convenience, we can cut LED profiles according to your requirements. Please leave instructions for cutting the LED profiles in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
