Shelf Bracket Edge-Lit LED Channel ~ Model Pula P10

Profile only ~ shelf panel and all accessories sold separately

Description

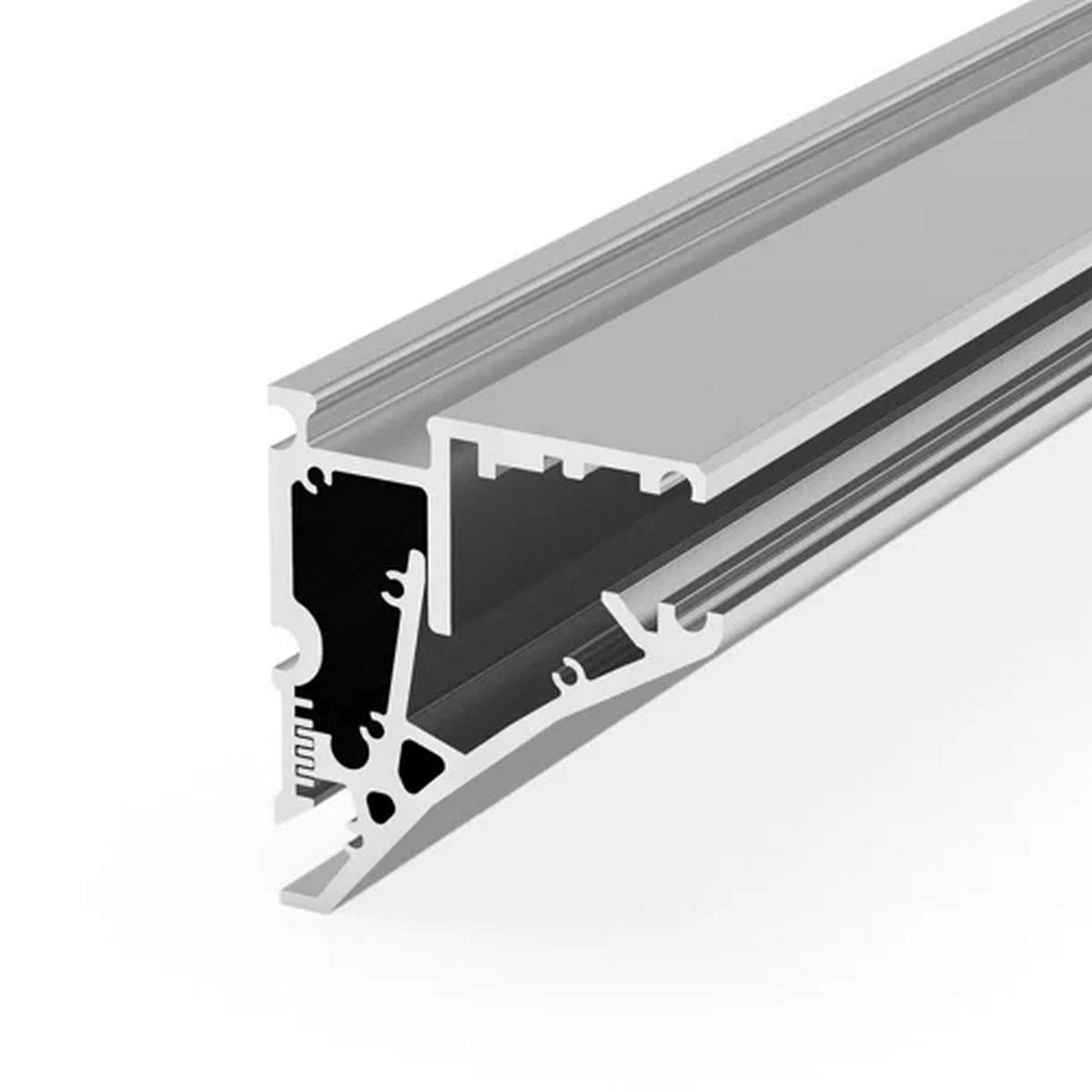

The Pula P10 LED edge-lit shelf channel is the ideal solution for creating edge-lit illuminated shelves. The profile consists of two aluminum extrusions: The first profile is the mounting track which is attached to the wall and the second profile is locked into the mounting track. This design also allows for easy installation and the ability to adapt to different thicknesses of material for the shelf.

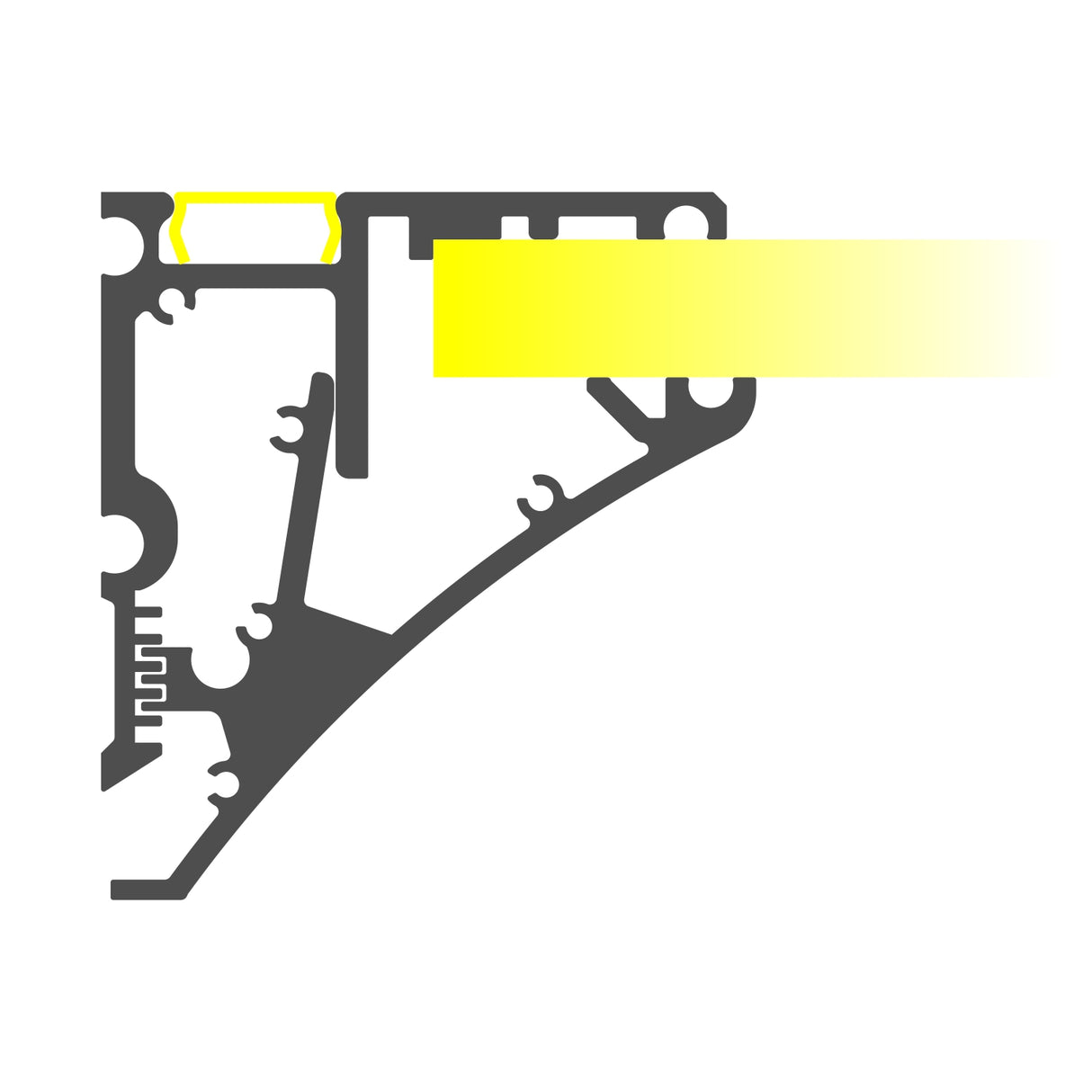

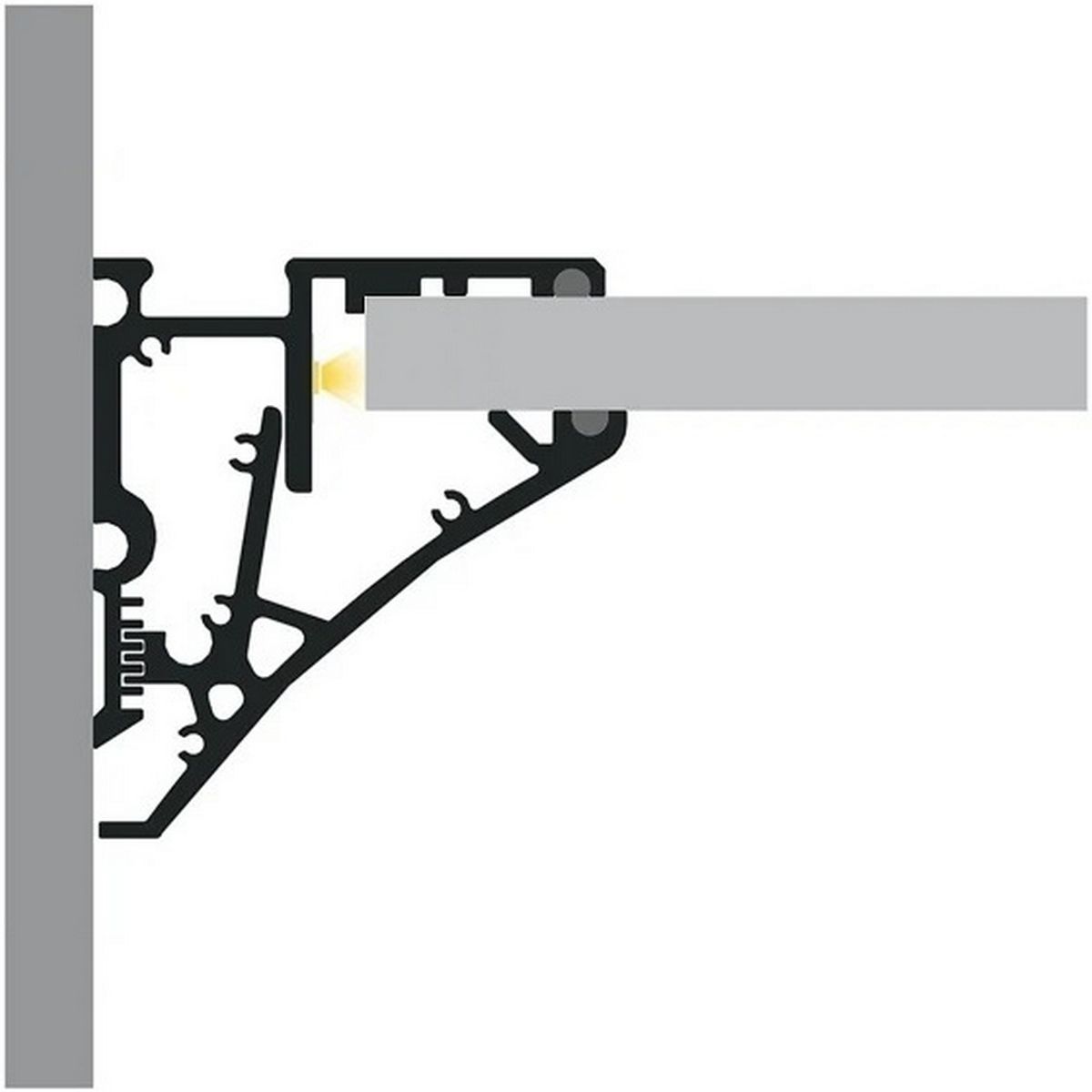

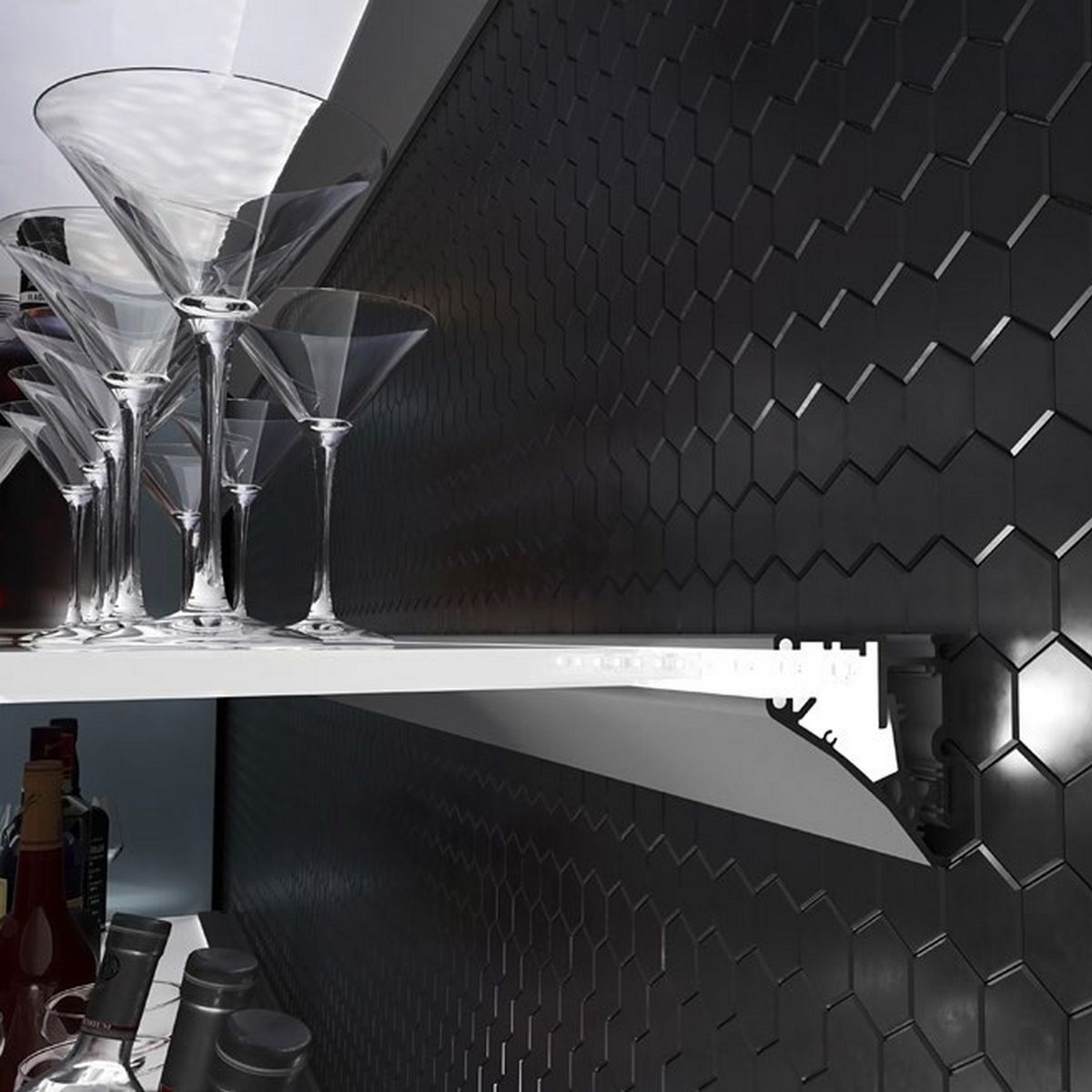

This shelf bracket edge-Lit LED channel features two positions where you can install LED strip lights. The first position accommodates LED strip lights which illuminate the edge of the shelf panel, allowing you to create an edge-lit glass or acrylic shelf. The second position allows you to install LED light facing upwards to wash the wall behind the shelf. You can also combine these two options to create beautiful edge-lit floating shelves.

If you ever wanted to know how to install beautiful illuminated glass shelving, this elegant LED profile is the answer to your question. This is how to install your illuminated shelf with Pula P10:

1. Drill wiring holes through the main profile as required to accommodate the LED supply.
2. Mount the main profile securely to the wall.
3. Fix your LED strip light into the desired positions (edge-lighting and/or wall washing) and thread the wiring through the hole you drilled.
4. Test the LED strip lights and correct any problems.
5. Insert the adjustable support profile and adjust it to the appropriate position for the thickness of your edge-lit shelf panel (not included).
6. Slide the edge-lit shelf panel into the profile, keeping the front slightly raised while you insert it.
7. Fit the matching end caps to the profile to complete a neat job.
8. Check that the shelf is secure before placing items on it.

The interlocking mechanism of the two profiles allows the width of the shelf slot to be adapted in increments from about 1/4" to 3/8" (6mm, 8mm and 10mm). Please secure the mounting track profile firmly to the wall so that it can support the weight of the illuminated shelf and items on it.

Product video

General specifications

• Material: Aluminum

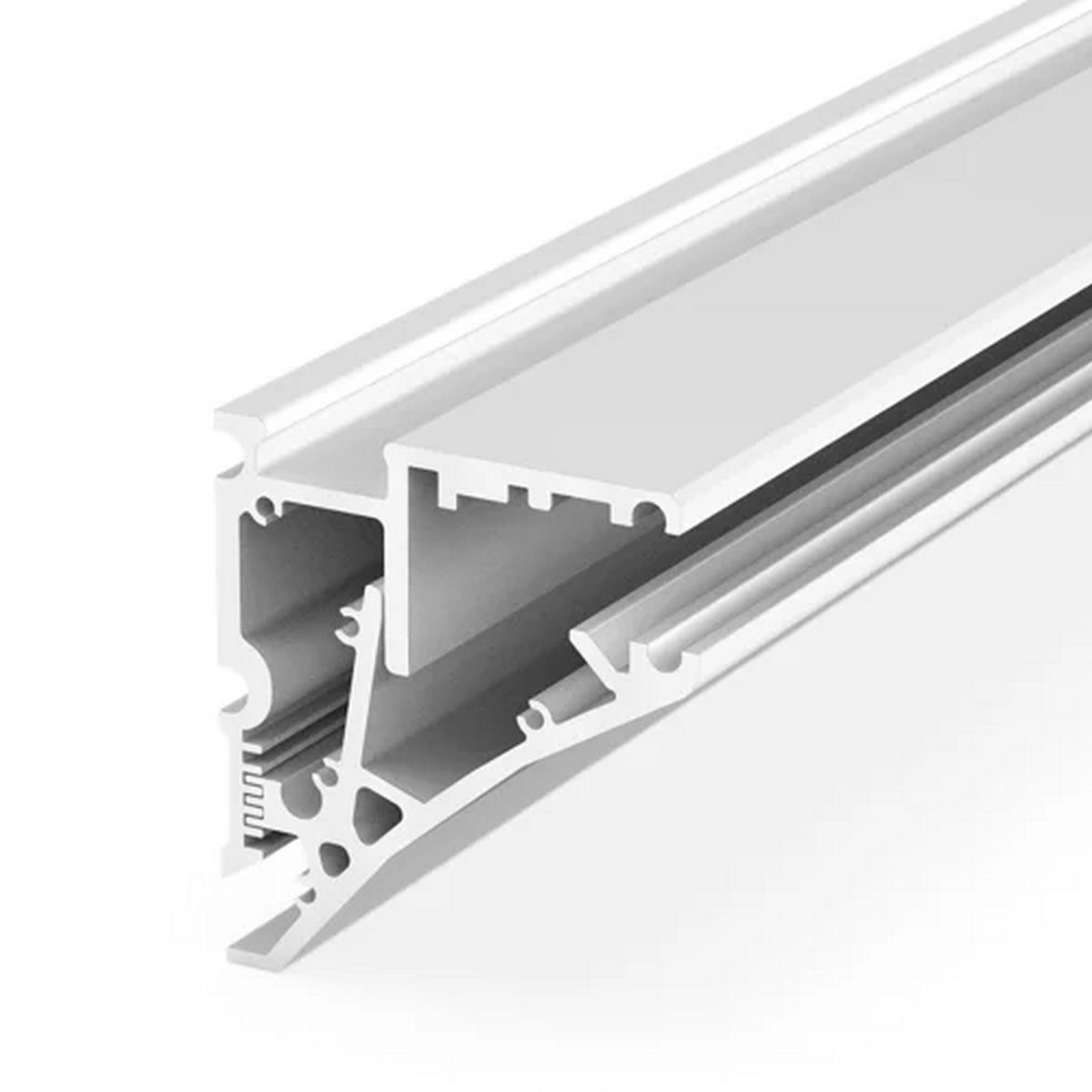

• Color: Silver anodized, White lacquered, Black lacquered
• Maximum LED strip width: 12mm

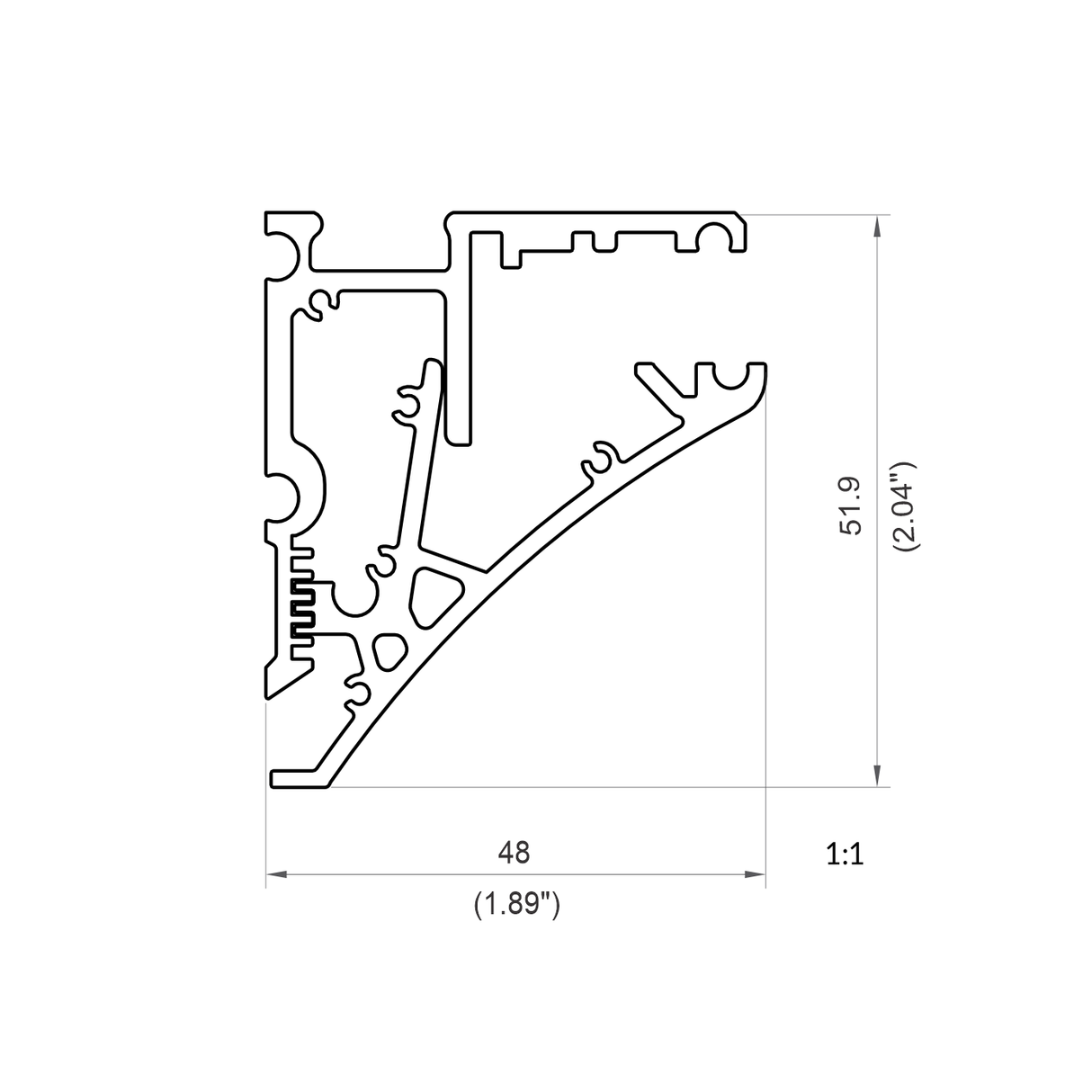

• Dimensions (W x H): 48mm x 51mm (1.89" x 2.05")
• Panel thickness: 6mm, 8mm or 10mm (1/4", 5/16" or 3/8")

Downloads

• Pula P10 cut sheet

Important notes

• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug-and-play light fitting with this profile according to your specifications. Therefore, please leave detailed instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs.
