Up & Down Cabinet Shelf Lighting LED Channel ~ Model Handy10

Profile only ~ diffusers and all other accessories are sold separately

Description

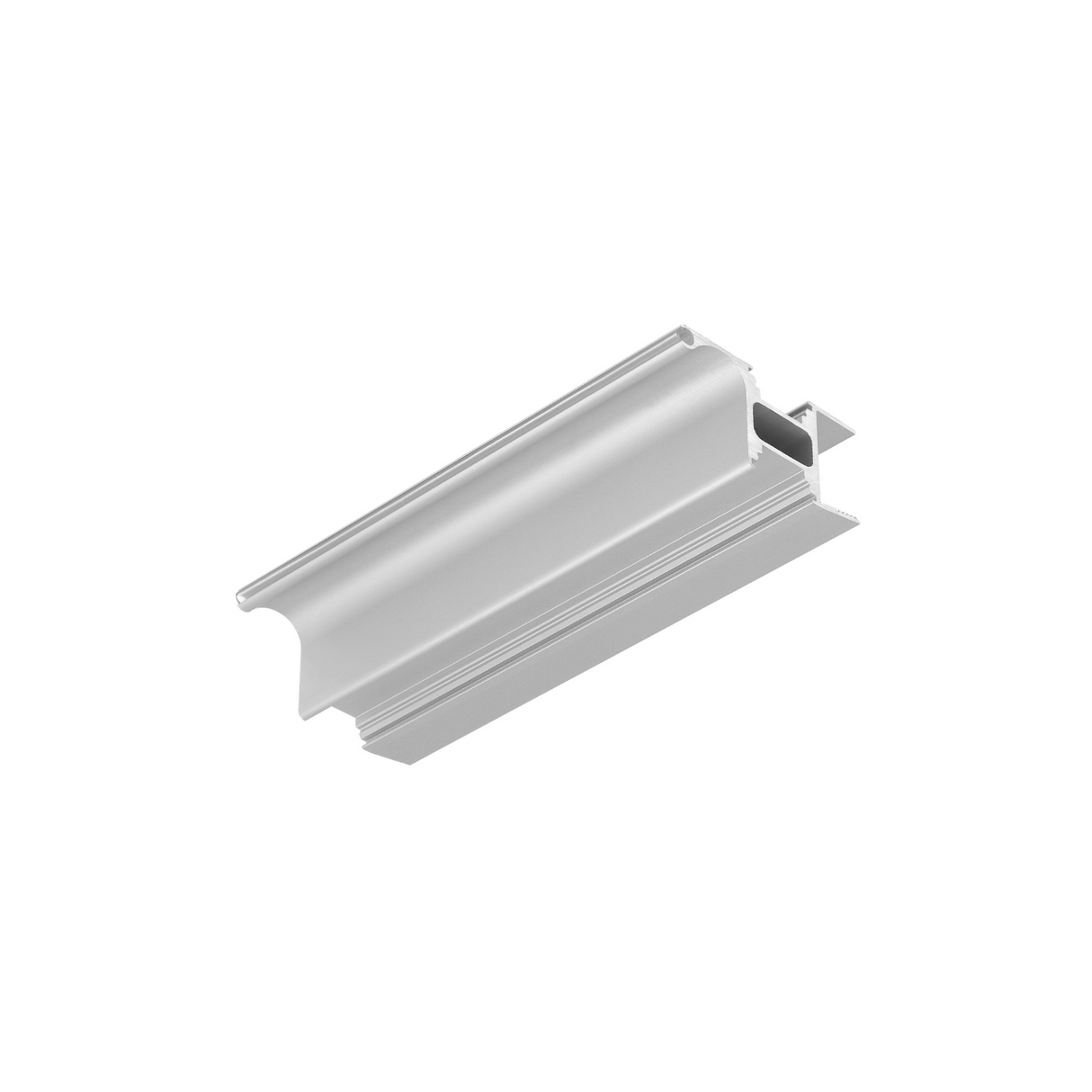

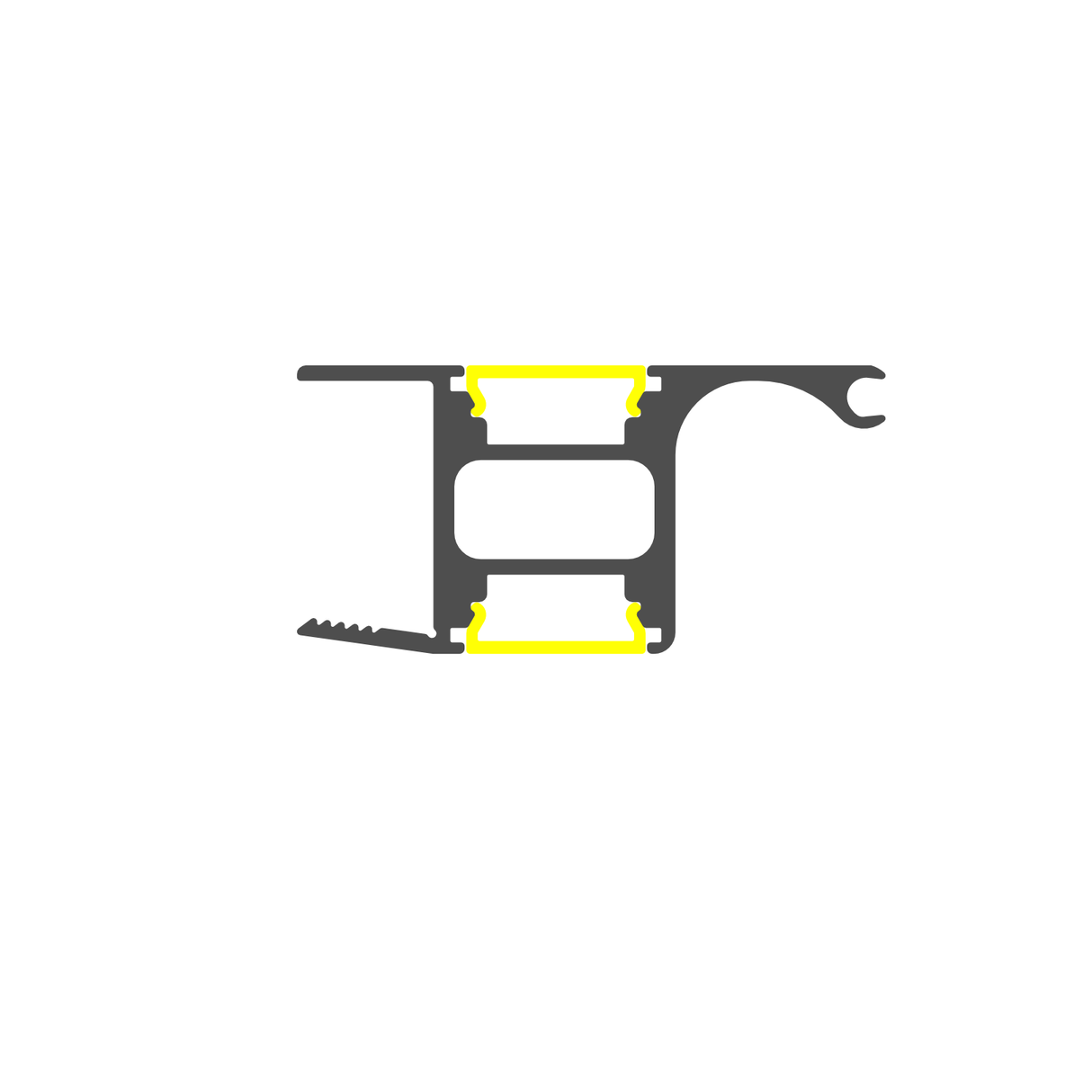

The Handy10 LED profile is designed specifically for an 18mm shelf board with a width of 43mm, providing enhanced or more pronounced illumination effects . It offers a double-sided luminous design to solve the problem of insufficient light between cabinet compartments or floating shelves. This LED cabinet shelf lighting profile is dedicated for LED strips up to 10mm.

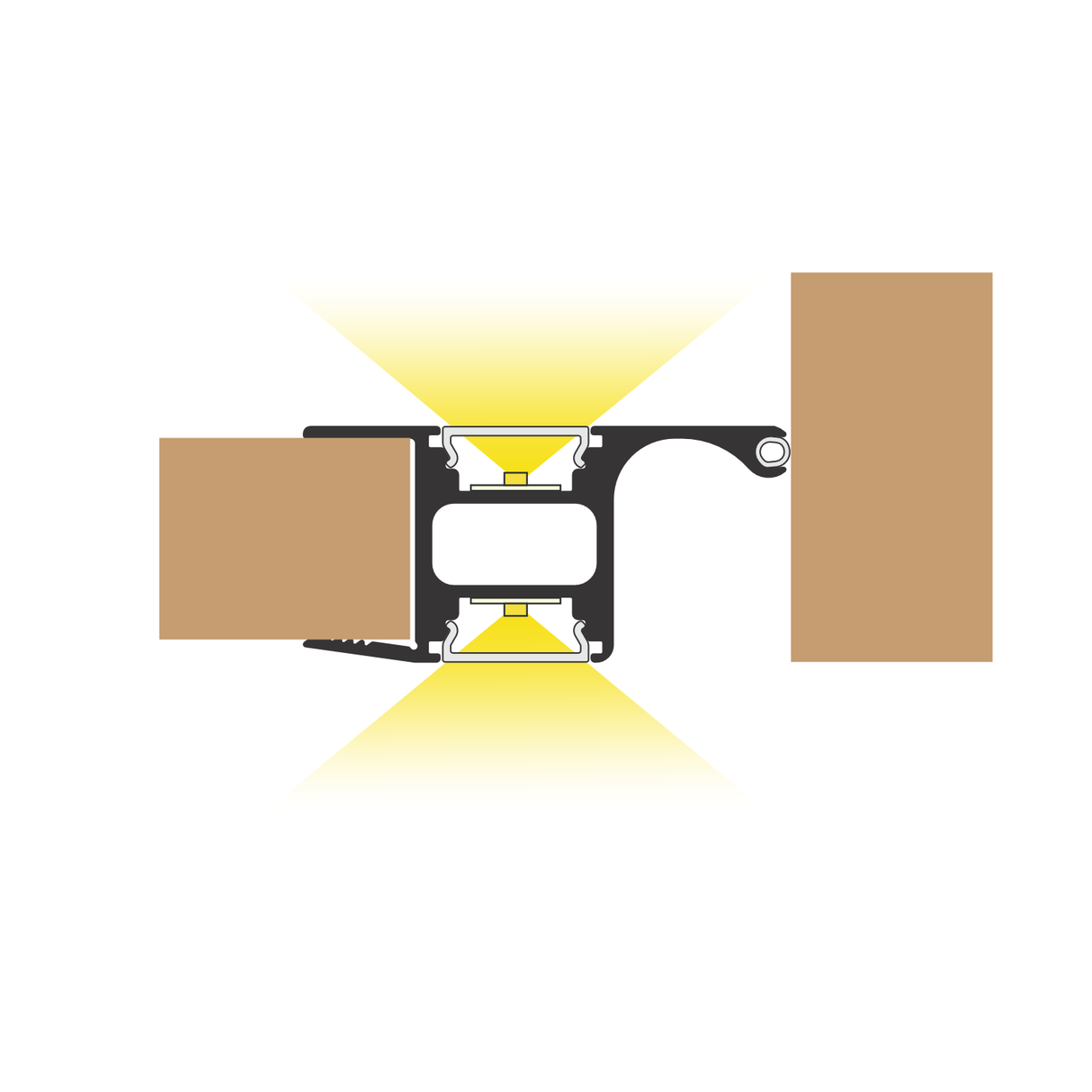

The installation method of Handy10 LED cabinet lighting profile is clip-on where the light diffuser softens the light, preventing dazzling and providing up and down illumination. It also has a groove in the channel where you clip in a thin silicone tube. This tube, with a diameter of a few millimeters, serves as a "bumper" when the drawer closes.

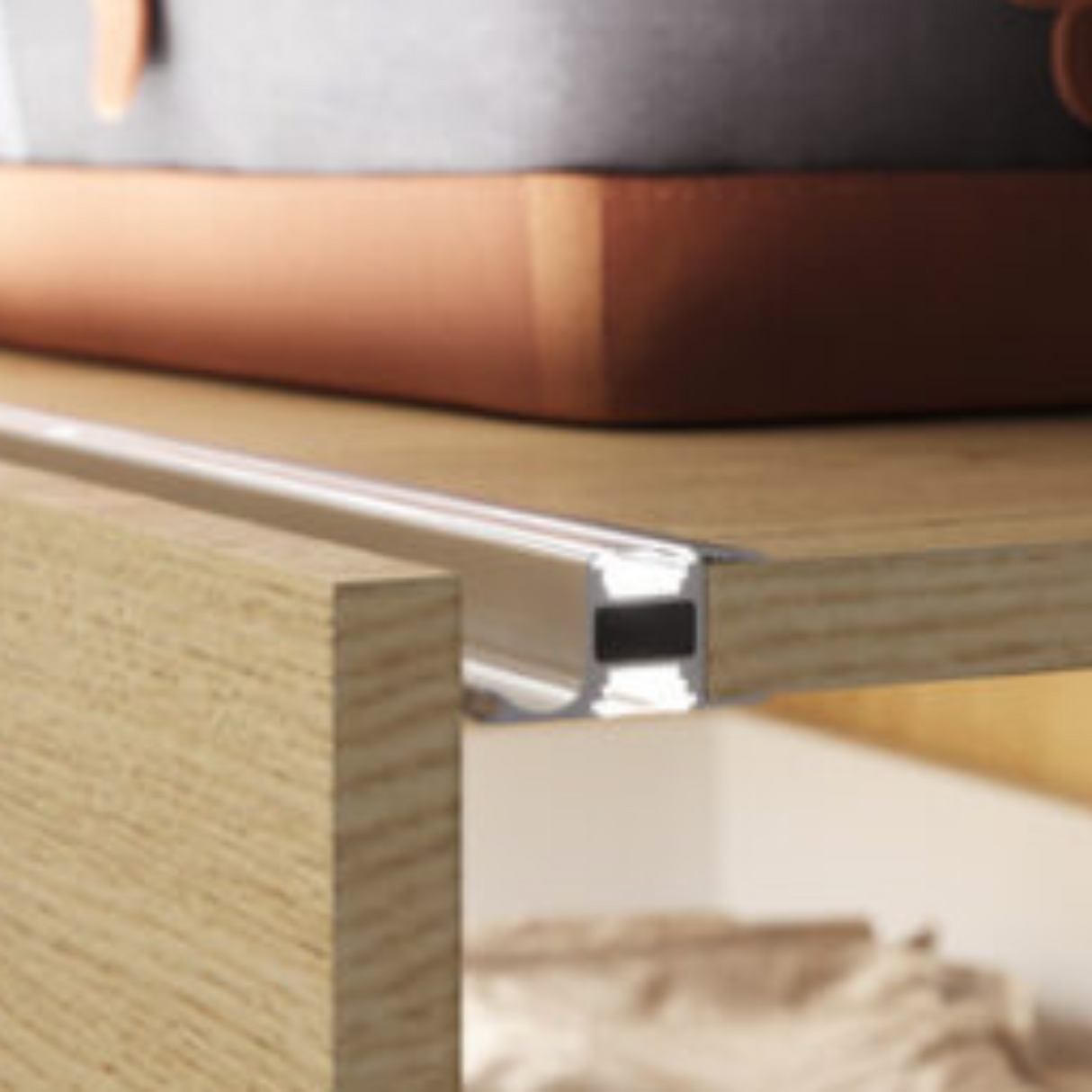

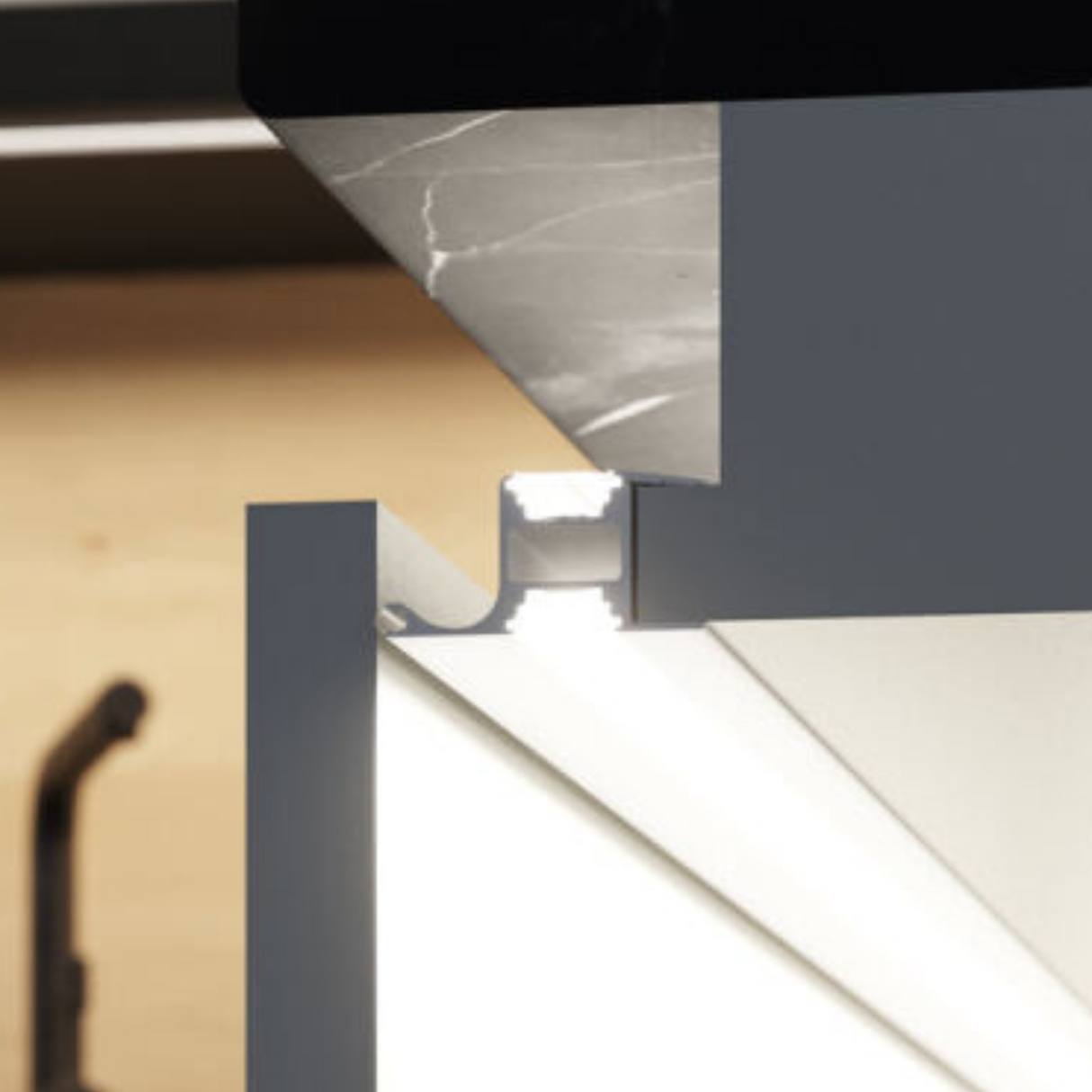

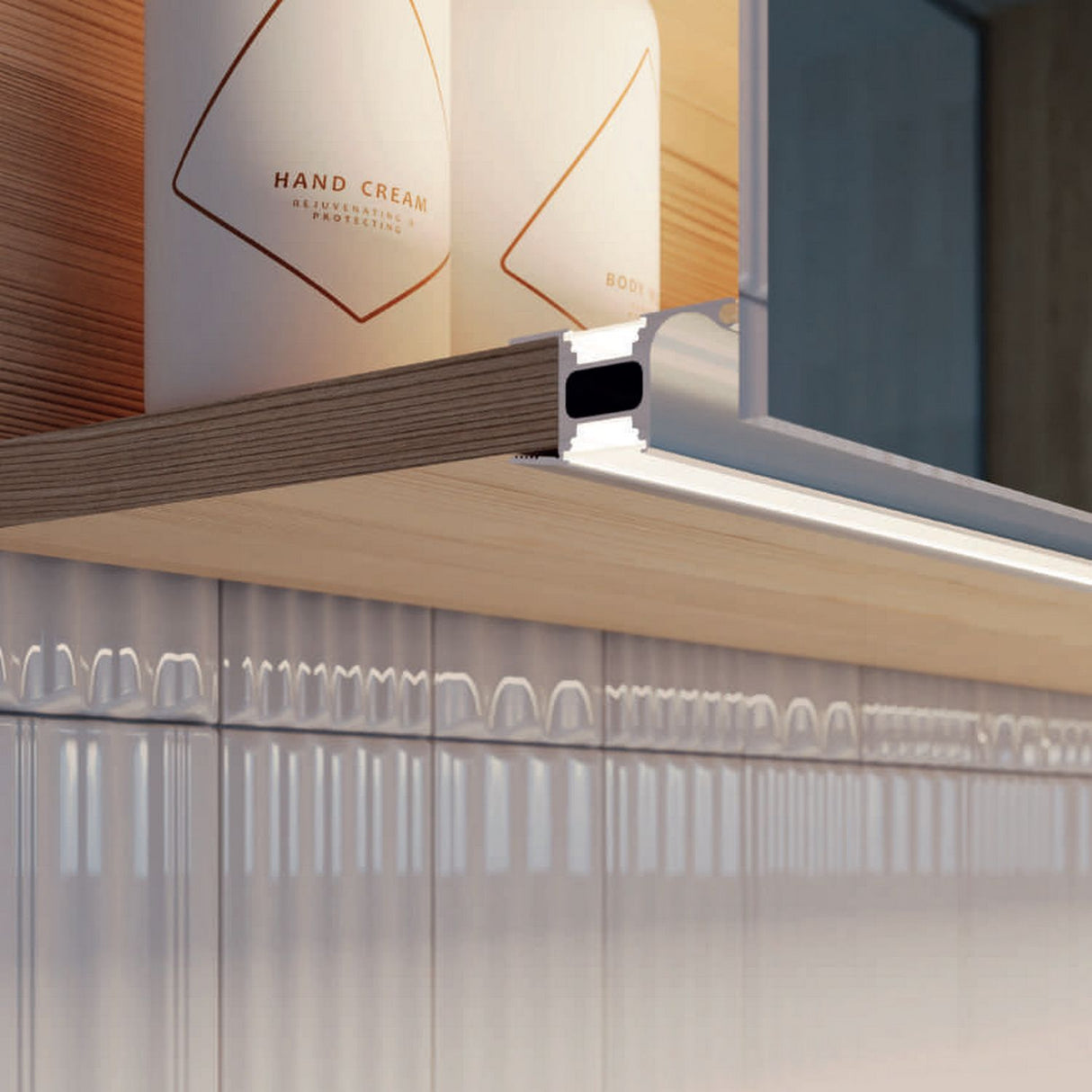

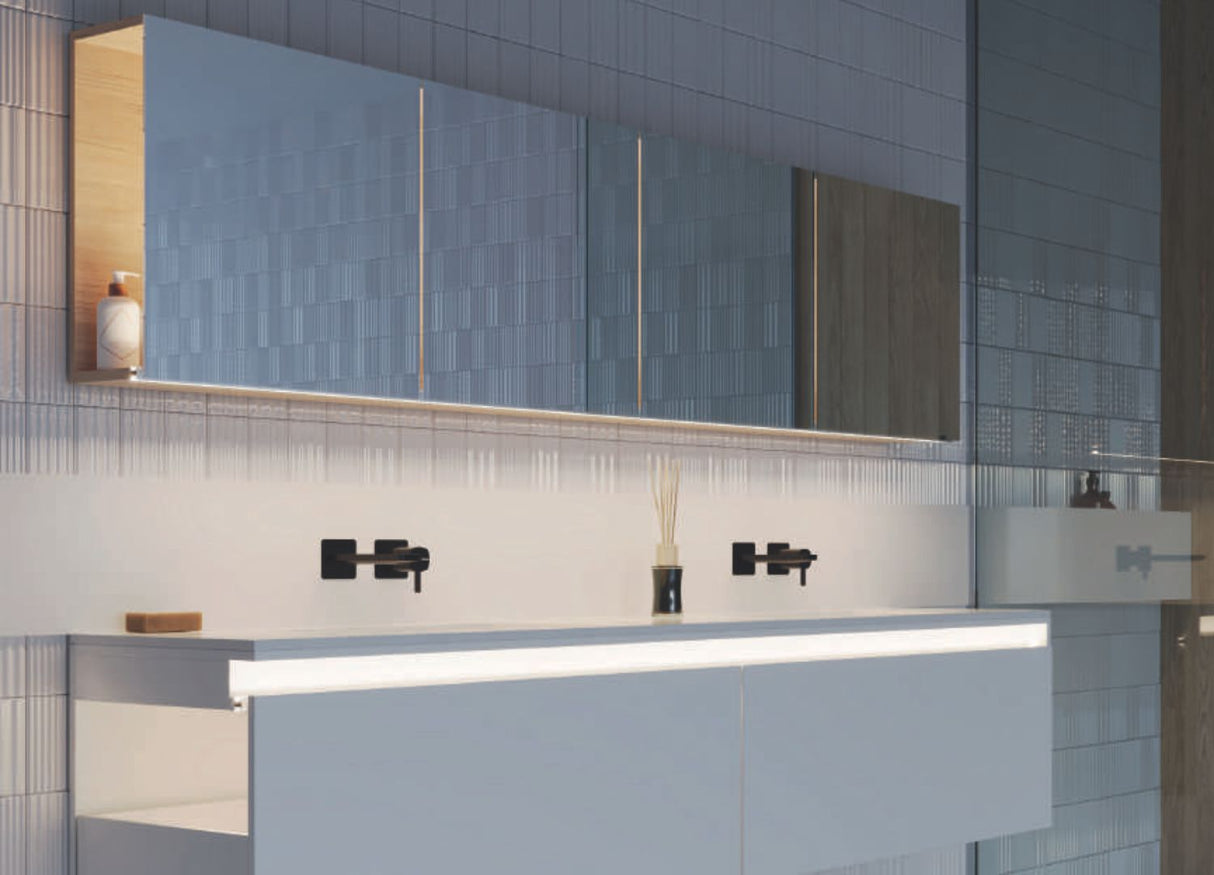

With up and down lighting design, this Handy10 LED profile is an excellent choice as LED lighting for the kitchen cabinets, shelves, drawers, display cases and bookshelves. It is also an excellent heat sink, discharging heat from the LED source and extending the life of the LED strips. It also protects the LED strip from mechanical damage and makes the installation much more durable.

Installation video tutorial

General specification

• Material: Aluminum

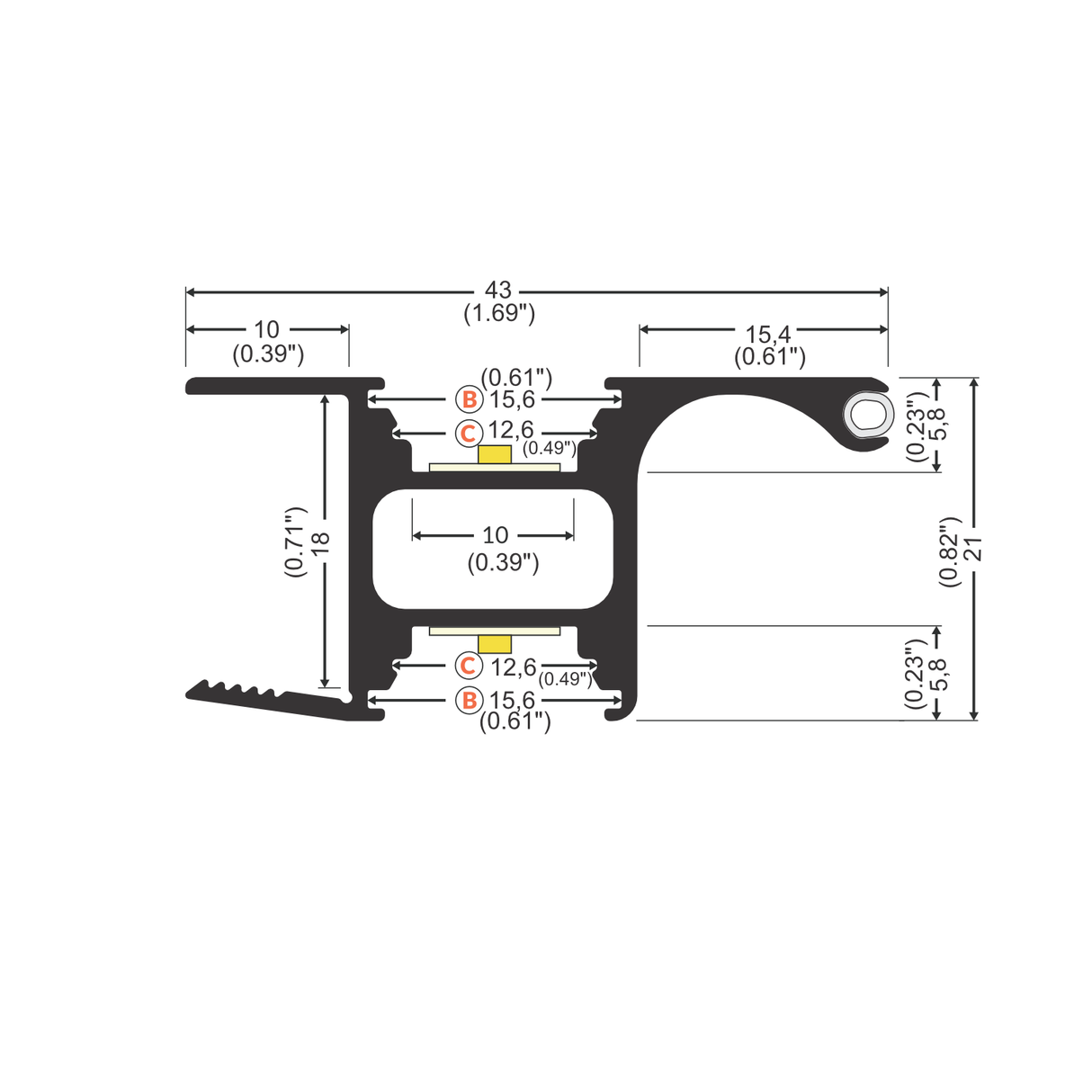

• Overall dimensions: 43mm x 21mm (1.69" x 0.83")
• Inner Width: 10mm (0.39”)
• Maximum LED strip width: 10mm
• Clamp size: 18mm thick panel

Downloads

• Handy10 cut sheet

Important notes

• You can easily cut LED profiles by hand or by machine.
• For your convenience, Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
