Narrow COB IP20 High CRI LED Strip (24V) ~ Elite Gold Slim Series

LED strip only ~ channel, covers, end caps and all other accessories are sold separately

Description

Elite Gold Slim Series is a high-performance thin flexible LED strip designed for seamless, uniform lighting in linear luminaires, offering superior quality and efficiency. With COB (Chip on Board) technology, it ensures dot-free lighting even in shallow profiles, providing a smooth, continuous line of light.

The PCB surface features a thin layer of gold, ensuring easier, faster, and safer soldering while protecting against oxidation and reducing voltage drop for optimal performance. The gold surface also acts as a continuous soldering pad, allowing soldering at any point along the strip for maximum installation flexibility.

This strip is cuttable every 10mm (0.39"), allowing for precise customization without compromising performance. Even if it's cut in the wrong place, the small unlit section is unnoticeable once placed inside a profile with a cover.

It boasts a CRI of at least 85, ensuring excellent color rendering for vibrant, true-to-life lighting. Ideal for architectural and decorative lighting applications, the Elite Gold Series LED strip combines advanced technology with premium materials to deliver exceptional efficiency, reliability, and color rendering.

With an IP20 rating, the Elite Gold Slim Series LED strip is suitable for indoor use only unless used in a waterproof channel or appropriately sealed.

NB: When installing the Gold Series LED strips into aluminum profiles, you must ensure the strip is securely attached. Since the strip uses a continuous PCB with exposed contacts, failure to do so may allow the strip to shift and cause a short circuit.

General specifications

• Supply voltage: 24V DC
• Power consumption: 10W/m
• Luminous flux:
  • 2800K: 865.2 lm/m
  • 3000K: 911.0 lm/m
  • 4000K: 972.4 lm/m
  • 5000K: 1044.0 lm/m
• Luminous efficacy:
  • 2800K: 83.9 lm/W
  • 3000K: 89.2 lm/W
  • 4000K: 96.7 lm/W
  • 5000K: 102.8 lm/W
• CRI: CRI 85+

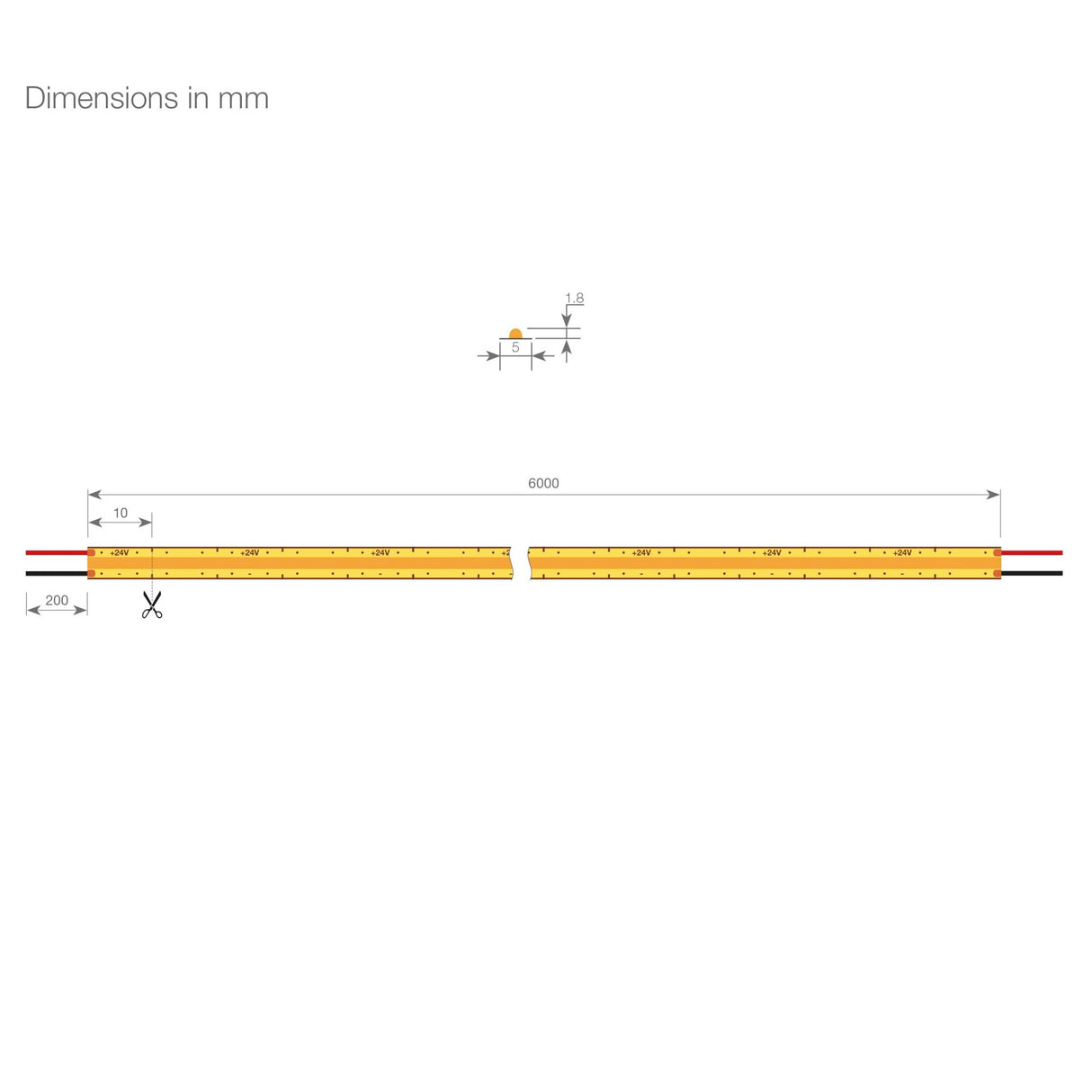

• Dimensions: 5mm (0.2") wide x 1.8mm (0.071") high

• Cutting pitch: 10mm (0.39")
• Density: 400 LEDs per meter
• Beam angle: 140°
• IP rating: IP20 non-waterproof

• Working temperature: -25ºC / +45ºC (-13ºF / +113ºF)

Downloads

• 2800K cut sheet
• 3000K cut sheet
• 4000K cut sheet
• 5000K cut sheet
