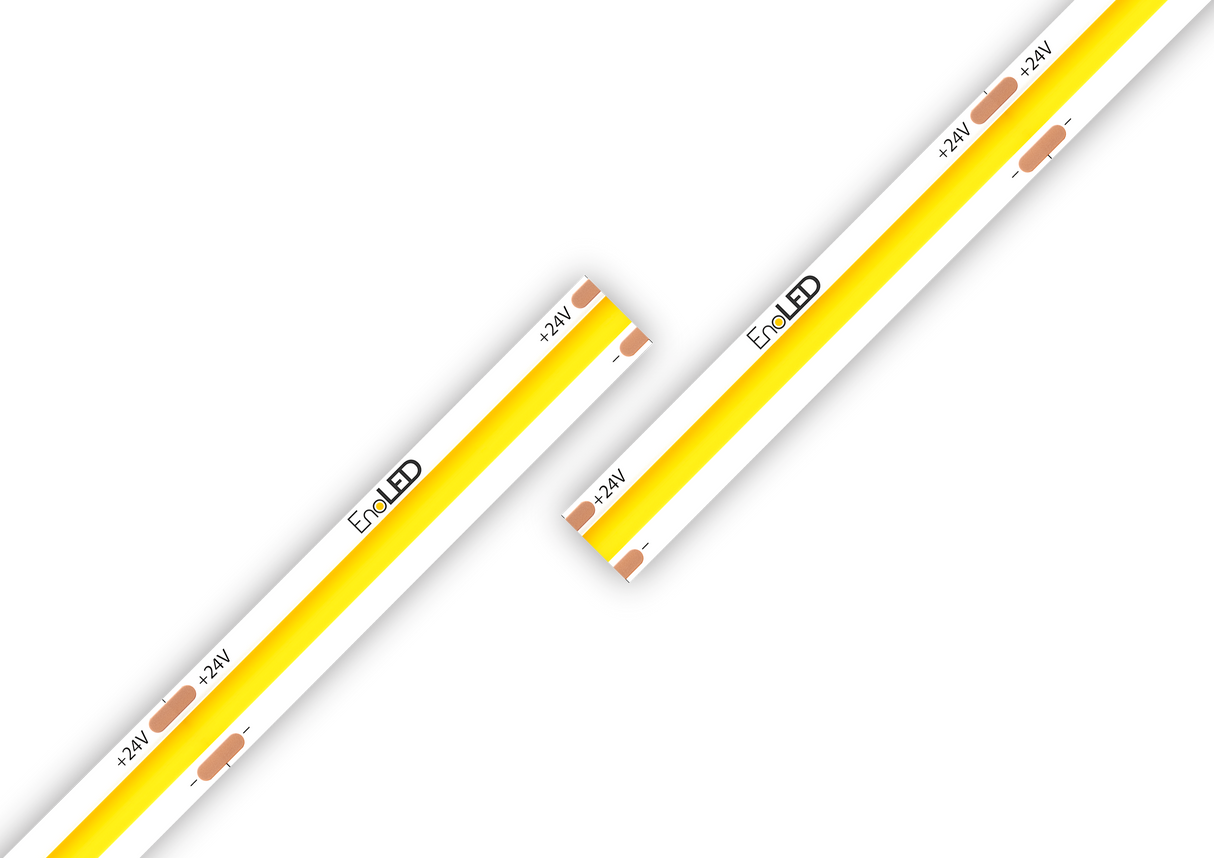

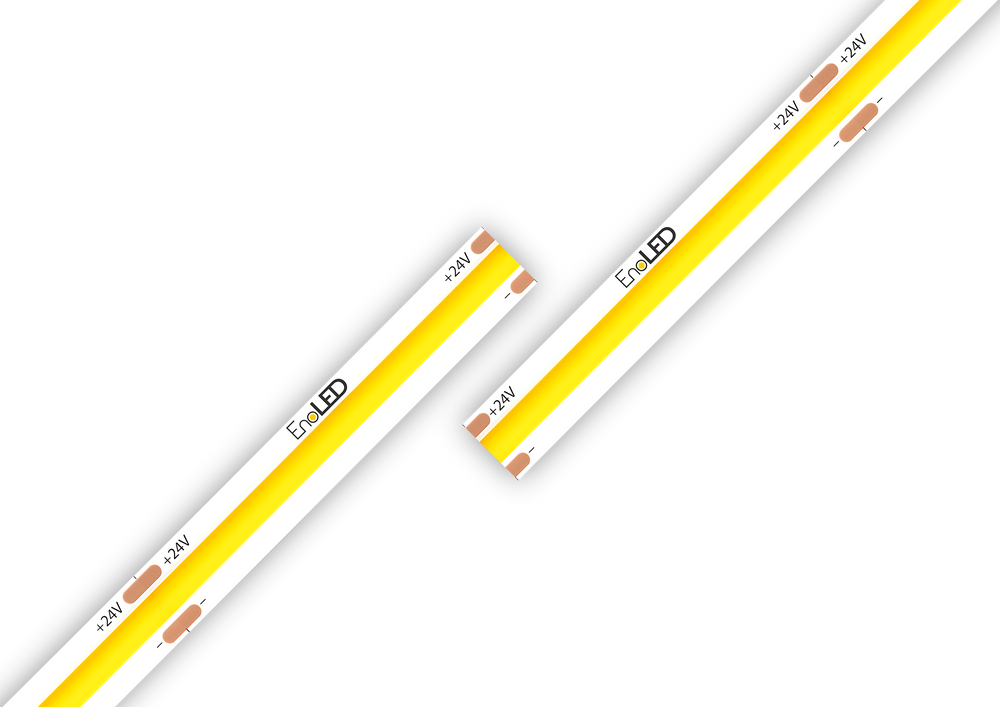

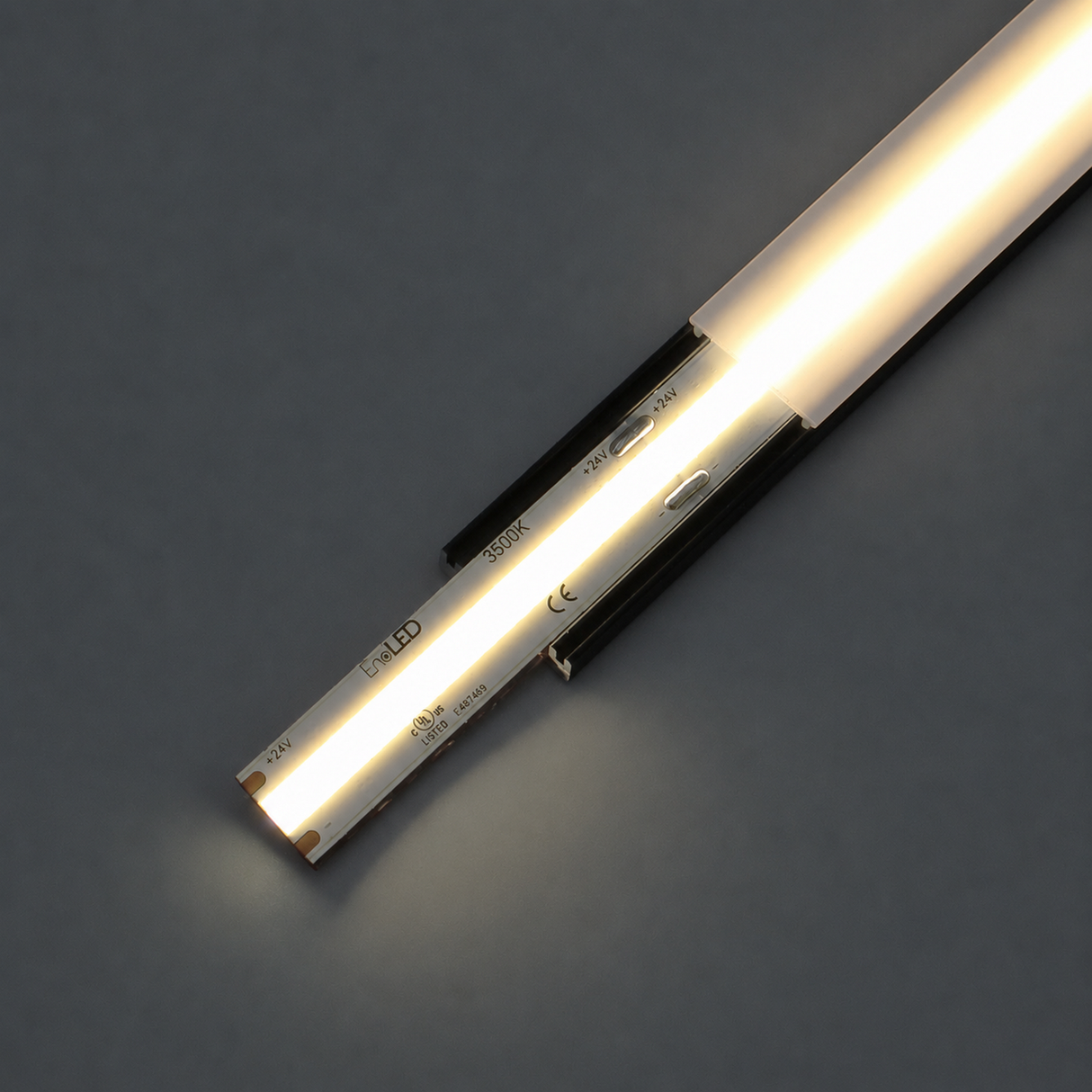

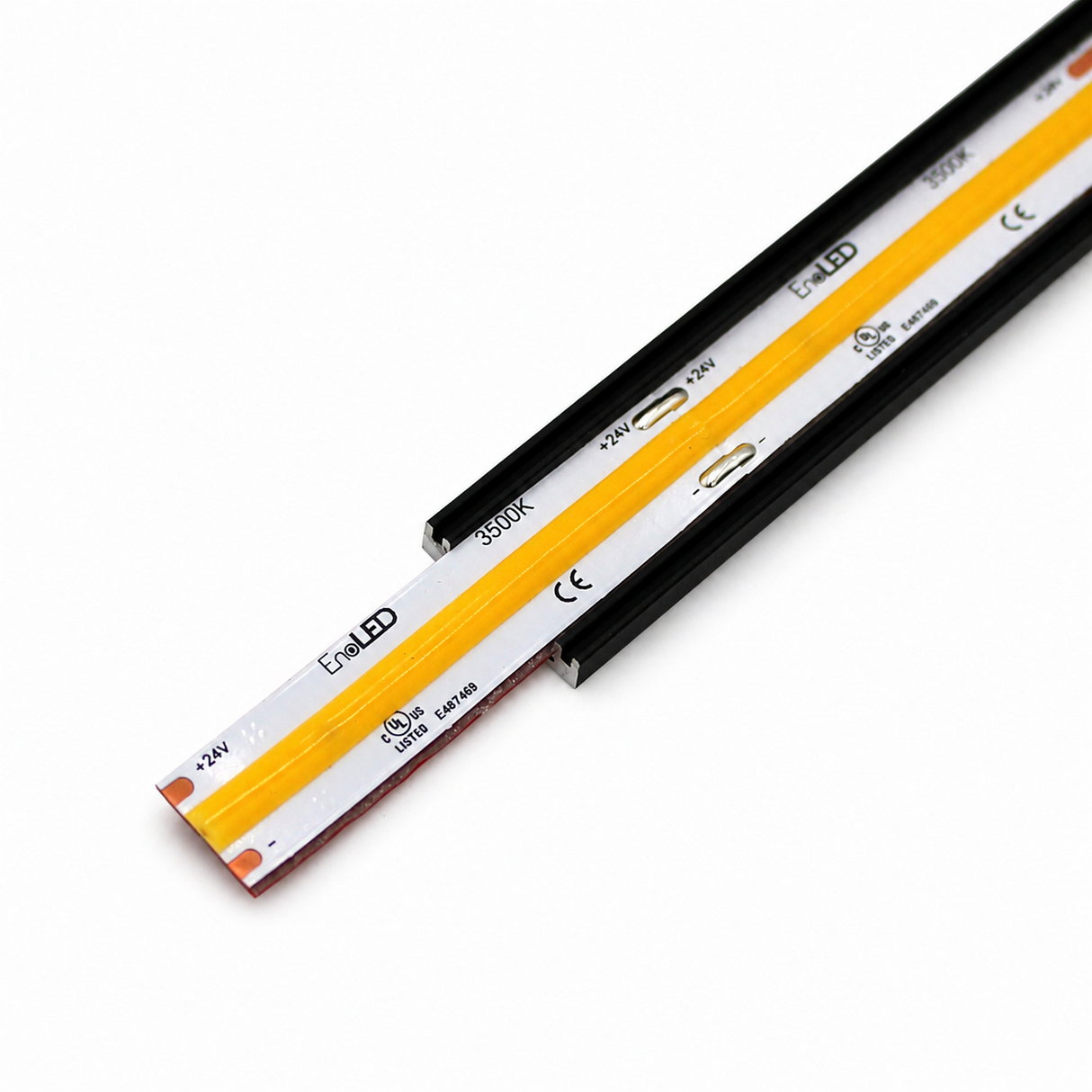

COB IP20 Dotless LED Strip (24V) ~ UniBasic Series

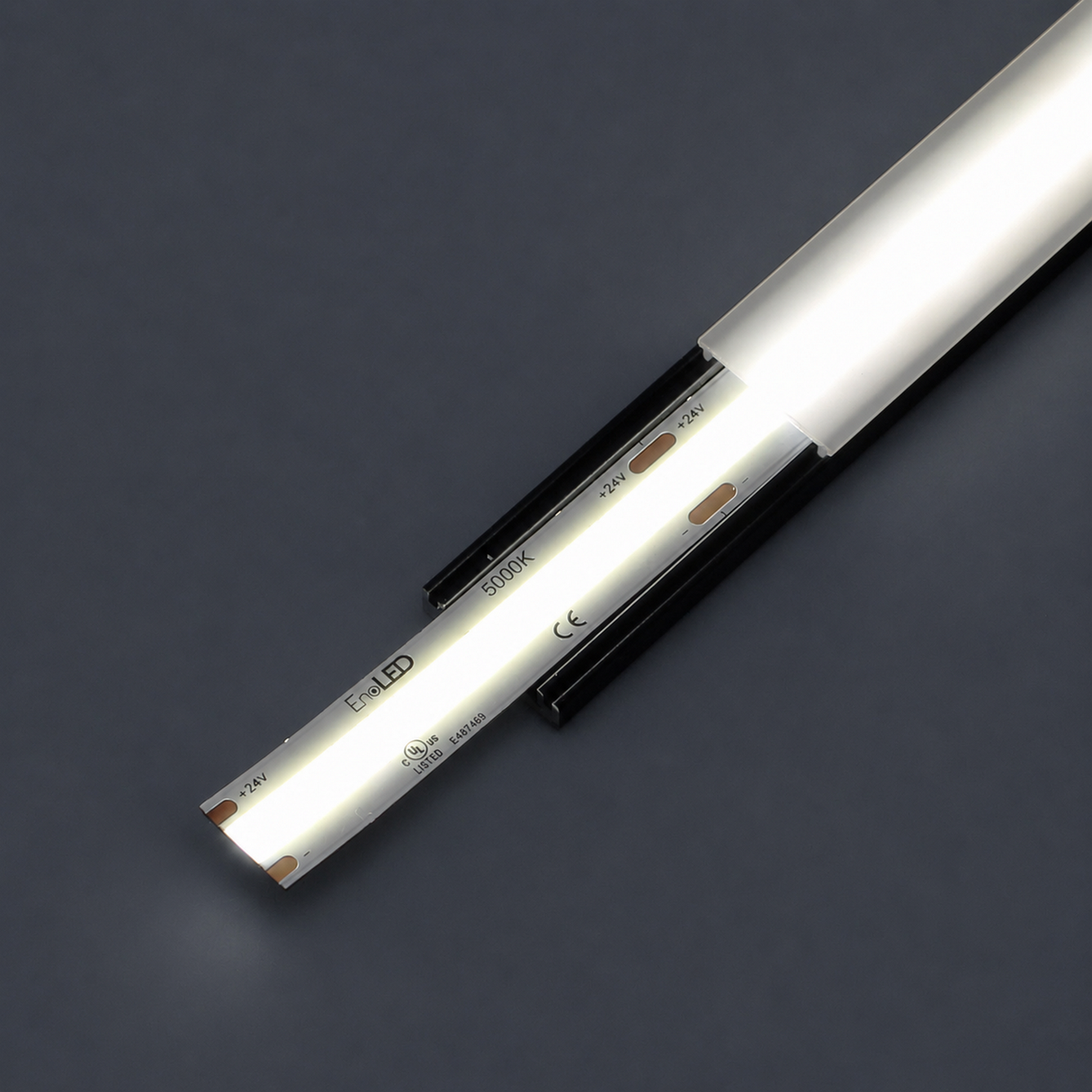

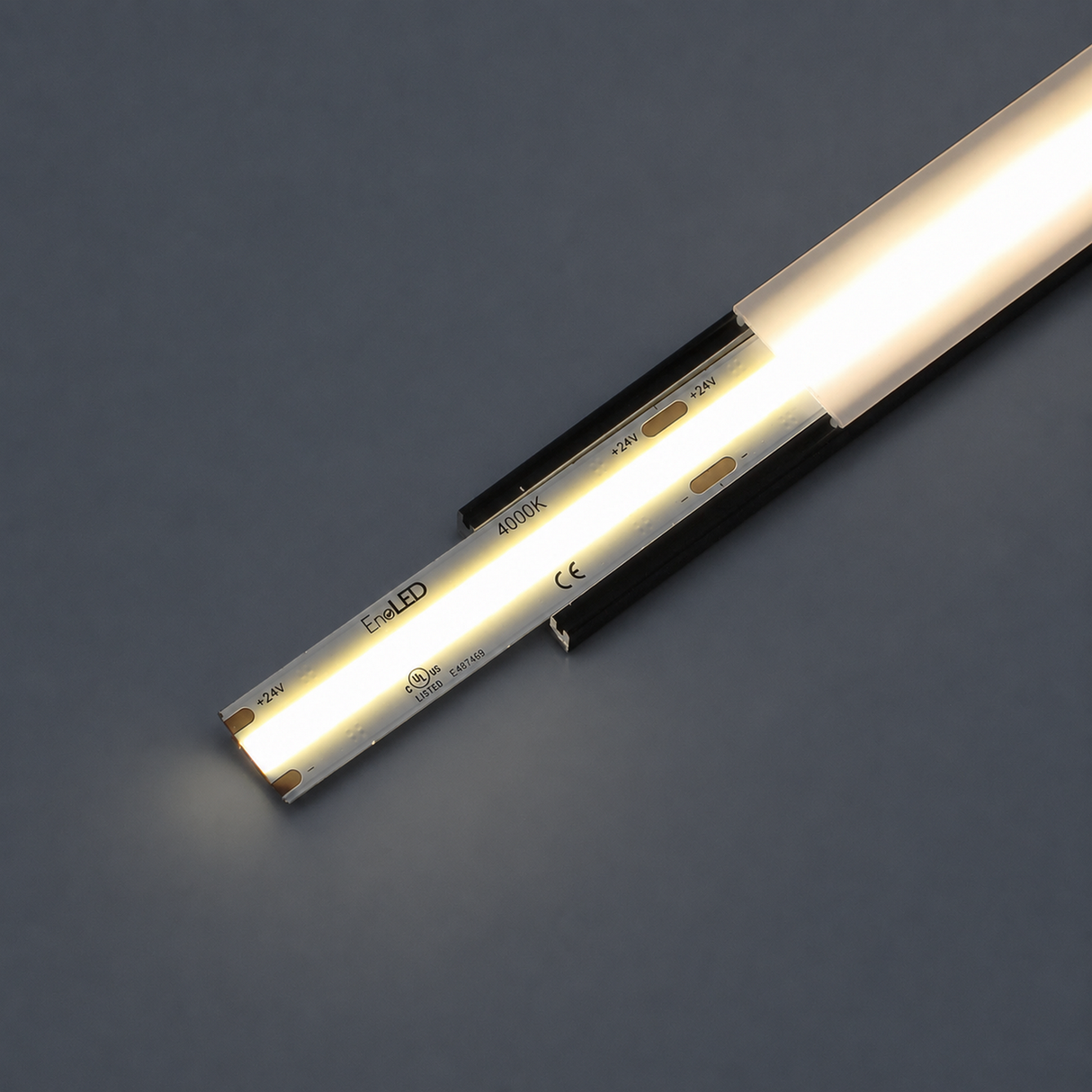

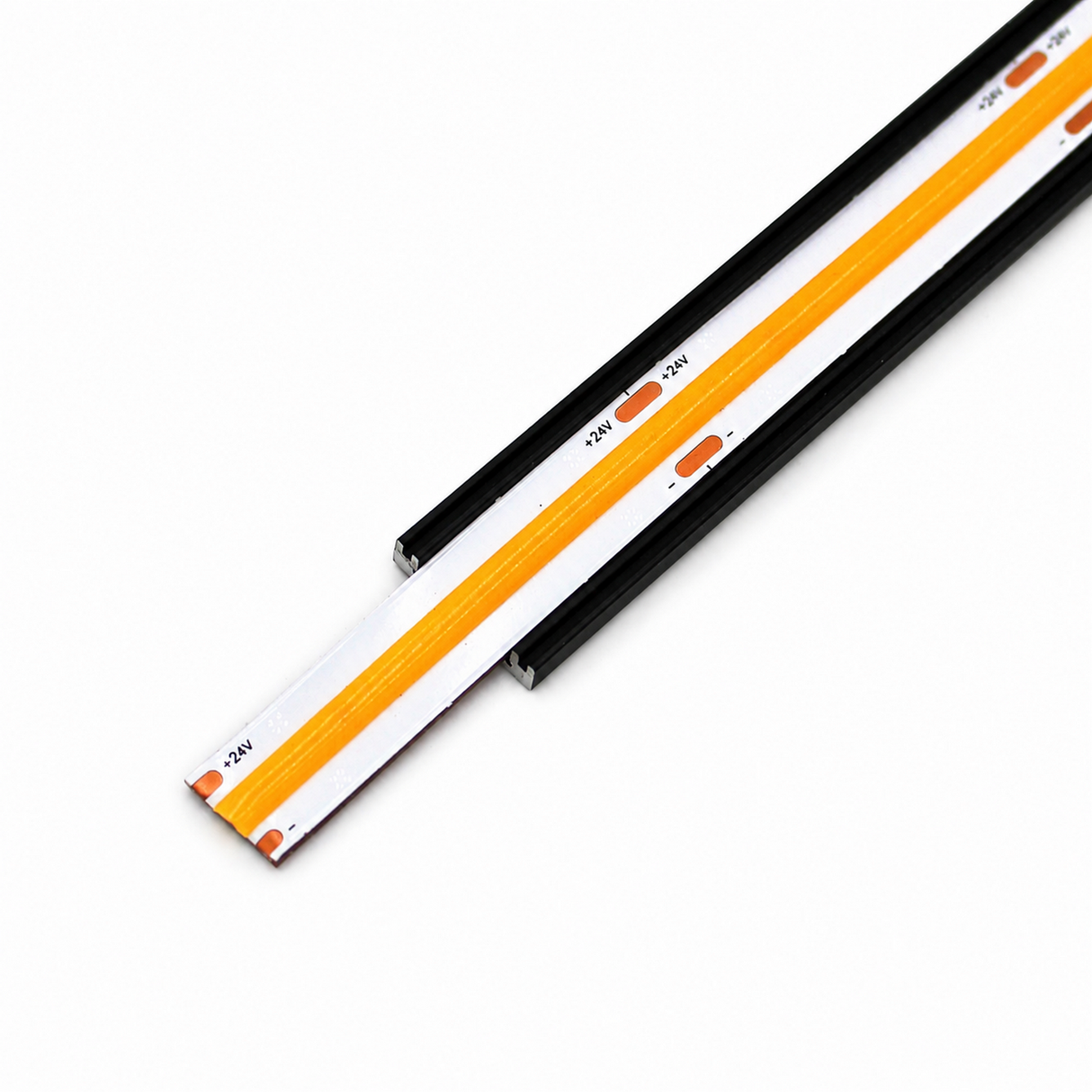

LED strip only ~ Profile, covers, end caps and all other accessories are sold separately

Description

The UniBasic series is a 24V dotless COB LED strip designed for smooth, uniform illumination in architectural and decorative applications. With a high color rendering index of 90+, it delivers accurate and natural light quality, producing up to 1,138 lumens per meter. Available in color temperatures from 2700K to 5000K, this COB strip provides versatile options for both warm and cool lighting environments.

Each strip is cuttable every 1.97 inches (50 mm), making it easy to customize lengths for specific projects. Installation is simple with the reliable Red 3M VHB adhesive backing, and every roll includes a 36-inch lead wire and tape connector for seamless setup. The UniBasic series is UL Listed and Class 2 certified, ensuring safety and performance in professional installations.

Designed for indoor use with an IP20 rating, the UniBasic COB LED strip provides efficient and continuous lighting for low-clearance areas, reflective surfaces, under-cabinet lighting, and display accents.

General specifications

• Supply voltage: 24V DC

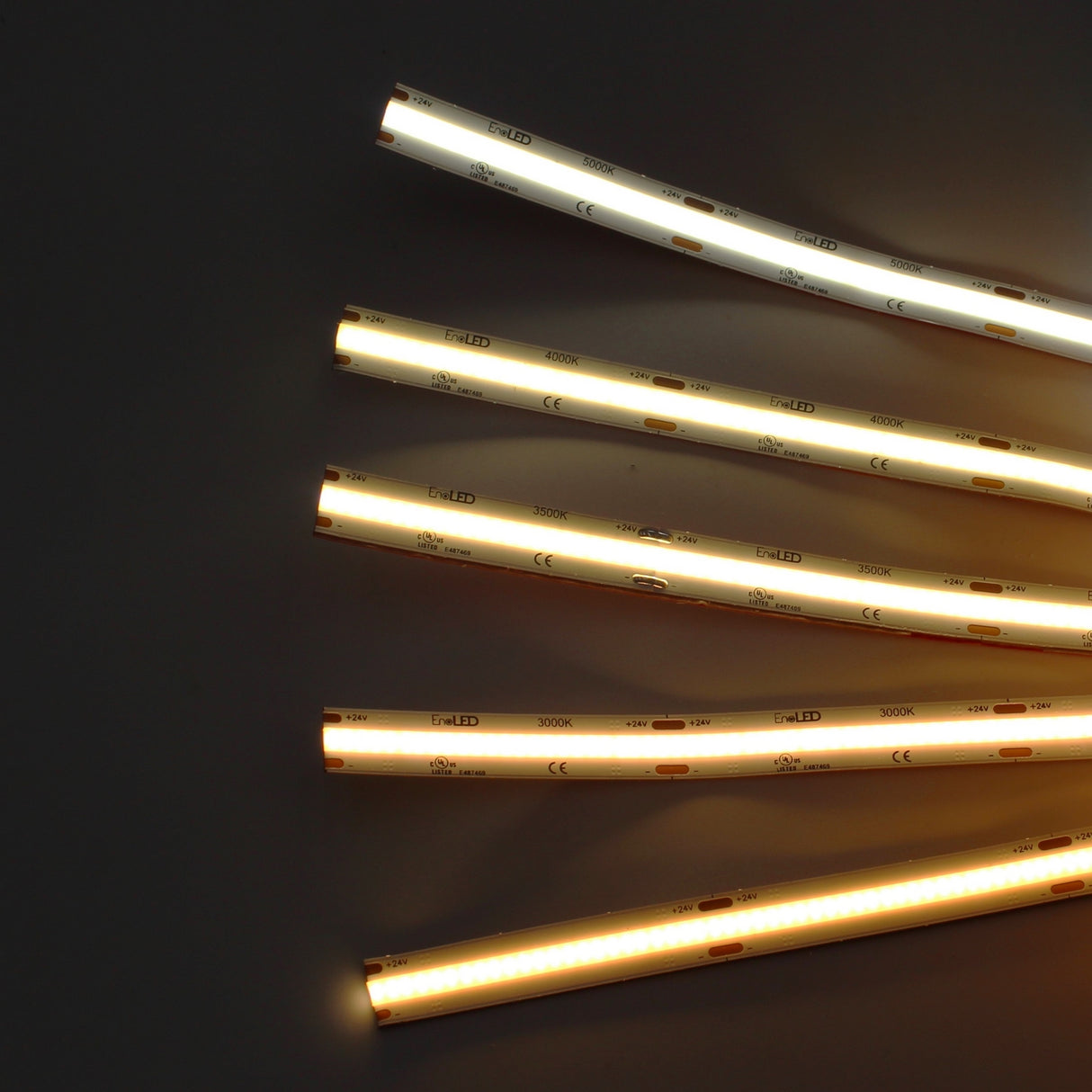

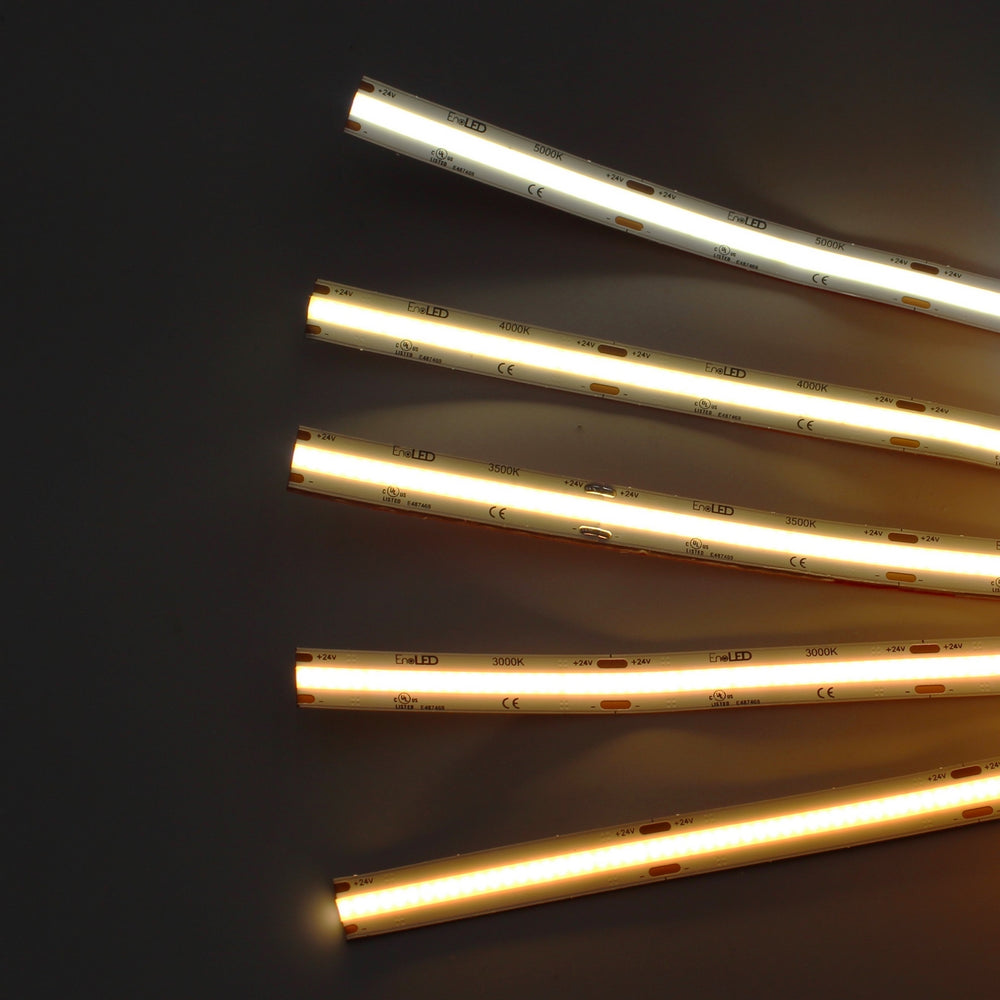

• Color temperatures available:

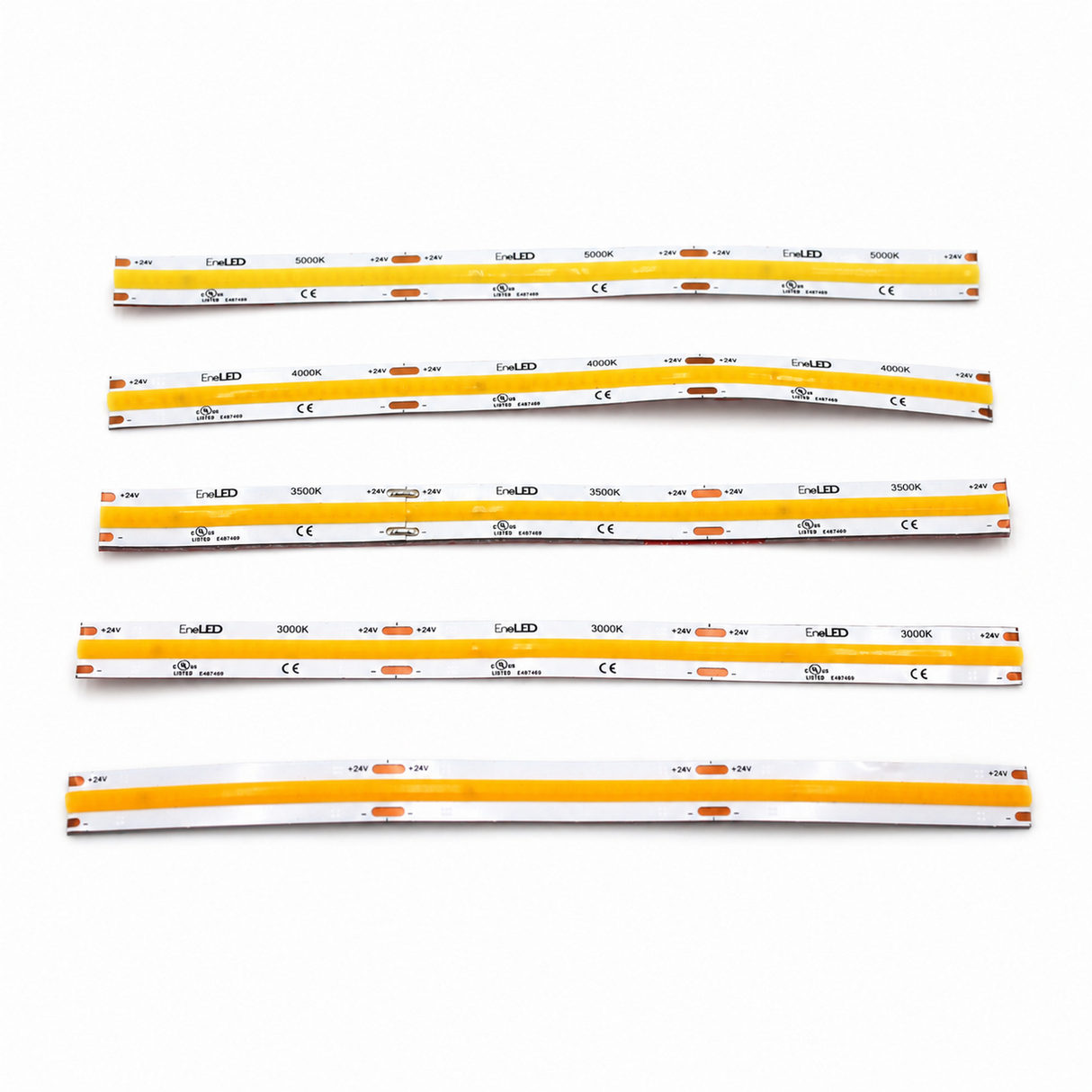

  • 2700K Ultra Warm White
  • 3000K Warm White
  • 3500K Warm White
  • 4000K Natural White

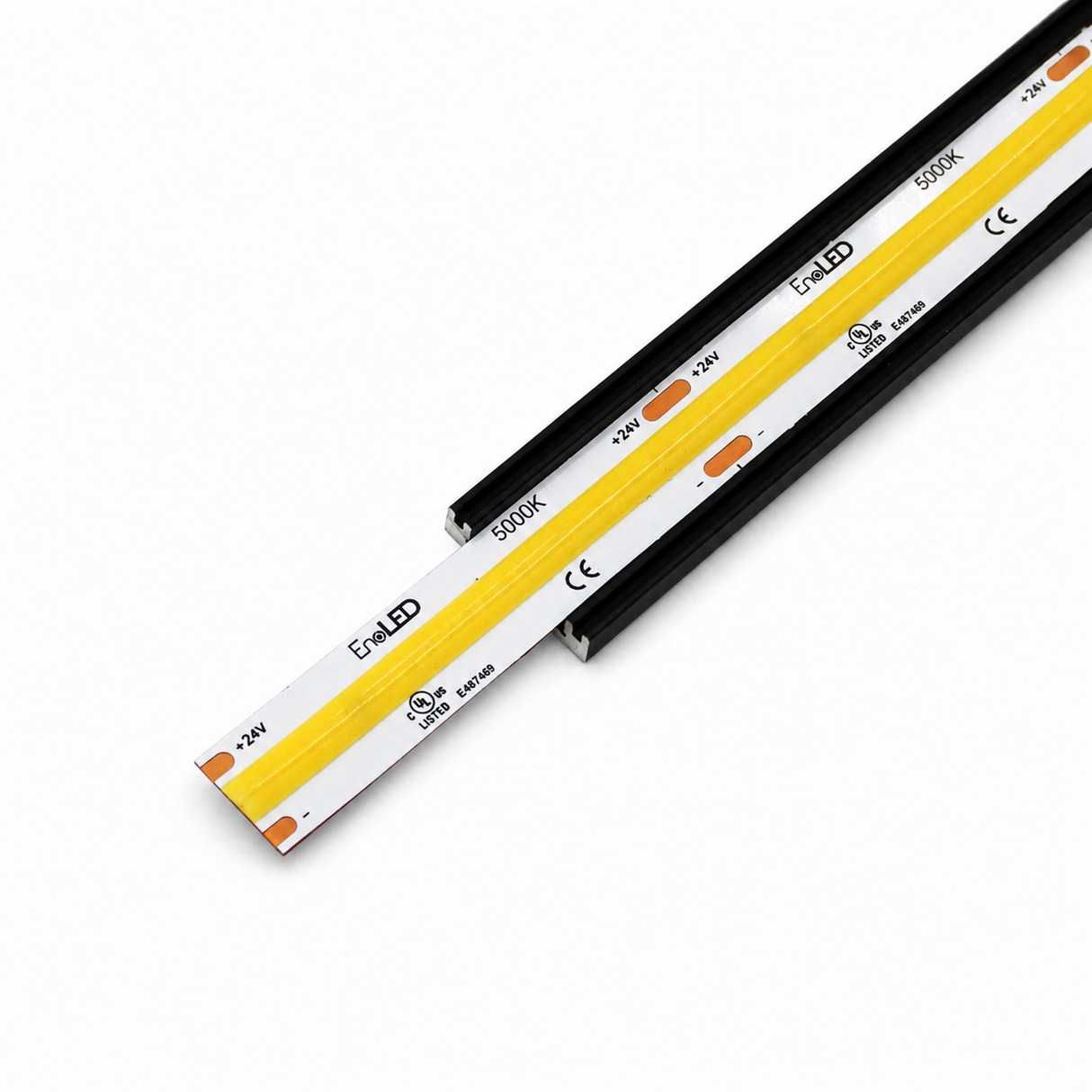

  • 5000K Natural White

• Power consumption: 9.8 W/m
• Luminous flux: 961 lm/m – 1,138 lm/m
• Color rendering index (CRI): CRI 90+
• Beam angle: 180°
• Cutting pitch: Every 50 mm (2")
• Maximum run length: 10 m (32.8 ft)
• IP rating: IP20 non-waterproof
• Dimensions: 10mm x 1.27mm (0.39" x 0.05")
• Operating temperature: -20°C to 45°C (-4°F to 113°F)
• Expected lifetime: >50,000 Hours
• Certifications: UL Listed
• Warranty: 6 Years

Downloads

• UniBasic cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
