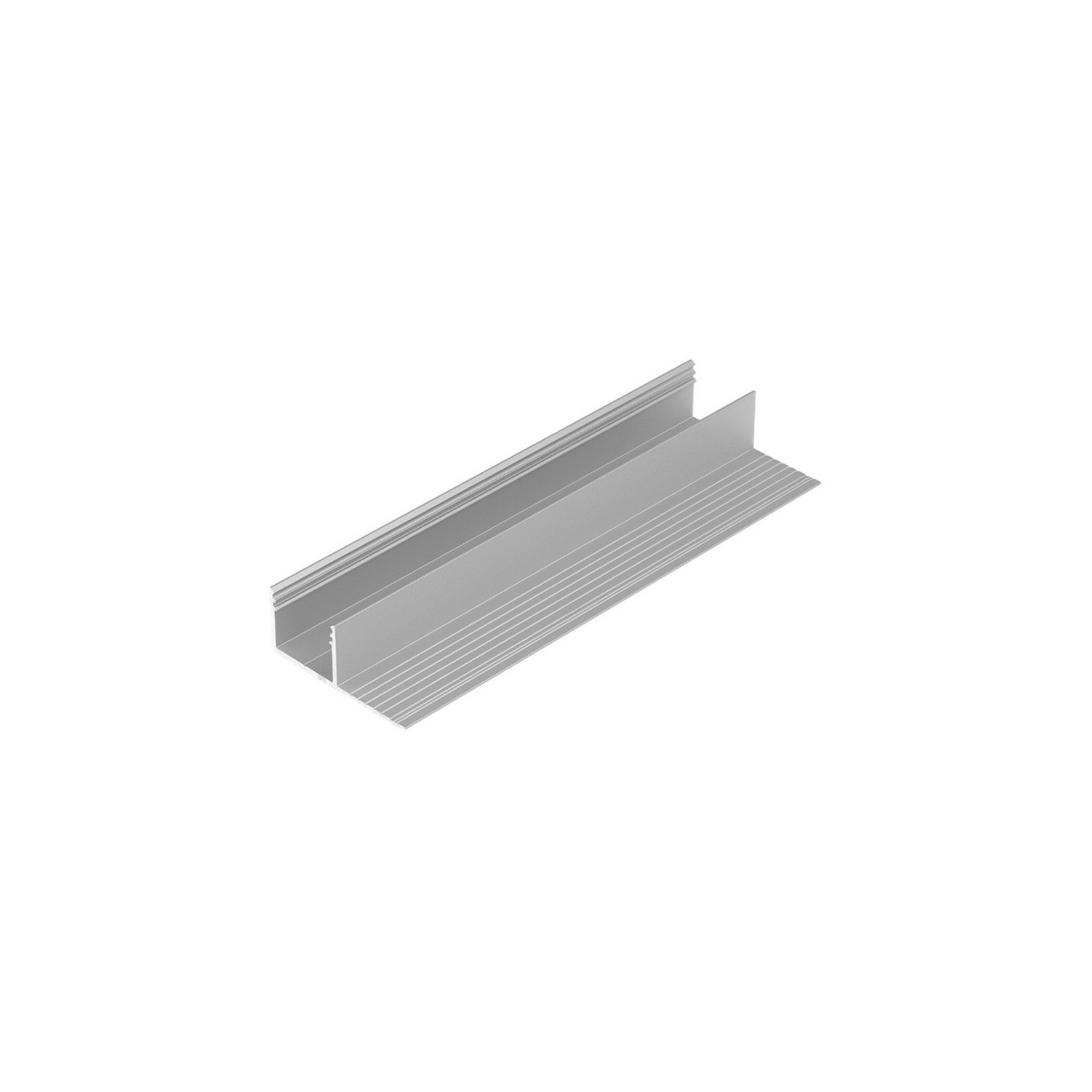

Plaster-In Trimless Plasterboard Border LED Profile ~ Model Plane14-Side

Plaster-In Trimless Plasterboard Border LED Profile ~ Model Plane14-Side

Original price - Original price
Original price
Current price
SKU LED-P3000200-2
In stock and ready to ship

🚚 - Free shipping on most orders over $350 - T&C Apply

Channel & Strip Combo Discount!

Buy any LED channel and get 10% off any LED strip.

Profile only ~ diffusers and all other accessories are sold separately

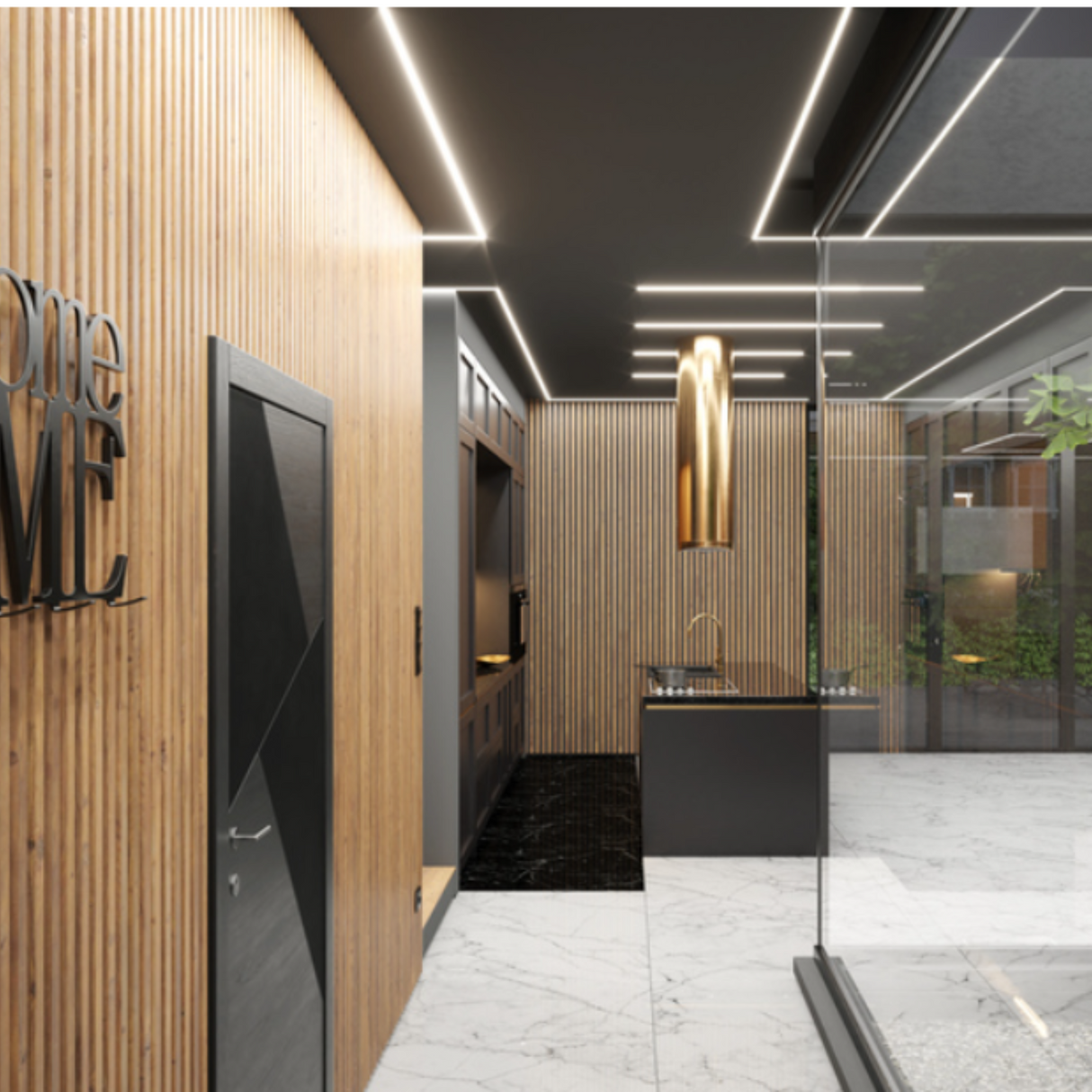

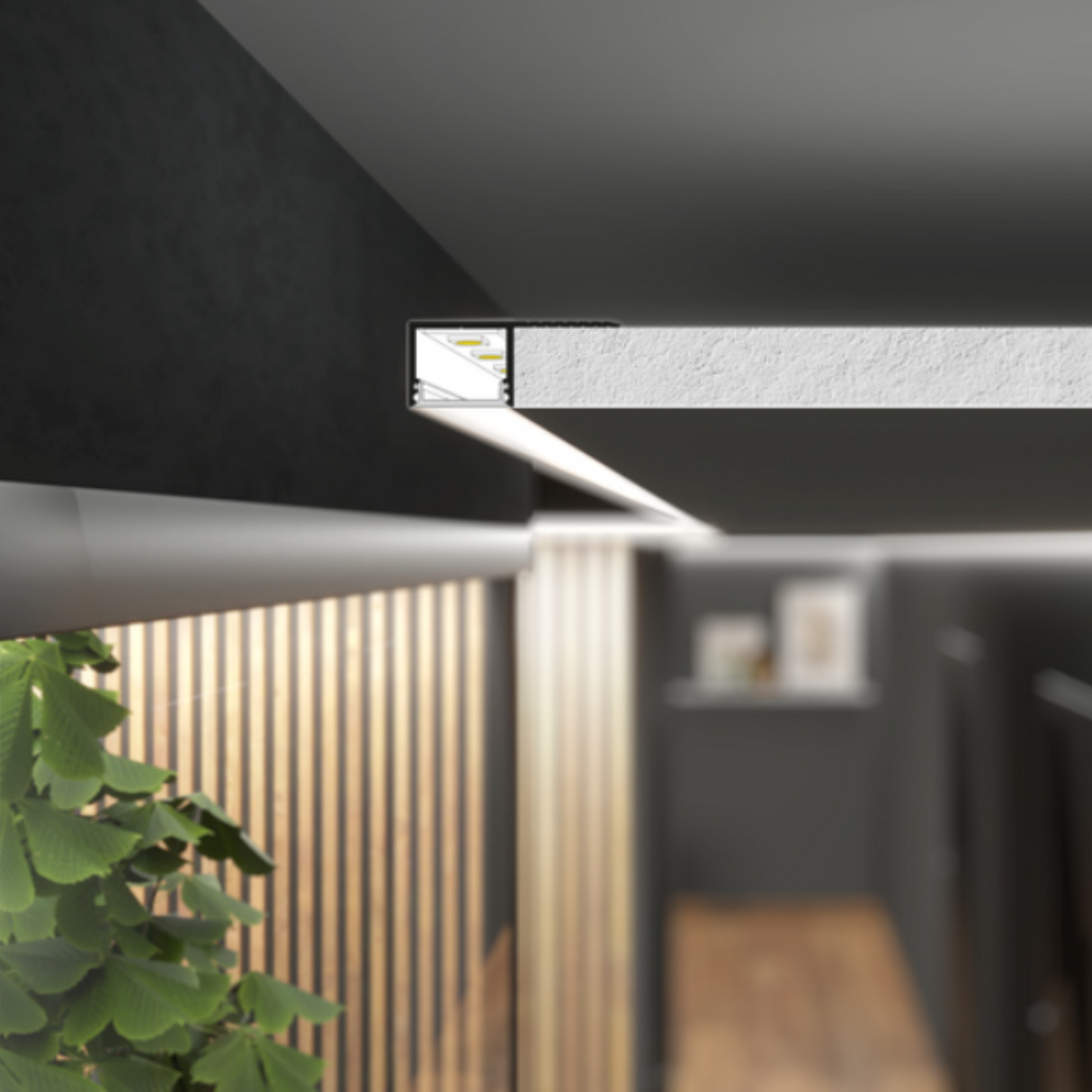

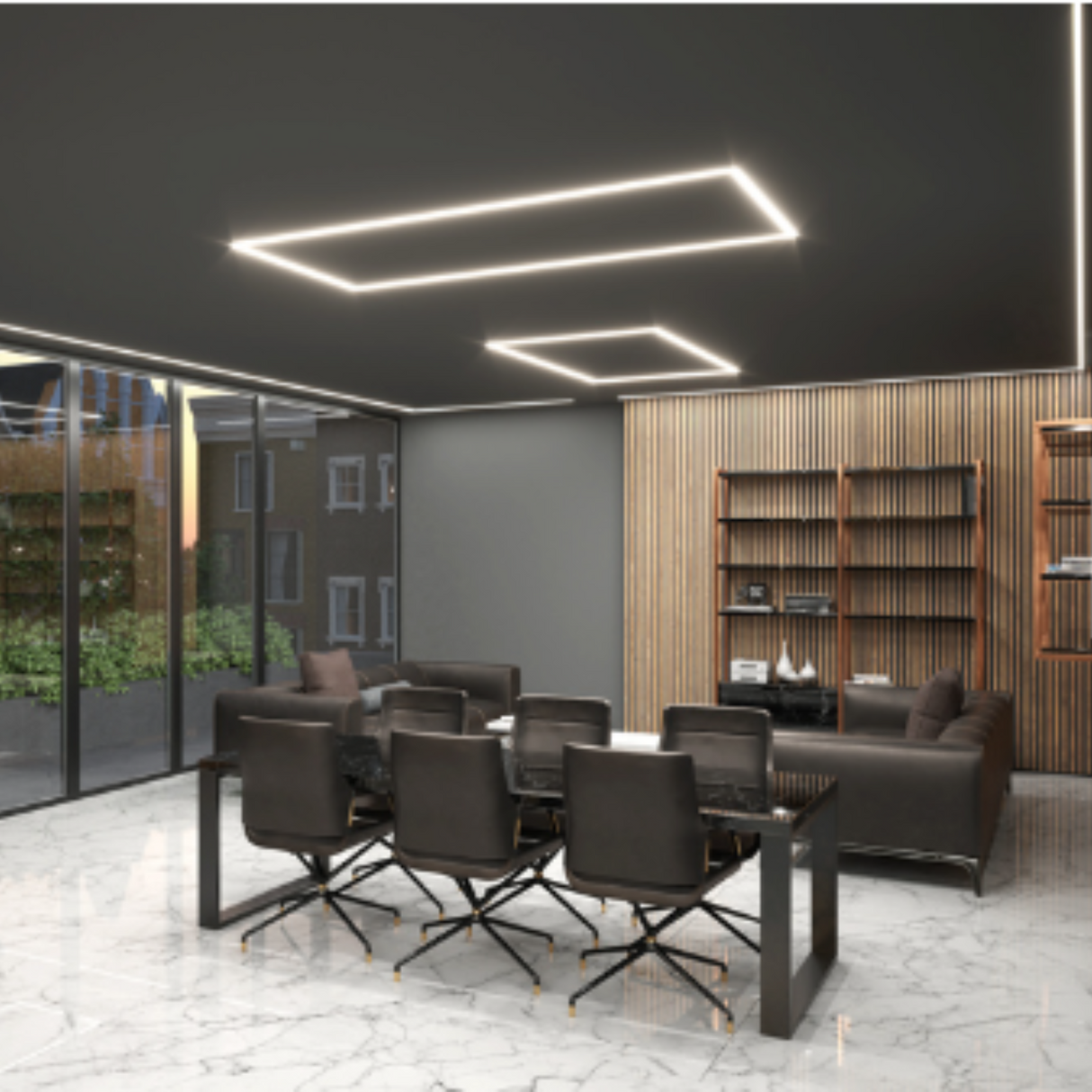

The Plane14-Side LED Profile is specifically designed for installation on the edge of plasterboard walls and false ceilings. This is a cost effective plasterboard LED profile suitable for both main and decorative lighting purposes.

The unique design of our trimless LED profile Plane14-Side ensures that the beam of light is directed perpendicular to the lighting fixture, resulting in superior performance as main lighting, especially when used with high-intensity LED strips. Additionally, by using an opal lid, this plaster-in trimless plasterboard LED channels can also create homogeneous light strips without bright spots.

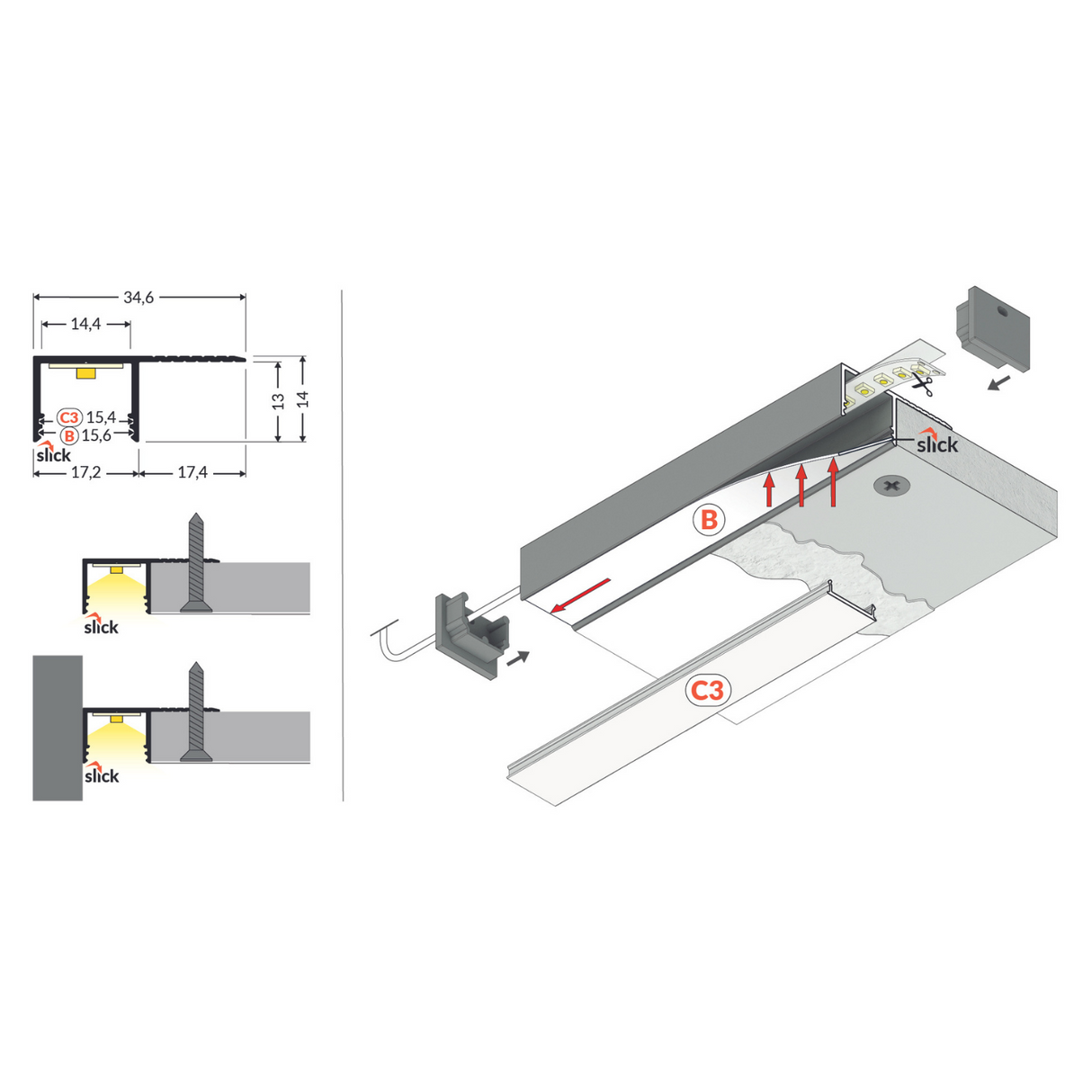

One of the key benefits of our profile is its easy installation process. The profile wings, which allow for screwing the profile to the plasterboard construction, are conveniently located on the back of the boards. This feature makes the installation of the profile on ceilings or walls very easy.

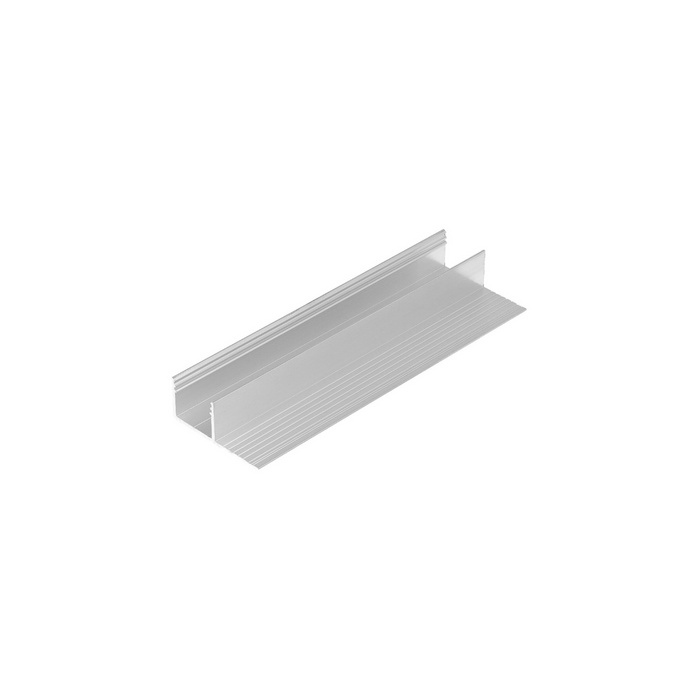

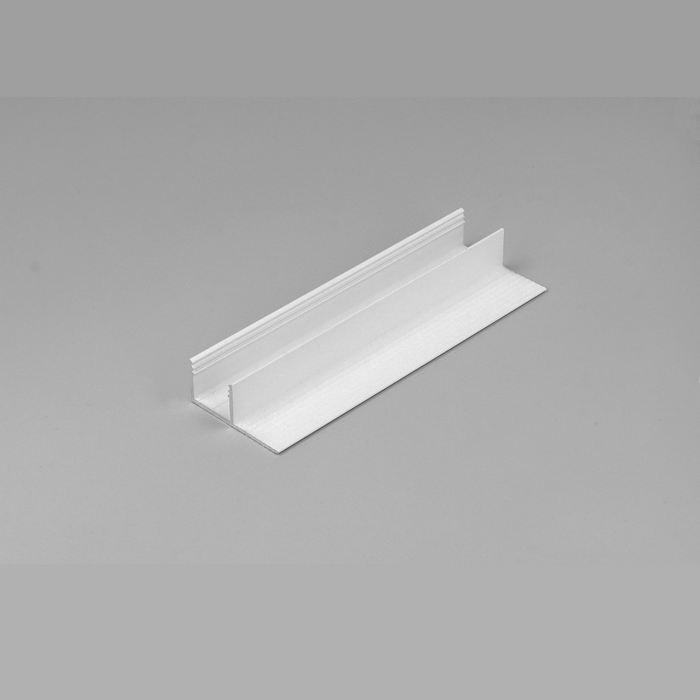

The Plane14-Side aluminum LED profile is specifically designed to accommodate or fit standard plasterboard thickness, ensuring a seamless and professional finish. The minimalist design and functionality of our Plane14-Side plasterboard LED light channel make them the optimal choice for contractors, which can also be used in Sheetrock or gypsum board, offering simplicity, comfort, and an original lighting effect.

General specification

  • Maximum LED strip width: 14mm

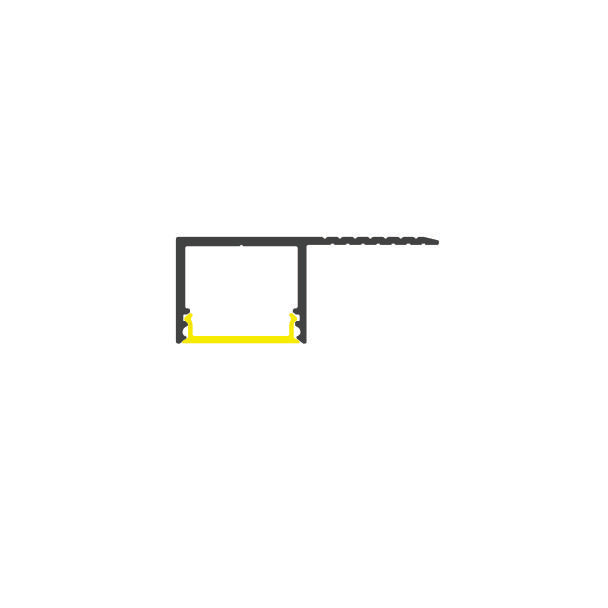

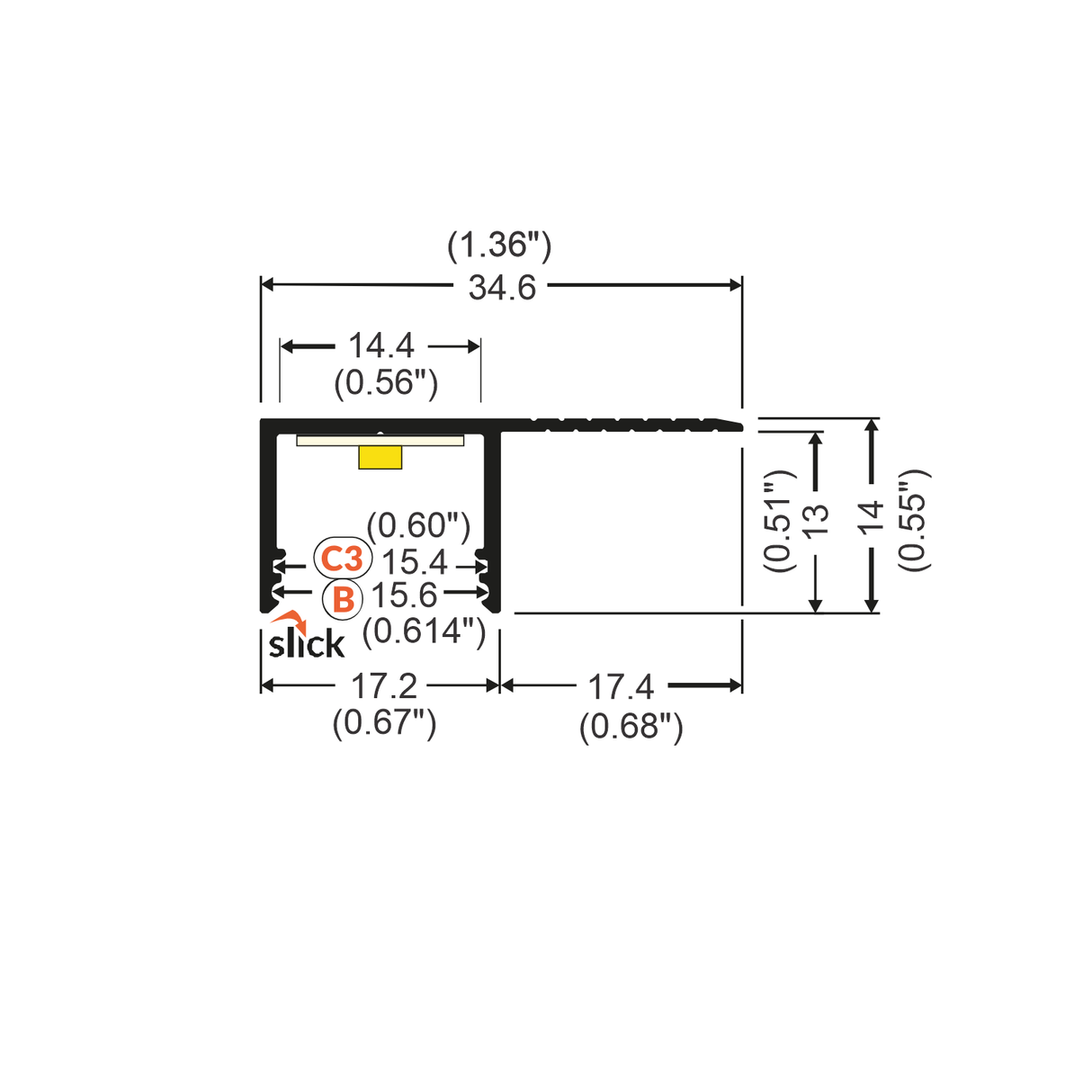

  • Overall dimensions: 34.6mm x 14mm (1.36" x 0.55")
  • Application: Plasterboard with a thickness of 12.5mm (0.49")


Important notes

  • LED strip, covers, mounting brackets, end caps, shelf/sign panels and other accessories are sold separately from the aluminum profile. Select the available components below.
  • Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • We can also assemble a plug and play light fitting with this profile according to your specifications.
  • Please note that we cannot refund or replace LED profiles and covers that have been cut.
  • Items in stock are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk pricing is available on request.
Shipping restrictions

We cannot ship rigid items over 2.4m (8ft) in length due to freight restrictions. These products are offered for customer pickup only. Please refer to our Shipping Policy for further information.

Returns policy

We accept returns at our sole discretion. Returns must be in as-new condition and in original packaging. Please refer to our returns policy for more information.
