Product details
Profile only ~ diffusers and all other accessories are sold separately
Description

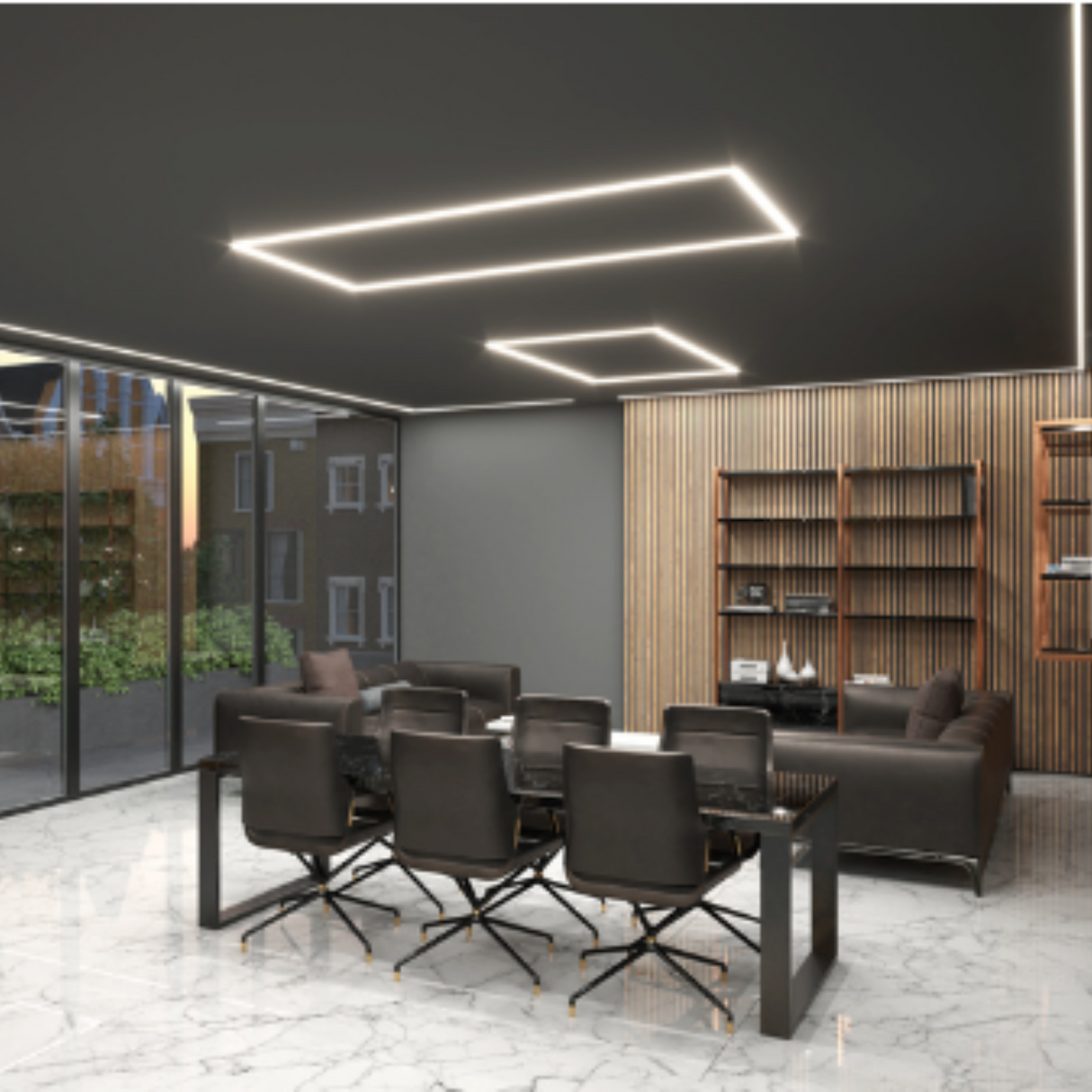

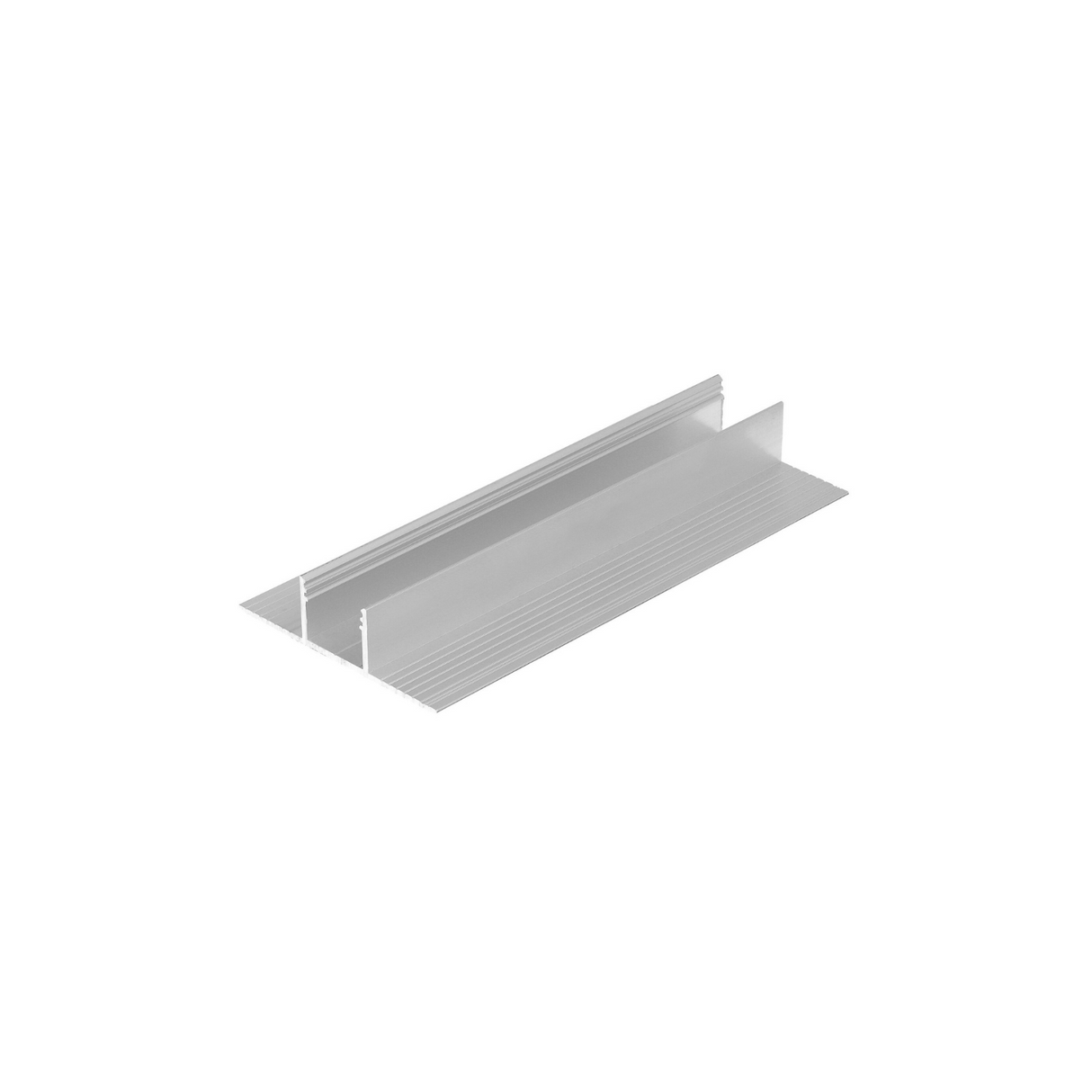

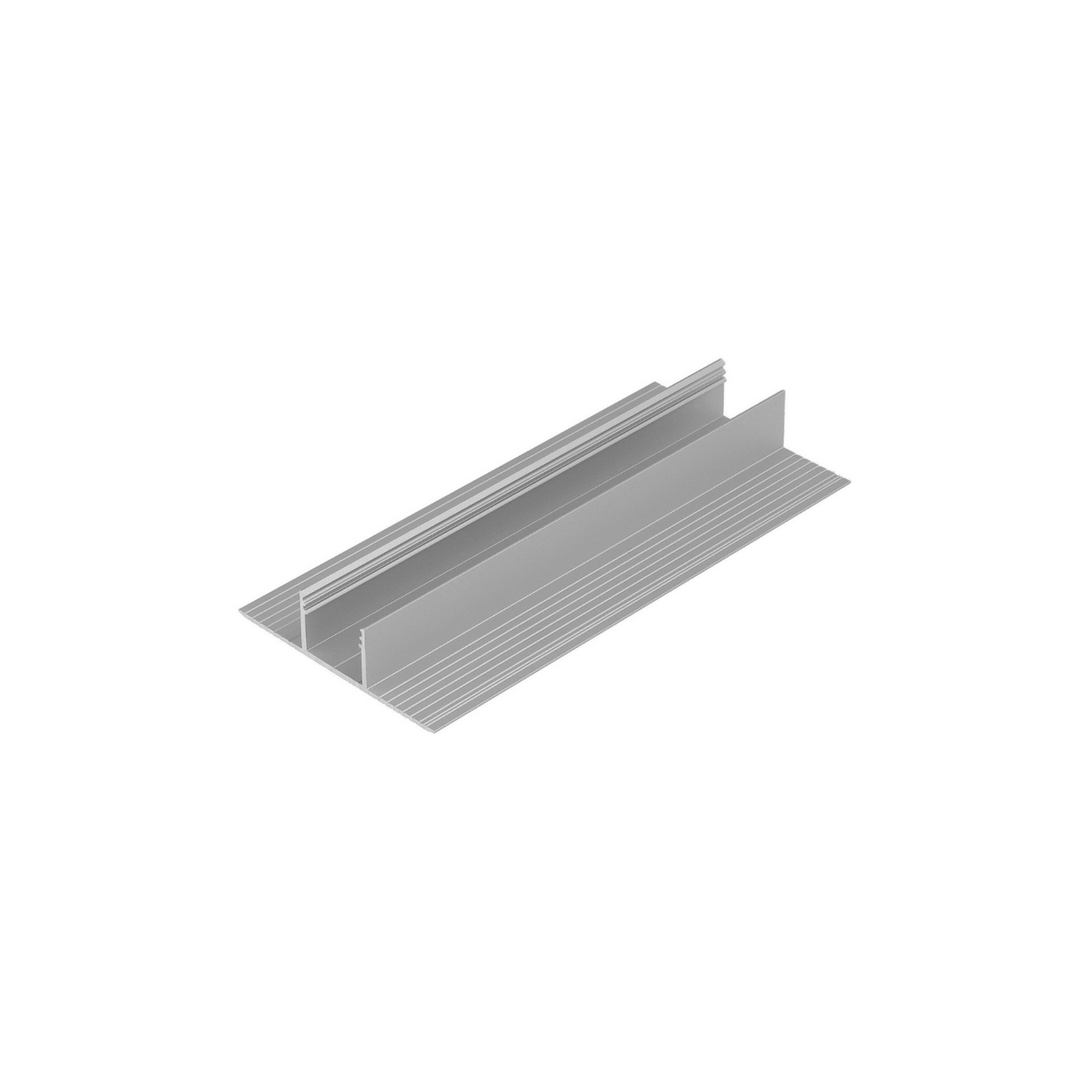

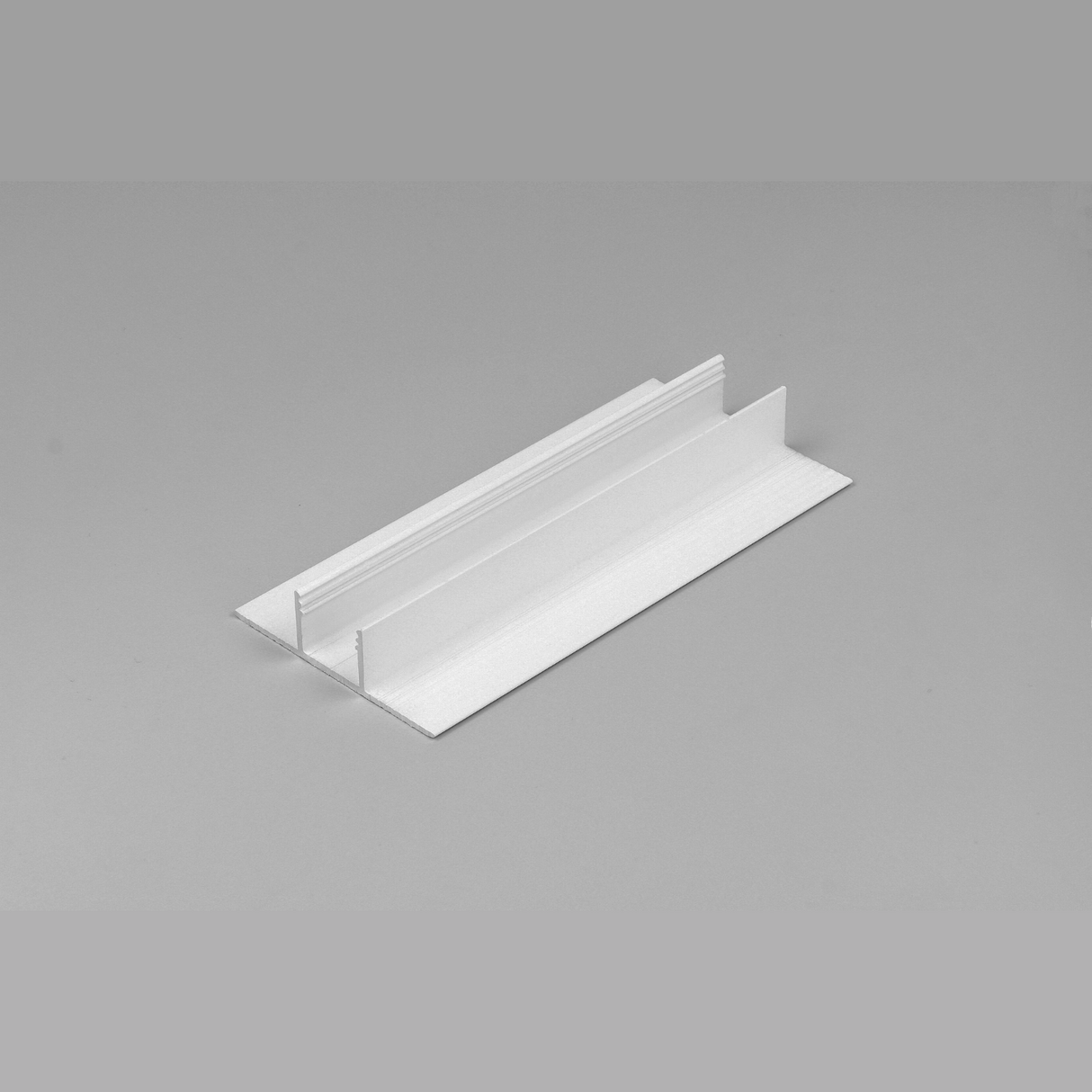

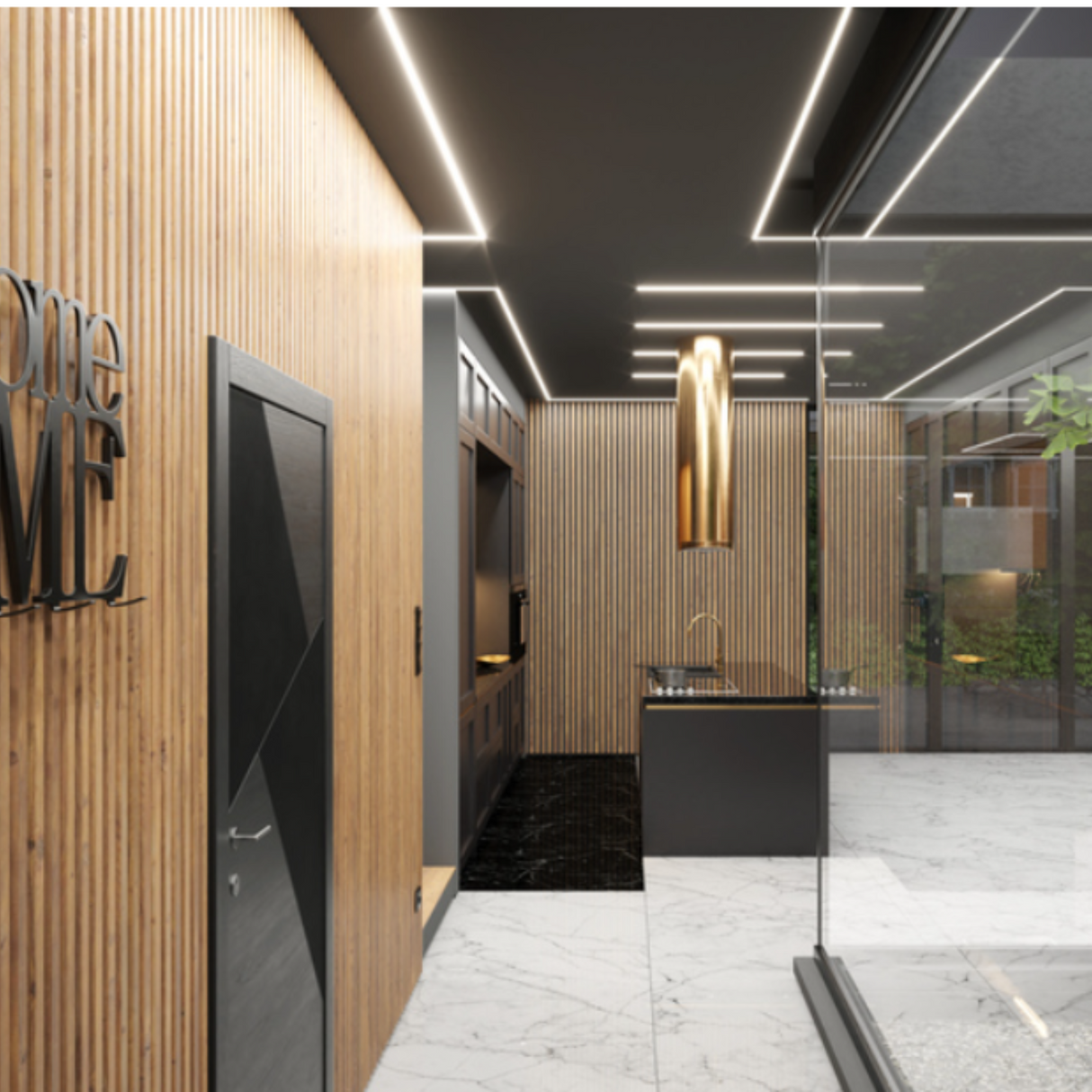

Plaster-In Trimless Aluminum LED Profile Plane14-In is perfect for installation between plasterboards, which can be used for both main lighting and decorative lighting purposes. The beam of light is directed perpendicular to the lighting fixture, making it an excellent choice for main lighting especially when paired with high-intensity LED strips. This Plane14-In profile can also be used as decorative lighting to showcase the texture of walls.
One of the great benefits of using Plane14-In profile is that installation is made remarkably easy. The amount of filling required is reduced to a minimum due to the profile wings, which are located on the back of the boards. This feature allows the aluminum profiles for plasterboard to be screwed to ceilings or walls with ease. It perfectly fits the standard thickness of plasterboard and offers an optimal combination of simplicity, comfort, and a unique effect.
Made from high quality aluminum, these Plane14-In trimless aluminum channels not only provide excellent durability but also contribute to a clean and sophisticated look. They are designed to offer simplicity, comfort, and an original lighting effect to enhance any space. Get your hands on this top-of-the-line Plaster-In Trimless Plasterboard LED Profile Plane14-In and enjoy easier installation and mudding.
Product Video

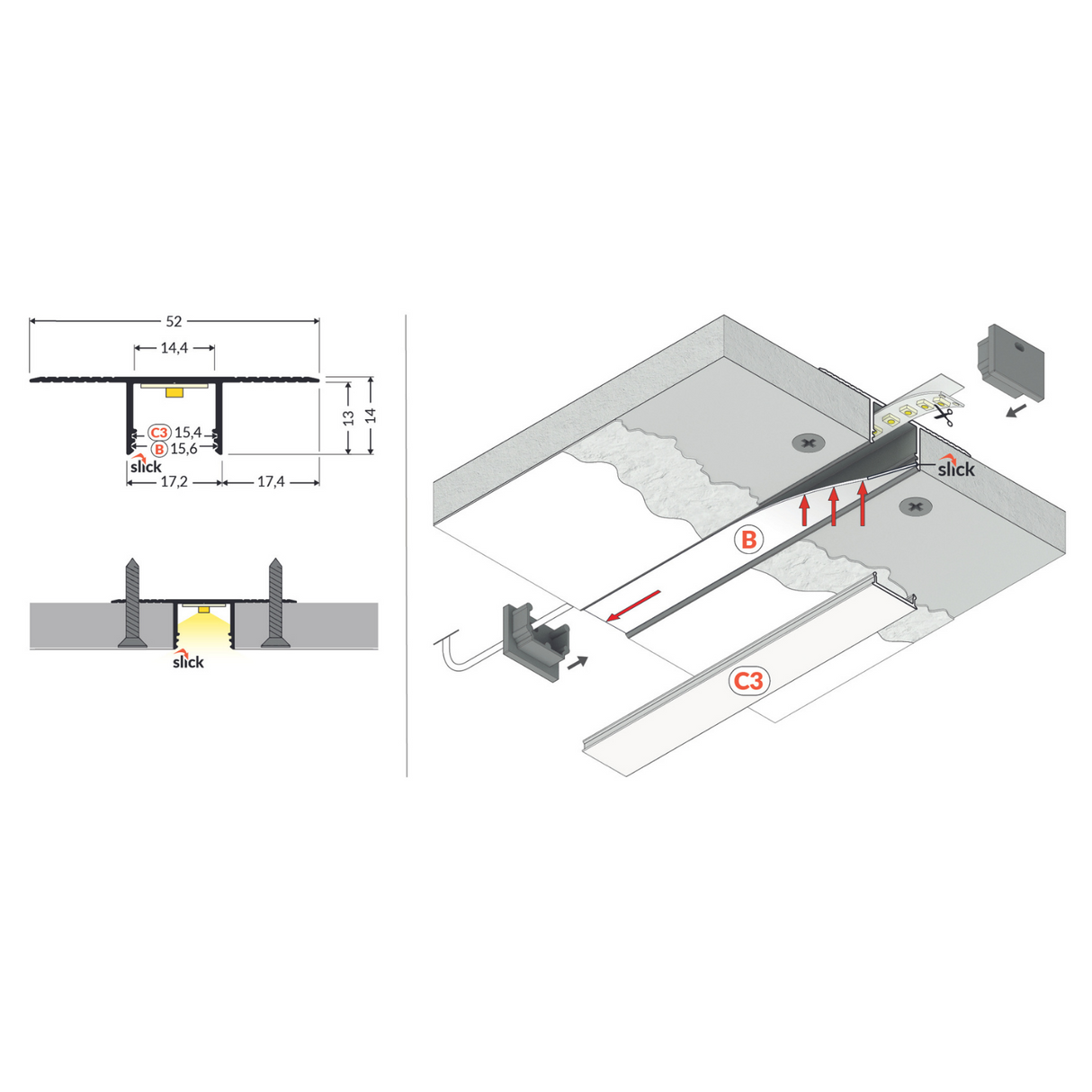

General specification
- Maximum LED strip width: 14mm
- Overall dimensions: 52mm x 14mm (2.04" x 0.55")
- Application: Plasterboard with a thickness of 12.5mm (0.49")
Downloads
Important notes
- Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
- LED profiles can easily be cut by hand or by machine.
- For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
- We can also assemble a plug and play light fitting with this profile according to your specifications.
- Please note that we cannot refund or replace LED profiles and covers that have been cut.
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request.
