Product details
Plug connector only ~ power track and all other accessories are sold separately
Description
The power plug connects your Power Track Twist to the main electrical supply, providing power to any lights or accessories installed along the rail. It allows you to incorporate the flexible power track twist system anywhere you need movable, adjustable task or accent lighting.
The power plug connector comes in 3 different types to meet your needs: the P-Type which is intended for connecting the power supply to the track, and the S-Type (wireable) and M-Type (moulded) plugs are used for connecting to your LED fixtures. It is also available in both a white and black color option to blend in or contrast with your power track.
General specifications
- Colors available: White or Black
- Length: 60cm (23.62”)
- Types of Plugs Connectors:
-

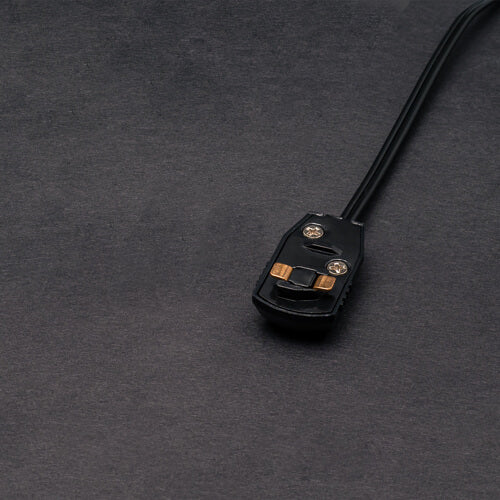

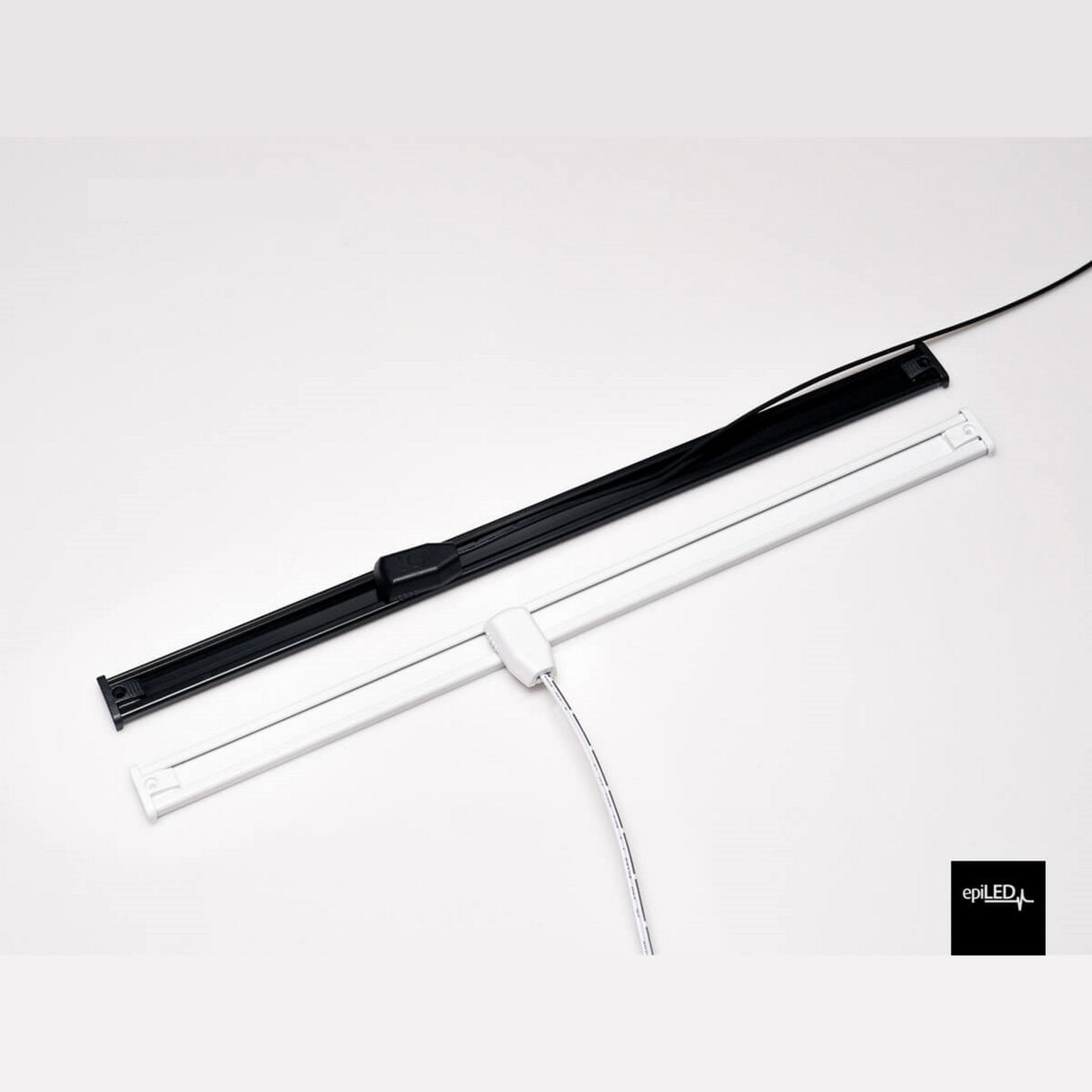

P plug with cable
- 20AWG (Ø 0,5 mm2)
- Max electric current: 5A -

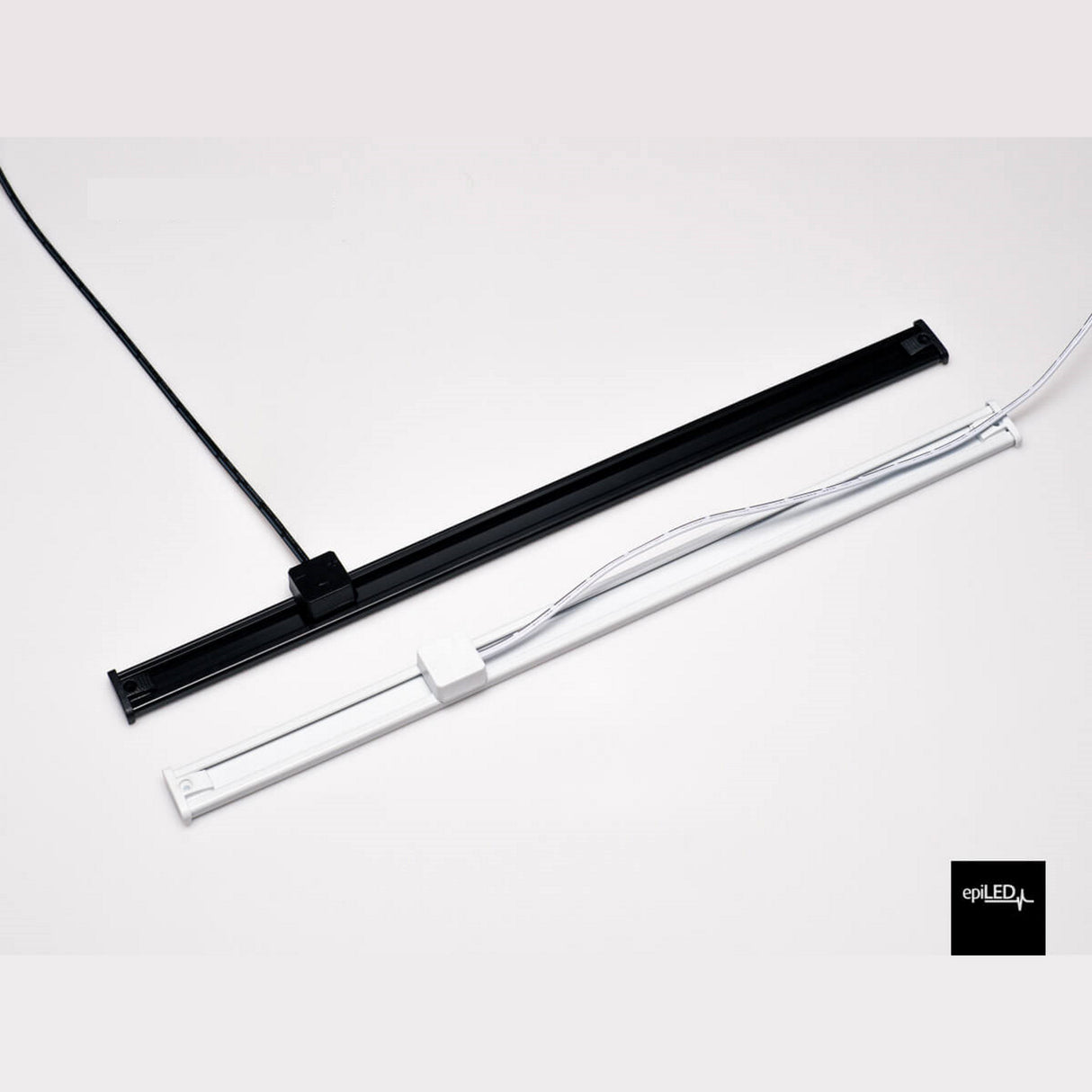

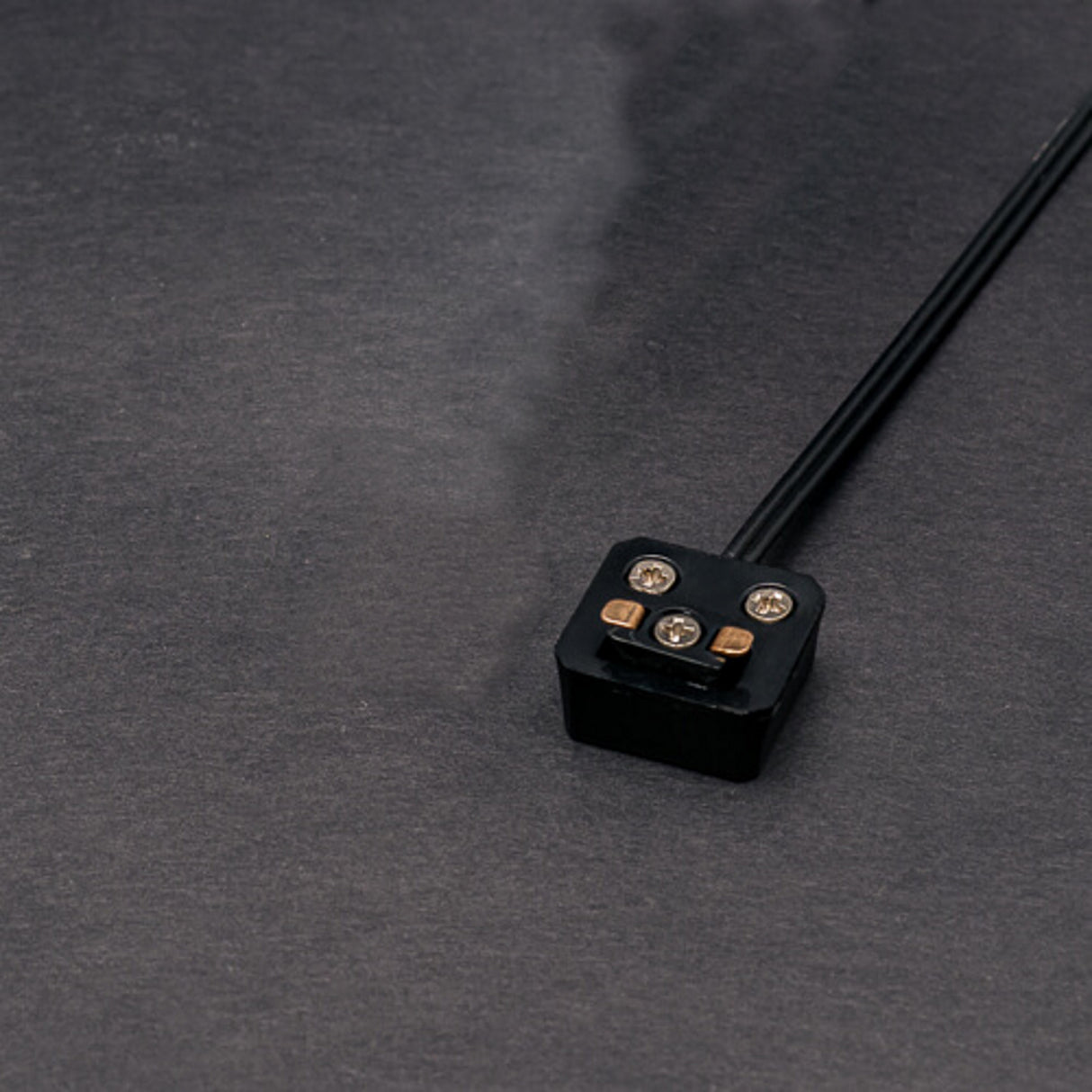

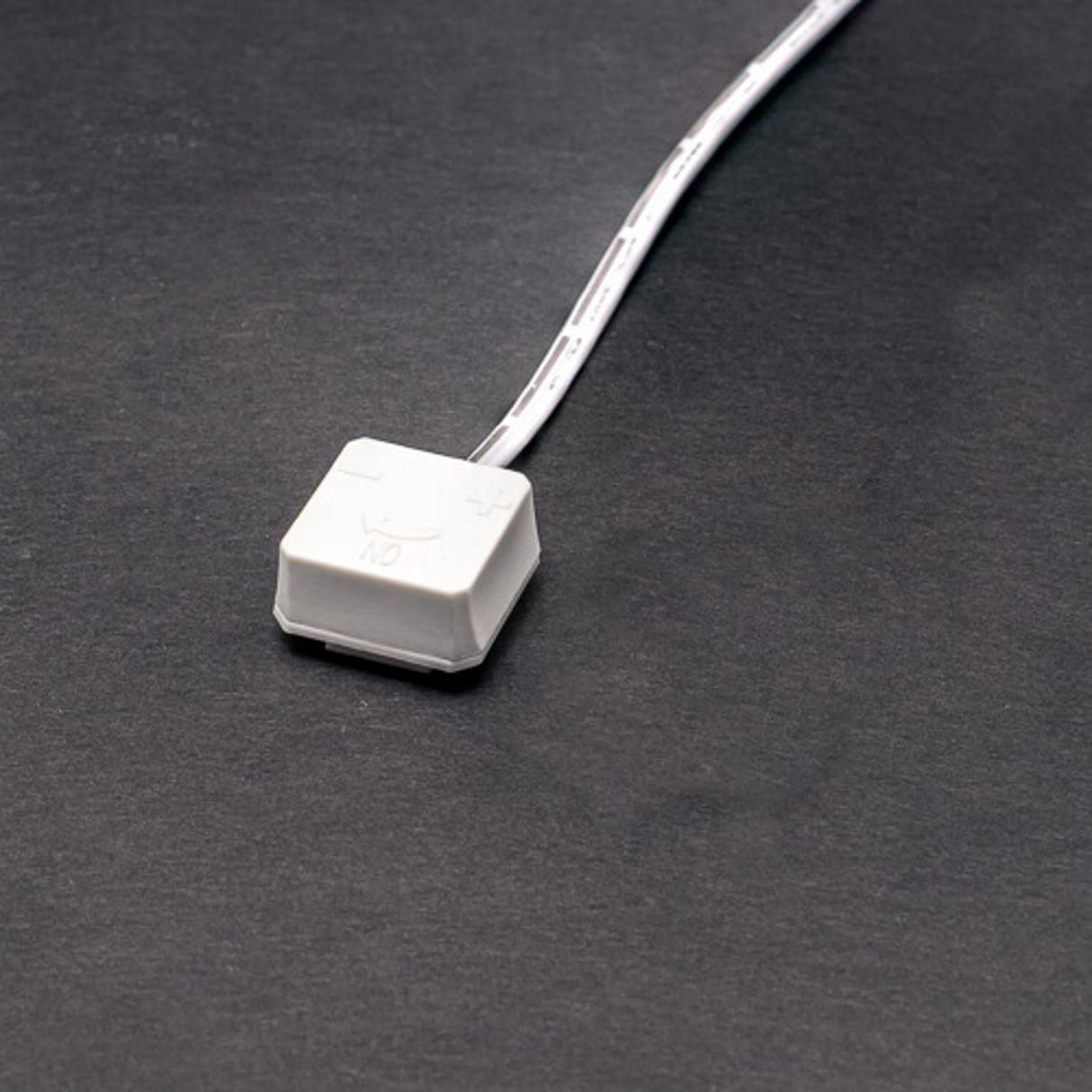

S plug with cable
- 22AWG (Ø 0,35 mm2)
- Max electric current: 2.5A -

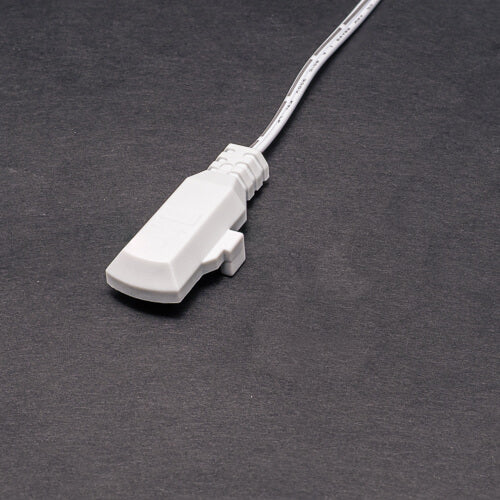

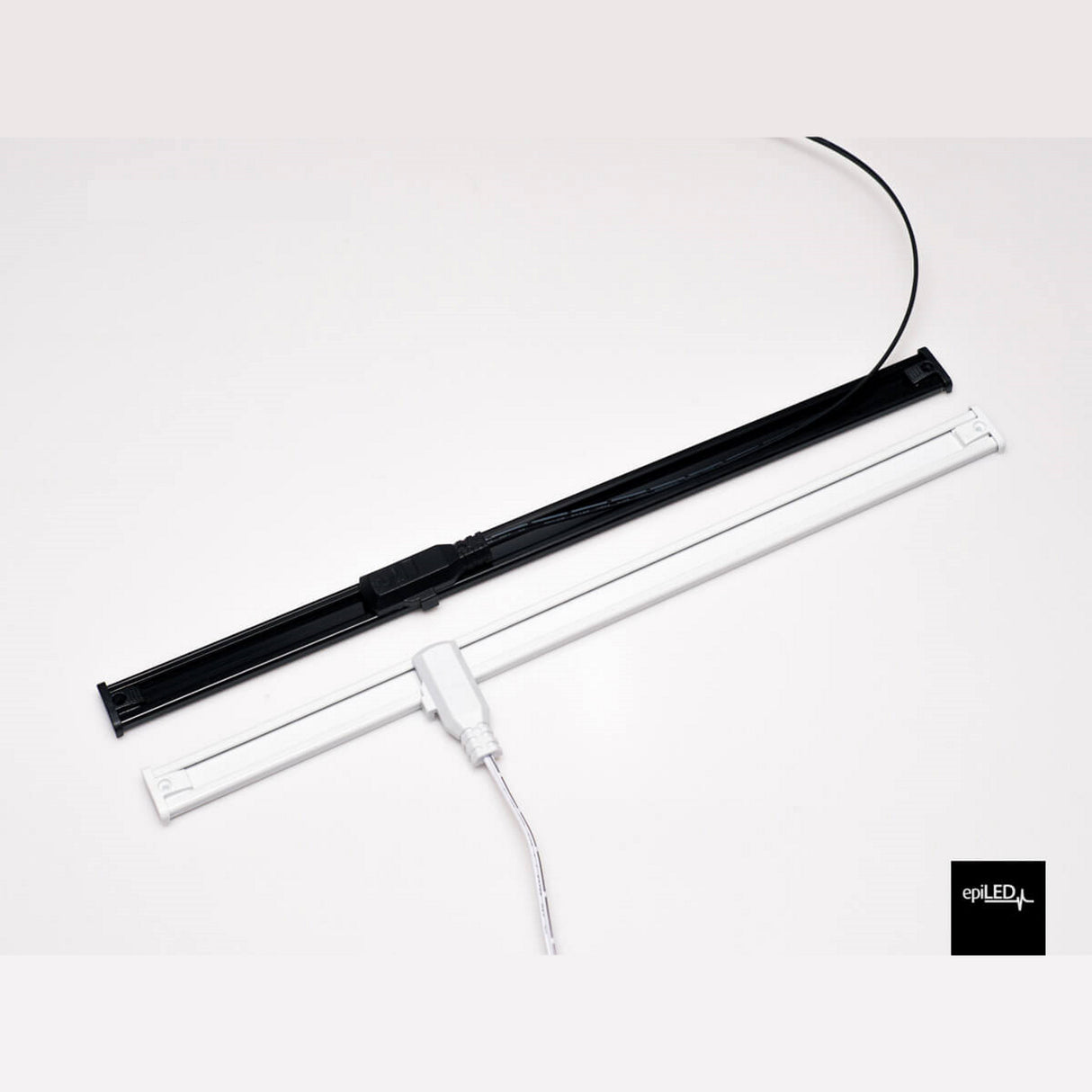

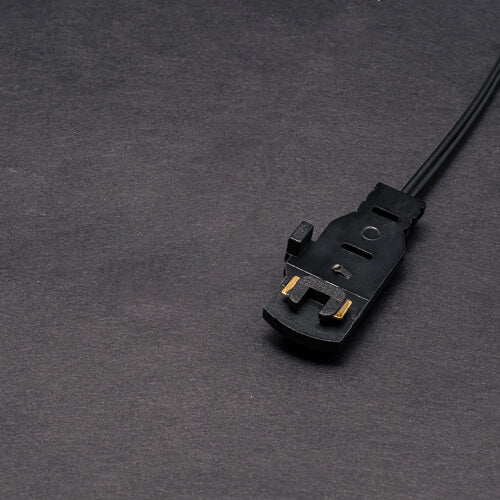

M plug with cable
- 22AWG (Ø 0,35 mm2)
- Max electric current: 2.5A
Important notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States
- Bulk pricing is available on request
