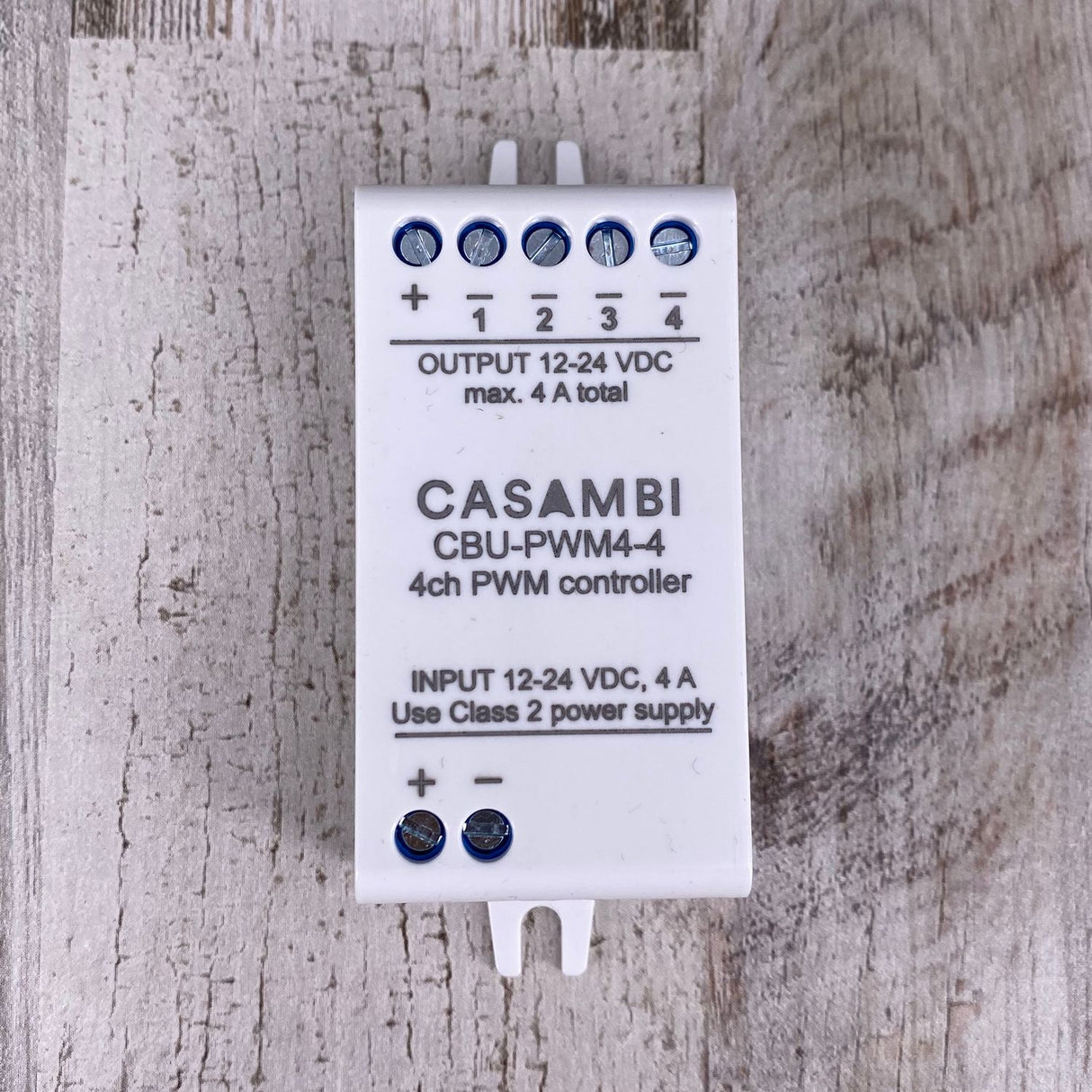

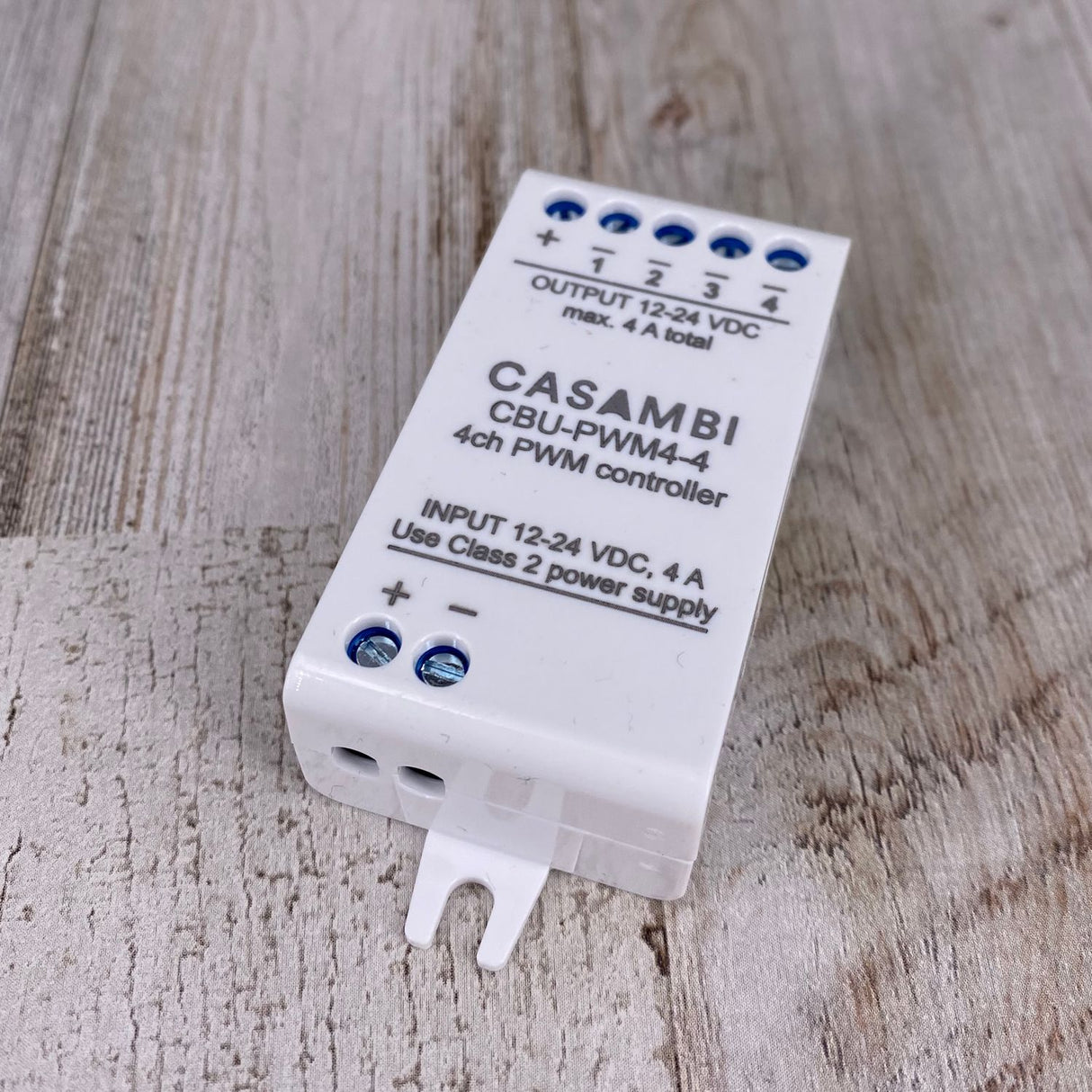

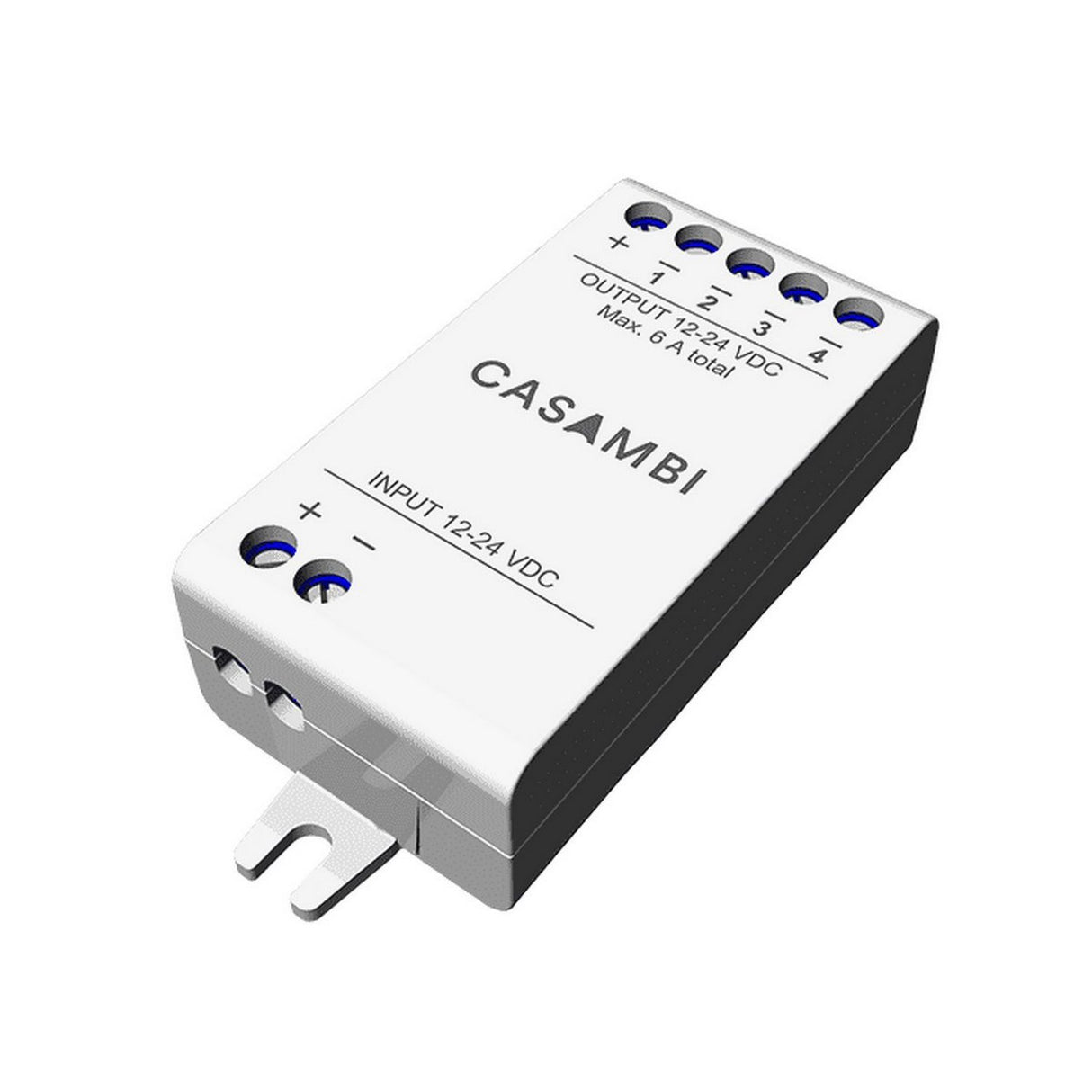

Casambi 4-Channel Bluetooth Mesh LED Controller ~ Model CBU-PWM4 (UL Listed)

Casambi 4-Channel Bluetooth Mesh LED Controller (UL Listed) only ~ power supply, LEDs and all other accessories are sold separately

Description

Easy, wireless multi-zone LED control from your smartphone... What more could you ask for?

This is a UL Listed model of our of Casambi-enabled LED controller. It can drive up to four LED channels in user-programmable configurations, making it ideal for just about any wireless LED control system, whether simple dimming, tunable white, RGB or RGB+W.

Also, the wireless Bluetooth mesh system allows up to 255 controllers to be installed in one network, which means you can easily create a multi-zone wireless LED lighting control system to exactly suit your requirements.

The UL Listed controller is a compact 96W 4-channel dimmer which is interchangeable with the Casambi CBU-PWM4 and Tridonic basicDIM PWM CV 4CH controllers.

This small wireless LED dimmer/controller is also intended to be used with dimmable constant-voltage LED strips or modules. Installation is straight forward: Simply connect a constant-voltage LED driver (12-24V DC Class 2) to the supply side of the controller, and then connect your LED channels on the output side of the controller, up to a maximum of 96W total.

Once the wireless controller has been wired, you can download the Casambi smartphone app free of charge for Android or iPhone.

This 4-channel LED controller also suitable for indoor applications. We also offer waterproof equivalent for outdoor applications - please see our waterproof IP65 wireless 4-channel LED controller.

General specifications

• Model: Arditi CA-DEBTPRO14-96
• Also known as: Casambi CBU-PWM4, Tridonic basicDIM Wireless PWM CV 4CH
• LED applications: Single-color dimming, Tunable white (TW/CCT), RGB, RGB+W
• Also controllable via wall switch RWBT and Xpress RW…EBT
• Input Voltage range: 12-24V DC, Class 2
• Max. input current: 4A
• No-load standby power: < 0.3 W
• Output voltage: same as the input voltage
• Max. output power: 96W at 24V DC / 48W at 12V DC
• Max. output current: 4A total
• Min. load requirement: 0W
• Electrical protection: Over-voltage, Over-current, Short circuit
• Dimming method: Pulse Width Modulation (PWM) 400Hz
• Radio transceiver operating frequencies: 2.4-2.483 GHz 4dBm
• Operating temperature, -4-113°F (-20-45°C)
• Dimensions: 73 x 30 x 18mm (2.9 x 1.2 x 0.7")
• Approvals: UL Listed

Video instructions

All Casambi tutorial videos

Downloads

• Casambi UL Listed 4-ch Bluetooth Mesh Controller cut sheet
• Casambi Short User Guide
• Wiring diagram with Amplifier
• Wiring Diagram with Amplifier 2
• Wiring Diagram for multiple runs

Important notes

• Do not insert switches into the secondary circuit.
• Please add a comment in the order notes if you require your controller pre-configured for a specific application.
• LED strip, covers, mounting brackets, end caps, shelf/sign panels, and other accessories are also sold separately.
• We can also assemble a plug-and-play light fitting with this controller according to your specifications.
• Items in stock can shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
