Recessed Wall Wash LED Lighting Channel ~ Model Acapulco

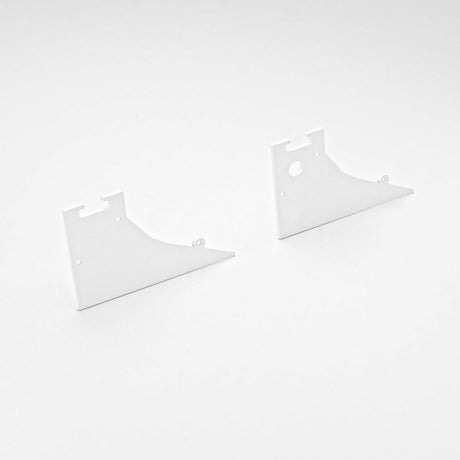

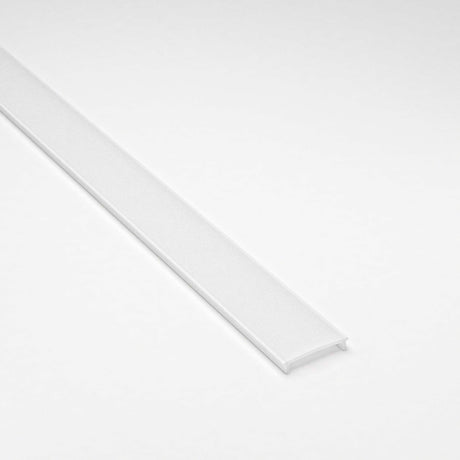

LED profile only ~ diffusers and all other accessories are sold separately

Description

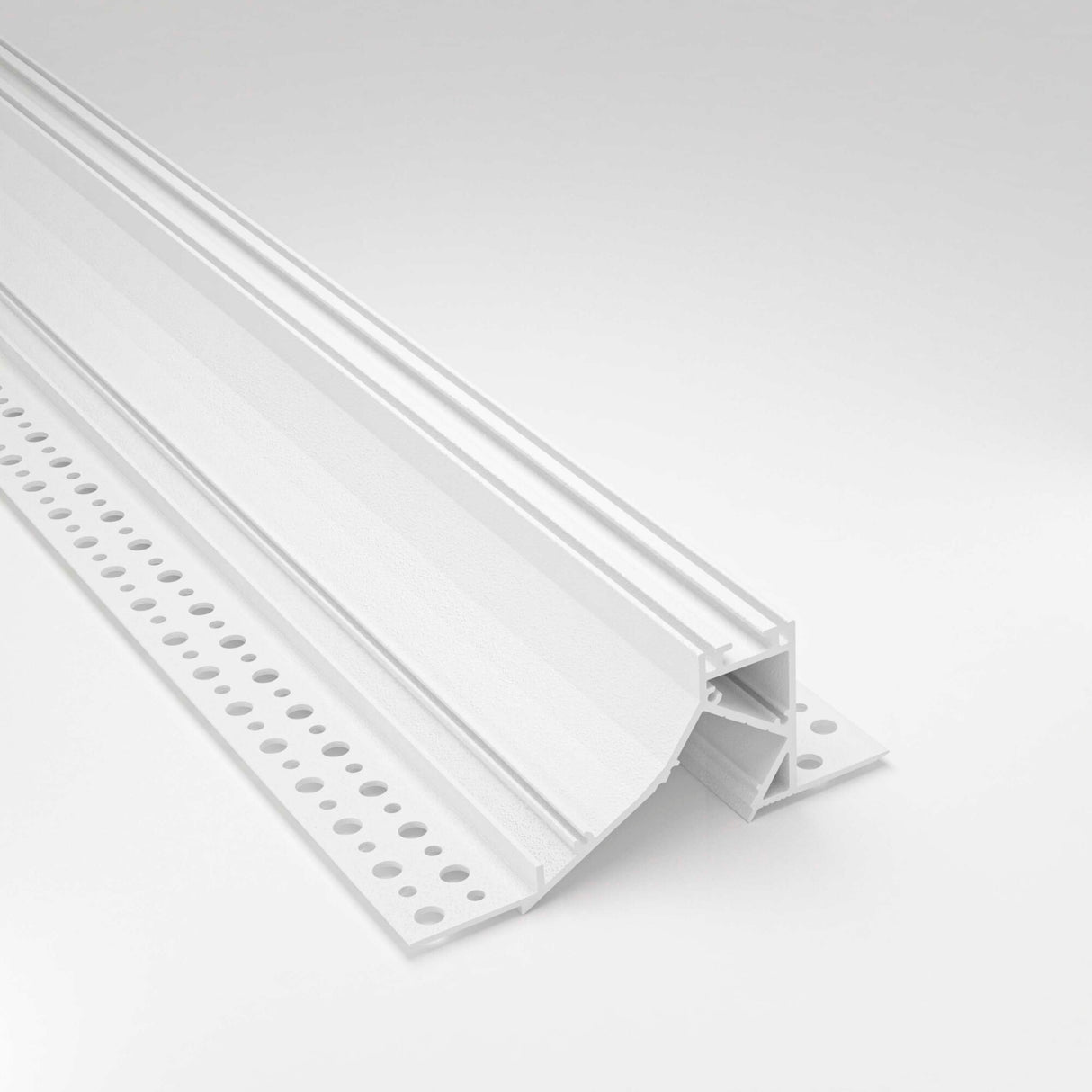

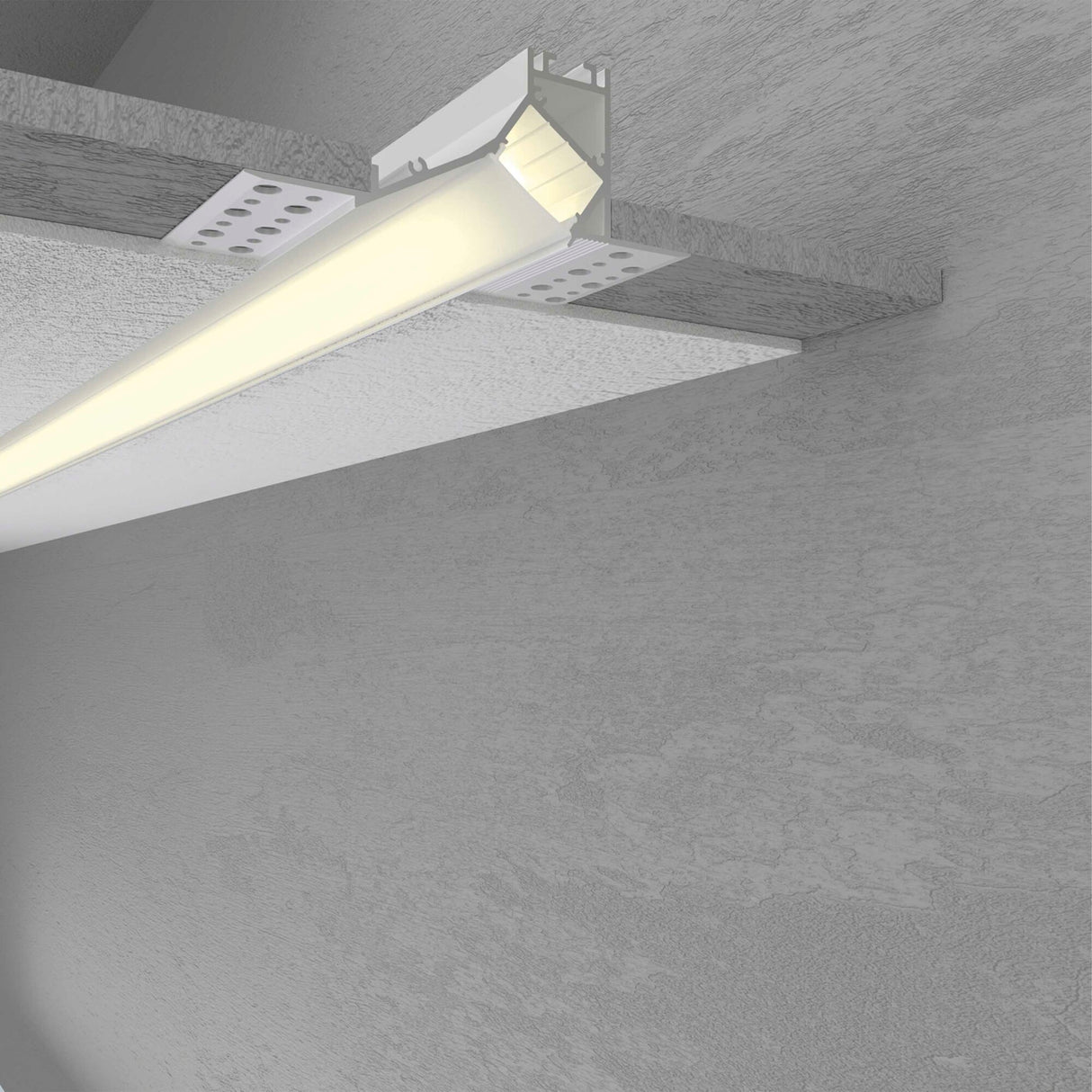

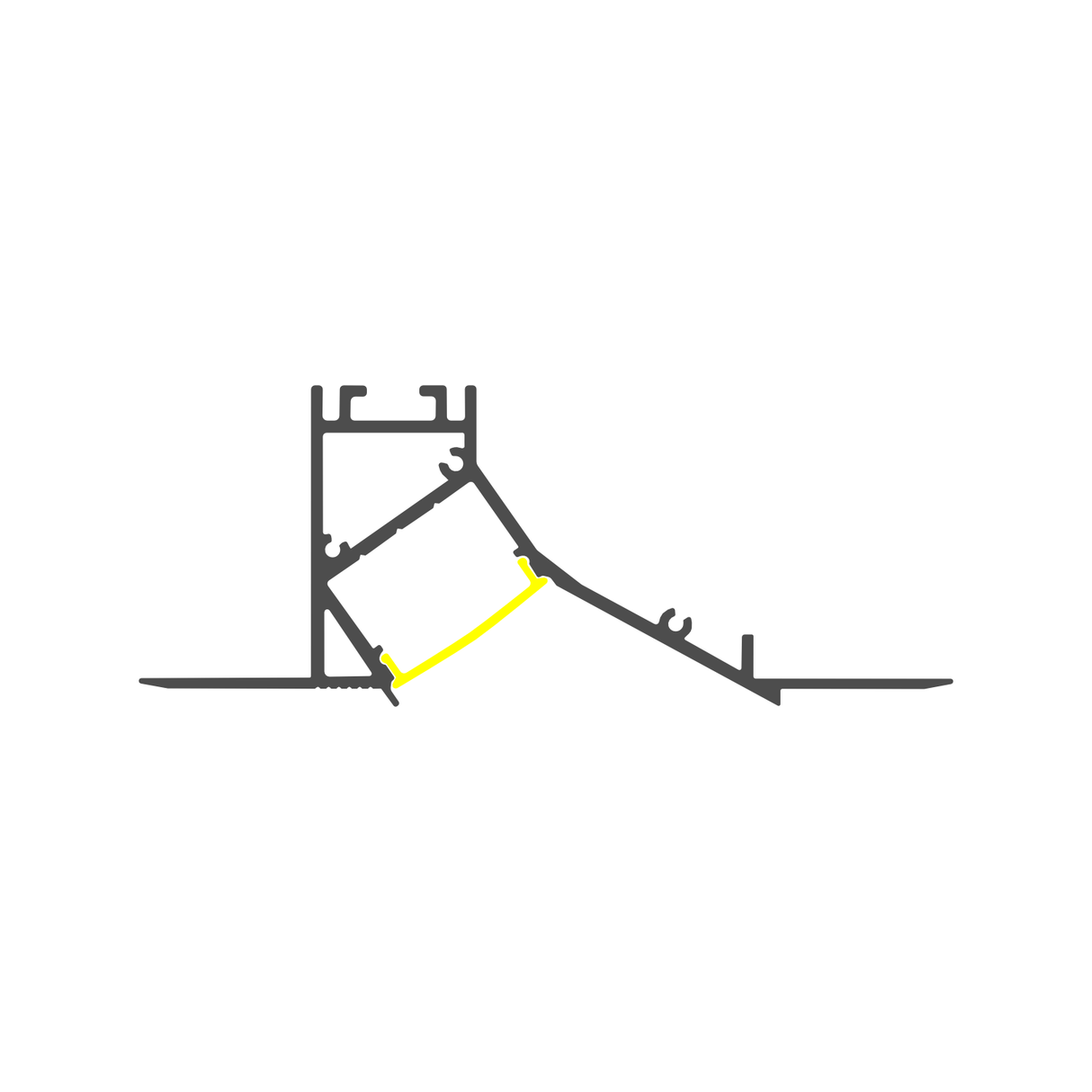

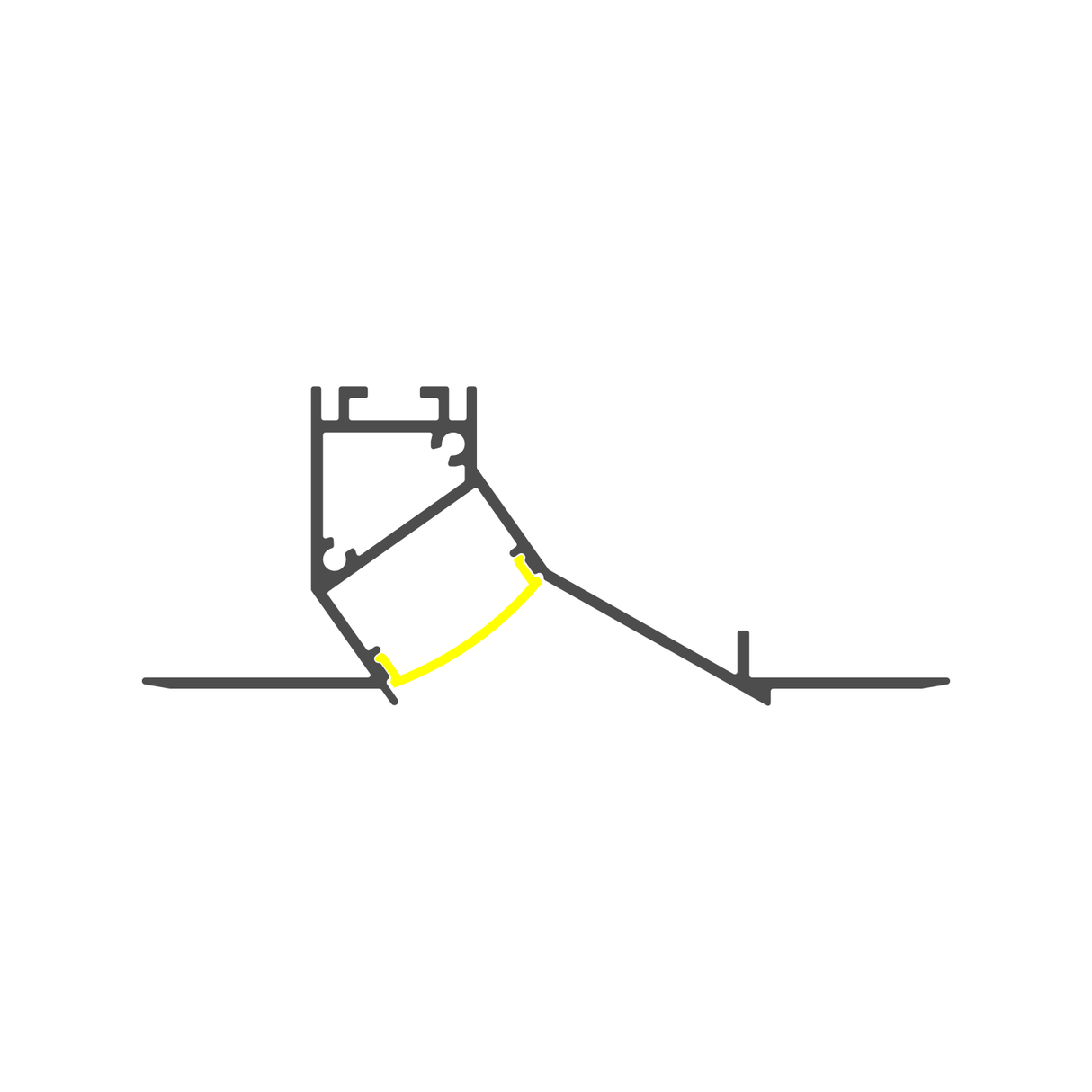

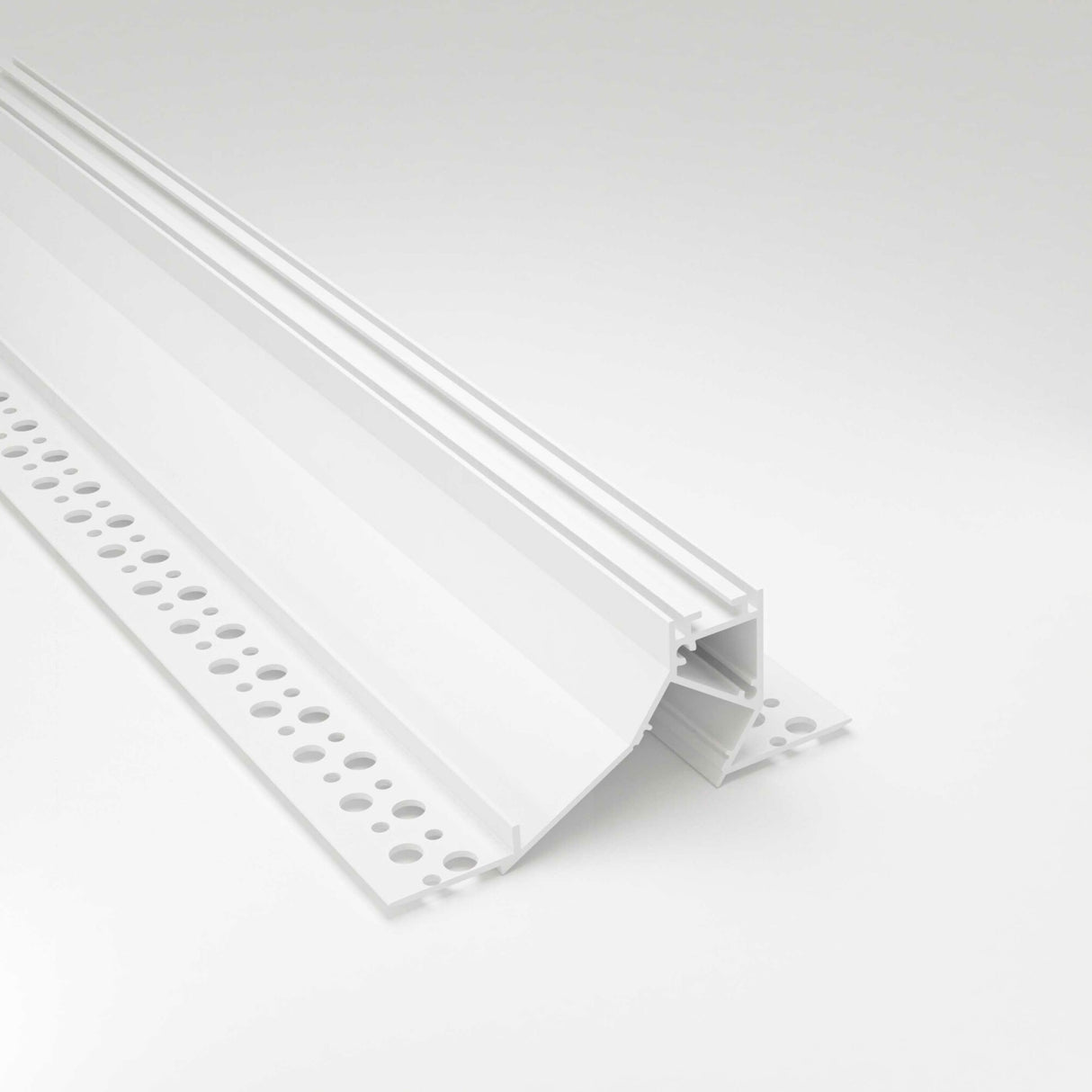

The Acapulco profile is a LED indirect linear lighting channel that can be mounted for recessed installation. This profile is crafted from high-purity aluminum and comes in a lacquered textured white. It provides soft, angled illumination, seamlessly integrating into the ceiling or wall when finished with a layer of plaster.

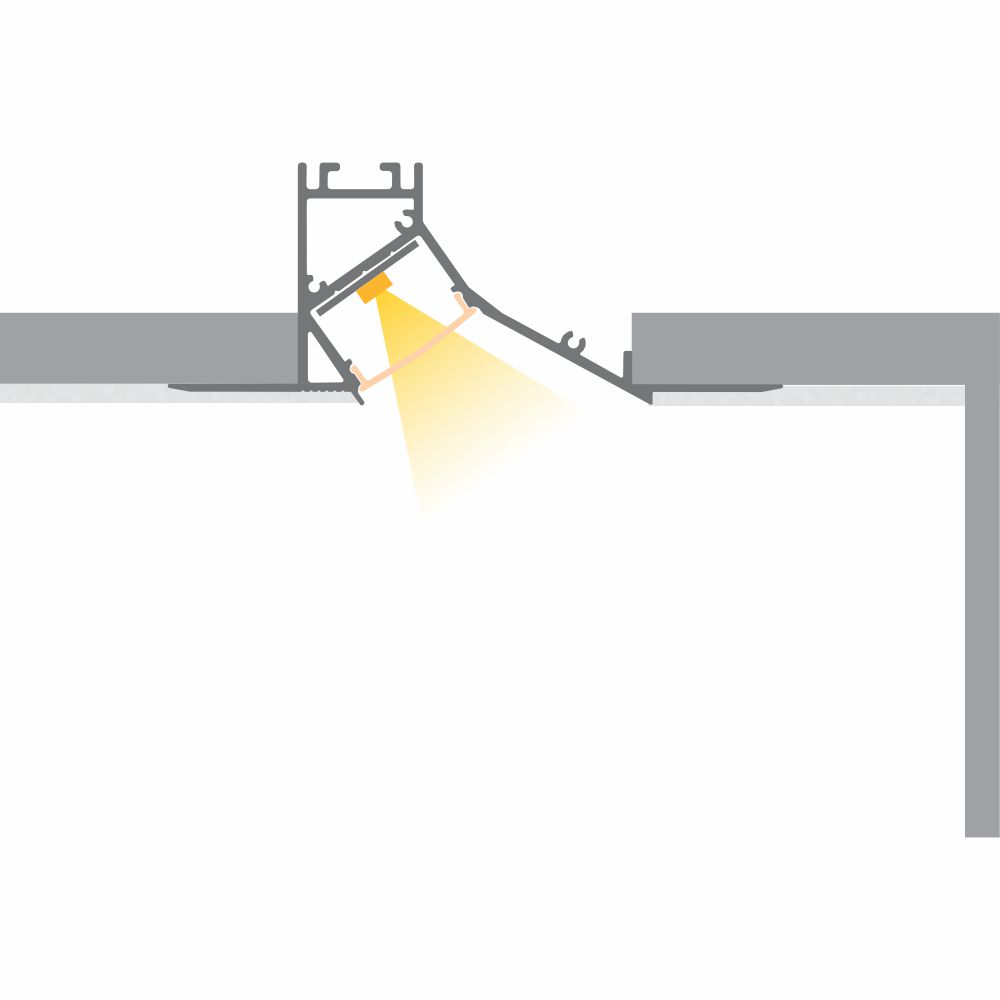

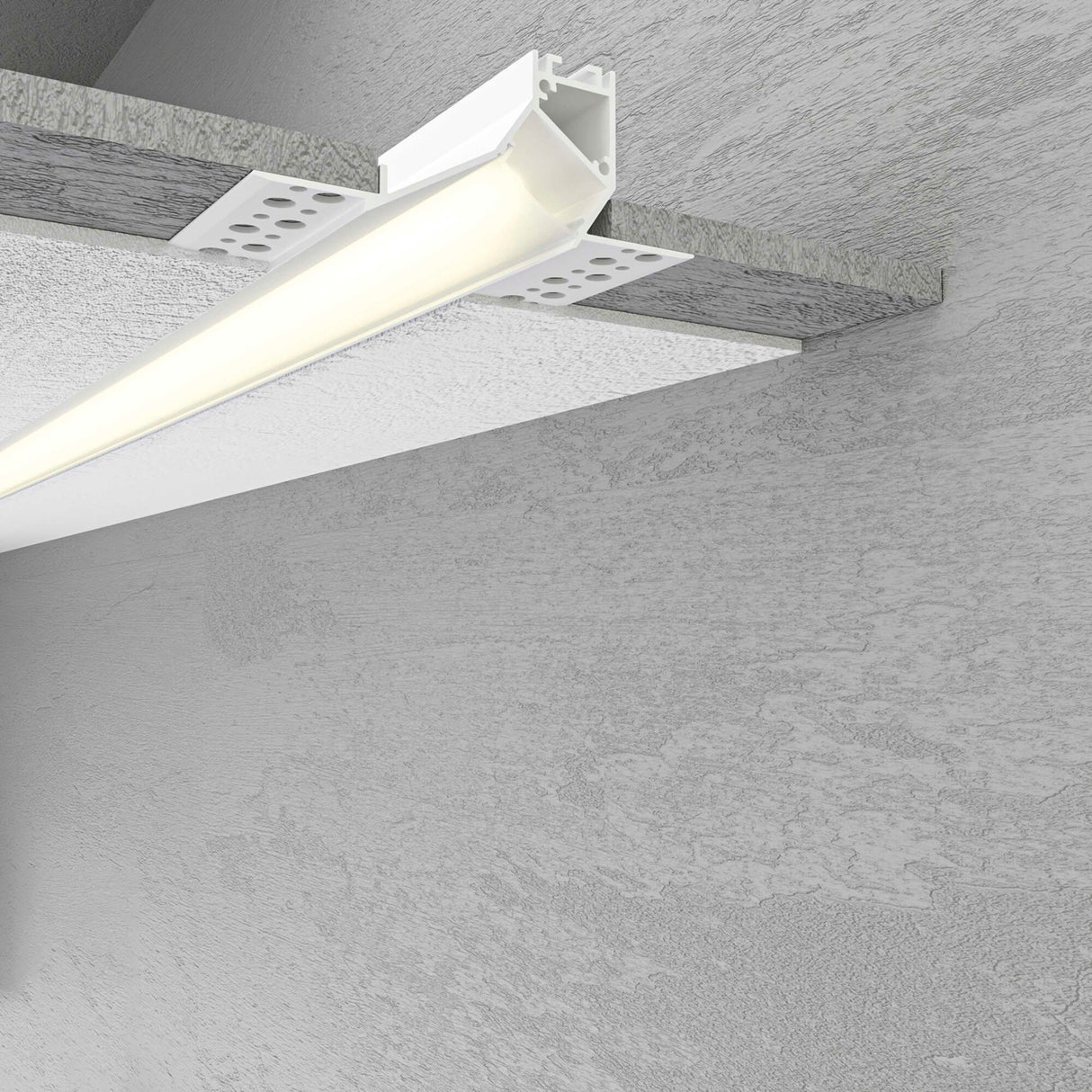

The Acapulco profile can be used on ceilings or walls with a minimum cavity of 35mm, and you can achieve different lighting effects, depending on how you position it. This aluminum profile is suitable for LED strips with a maximum width of 18mm and power not exceeding 30W/m.

General specifications

• Material: Aluminum

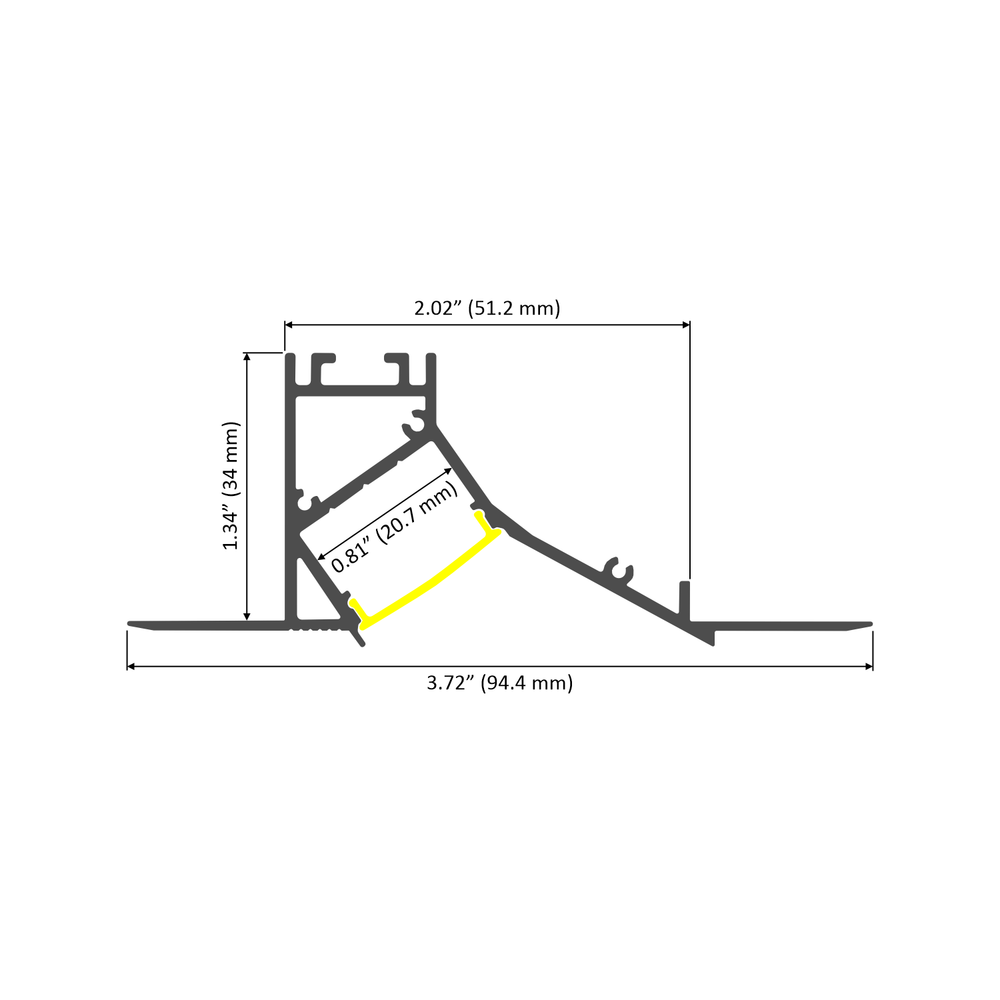

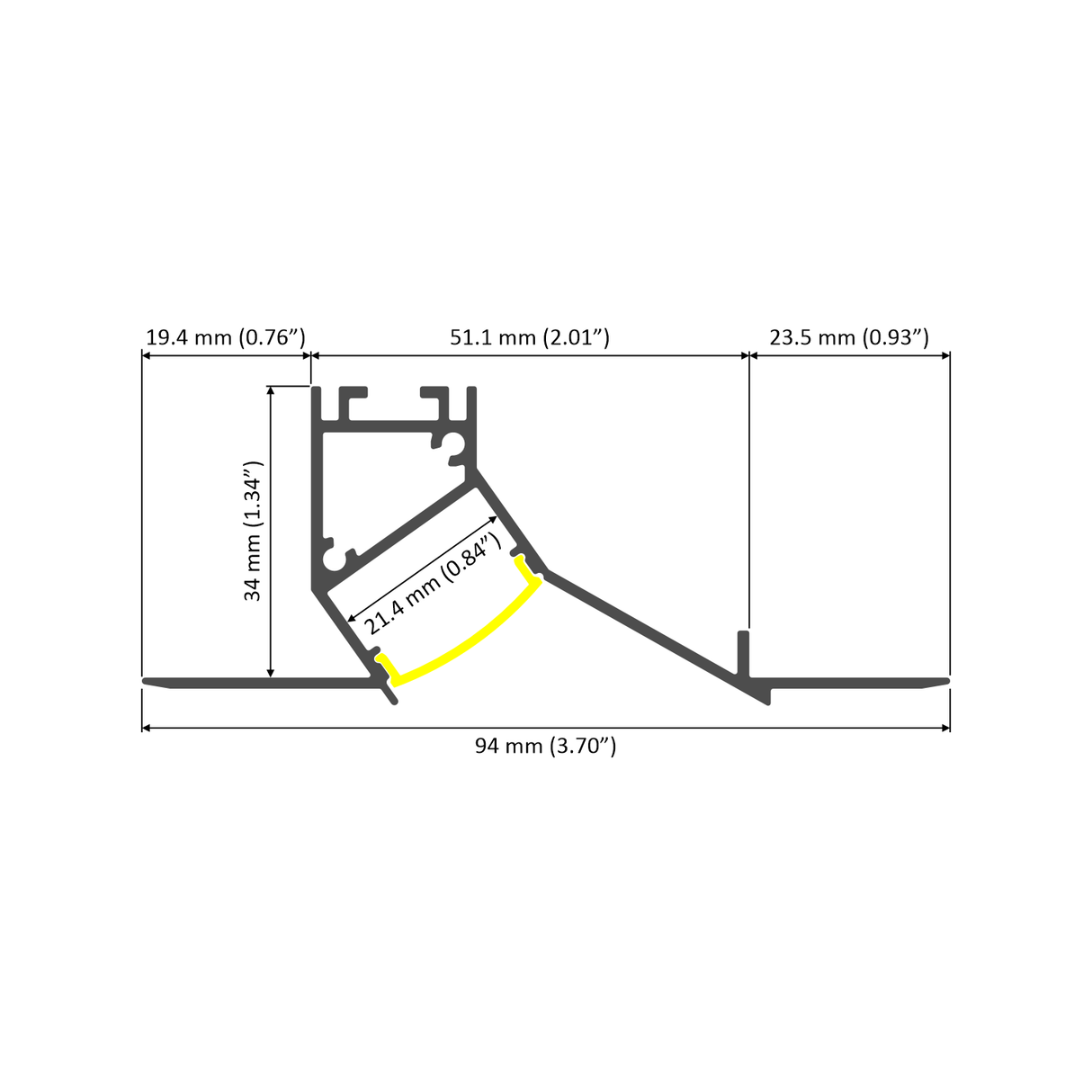

• Overall Dimensions: 94mm x 37mm (3.70” x 1.46”)
• Maximum LED strip width: 18mm
• Maximum LED strip power: 30W/m

Downloads

• Acapulco cut sheet (to be added)

Important notes

• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
