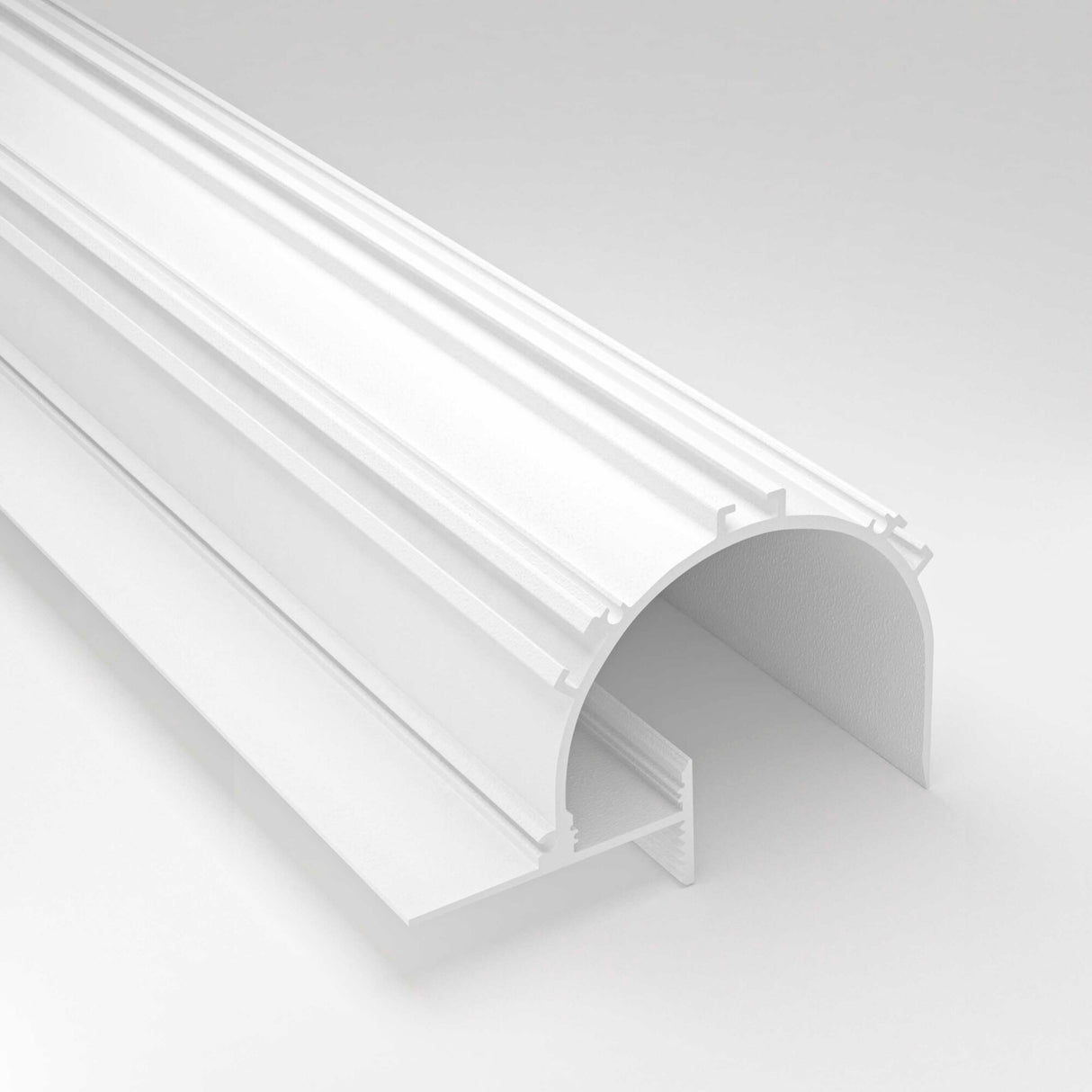

Cove Tunnel Indirect LED Lighting Channel ~ Model Caracas

LED profile only ~ diffusers and all other accessories are sold separately

Description

The Caracas profile is a LED cove lighting channel intended for creating creative cove ceiling lighting in rooms, providing diffused and ambient lighting. This dry-wall designed profile is finished off with a layer of plaster, making it completely integrated or blended into the wall.

The Caracas profile is crafted from high-purity aluminum and is available in a lacquered textured white finish. The LED strip light source inside the profile spreads out very uniform and offers soft and indirect ceiling lighting effect perfect for high-end installation projects on ceilings or walls with a minimum cavity of 54mm.

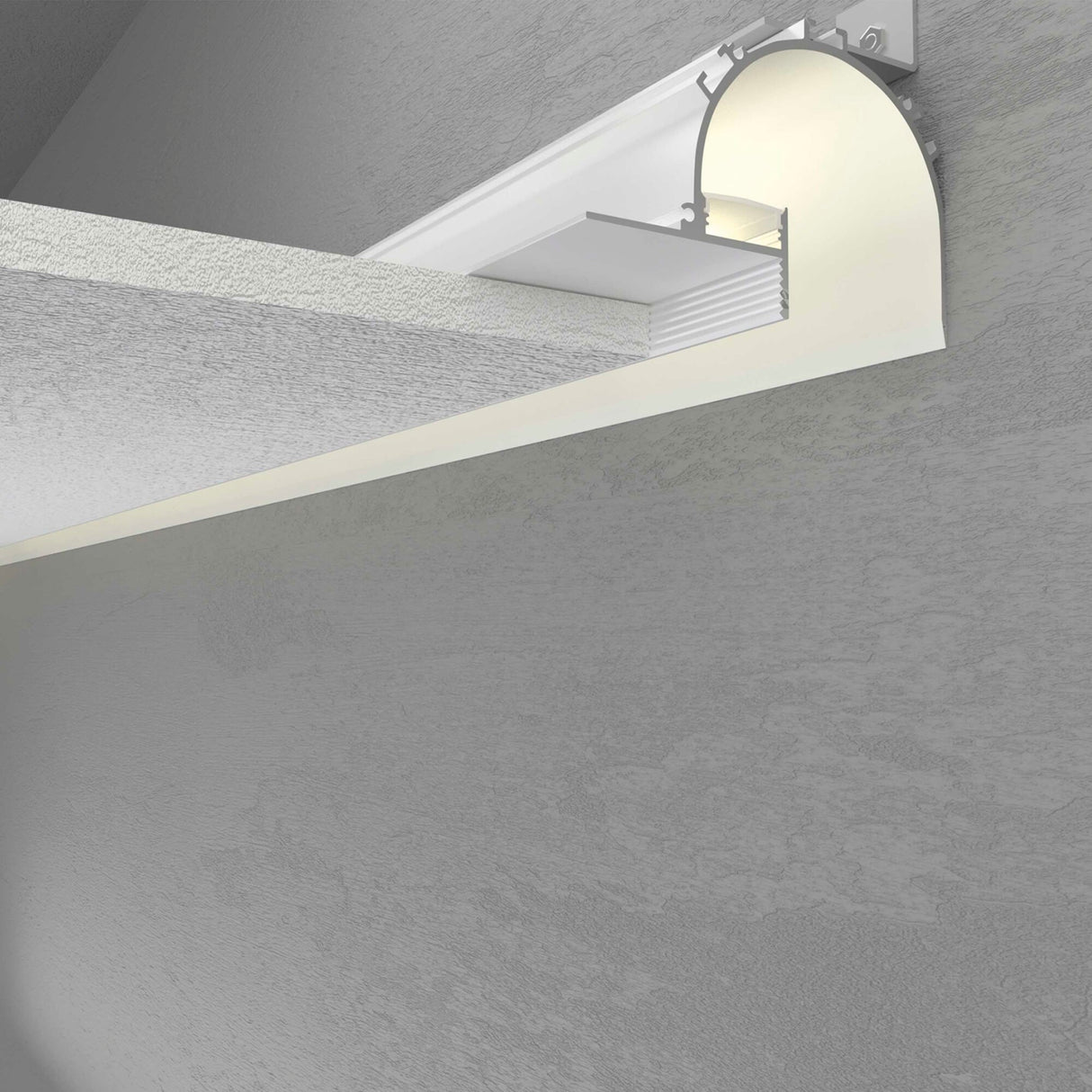

There are two bracket options available depending on whether you want to mount the profile against a wall at the perimeter of the ceiling, or whether you want to mount it in the middle of a drywall ceiling.

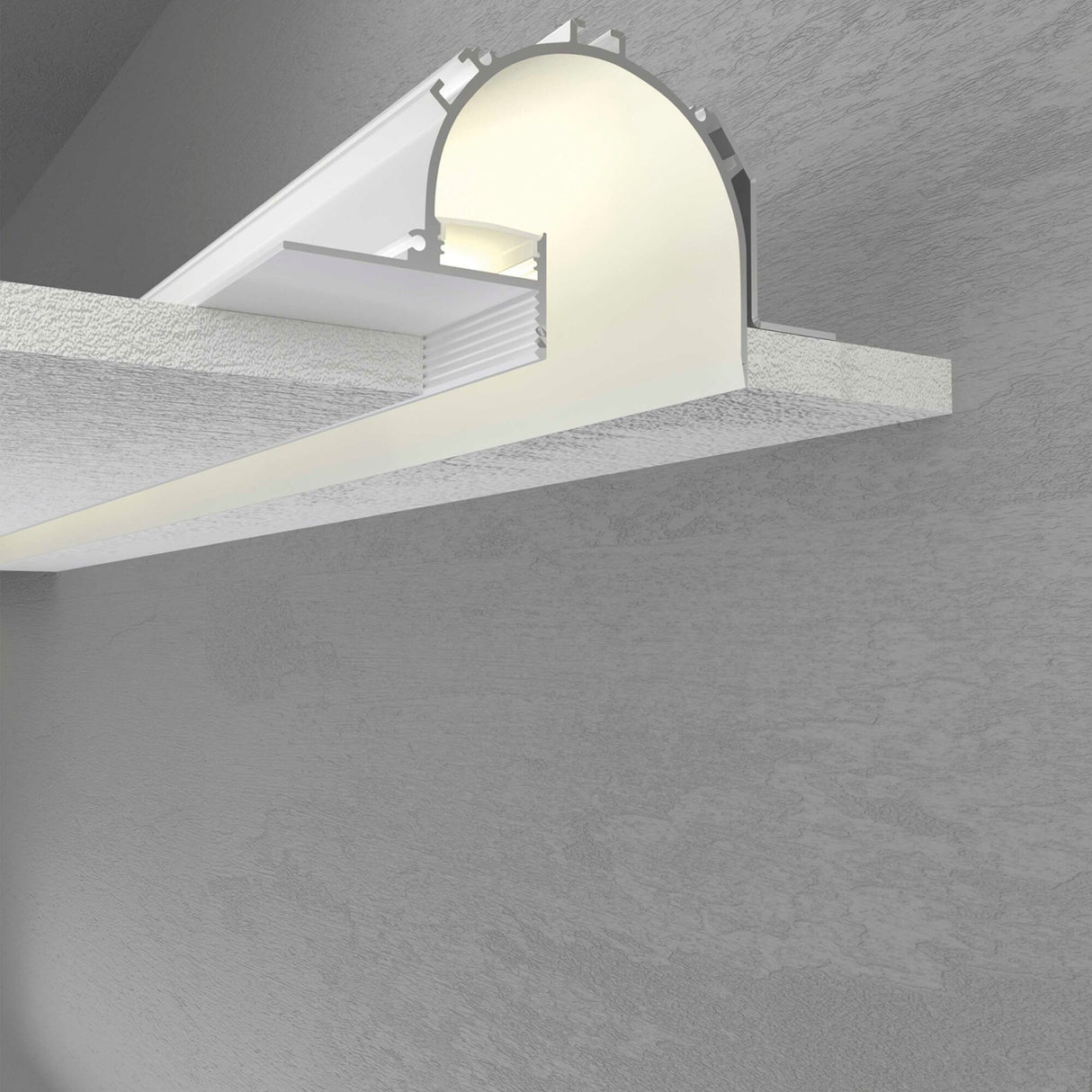

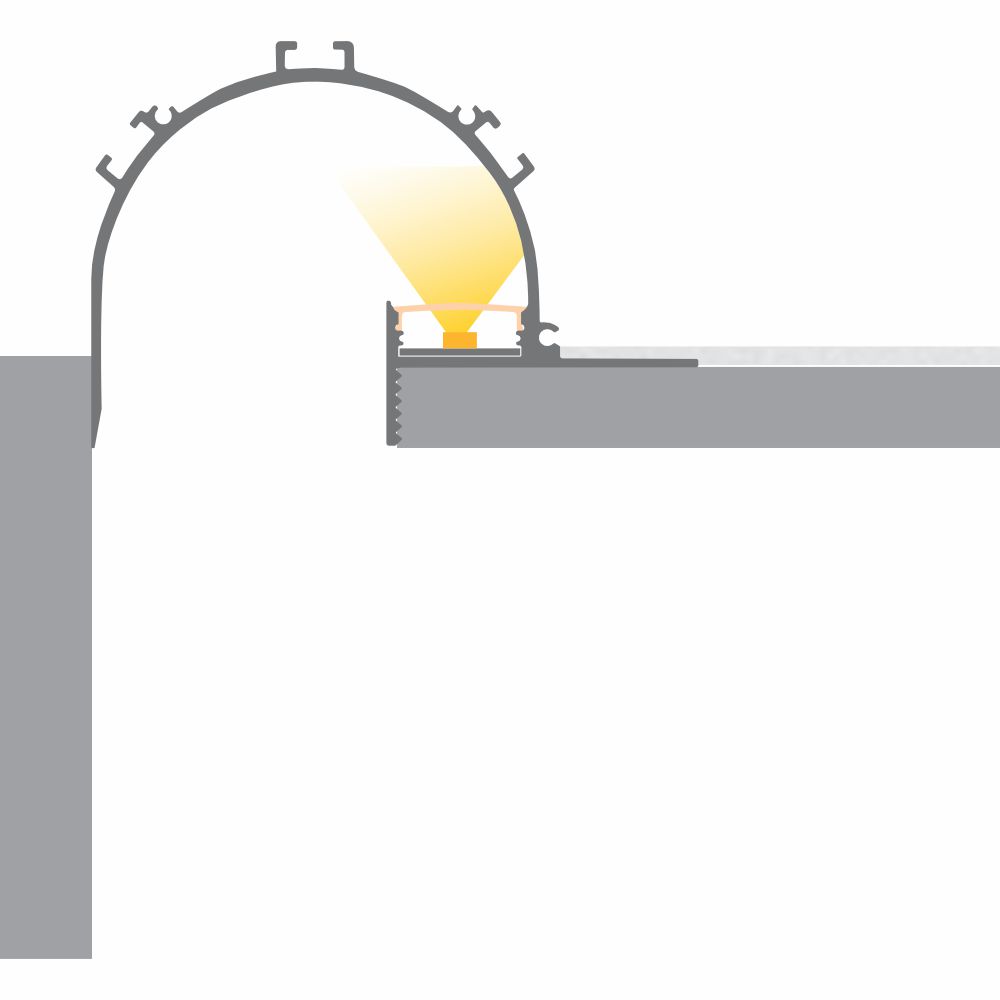

One of the best things about the Caracas profile is that it can be used as a ceiling perimeter cove light by mounting it against the wall, or for soft indirect room lighting by mounting it in the middle of a drywall ceiling. The profile is suitable for LED strips with a maximum width of 18mm and power not greater than 30W/m.

General specifications

• Material: Aluminum

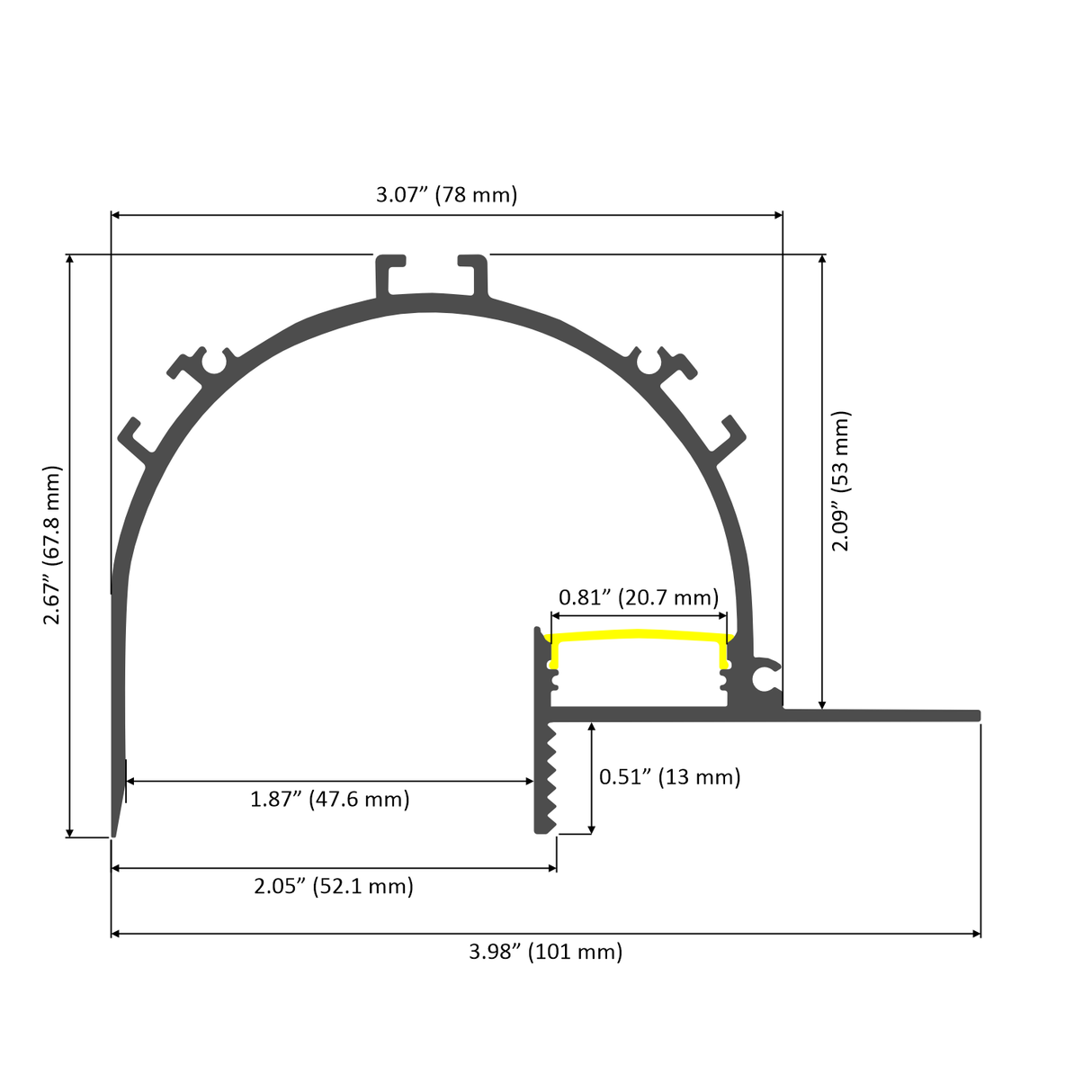

• Overall Dimensions: 110mm x 67.8mm (3.98” x 2.67”)
• Maximum LED strip width: 18mm
• Maximum LED power: 30W/m

Downloads

• Caracas cut sheet (to be added)

Important notes

• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
