Recessed Indirect LED Lighting Channel ~ Model Cancun

LED profile only ~ diffusers and all other accessories are sold separately

Description

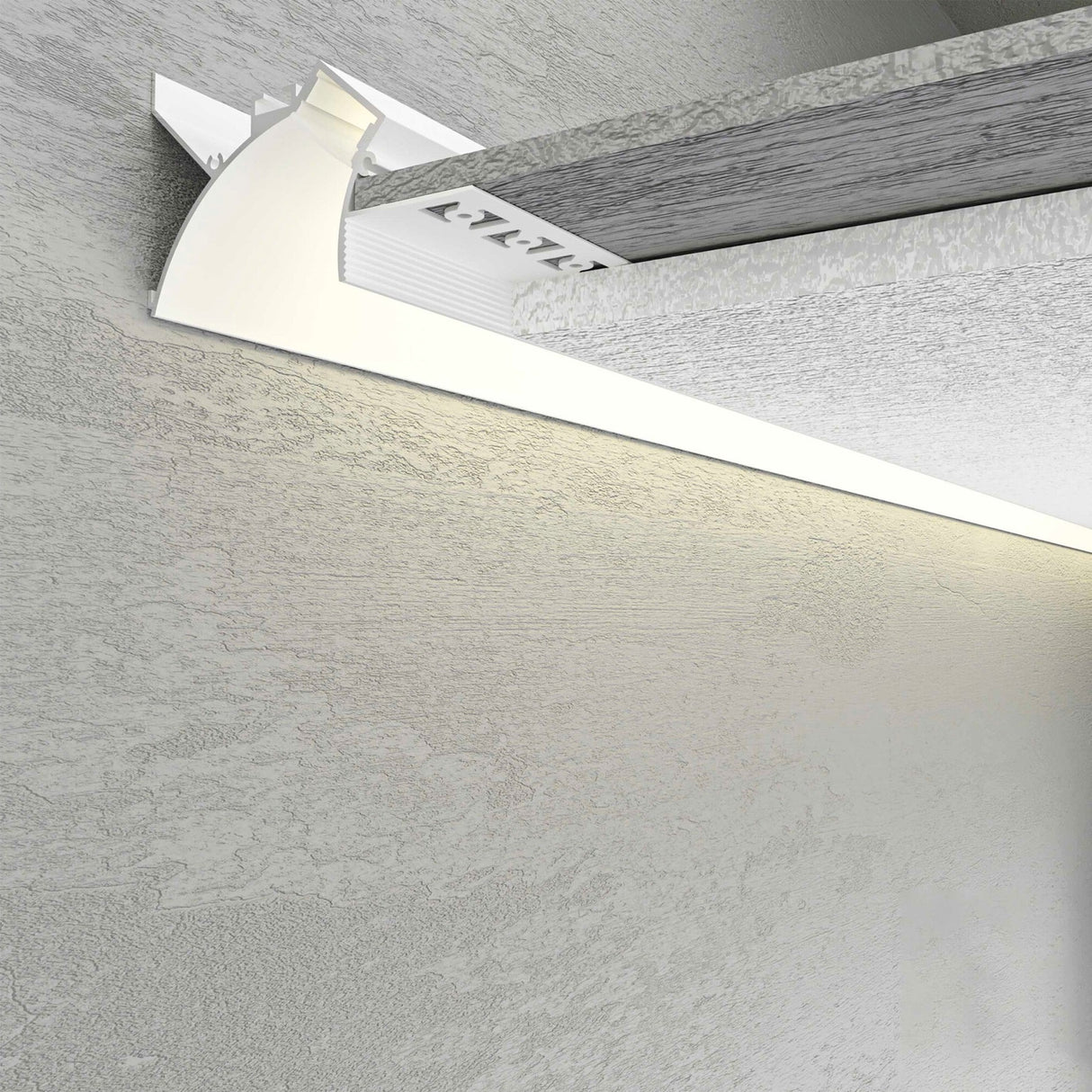

The Cancun profile is a LED indirect linear lighting channel intended for illuminating ceiling perimeters in rooms, giving diffused and ambient lighting. It is finished off with a layer of plaster, making it completely integrated into the ceilings and walls, while delivering soft, indirect linear lighting.

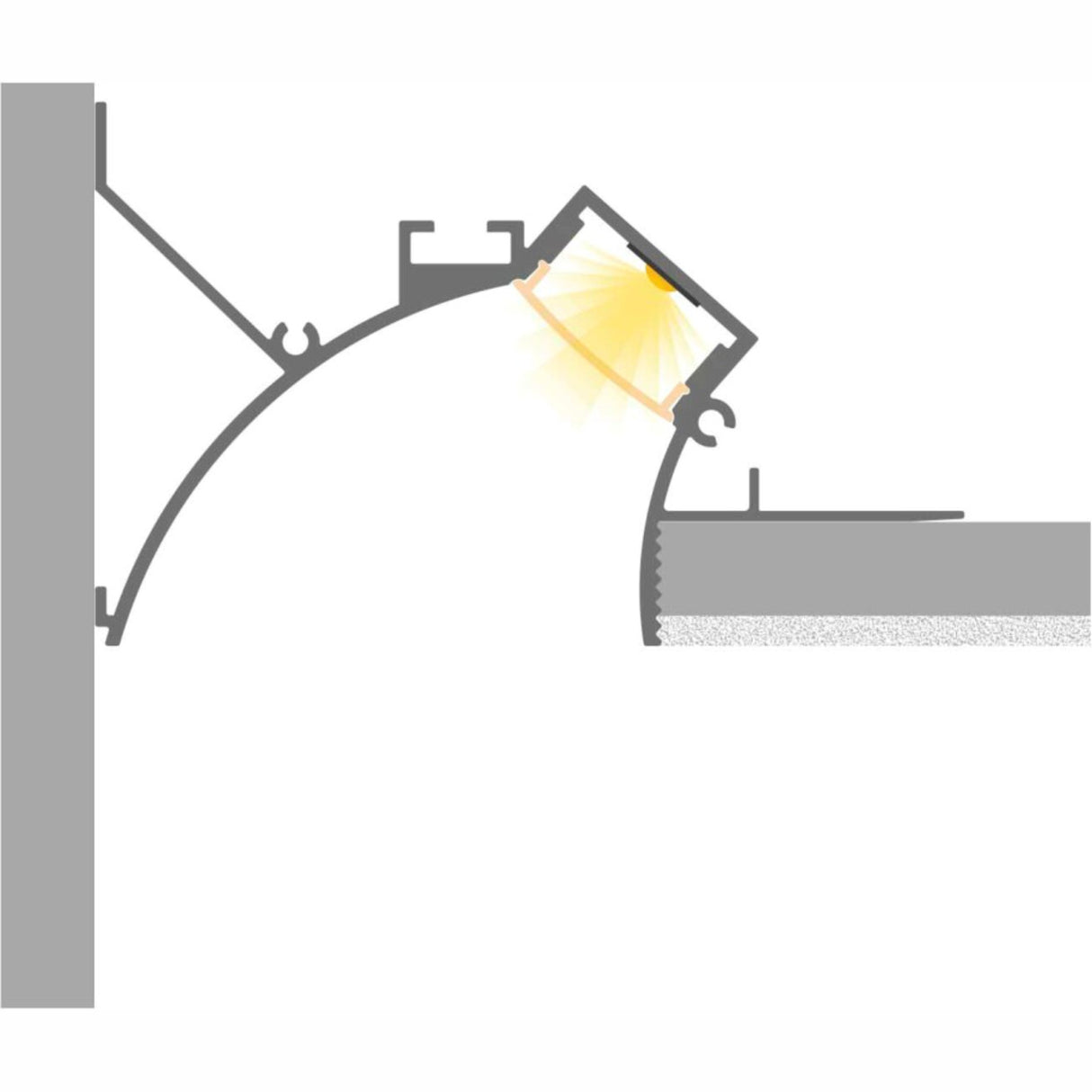

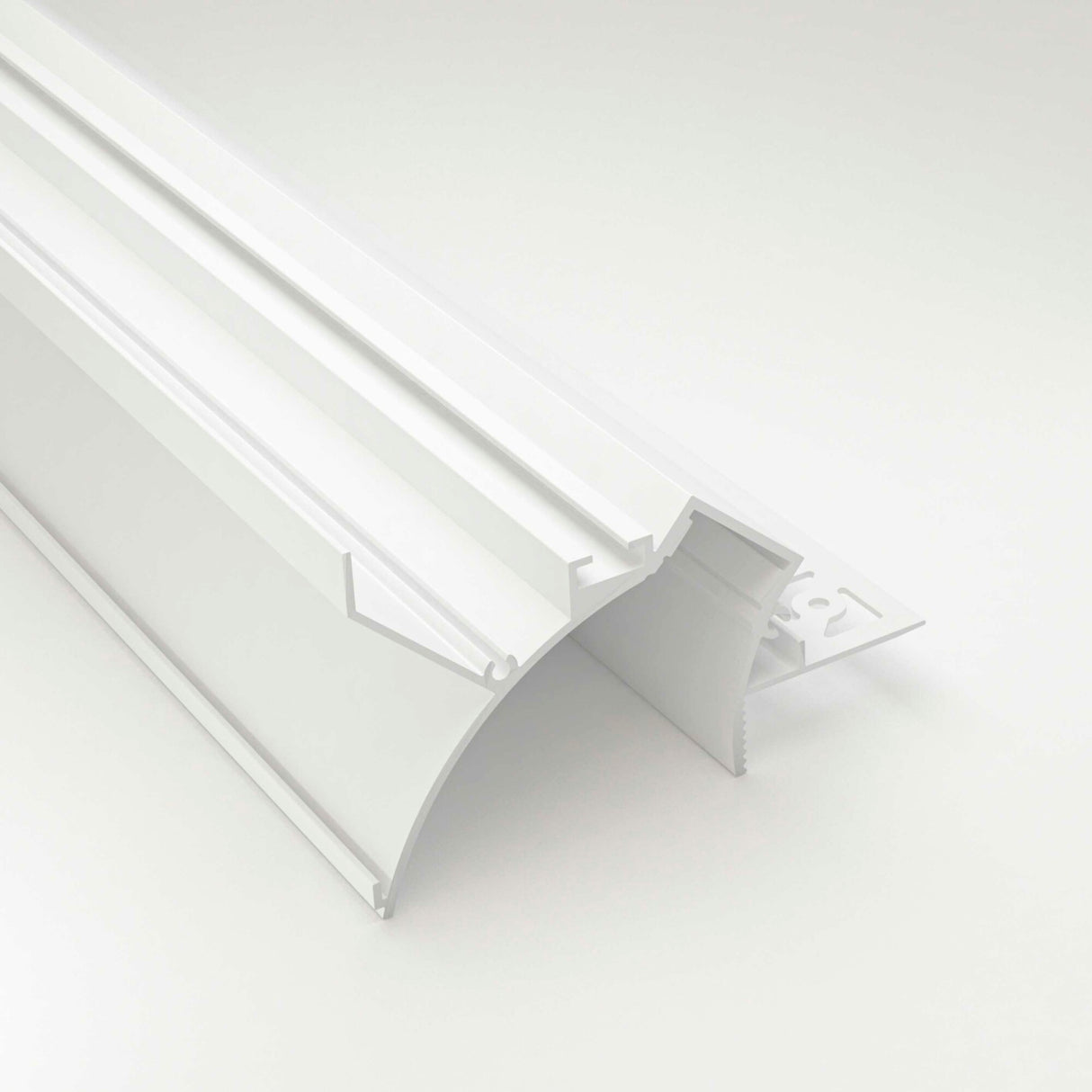

This Cancun profile profile is crafted from high-purity aluminum and comes in a lacquered textured white. The Cancun profile can be used on ceilings or walls with a minimum cavity of 57mm, and it offers flexibility in achieving different lighting effects based on positioning.

This aluminum LED channel is suitable for LED strips with a maximum width of 18mm and a power not exceeding 30W/m.

General specifications

• Material: Aluminum

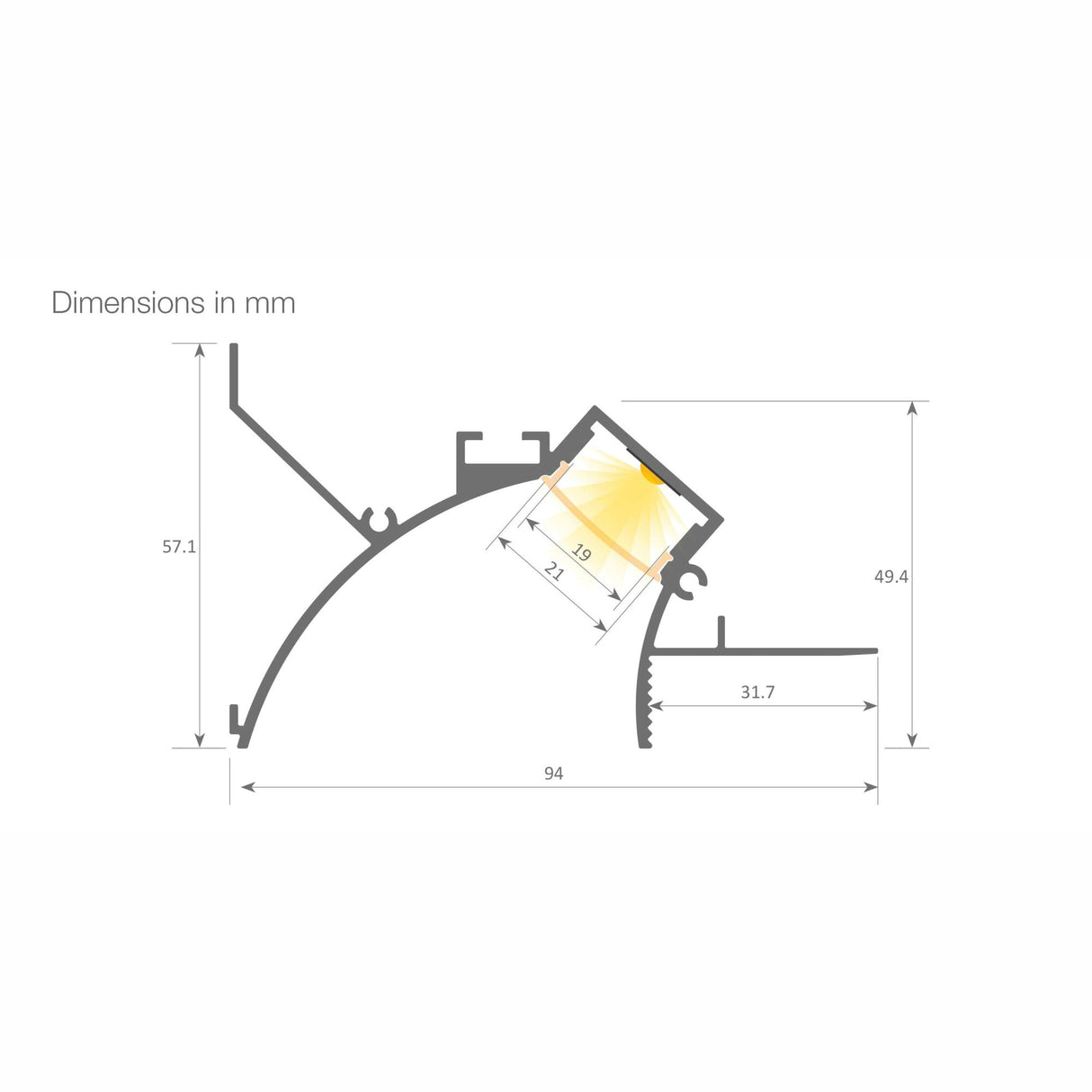

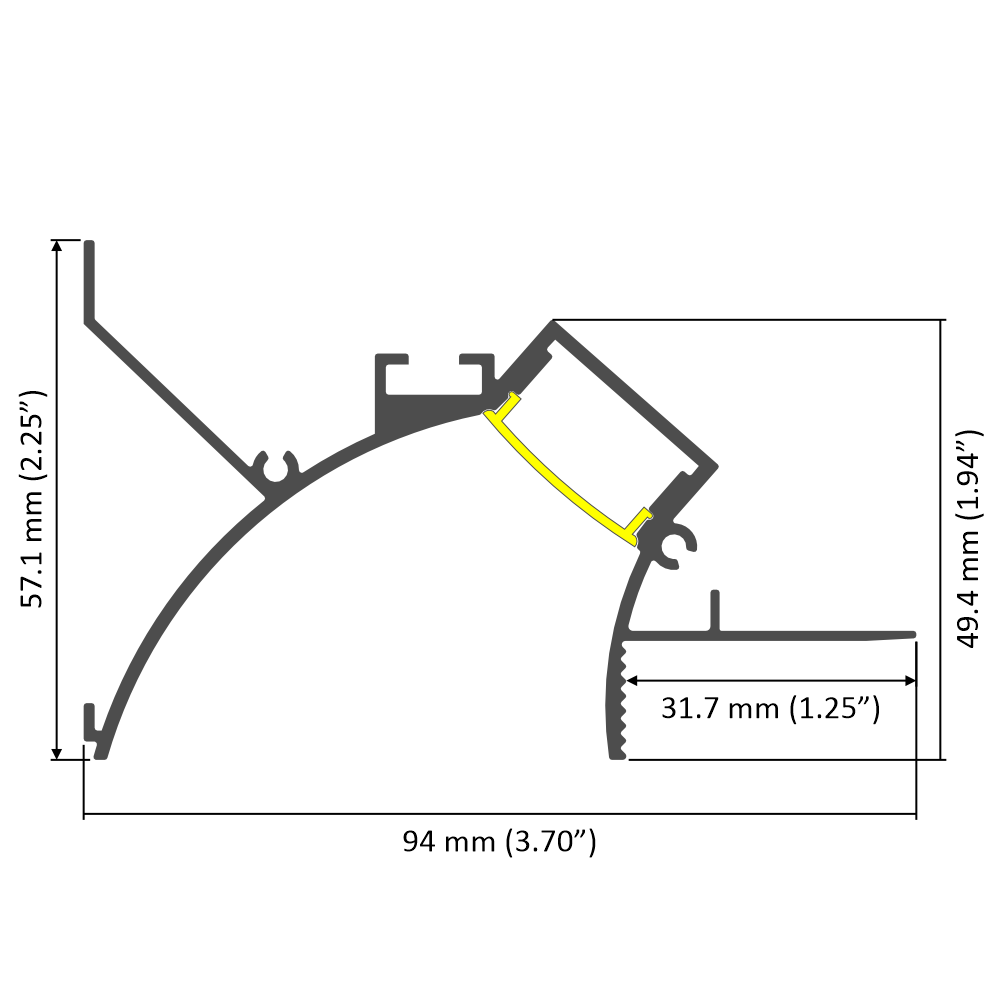

• Overall Dimensions: 94.0mm x 57.1mm (3.70” x 2.25”)

• Maximum LED strip width: 18mm
• Maximum LED strip power: 30W/m

Downloads

• Cancun cut sheet (to be added)

Important notes

• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• LED profiles can easily be cut by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• Please note that we cannot refund or replace LED profiles and covers that have been cut.
• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
