Suspended & Surface Mount LED Aluminum Channel ~ Model Combo30-01

Profile only - all accessories sold separately

Description

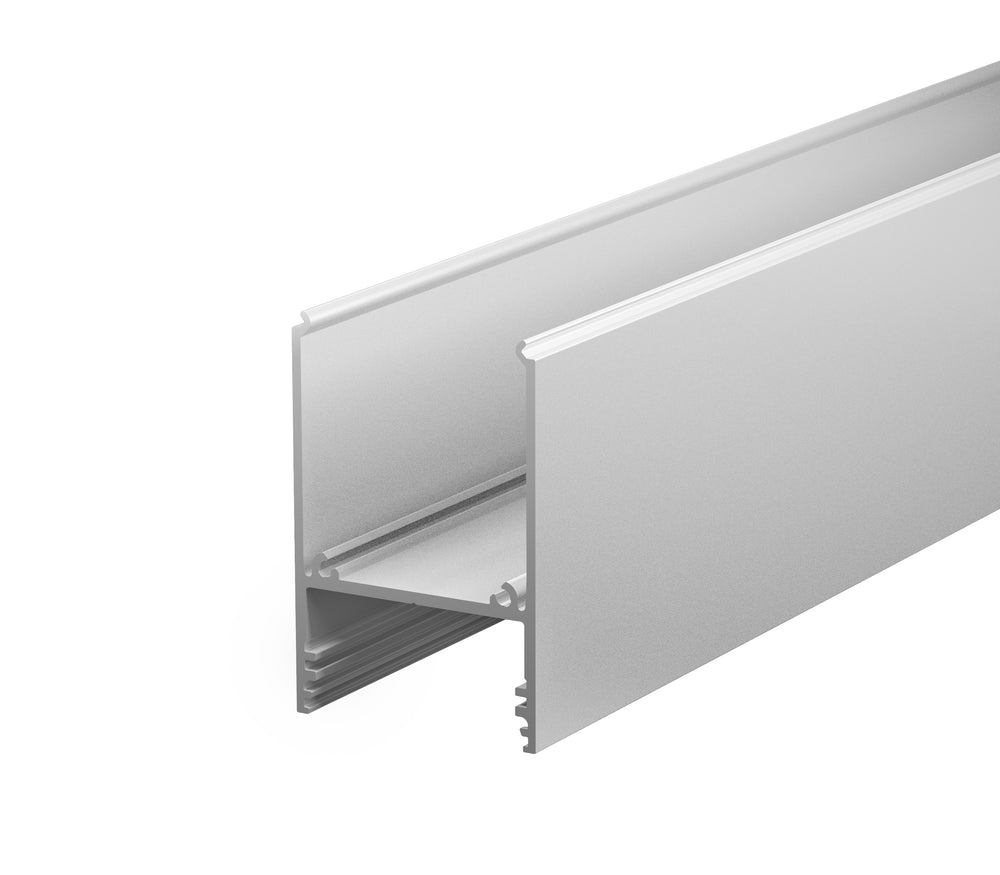

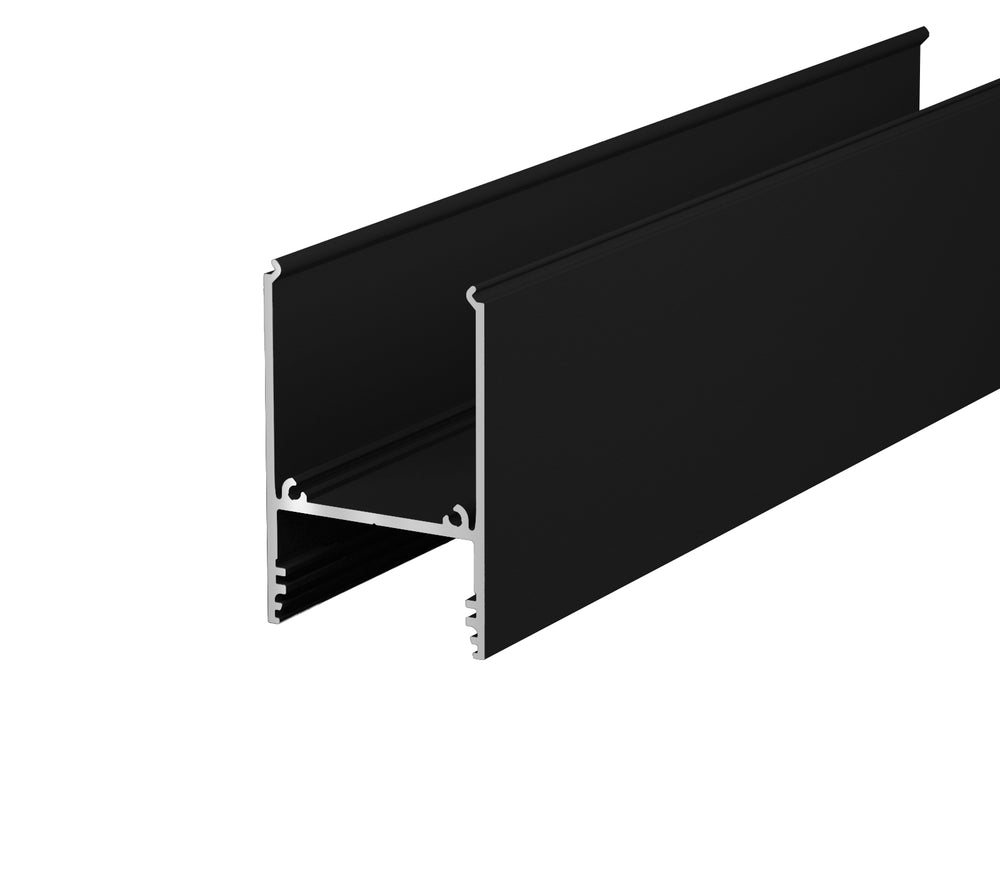

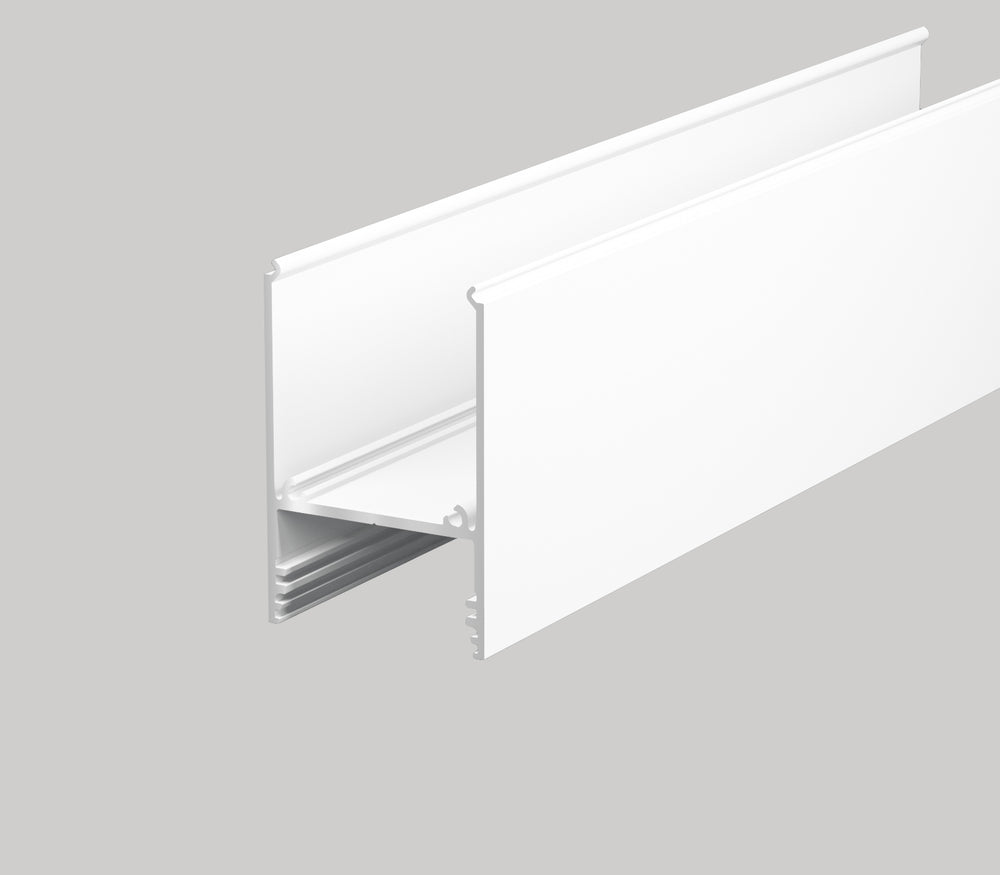

Suspended and Surface Mount LED Channel

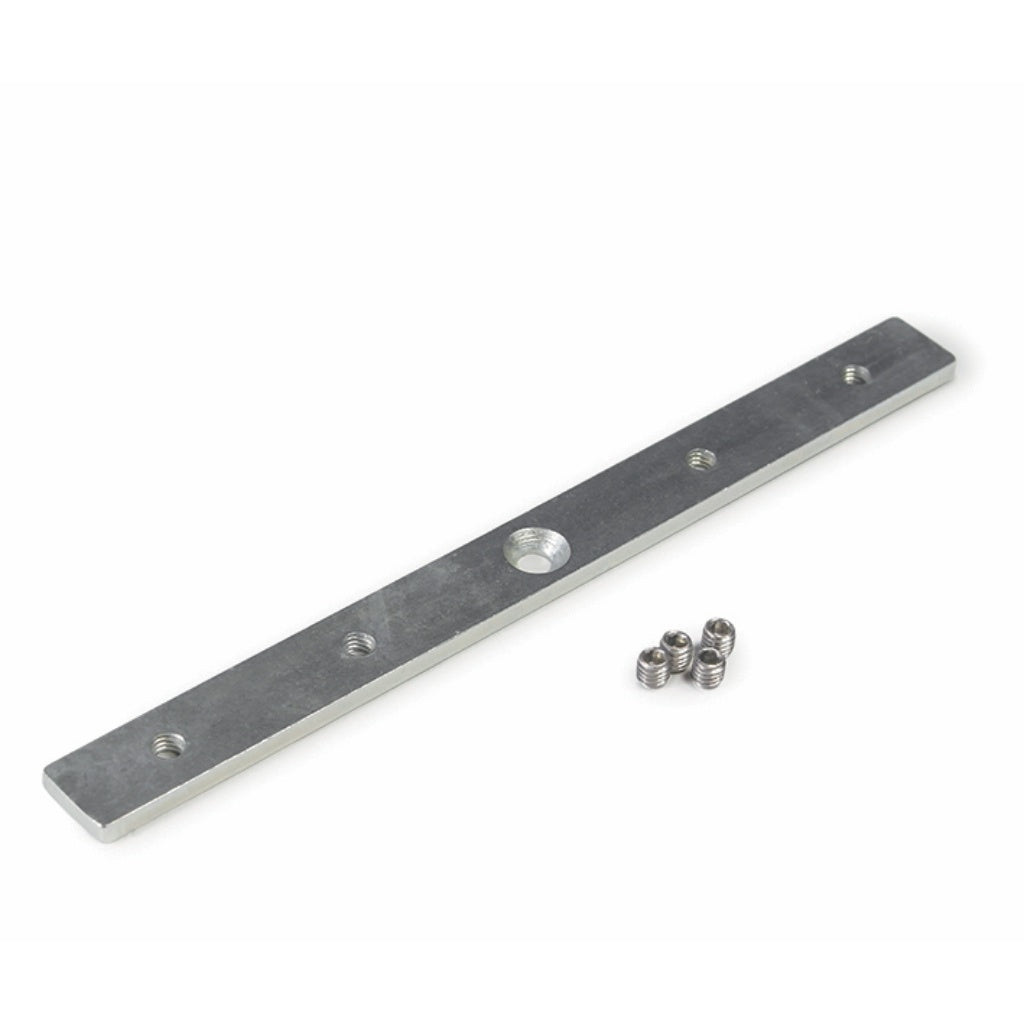

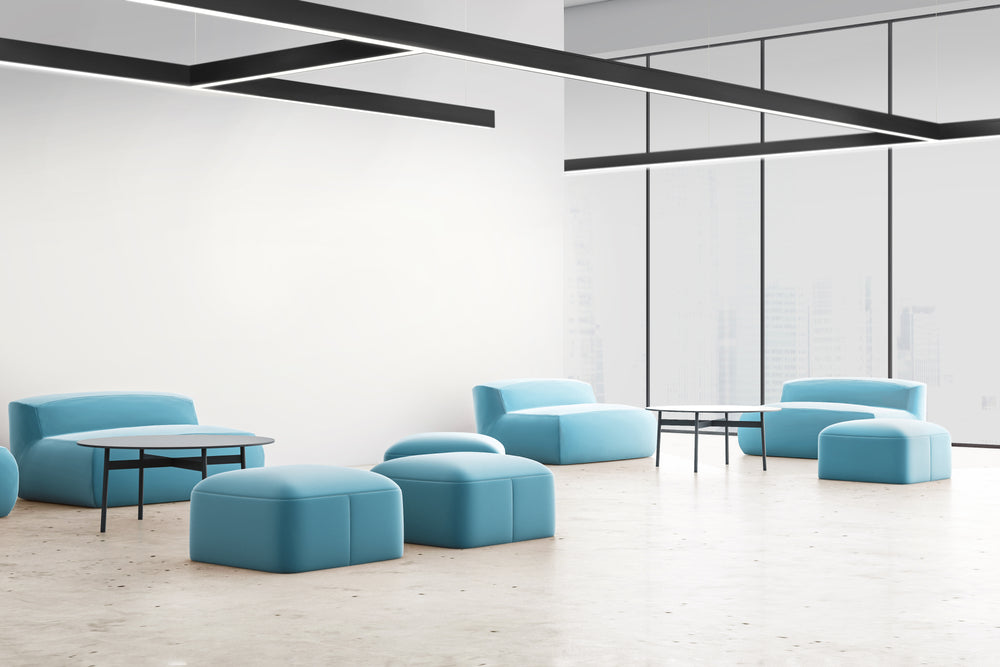

The Combo30 system is a versatile LED channel family which is suitable for surface or suspended mounting. This suspended and surface mount aluminum LED channel profile is combined with complementary profiles and diffusers (required) to create a complete LED light fixture. A range of connecting brackets allows for angled joints in any plane to be securely and neatly assembled to create unique LED lighting installations in three dimensions.

The large cavity in the upper portion of this suspended profile enables you to install concealed wiring and power supplies inside the LED lighting fixture, allowing for the creation of extensive architectural LED linear lighting features with minimum visible wiring for a modern professional look. In addition, the COMBO30-03 complimentary profile includes a upwards-facing LED strip cavity. This allows you to create suspended LED fixtures with up & down lighting elements.

Lastly, the two-part design of this suspended and surface mount LED channel profile allows for easy and clean installation - whether surface mounted or suspended - by mounting the complimentary fixing profile in place first, and then allowing you to assemble and wire the primary profile separately at ground level before clipping it into the complimentary profile.

General specifications

• Overall dimensions: 49.9mm (1.965") x 33.4mm (1.315")
• Maximum width of LED strip: 30mm
• Required complimentary profiles: Combo30-02 (surface / suspended) or Combo30-03 (suspended with up lighting)

Downloads

• COMBO30 cut sheet

Important notes

• We sell LED strip, covers, mounting brackets, end caps, shelf/sign panels, and other accessories separately from the aluminum profile. Therefore, you need to select the available components below.
• Please note that raw or natural profiles or channels are not anodized and need to be coated or painted, or they will oxidize over time in outdoor applications.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug and play light fitting with this profile according to your specifications.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs. All in all, please contact us to learn more about our bulk pricing options.
