Rectangular LED Linear Pendant ~ Model PLS33

Profile only ~ LED strip, diffusers and all other accessories are sold separately

Description

Rectangular LED Linear Pendant ~ Model PLS33

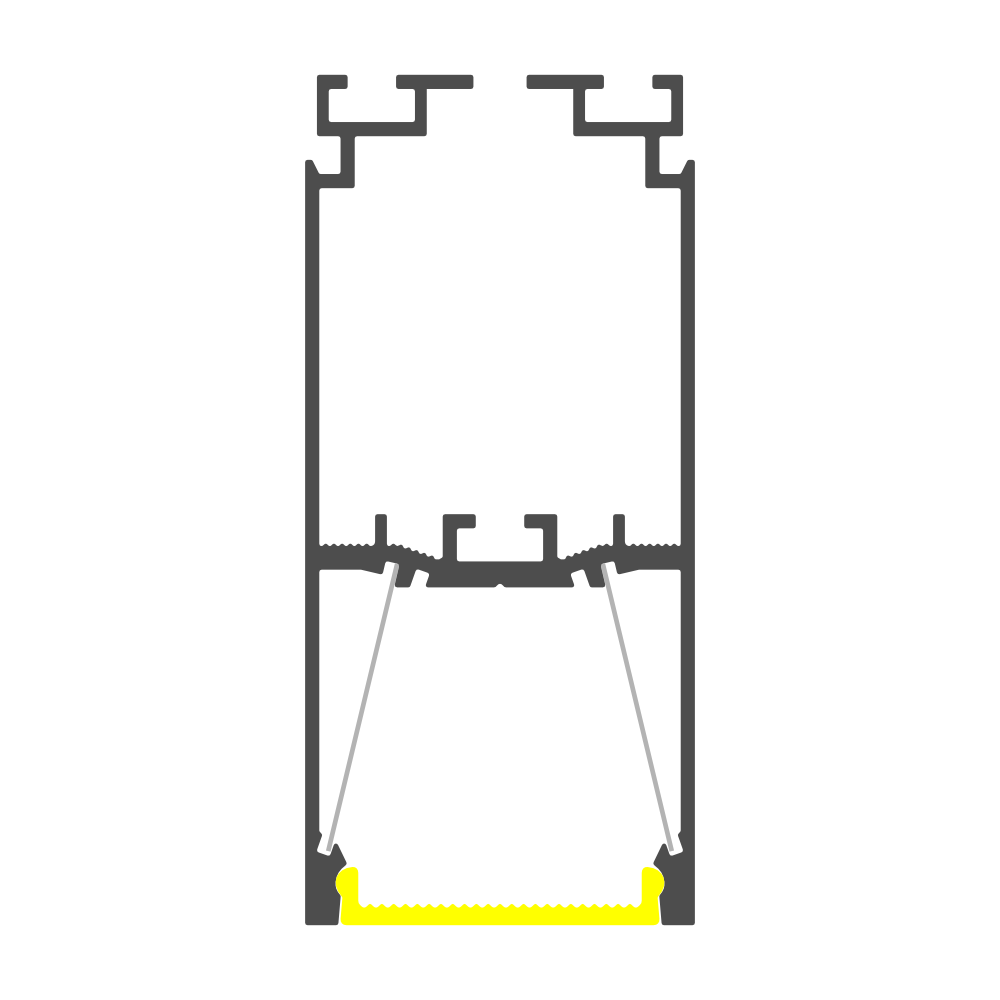

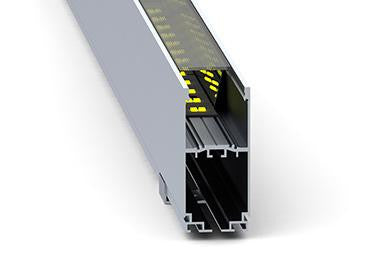

The PLS33 rectangular LED linear pendant profile is a high quality aluminum profile for LED lighting. The anodized surface and matching lens emphasize the quality of the product, while a tool-free aluminum ending complements the entire product.

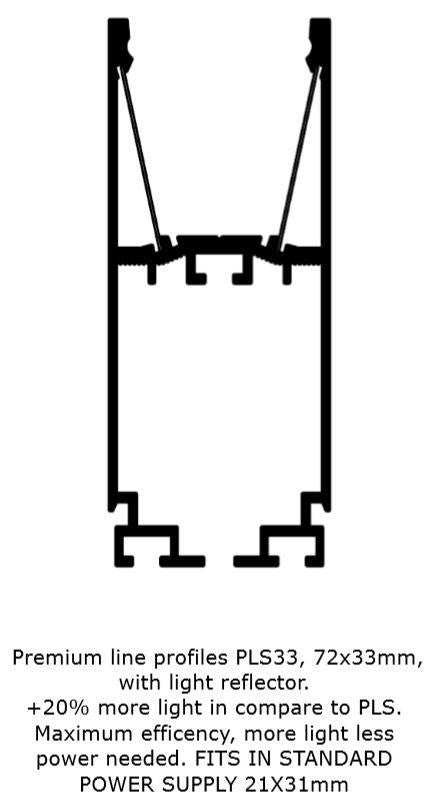

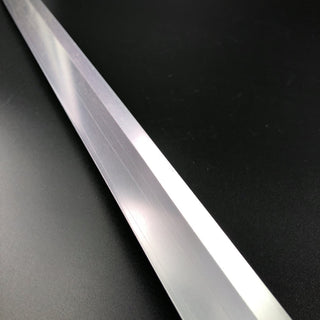

In addition, we equipped the profile with optional reflectors (refer to accessories below) that you can mount in 2 positions: for PCB width up to 12mm or 17mm. These highly polished aluminum reflector panels improve the efficiency of the luminaire by approximately 10-18% depending on the light source used.

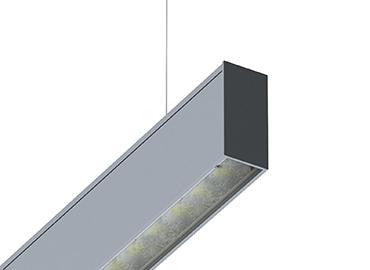

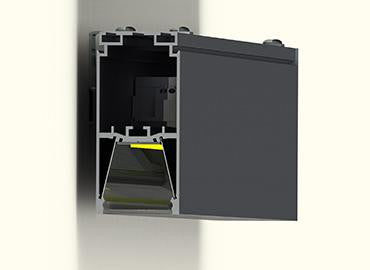

It designed the rectangular LED linear pendant profile for suspended, wall, or ceiling mounting. The weight, shape, and dimensions ensure excellent heat transfer, and the profile can maintain a temperature of 45-50° C using LED strips up to 36W/m.

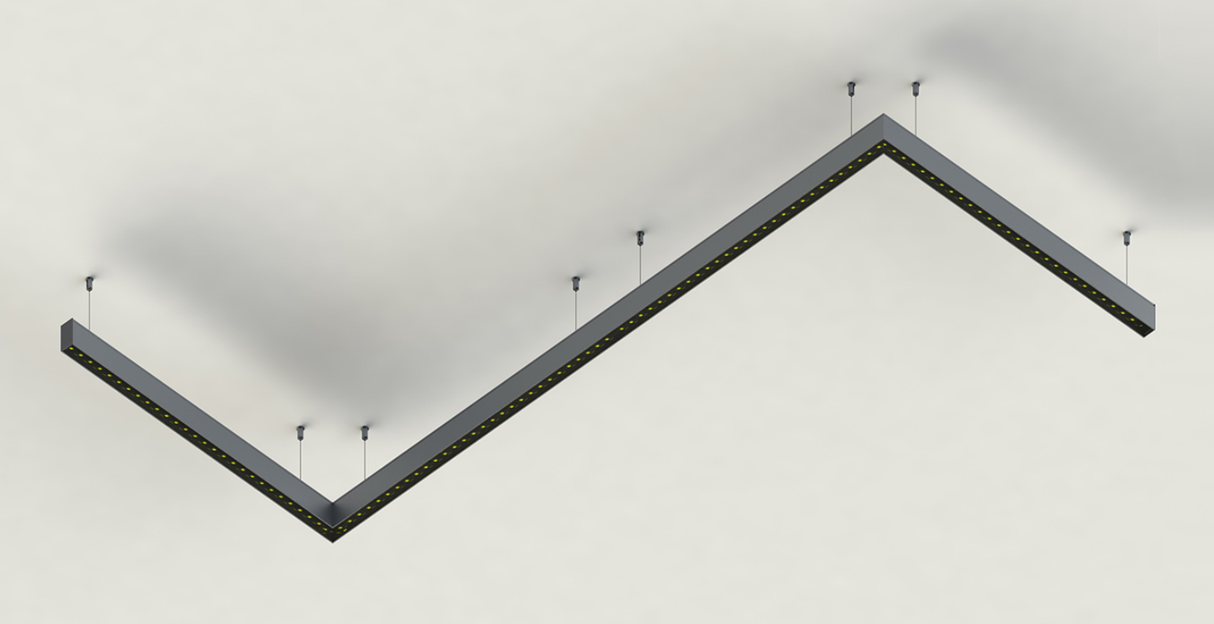

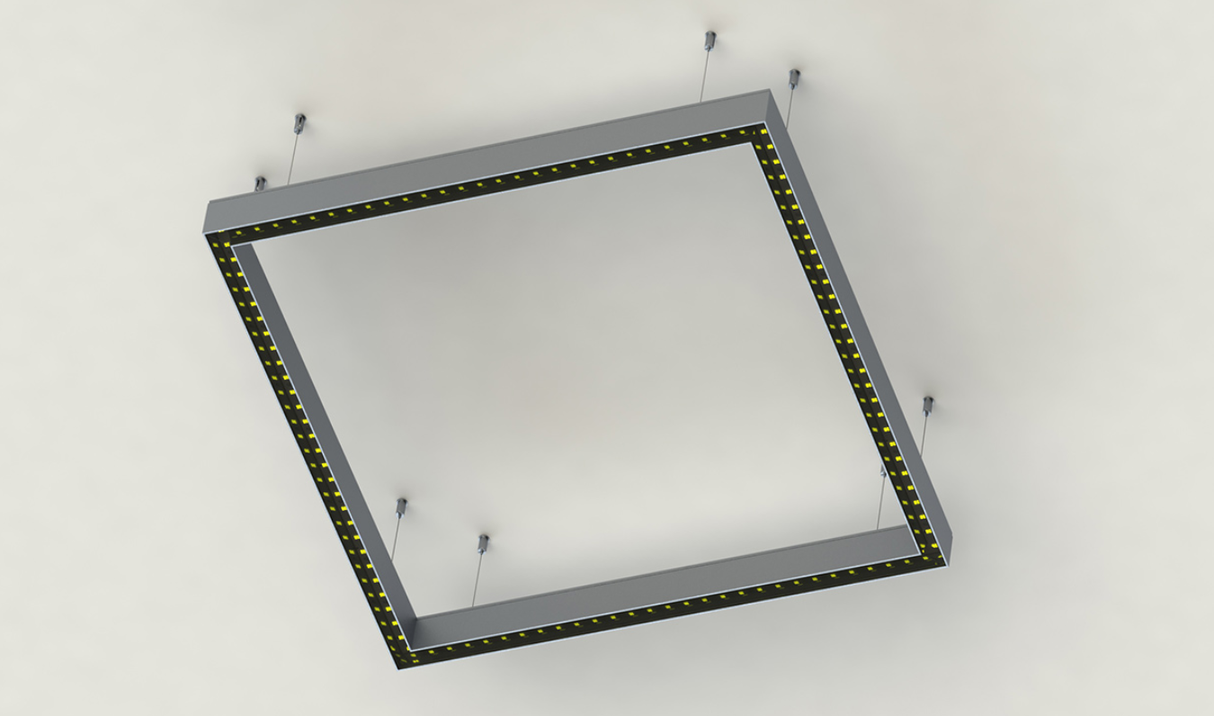

The profile is nicely presented thanks to simple and functional shape. Diffusers are made of high quality UV resistant materials, which can be frosted or smooth. We designed the upper chamber to house a power supply and wiring. If you choose wall or suspended mounting, you can also create long patterns of light using linear and angular connectors.

General specifications

• Installation methods: Wall mount, Ceiling mount, Suspended

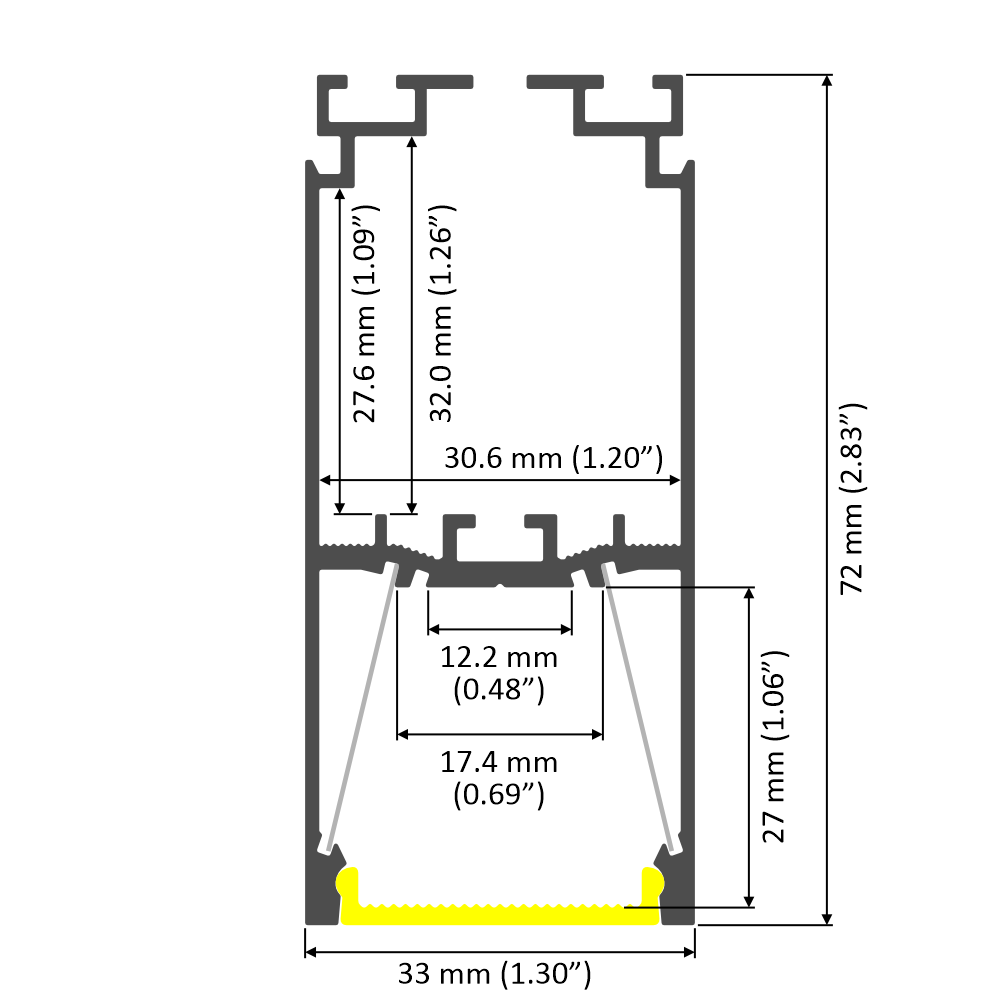

• Dimensions: 33mm x 72mm (1.3" x 2.8")
• Maximum width of LED strip: 17mm

Downloads

• PLS33 cut sheet

Important notes

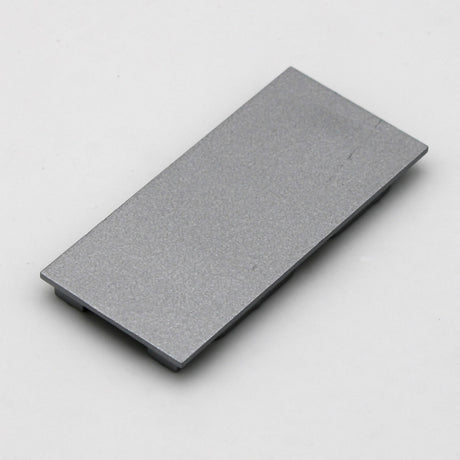

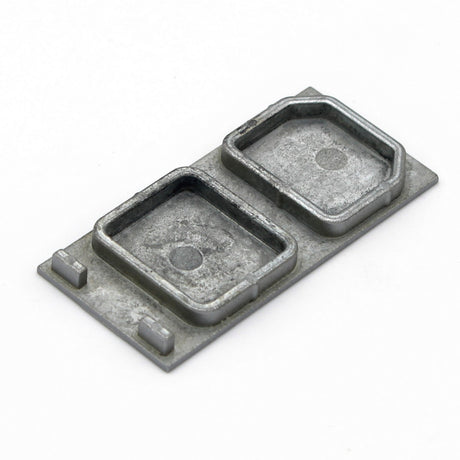

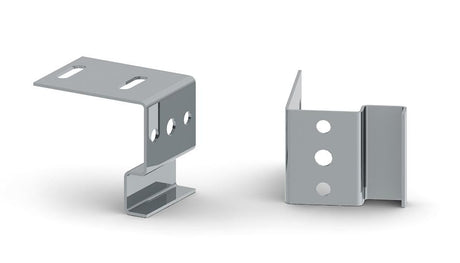

• We sell LED strips, covers, mounting brackets, end caps, shelf/sign panels and other accessories separately from the aluminum profile. Therefore, please select the available components below.
• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.
• You can easily cut LED profiles by hand or by machine.
• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
• We can also assemble a plug-and-play light fitting with this profile according to your specifications. Therefore, please leave detailed instructions in the order comment box.
• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs.
