Very Thin Recessed LED Strip Channel ~ Model Nano Line

SKU LED-AL-NL-3
Original price - Original price
Original price
-
Current price

Profile only ~ accessories sold separately

Description

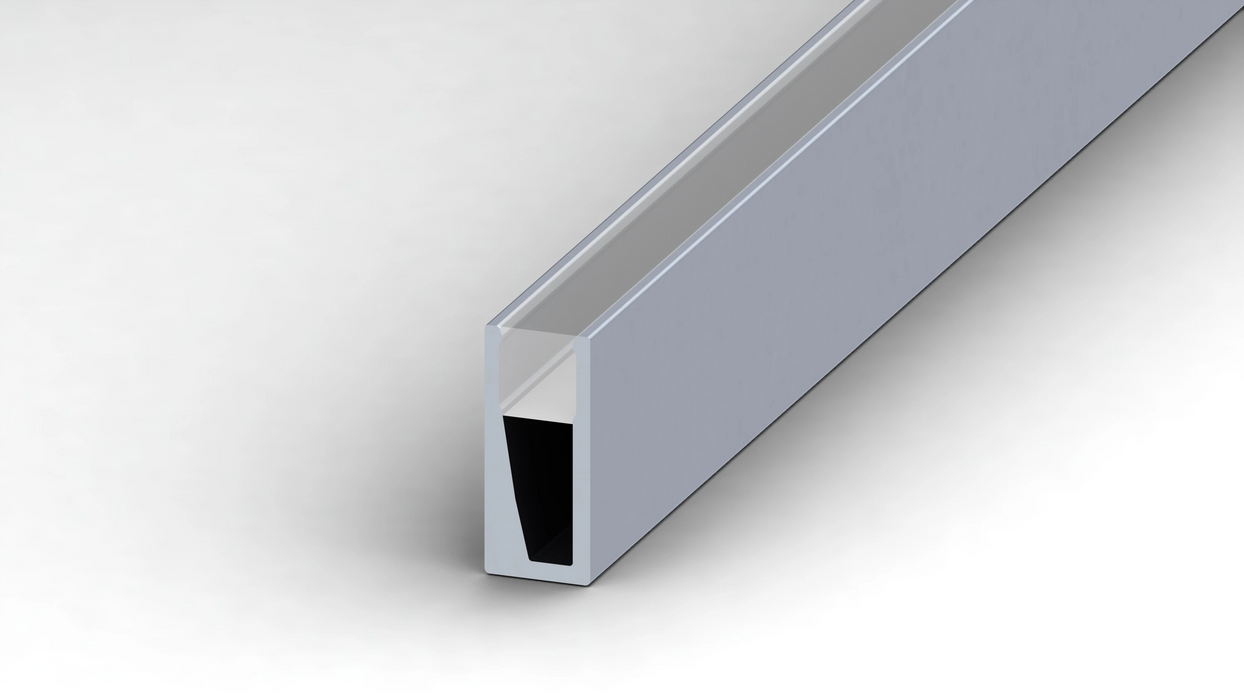

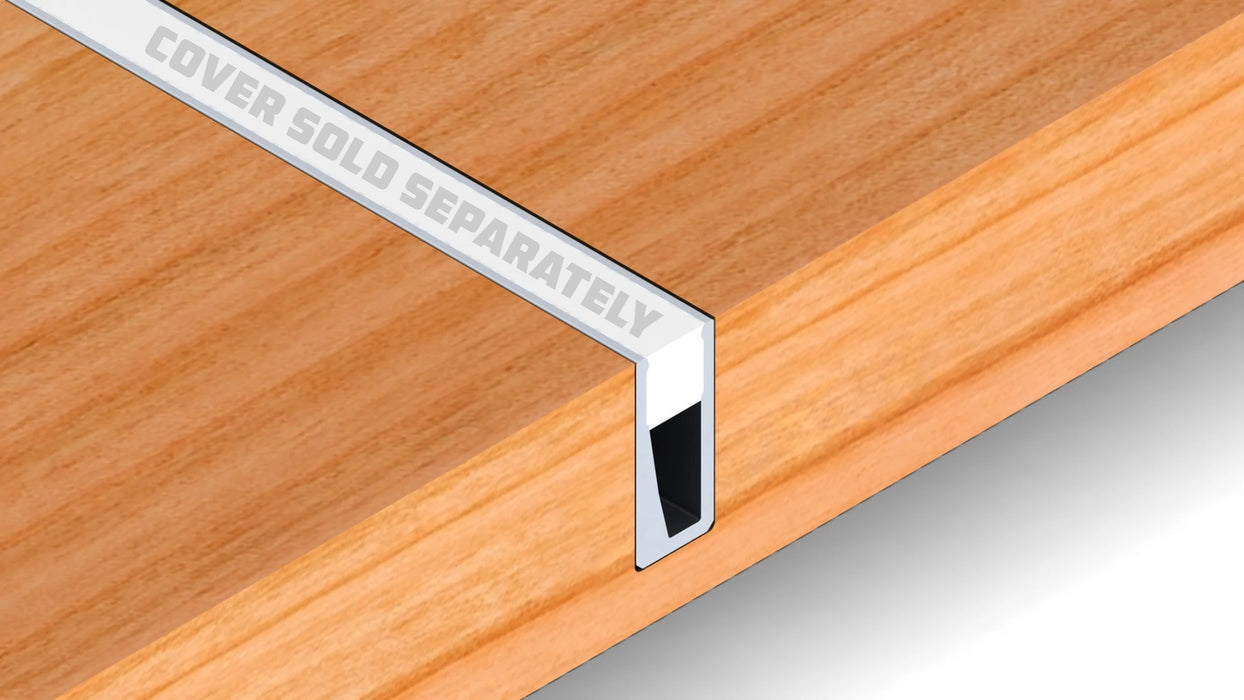

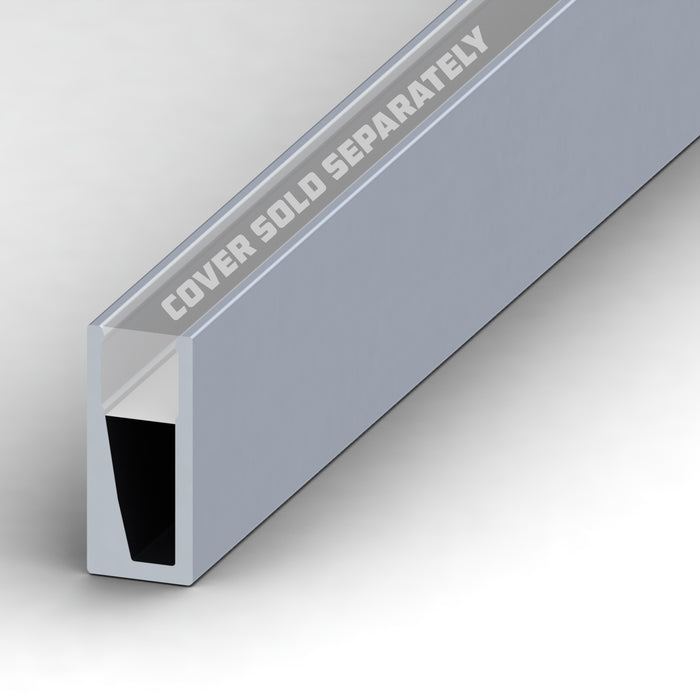

The Nano Line channel is a very thin profile used for recessed accent lighting. This profile can be recessed into floors (walkover safe), walls, kitchen and bar countertops, and even furniture.

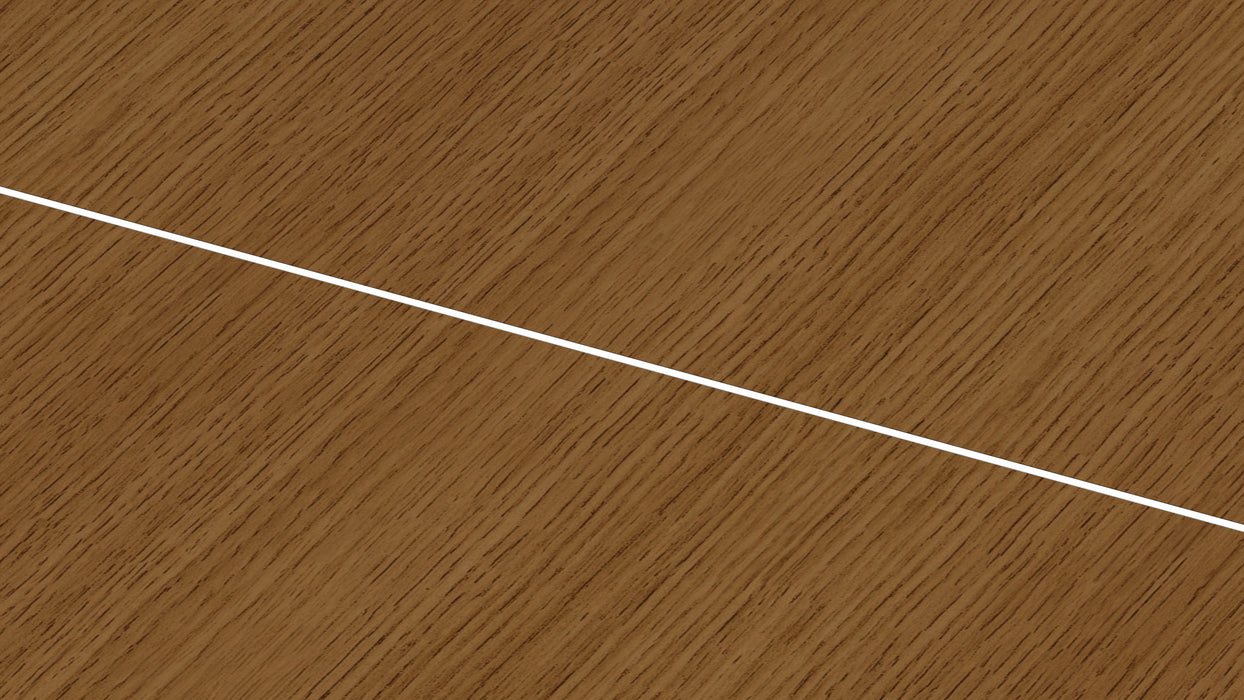

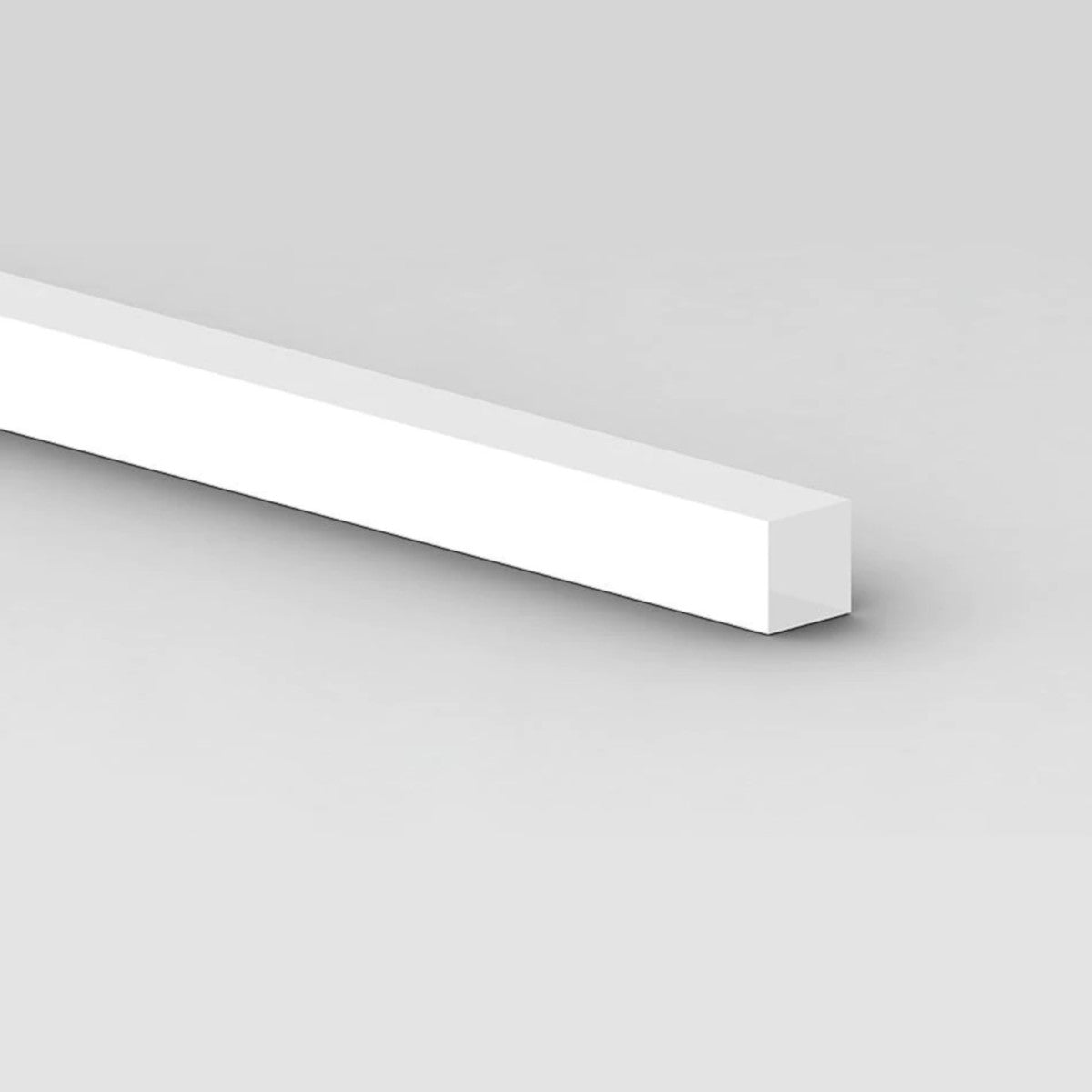

This channel is our narrowest linear lighting profile, but through its clever design it can still accommodate LED strip up to 8mm wide. The UV resistant silicone diffuser (ordered separately) allows this profile to achieve a softly diffused, homogeneous, LED dot-free line of light that is only 6mm (1/4") wide.

The limited heat dissipation capacity of this very narrow profile means that it is primarily suited for accent lighting applications with a small LED power load. Typical applications include reccessed floor accents, wall accents, ceiling accents, kitchen and bar counter borders, balustrade accent lighting and even furniture detailing. With IP67 rated encapsulation, this profile can installed in wet environments such as showers, bathrooms, swimming pools, saunas and sun terraces.

General specifications

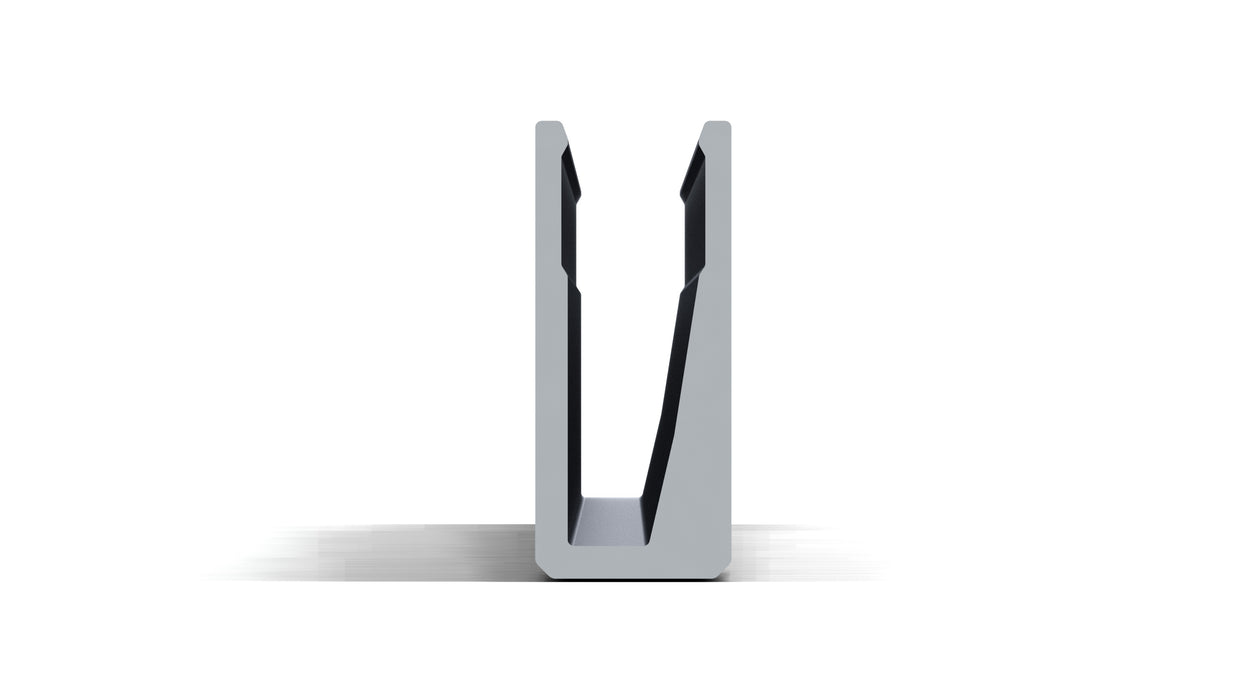

  • Dimensions: 6mm (0.24") x 14mm (0.55")
  • Maximum strip width: 8mm
  • Maximum power dissipation: 10W/m
  • Diffuser supplied separately

Downloads

Important Notes

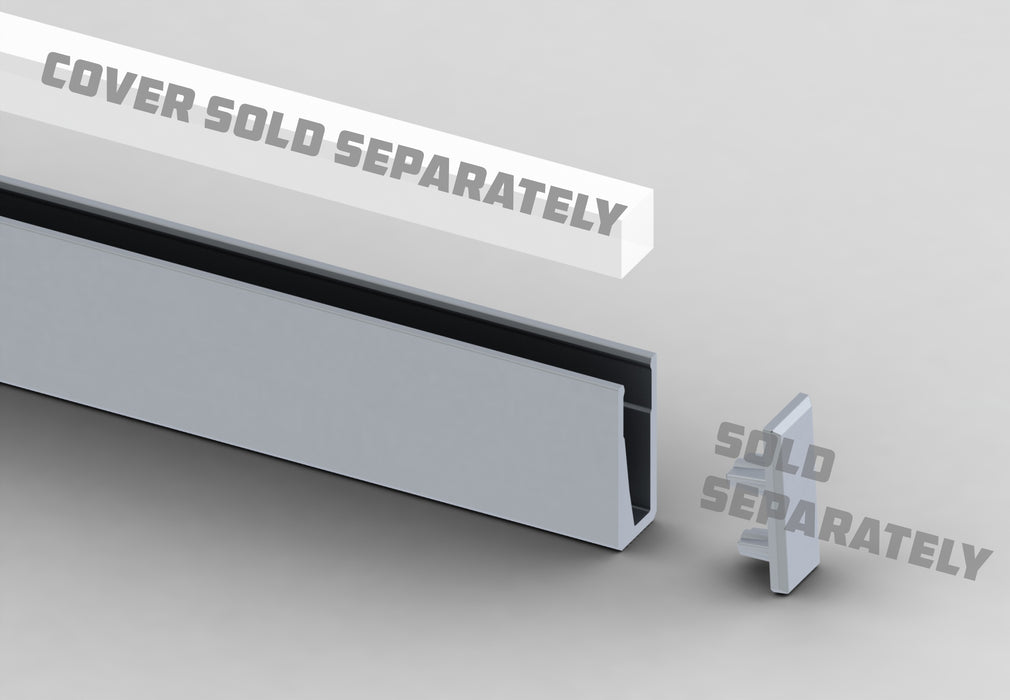

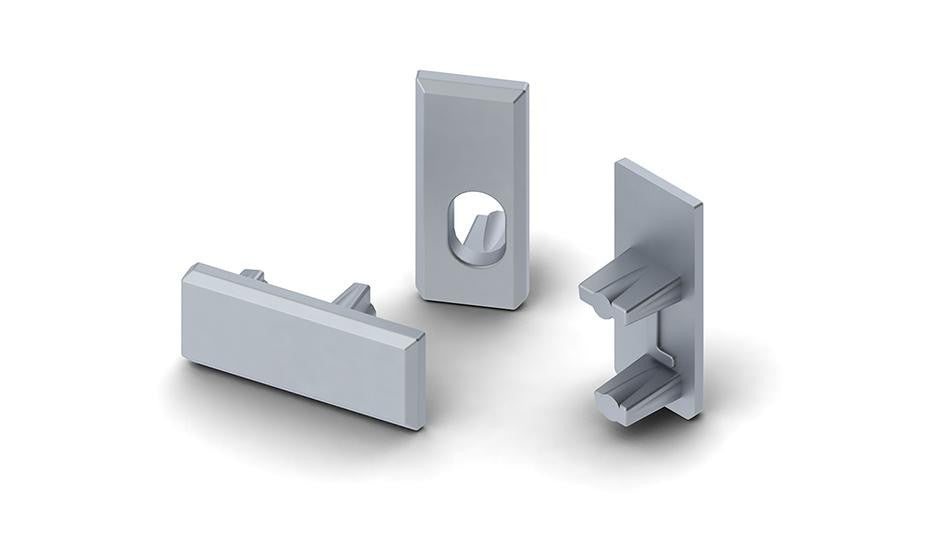

  • LED strip, diffuser and accessories are sold separately from the aluminum profile. Please see details below this listing
  • LED profiles can easily be cut by hand or by machine.
  • For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.
  • Shipping on 3-meter lengths may differ from checkout calculation. Please contact us for more information
  • Stock items are shipped the same day from Knoxville, Tennessee, United States.
  • Bulk Pricing Available on Request
