Surface Mount LED Aluminum Channel ~ Model SPL35-FL [Profile Only]

Profile only ~ diffuser, end caps and all other accessories are sold separately

Description

Surface Mount LED Aluminum Channel ~ Model SPL35-FL [Profile Only]

SPL35-FL Surface Mount LED Aluminum Strip Channel is a new and improved version of the famous and proven profile SPL35 LED Aluminum Channel. The SPL35-FL profile, despite its classic appearance, has gained new functionality. The optional reflectors, available below in the accessories, increase the light output from the luminaire by approximately 10-18% depending on the LED strip used.

The Surface Mount LED Aluminum Channel ~ SPL35-FL has three options for light diffusers to choose from: prismatic with high light transmission ratio, opal, and smooth. There is also a new option for mounting high power LEDs with lenses.

The SPL35-FL LED Aluminum Channel, like its predecessor, has three installation options: Trimless recessed, Surface, and Suspended. The heat transfer of the SPL35-FL profile is 36W/m @ Ta = 25°C. Which enables the LED profile to maintain a stable temperature of 55°C.

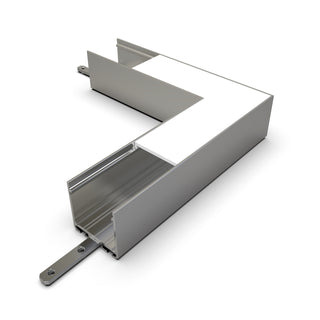

The LED profile can be ordered with accessories such as straight and corner connectors, cable ties, Trimless mounting magnets, and aluminum end caps.

SPL35-FL LED flush-mounted channel is recommended for use with double-row LED strip or high-performance LEDs up to 36 W/m.

What to consider before starting your plaster-in LED channel project

General specifications

• Material: Aluminum
• Overall dimensions: 35mm x 35mm (1.37" x 1.37")

Downloads

• SPL35-FL cut sheet

Important notes

• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.

• You can easily cut LED profiles by hand or by machine.

• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.

• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.

• We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.

• Bulk pricing is available on request. For larger orders, we offer additional discounts and customized pricing to fit your project needs.
