Wi-Fi Light Intensity Sensor ~ luxSensor by Blebox
Product details
Light intensity sensor only ~ all other components are sold separately
Description

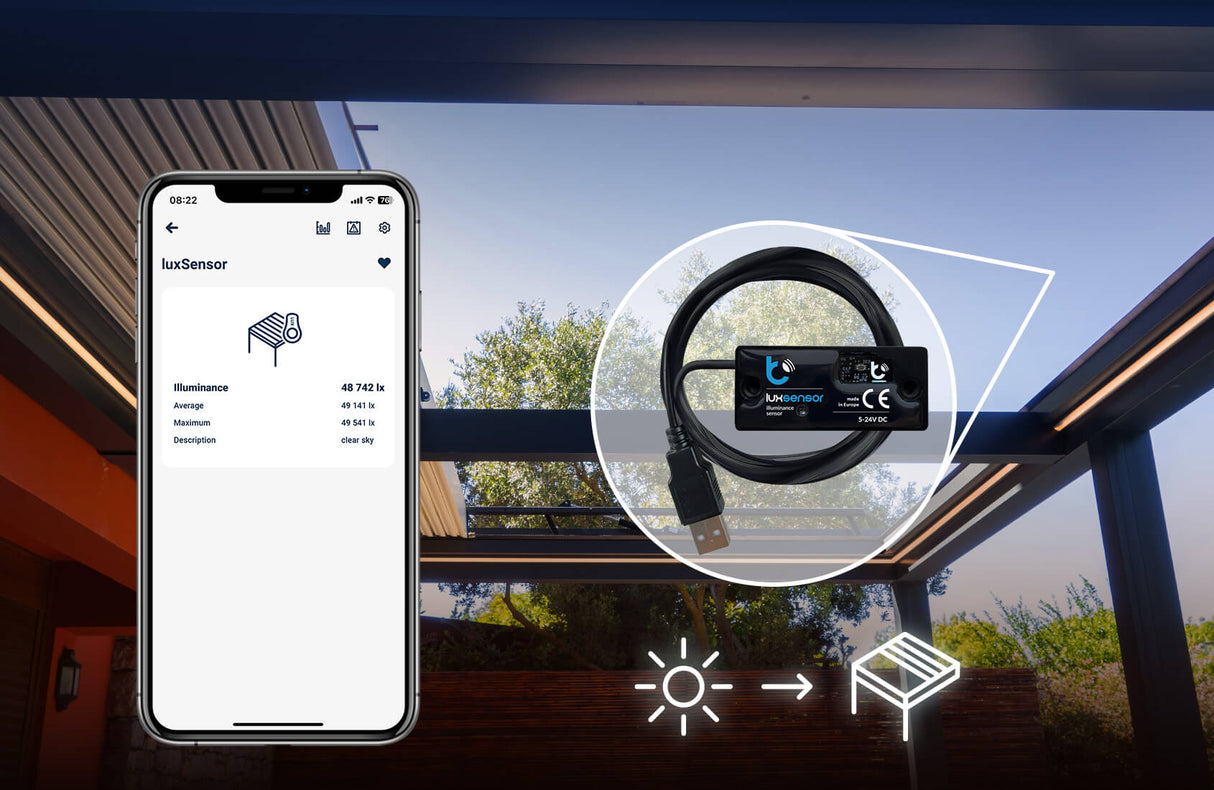

The luxSensor is an intelligent device designed for precise light intensity measurement, offering a wide measurement range from 0 to 50,000 lux with high accuracy and a resolution of 0.1 lux for low-light conditions. This smart WiFi-enabled sensor functions as a luxmeter, photometer, or brightness detector, allowing users to monitor and control lighting and shading systems both indoors and outdoors. Its robust IP65 waterproof housing ensures reliable performance in outdoor environments.

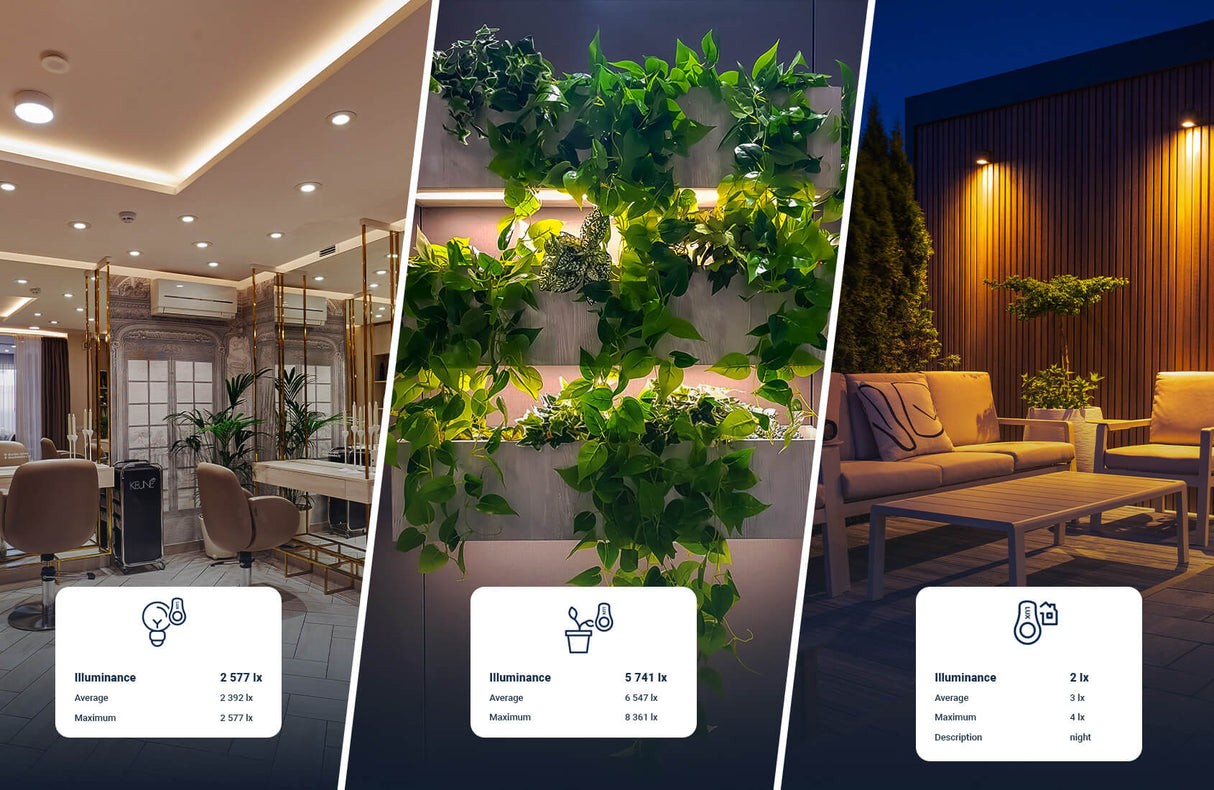

The luxSensor seamlessly integrates with Blebox controllers to automate lighting and shading adjustments. It can wirelessly control up to 30 devices, enabling functions such as automatic lighting control or adjustments of blinds and awnings based on real-time light levels. This makes it ideal for reducing glare, minimizing indoor heating from sunlight, or managing ambient lighting for specific activities like watching TV or working.

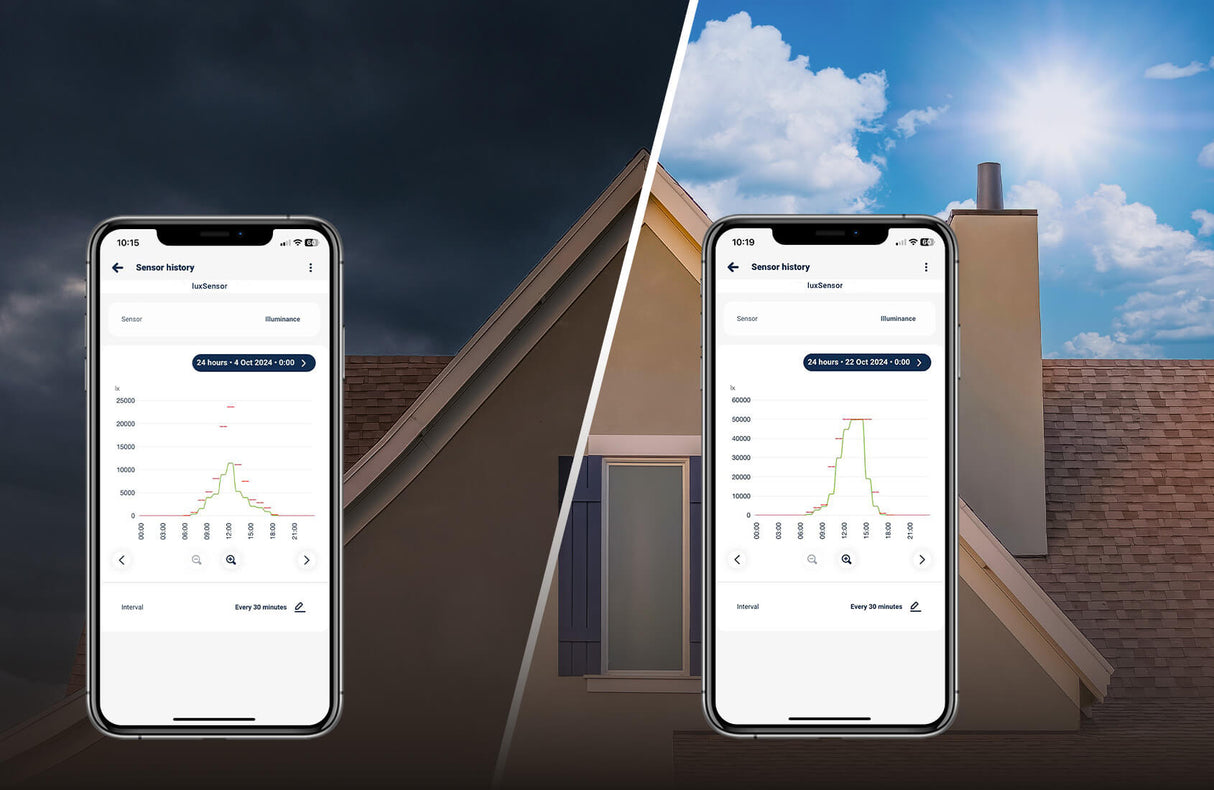

With the wBox application, users can remotely access the luxSensor from anywhere via the internet, or without internet when connected to the same local Wi-Fi network as the sensor. Besides the current values, the app also provides interactive graphs to analyze historical data, displaying average and maximum illuminance values over a selected period. Data can also be exported in .csv or .xlsx formats for advanced analysis, making it suitable for monitoring agricultural or photovoltaic applications.

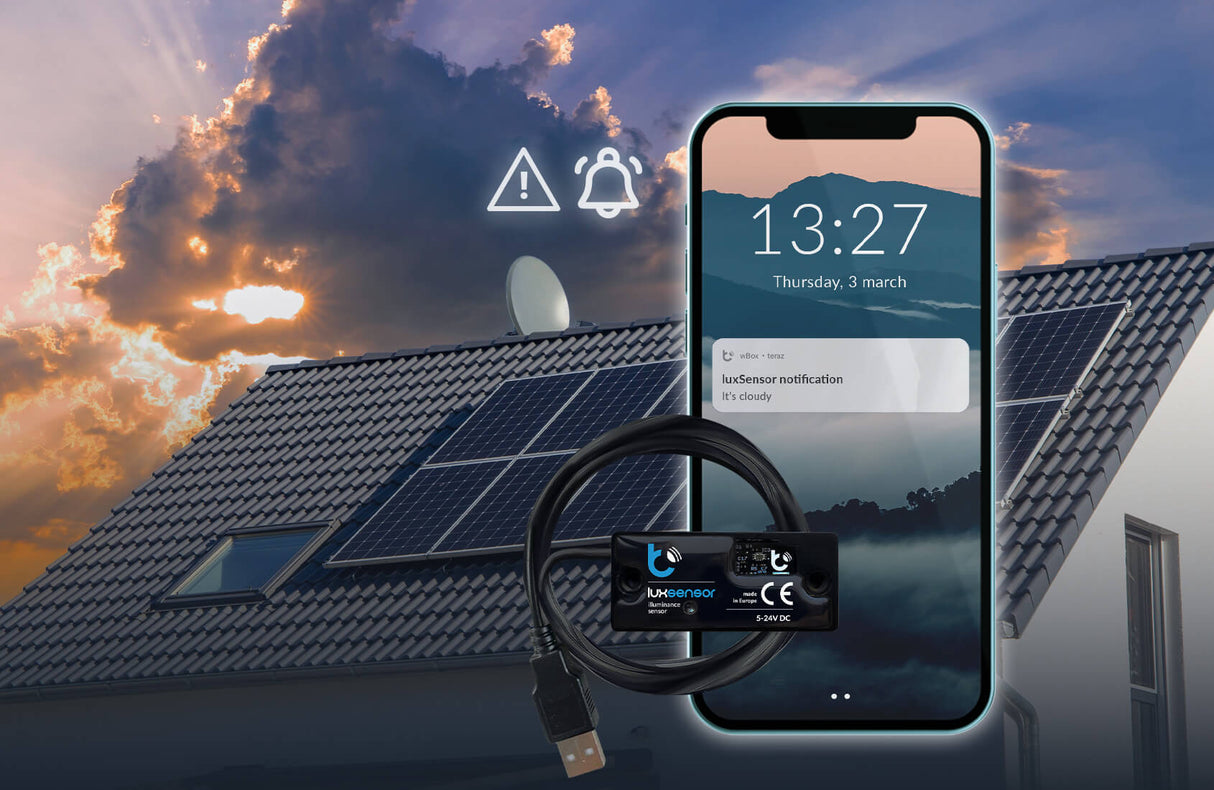

This smart light sensor can send configurable notifications to your smartphone, providing alerts for brightness thresholds or cyclical weather updates.
Easy to install with adhesive tape or screws, it is designed for user convenience and adaptability, making it an essential tool for smart light management and automation.
General specifications
- Type of measurement: Measurement of lighting intensity (lux)
- Measurement range: 0 - 50,000lx
-
Measurement resolution:
- 0.1lx in the range 0 - 10lx,
- 1lx in the range 10 - 50,000lx
- Measurement variation: ±15%

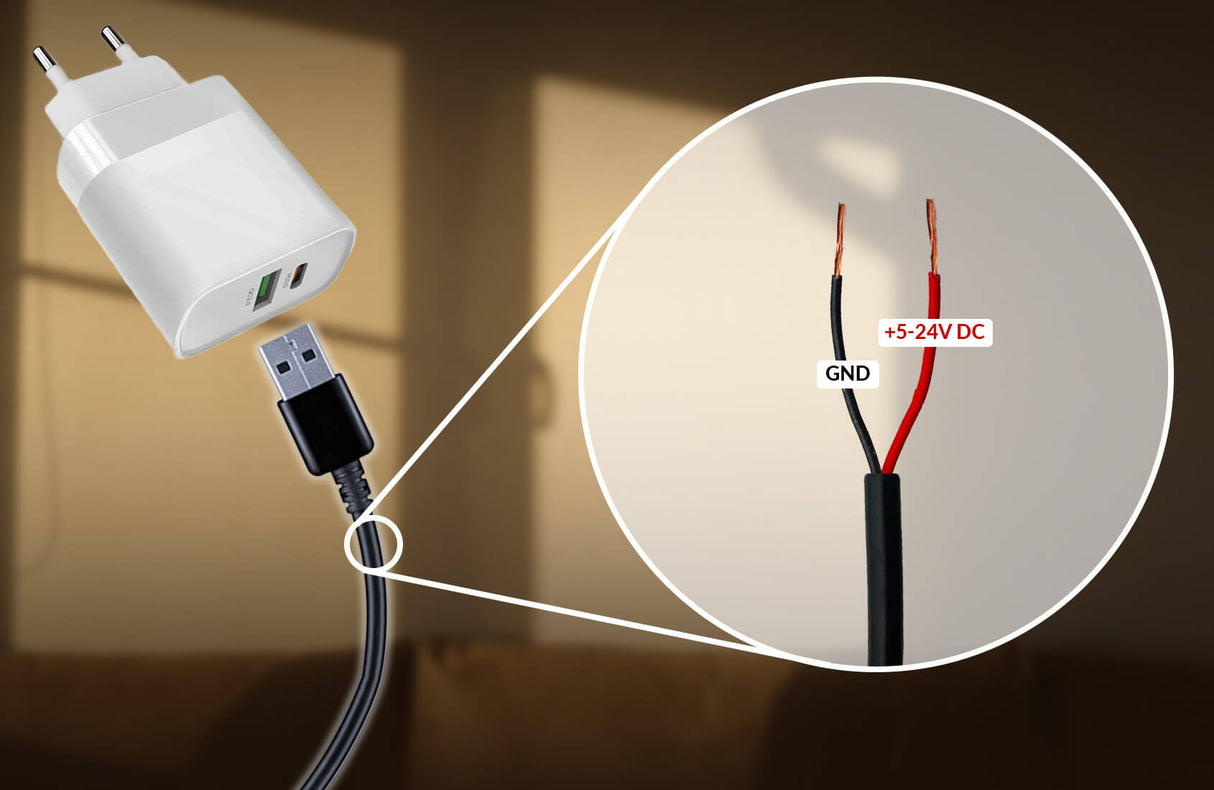

- Power supply: USB-A or 5-24V DC from an external power supply
- Energy consumption: < 1W
- Protection: Short-circuit protection, reverse connection
- Dimensions: 50 x 22 x 9 mm (1.97” x 0.87” x 0.35”)
- Protection rating: IP65
- Operating temperature: From -20°C to +50°C (-4°F to 122°F)

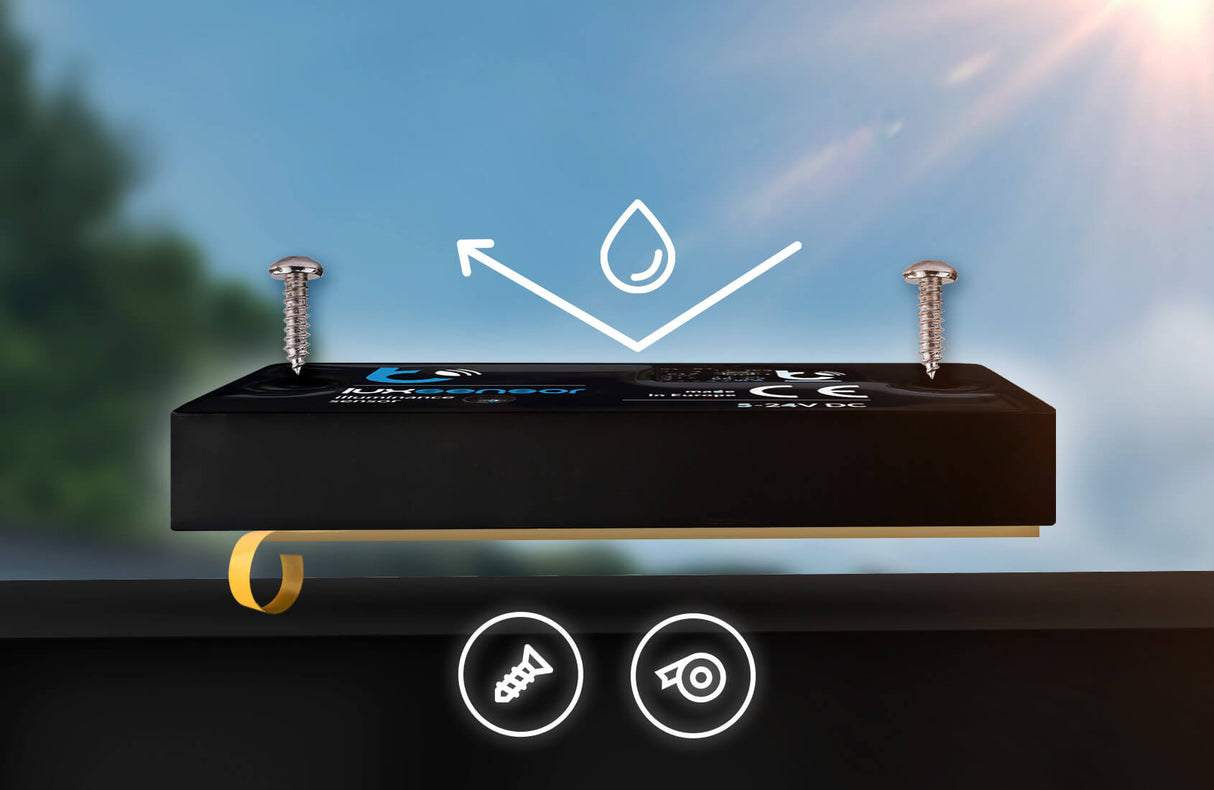

- Mounting method: Double-sided mounting tape or two 3x15 screws spaced 40mm apart
- Cable length: 2m (78.74”)
- Communication standard: μWiFi, compatible with WiFi, 802.11g
Downloads
-
luxSensor instructions
-
Blebox App Quick Start Quide
-
Google Home User Guide
-
Alexa User Guide App Quick Start Guide
