Dimmable Magnetic Core LED Driver (24V) ~ Magnitude M Series

Power supply only ~ all accessories are sold separately

Description

The M-SERIES is the most compact magnetic core dimmable LED driver on the market, making it the perfect choice for tape lighting, tube lighting, linear lighting and multiple other residential and commercial lighting applications.

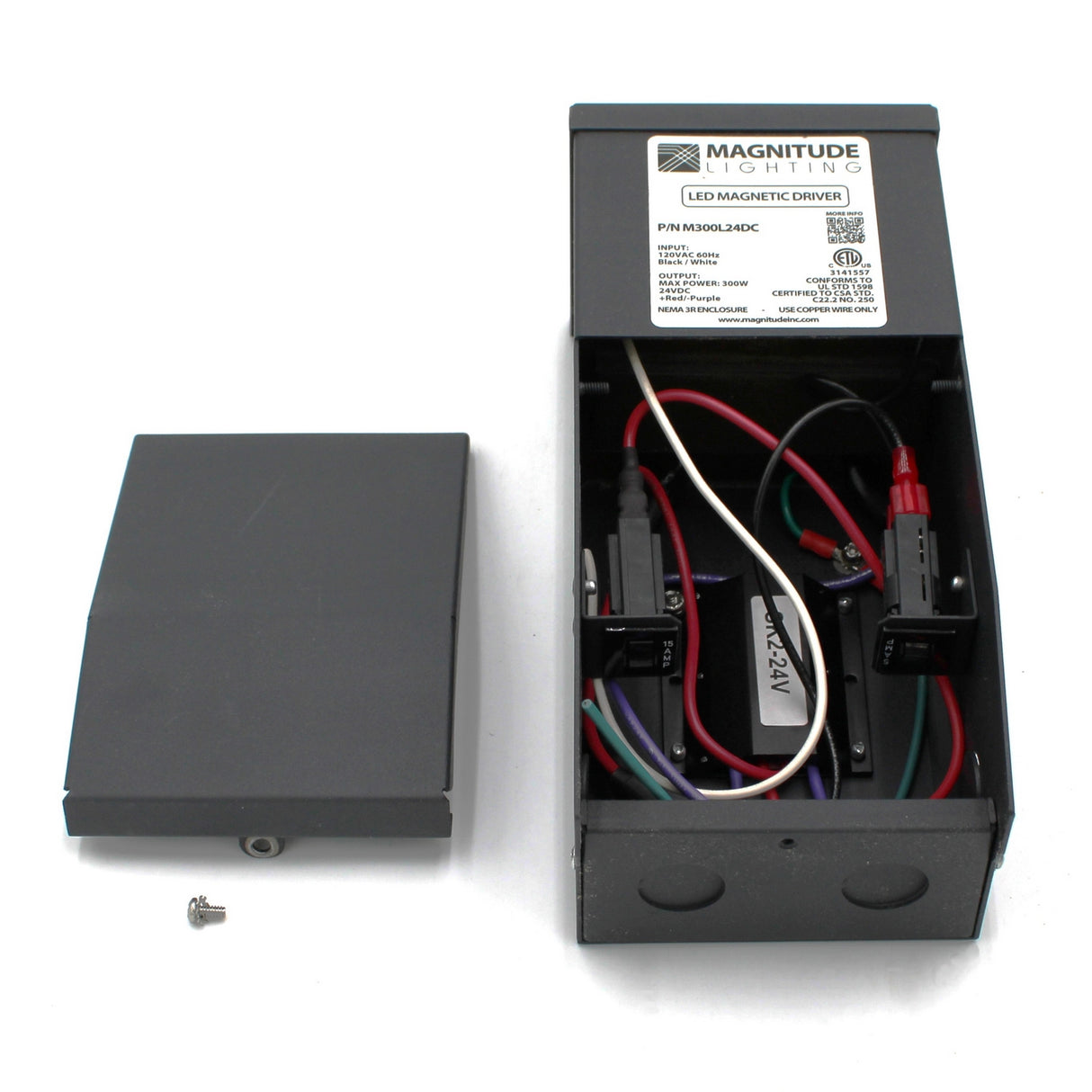

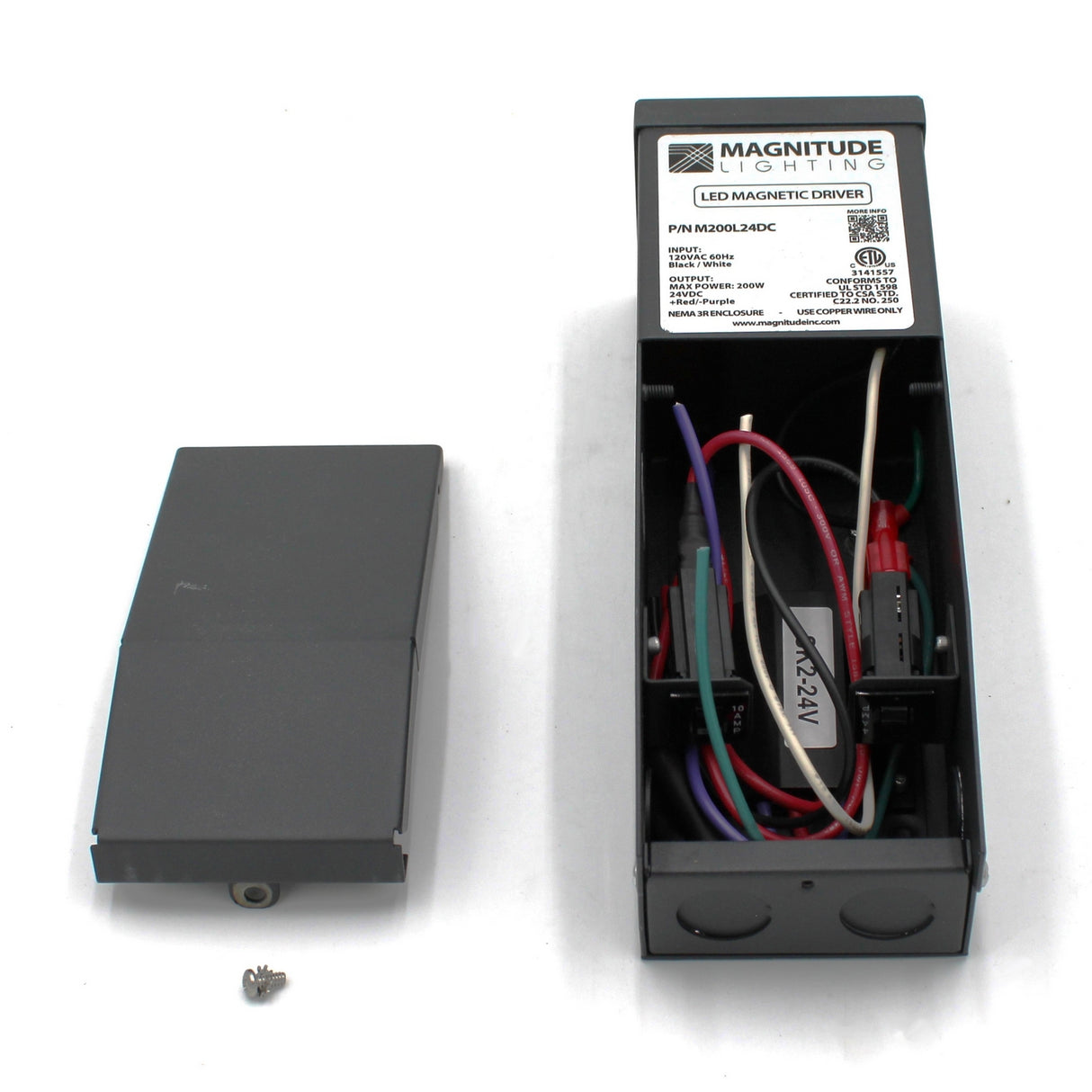

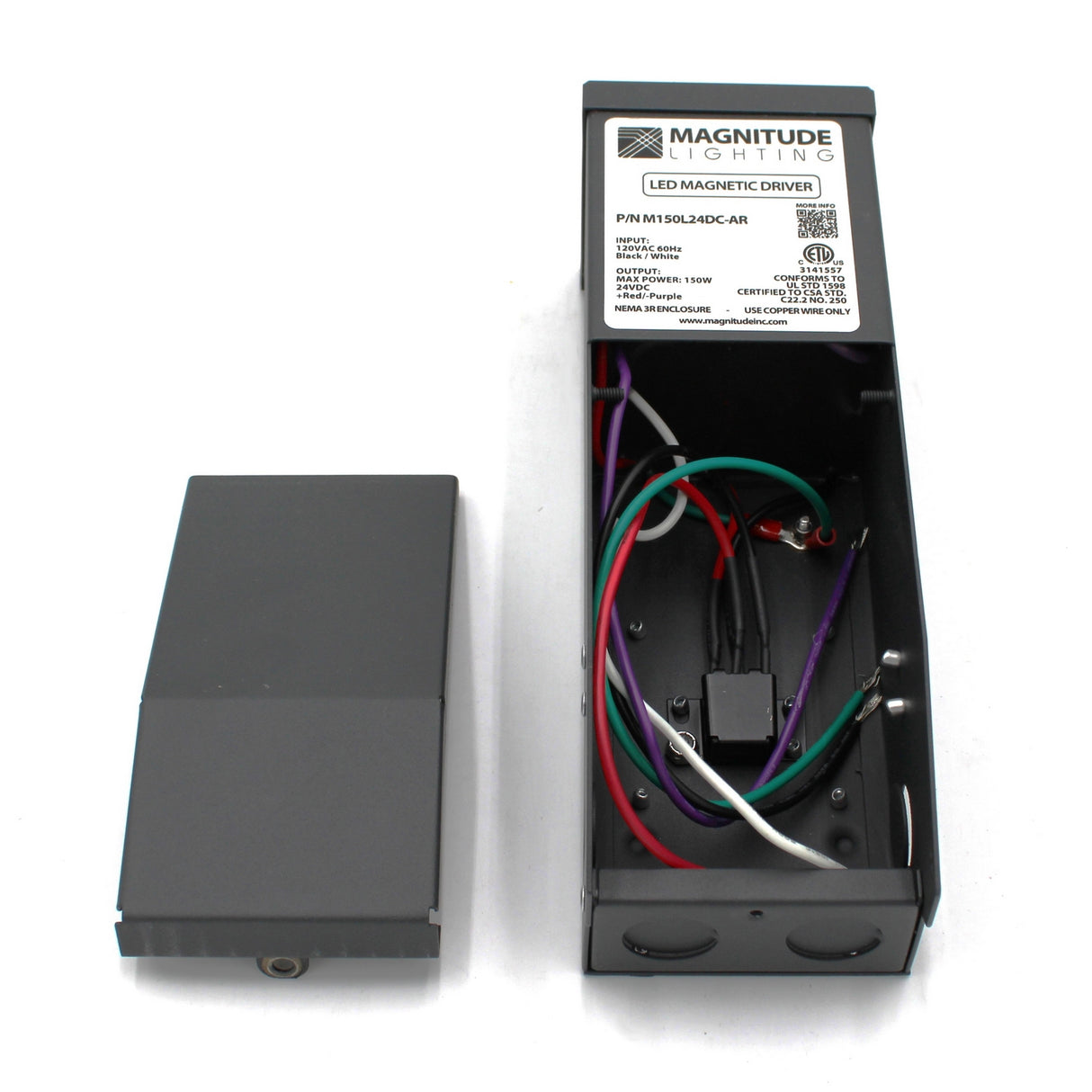

Encased in a high-quality metal enclosure that includes multiple ⅞" knock-outs for easy installation, each unit is equipped with circuit breakers to protect both the driver and the LED load. All our magnetic LED drivers are phase dimmable with a standard leading edge MLV TRIAC dimmer.

General specifications

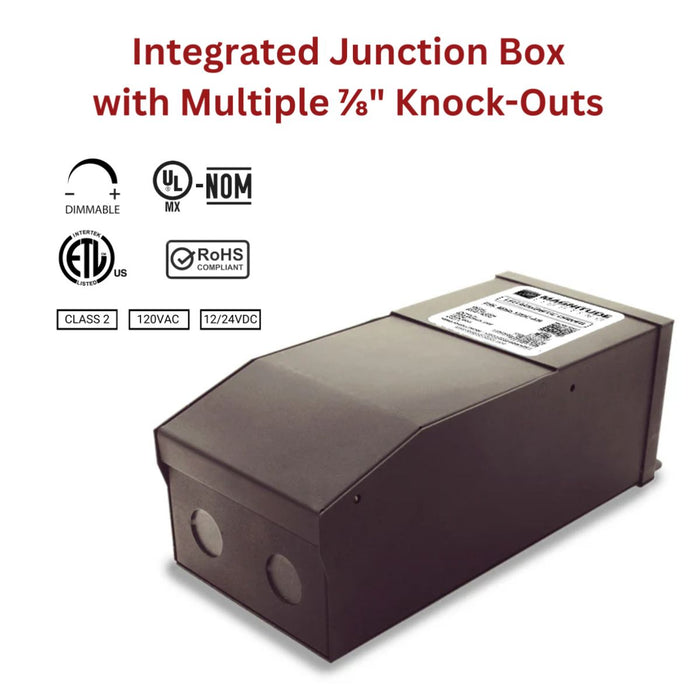

• Installation: Integrated Junction Box with Multiple ⅞" Knock-Outs
• Driver Types: Class 2 and Higher Power Single Channel Options
• Dimming: Phase dimmable with leading edge (forward) MLV TRIAC dimmers only
• Input Voltage: 120V AC, 50/60Hz
• Output Voltage: 24V DC
• Environmental: NEMA 3R
• Listing: ETL Listed
• Certifications: Conforms to UL8750, C22.2 NO. 223
• Warranty: 5-Year Warranty

Downloads

• Magnitude M Series cut sheet

Important notes

• We ship stock items the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request
