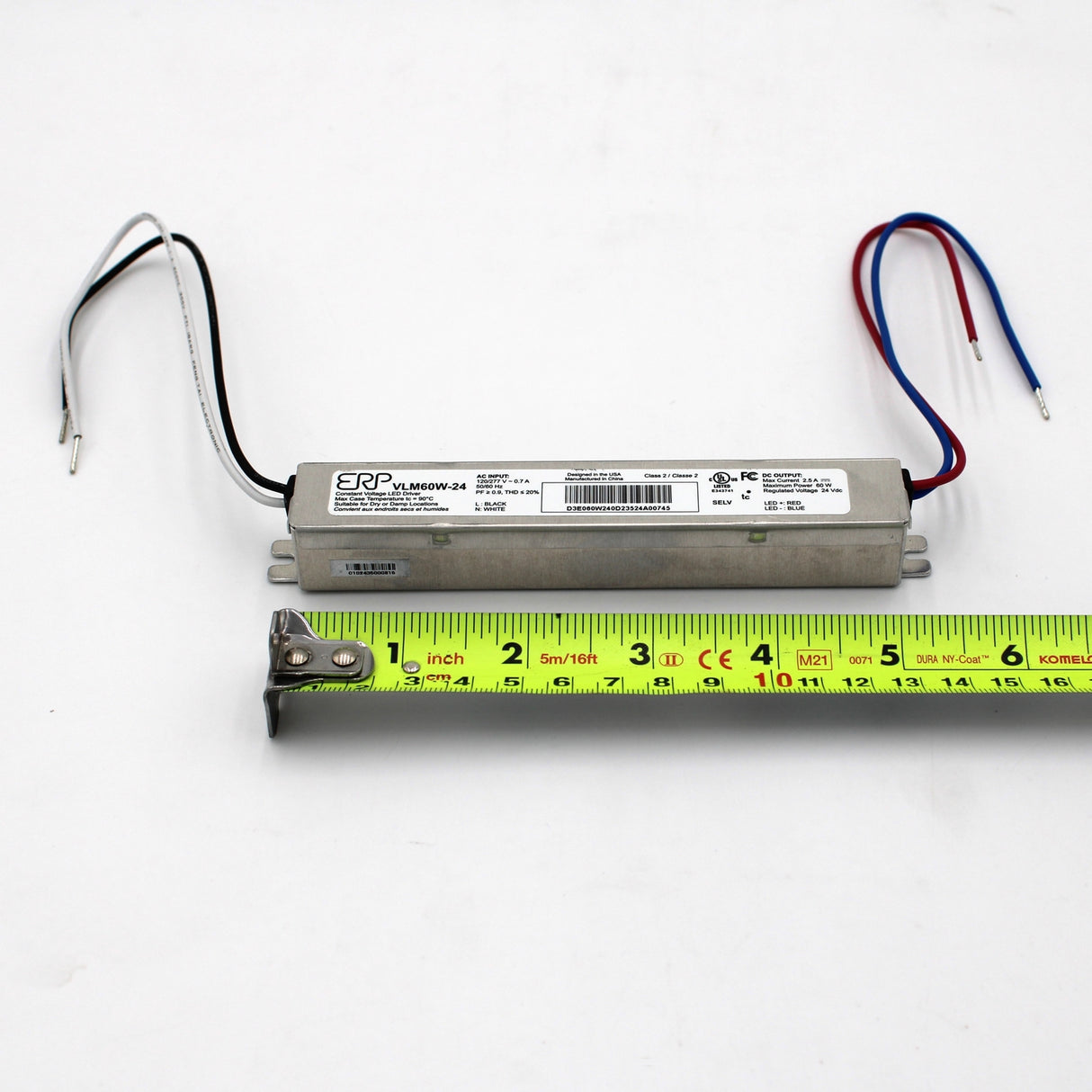

Slimline Small Constant Voltage LED Driver (24V) ~ ERP Power VLM Series

Description

Slimline ERP Small LED Driver ~ VLM Series Constant Voltage

Features

This ERP Small LED Driver range has a very high power density, an IP20-rated case with silicone-based potting, and complies with ENERGY STAR® luminaire specification, DLC (DesignLight Consortium®) technical requirements Class 2 power supply, and CA Title 24 technical requirements, among other specifications and requirements.

Applications

Strip lights, Pendant lights, Linear lights, a driver for LED channels.

These extremely slimline and compact ERP linear LED drivers are ideal for tight spaces like inside LED profiles.

General Specifications

• Topology: AC-DC Converter
• Type: Constant voltage
• Power (Watts): 40W, 60W, 96W
• Voltage - Input: 120V AC ~ 277V AC
• Voltage - Output: 24V DC
• Current - Output (Max): 1.67A (40W), 2.5A (60W), 4A (96W)
• Number of outputs: 1
• Termination style: Wire leads (18 AWG, 203mm (8") long, stranded)
• Mounting type: Chassis mount
• Operating temperature: -20°C ~ 50°C
• Maximum case temperature: 90°C (at case hot spot)
• Efficiency: up to 90% typical (40W, 60W), up to 92% typical (96W)
• Lifetime: 50,000 hours minimum at 70°C maximum case hot spot temperature
• Ingress protection: IP20
• DLC Class 2 rated

Downloads

• 40W - 60W linear LED driver
• 100W linear LED driver

Important notes

• In-stock items are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
