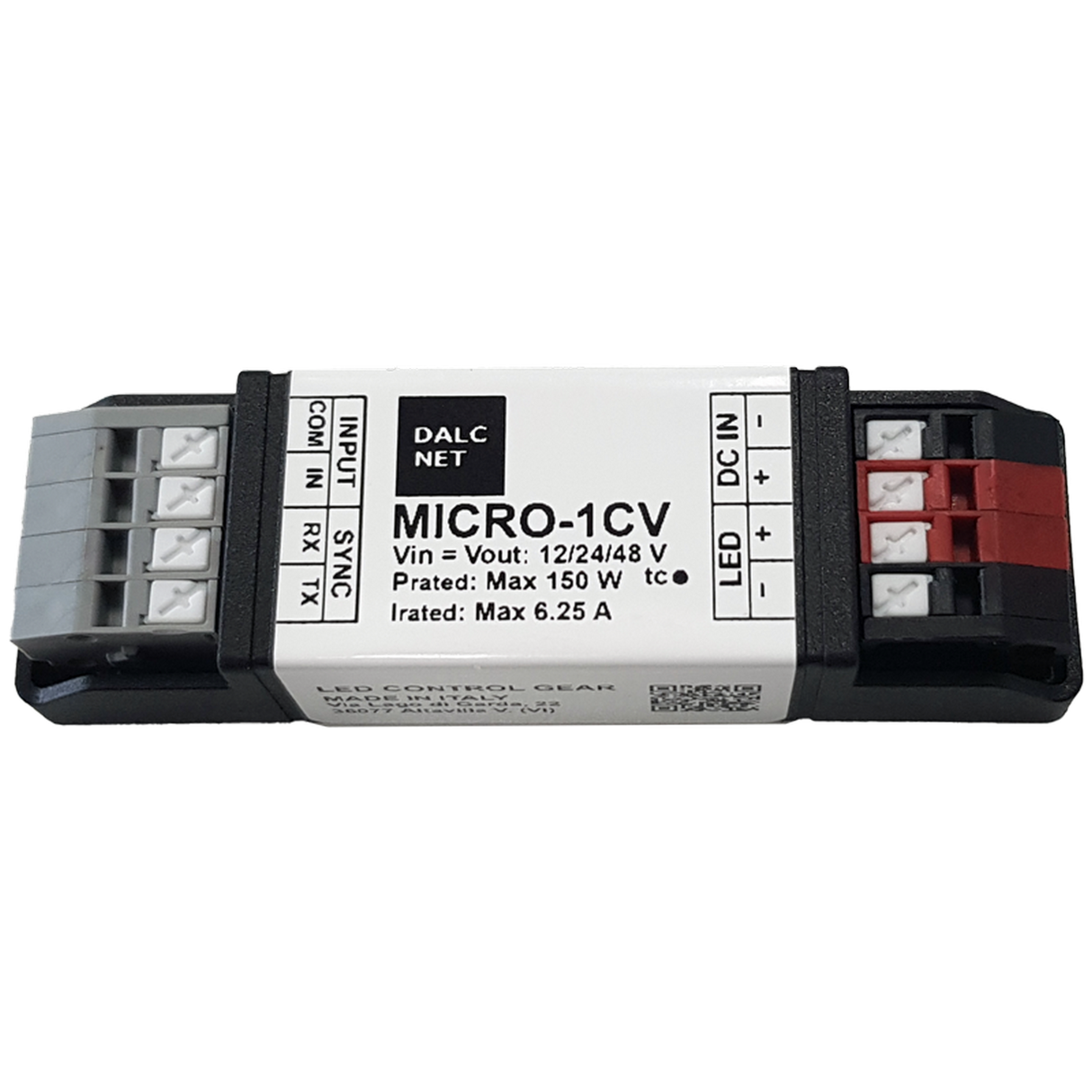

Tiny 1-Ch LED Dimmer with Push Button Control ~ Model MICRO-1CV

Controller only ~ power supply, LEDs, and all other accessories are sold separately

Description

The MICRO-1CV is a single-channel LED dimmer that operates with a simple push-button control. It's perfect for adjusting the brightness of your LED lighting without requiring a complex setup, making it an ideal choice for executing simple installations. It integrates a fader and dimmer, making it ideal for applications such as accent lighting, under-cabinet lighting, or architectural lighting installations.

The device operates with a voltage of 12–48V DC and supports control via push-button, 0-10V, 1-10V, or 10 kOhm potentiometer.

The MICRO-1CV dimmer offers precise control with memory functionality, ensuring consistent lighting settings, and features soft start and soft stop capabilities for smooth transitions. It features a sync function for master/slave setups, an optimized output curve, and operates at a high efficiency of typically over 95%.

The push-button menu allows users to set the minimum dimming value, adjust fade in and fade out times, and configure PWM frequency.

The MICRO-1CV is built to last, with every unit undergoing a 100% functional test and backed by a 5-year warranty.

General Specifications

• Channels: 1
• Command: Push button, potentiometer (10 kOhm), 0-10V, 1-10V
• Voltage: 12–48V DC
• Max. output current:
  • 12V: 6.5A (78W)
  • 24V: 6.25A (150W)
  • 48V: 3.1A (150W)
• Typical efficiency: >95%
• Dimensions: 72 x 21 x 15 mm (2.83” x 0.83” x 0.59”)
• Operating temperature: -10 / +60°C (+14 / +40°F)
• IP rating: IP20
• Warranty: 5 years

Downloads

• Micro-1CV cut sheet
