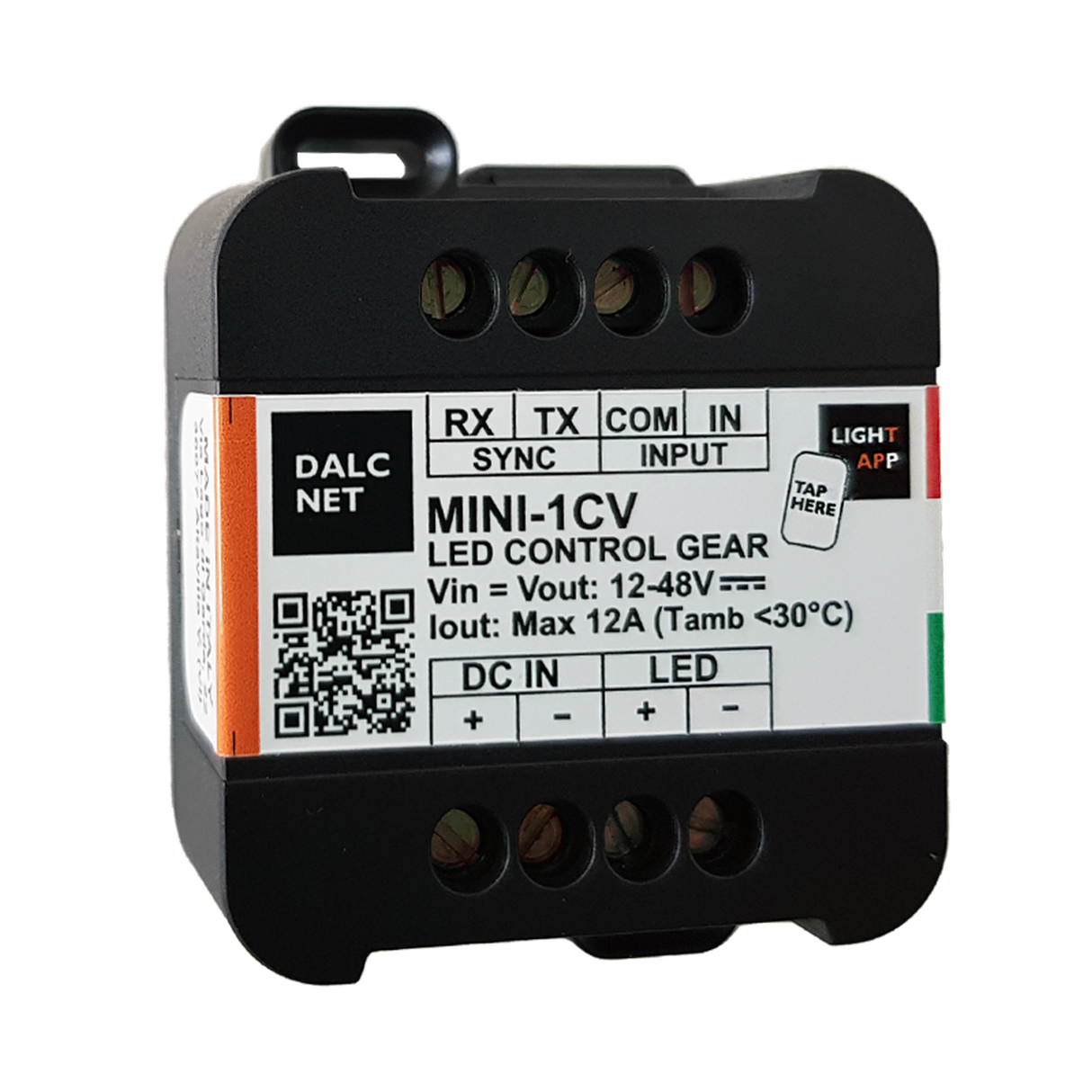

Miniature 1-Channel LED Dimmer with Push Button Control ~ Model MINI-1CV

Controller only ~ power supply, LEDs and all other components are sold separately.

Description

MINI-1CV is a constant-voltage single-channel LED dimmer designed for optimal performance. This versatile dimmer offers various control options, including a locally accessible button, a 0-10V/1-10V signal, or a potentiometer, ensuring effortless adjustment of your LED lighting setup.

Compatible with a wide range of LED applications such as LED strips and modules, as well as white and single-color constant voltage configurations, the MINI-1CV provides the flexibility you need. It supports power supplies at 12V, 24V, and 48V DC, catering to diverse lighting requirements.

Safety is a top priority, and the MINI-1CV is equipped with robust protections including over-power, under-power, reverse polarity, and input fuse protection. Your LED setup remains secure, allowing for reliable and long-lasting operation.

Downloading the LightApp is quick and easy, available for free on the Apple App Store and Google Play Store. Seamlessly control and customize your lighting environment with the MINI-1CV and LightApp combination.

General specifications

• Model: MINI-1CV
• Input Range: 12-48V DC
• Max Output Power: 1x12A
• Channels Output: 1
• Analog Input: 0-10V, 1-10V, Potentiometer, Push button
• Dimensions: 44 x 57 x 25mm (1.73" x 2.50" x 0.98")

Downloads

• Mini-1CV cut sheet

Important Notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States
• Bulk pricing is available on request
