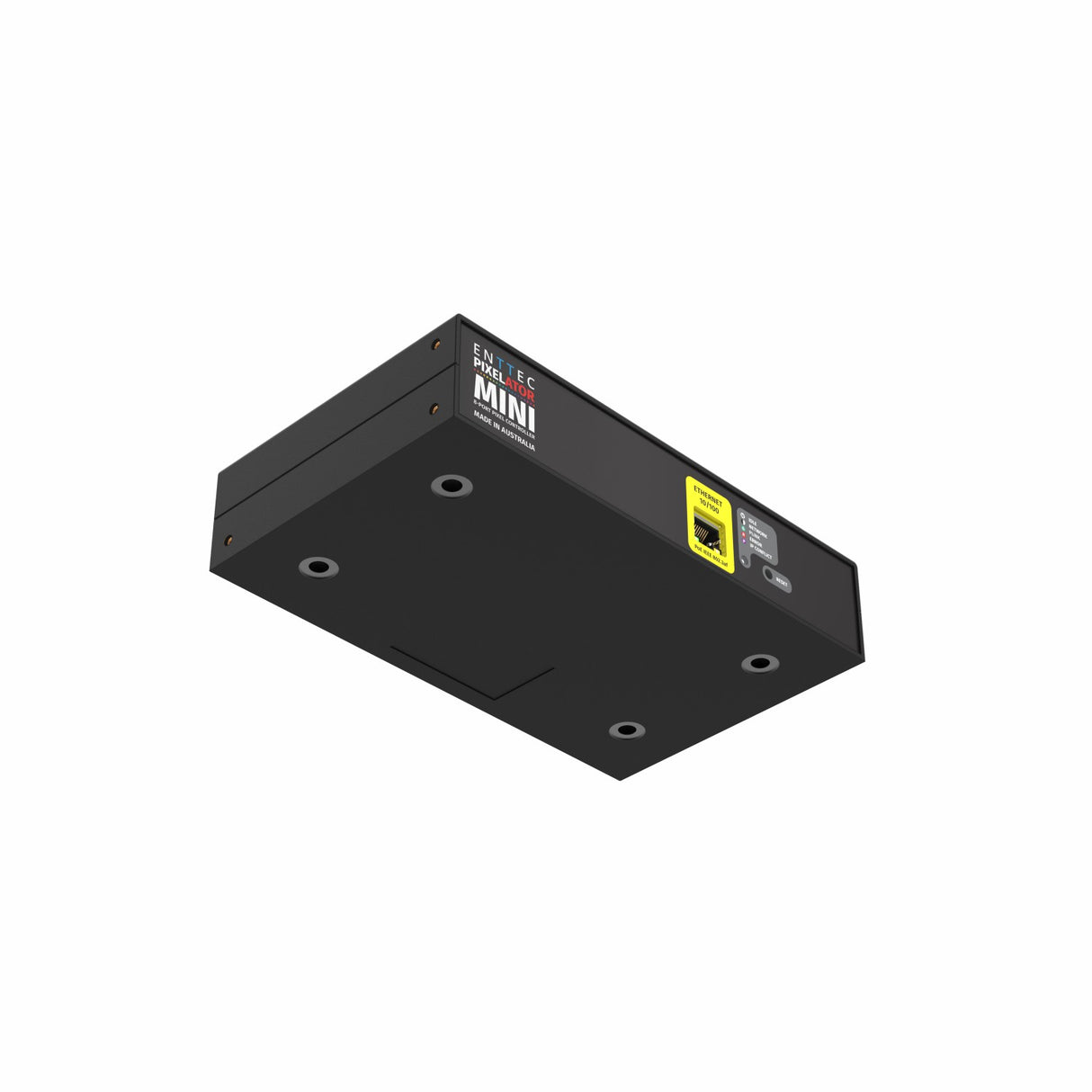

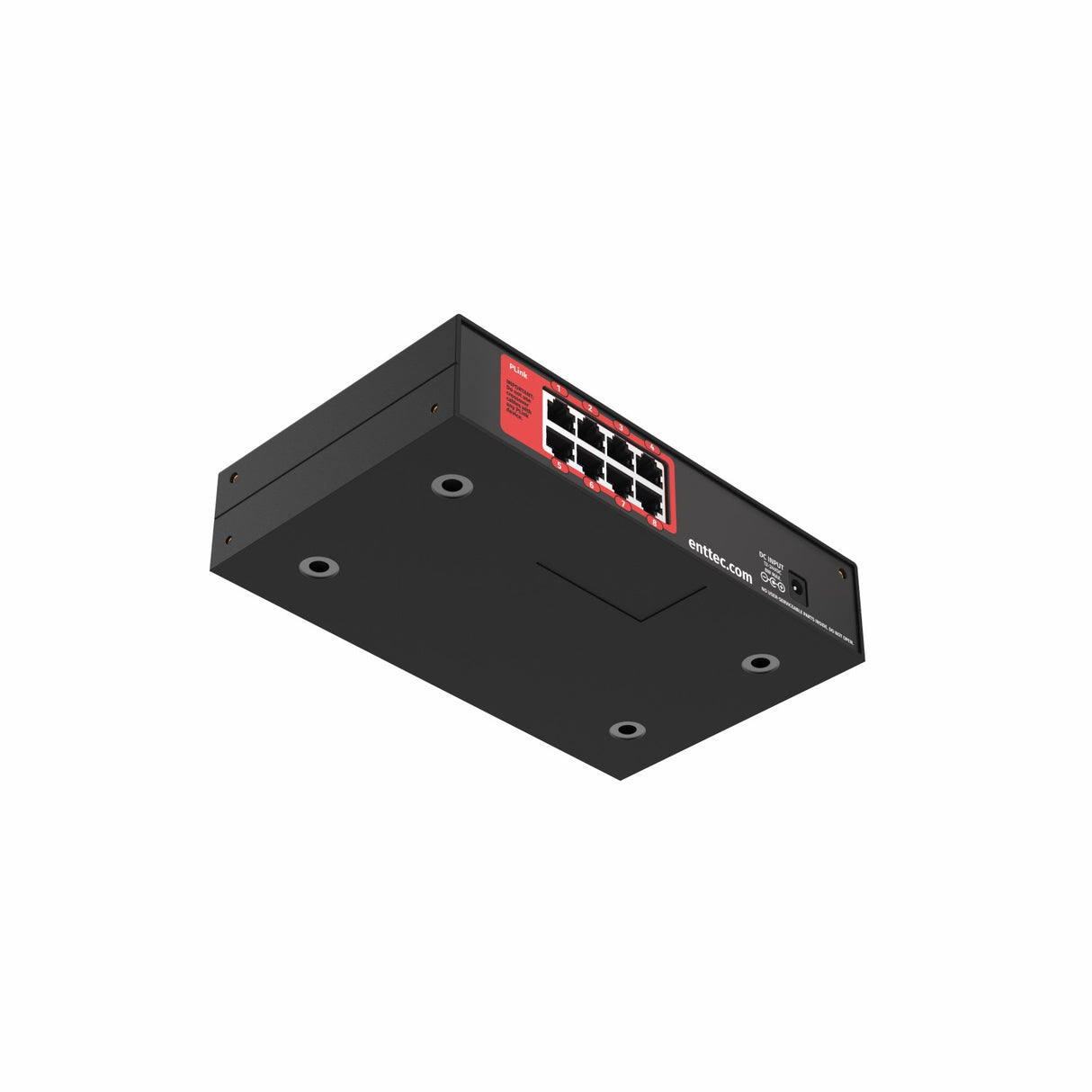

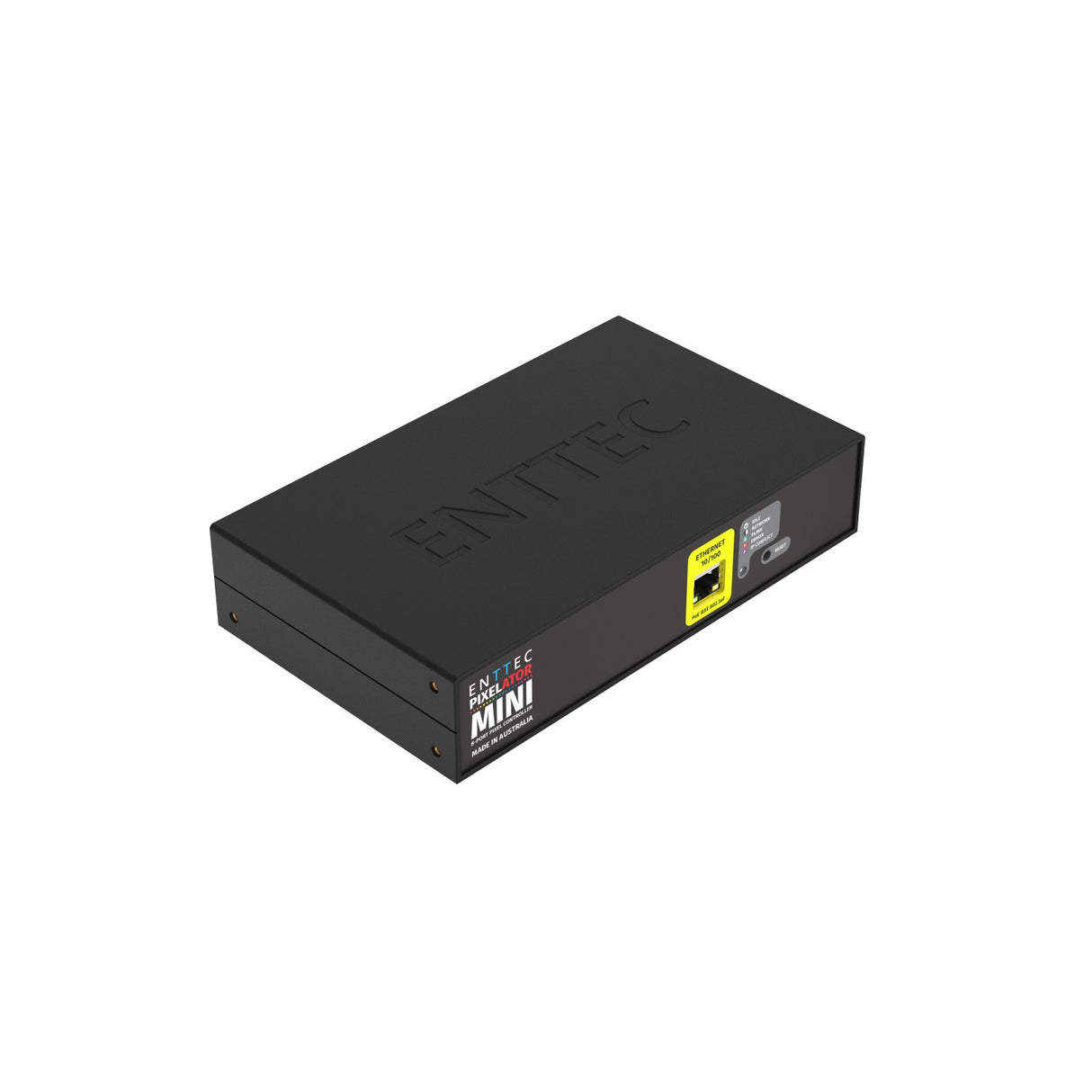

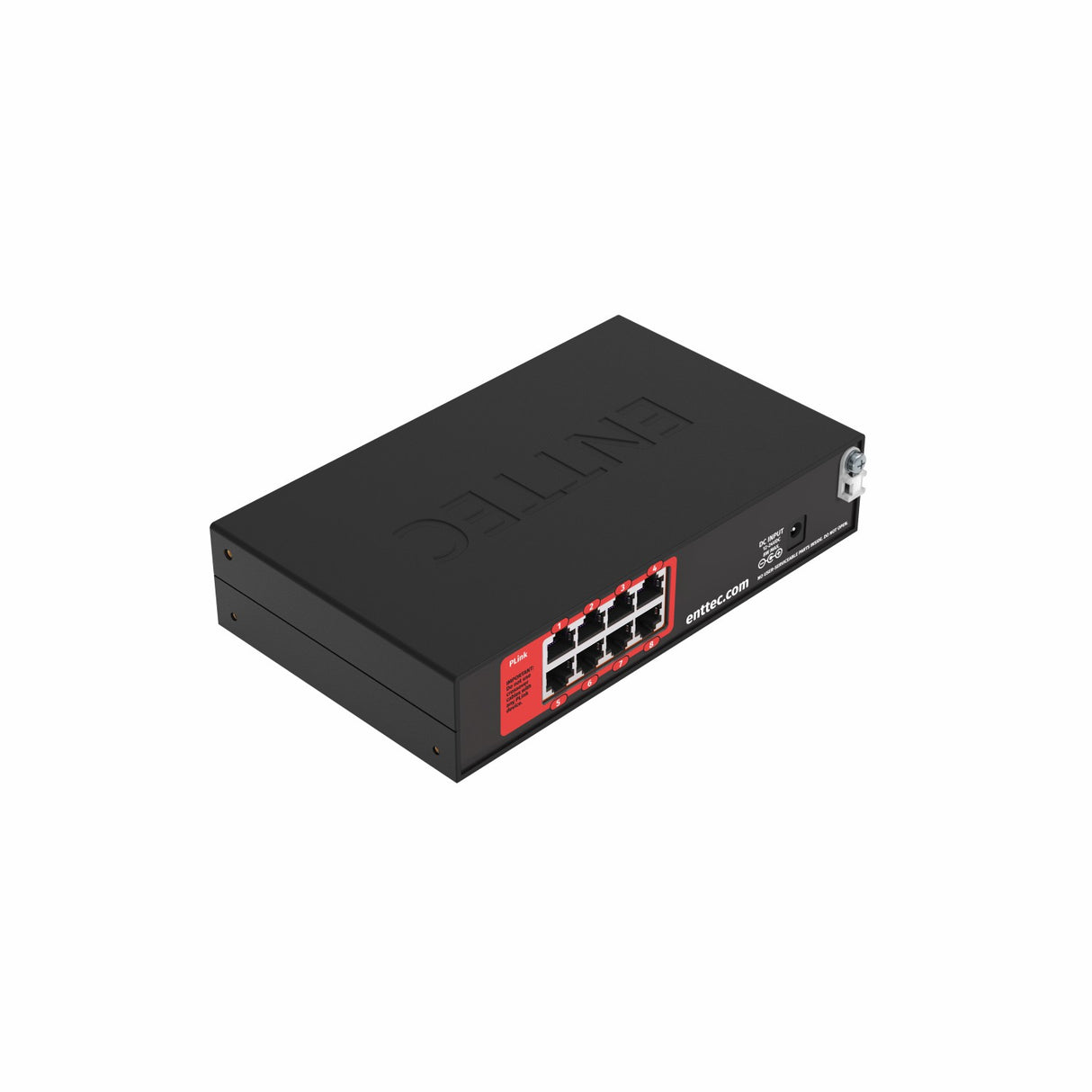

16-Universe eDMX to SPI LED Pixel Converter ~ Enttec Pixelator Mini

Controller only ~ power supply, LEDs and all other components are sold separately

Description

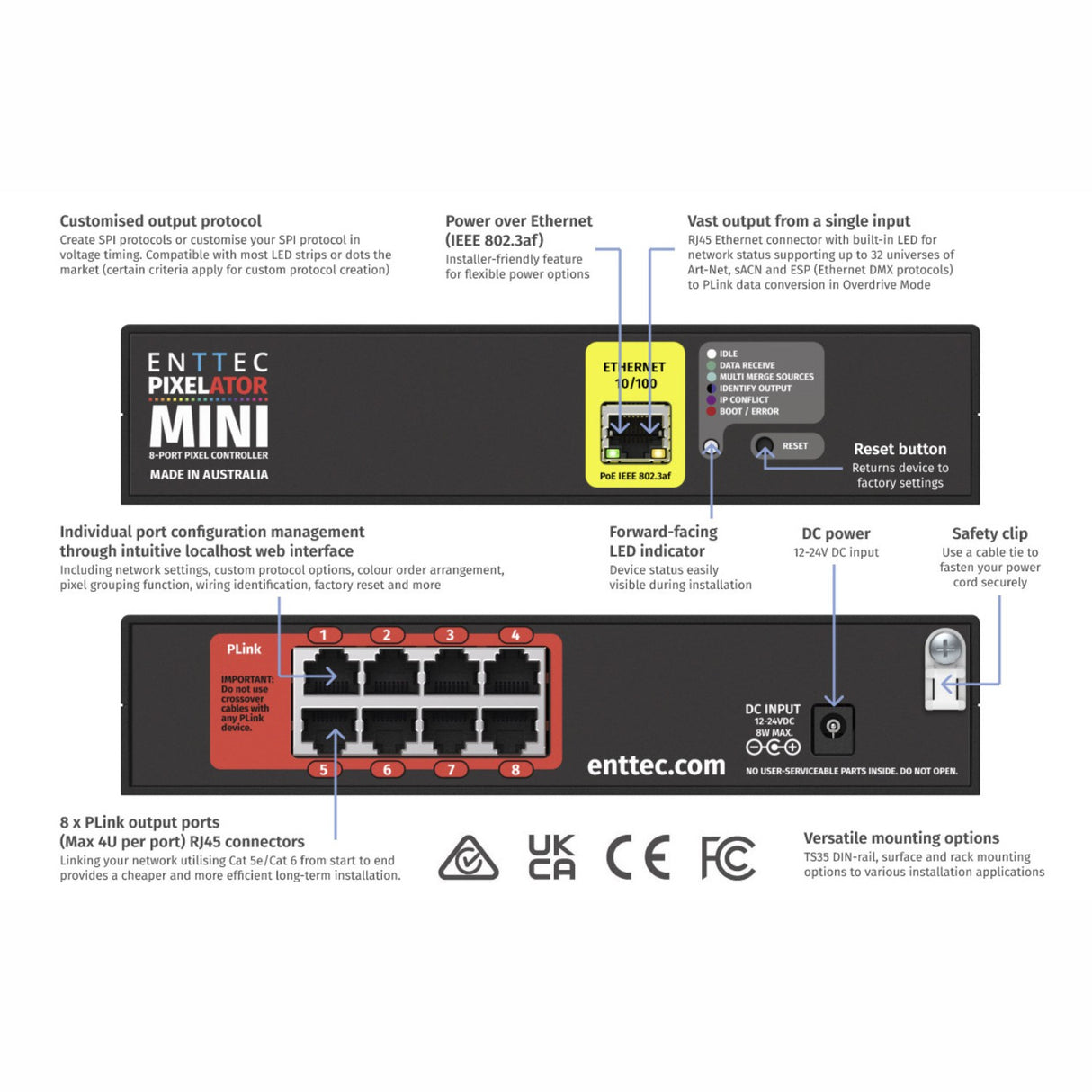

The Pixelator Mini is a powerful yet compact device designed for easy control of LED pixel dots and strips. It serves as the central hub in Enttec’s PLink control system, offering 8 Ethernet ports for SPI pixel conversion. The Pixelator Mini efficiently converts 16 Universes (32U in overdrive mode) of Art-Net, sACN, and ESP into the SPI protocol via the PLink system, maintaining robust data integrity over distances up to 300 meters.

Connect a PLink Injector to each port to convert PLink control data to SPI protocols, allowing seamless signal transmission to LED pixel fixtures. This system, along with the reliable PLink Injector, is ideal for large and extensive projects. It supports over 20 pre-listed LED protocols and allows for custom protocol creation. Firmware updates and configuration management are accessible via a localhost web interface.

For outdoor applications, pair the Pixelator Mini with an outdoor PLink Injector or CVC4 auto-addressing constant voltage dimmers for minimal configuration. The device features internal buffering and sync logic to keep all eight PLink output ports perfectly synchronized. ArtSync technology ensures that multiple devices within a project remain synchronized, eliminating jitter, lag, or content tearing.

The Pixelator Mini controls up to 32 universes of pixels, supporting over 20 built-in pixel protocols. It can output up to two different protocols simultaneously: one on ports 1-4 and another on ports 5-8. Users can create custom protocols if needed without requiring firmware updates.

Built for reliability, the Pixelator Mini includes surge protection to safeguard against voltage spikes, static shocks, and electrical noise, ensuring stable operation in demanding environments.

General Specifications

• Body material: ABS + anodized aluminium
• Rack Ear Material: Powder-coated aluminium
• Rated voltage: 12-24V DC / PoE IEEE802.3AF
• Protection Rating: IP20
• Input protocols: ESP (Art-Net)
• Output protocol: SPI in PLINK System
• Max. Output Universe: 32 Universes
• Network Speed: 10/100Base-T
• Network Configuration: Static / DHCP
• Configuration & Update: Web Interface
• Max. Power Draw: 8 Watts
• Cooling Method: Convection
• Environmental Operating Temperature: -20°C to 50°C (32°F to 122°F)
• Environmental Operating Humidity: 5- 95% (non-condensing)
• 3-year warranty

Downloads

• ELM LED pixel mapping software - FREE with purchase
• Pixelator Mini cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States
• Bulk pricing is available on request
