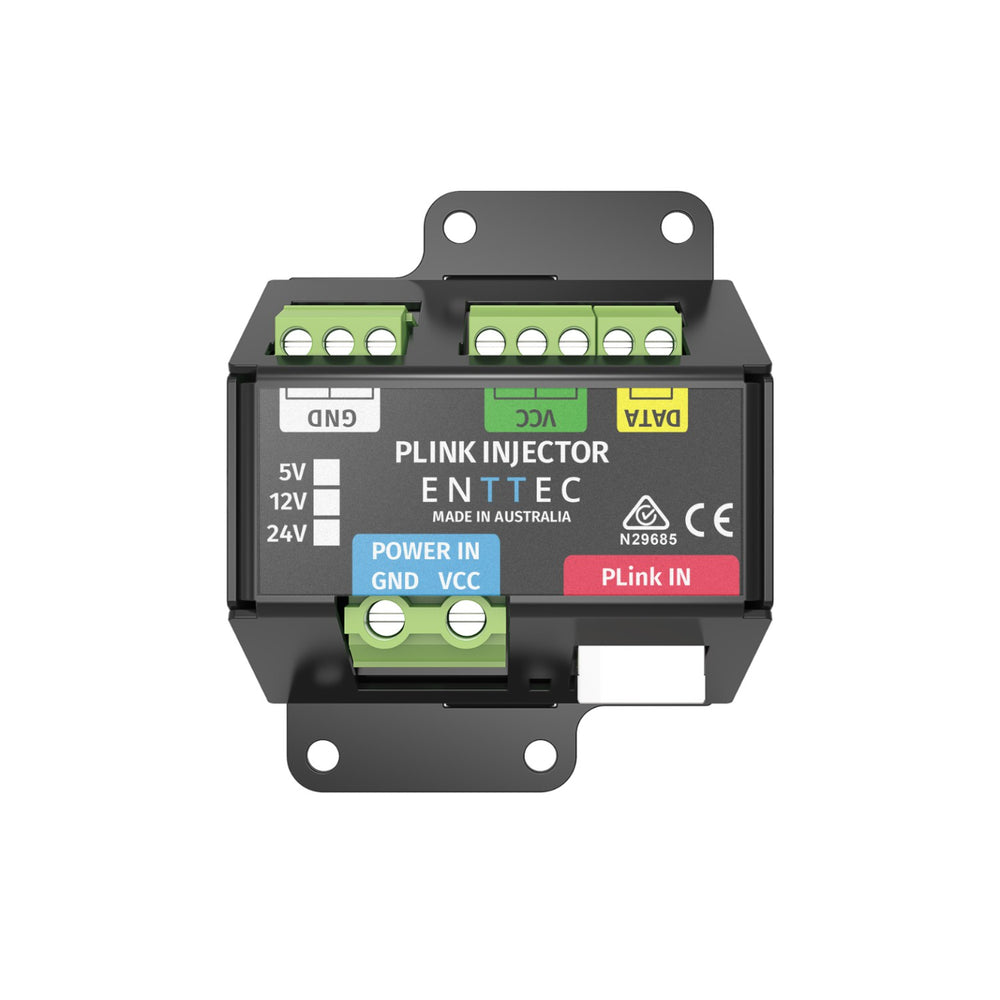

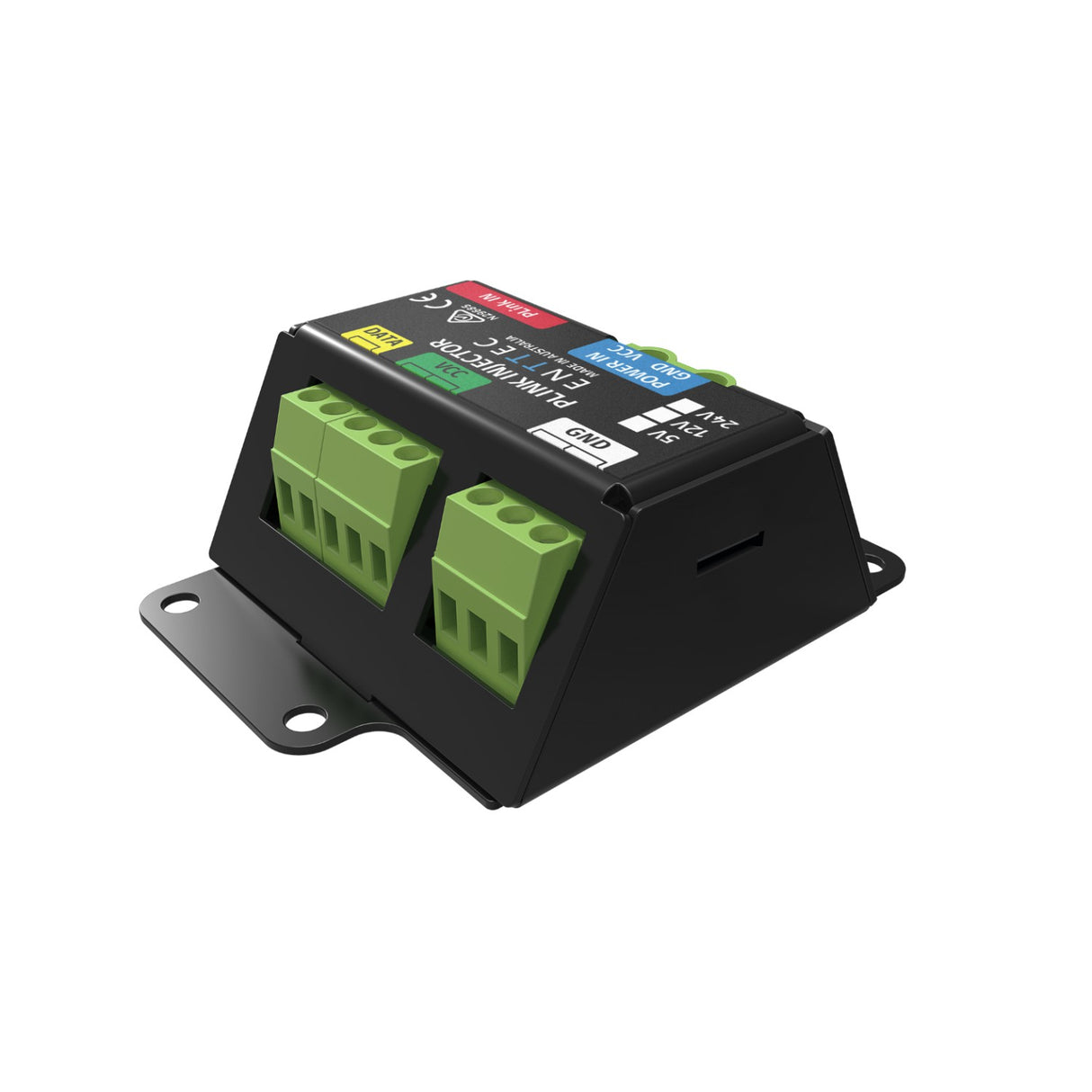

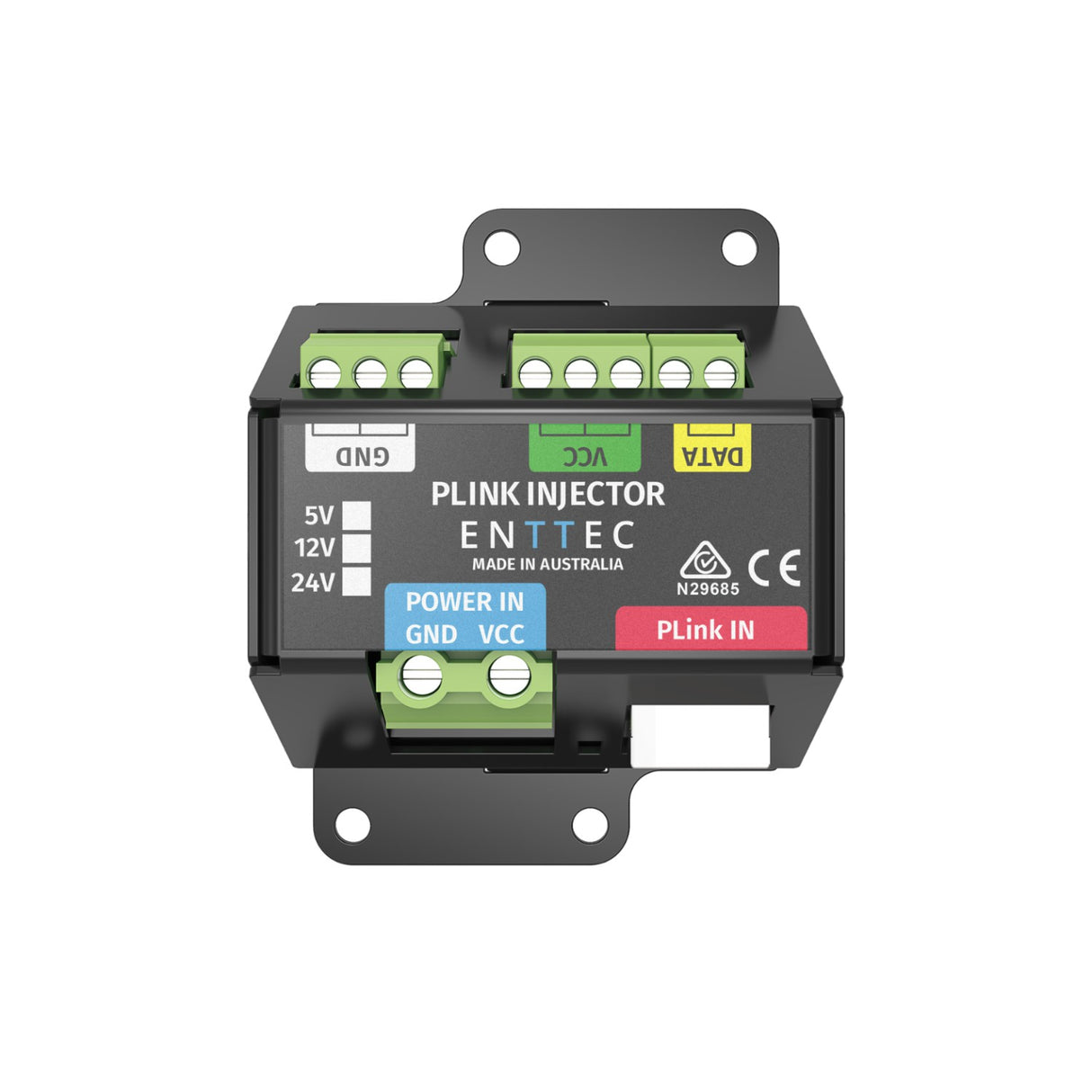

PLink to SPI Pixel Converter ~ Enttec PLink Injector

Plink injector only ~ power supply, LEDs and all other components are sold separately

Description

The PLink Injector is designed to work seamlessly as part of an Enttec Pixelator Series setup, making it fast, easy, and affordable to control LED pixel strips or pixel dots over long distances. Engineered with an external DC power supply and high-power screw terminal connectors, it is perfect for custom shape pixel LED installations and large projects.

Available in 5V or 12-24V options, the PLink Injector allows power reinjection from an external source. Additionally, a rugged IP66-rated version is available for extreme weather conditions and outdoor installations.

Each PLink port can drive up to 340 RGB individual pixels (2 DMX universes) and extends up to 300 meters over Cat5e/Cat6 cable from Pixelator controllers. The PLink Injector converts PLink data to SPI protocol and drives up to 3 meters distance while connecting to an external DC power supply.

Its small, light, and easy-to-install design features scalable system architecture for large projects, rising clamp screw terminal connectors for fast wiring, and an ABS plastic housing for optimal electrical insulation.

General specifications

• Rated voltage: 5V, 12V, 24V DC

• Control input: PLink
• Output: Pixel (SPI)
• Max. power draw: 3.5W
• Cooling method: Convection
• Environmental protection: IP20
• Environmental operating temperature: -10°C to 65°C (14°F to 149°F)
• Environmental operating humidity: 5- 95% (non-condensing)
• Overall dimensions: 83.5 x 65 x 31 mm (3.29” x 2.56” x 1.22”)
• Body material: ABS Plastic
• Warranty: 3 years

Downloads

• PLink Injector cut sheet
