8-Universe eDMX to SPI Pixel Controller ~ Enttec Octo Lite

Controller only ~ power supply, LEDs and all other components are sold separately

Description

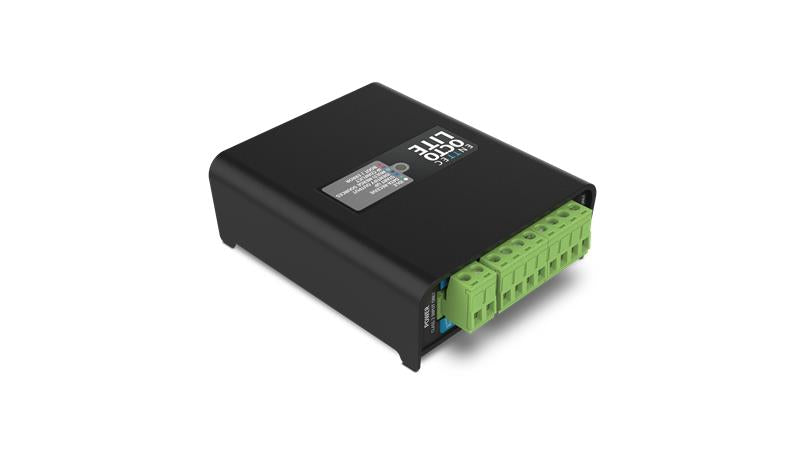

The OCTO Lite is a compact 8-universe eDMX to SPI pixel controller designed for reliable Ethernet-to-pixel conversion in professional LED lighting installations. Housed in a 4-module DIN-rail form factor, it processes Art-Net, sACN, and ESP protocols and supports up to 1,360 RGB or 1,024 RGBW pixels per unit. Built on the proven ENTTEC OCTO platform, it ensures stable performance for architectural, commercial, and entertainment lighting projects.

This LED pixel controller delivers 8 universes of output with 4 universes per port, enabling flexible configuration for SPI pixel fixtures with or without a clock line. It supports over 20 industry-standard pixel protocols and allows custom protocol creation directly on the device for specialized applications. Dual Ethernet ports with Port Sync enable easy daisy-chaining and synchronized data distribution without extra hardware.

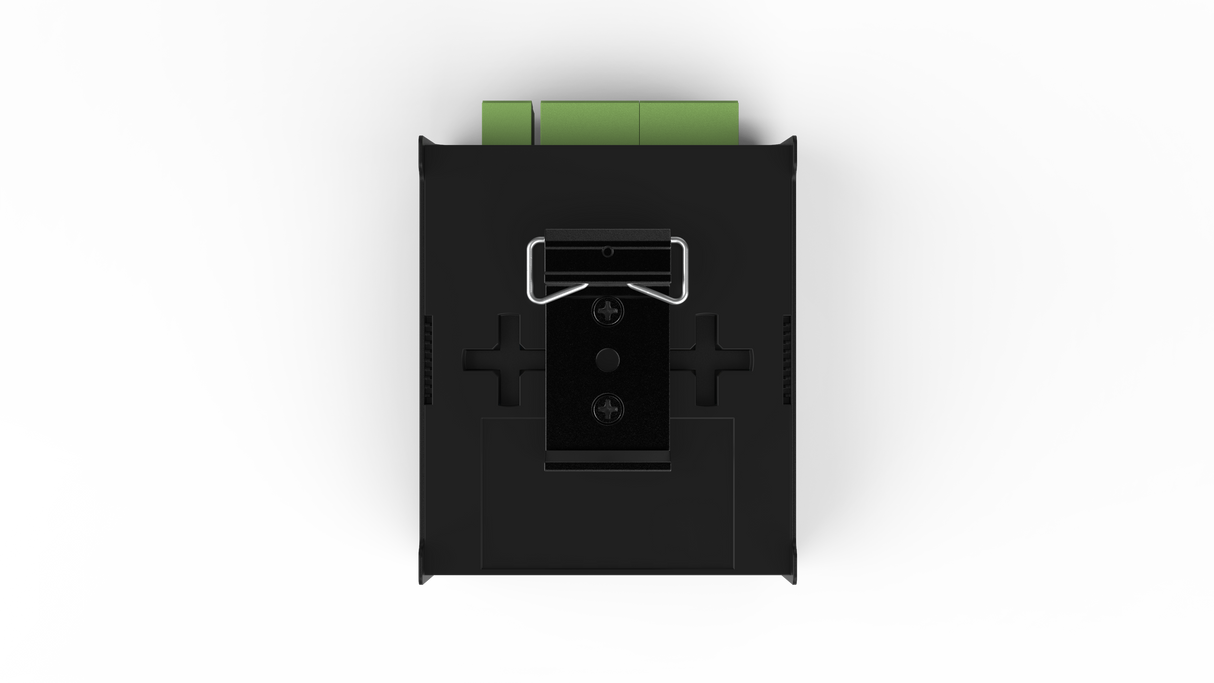

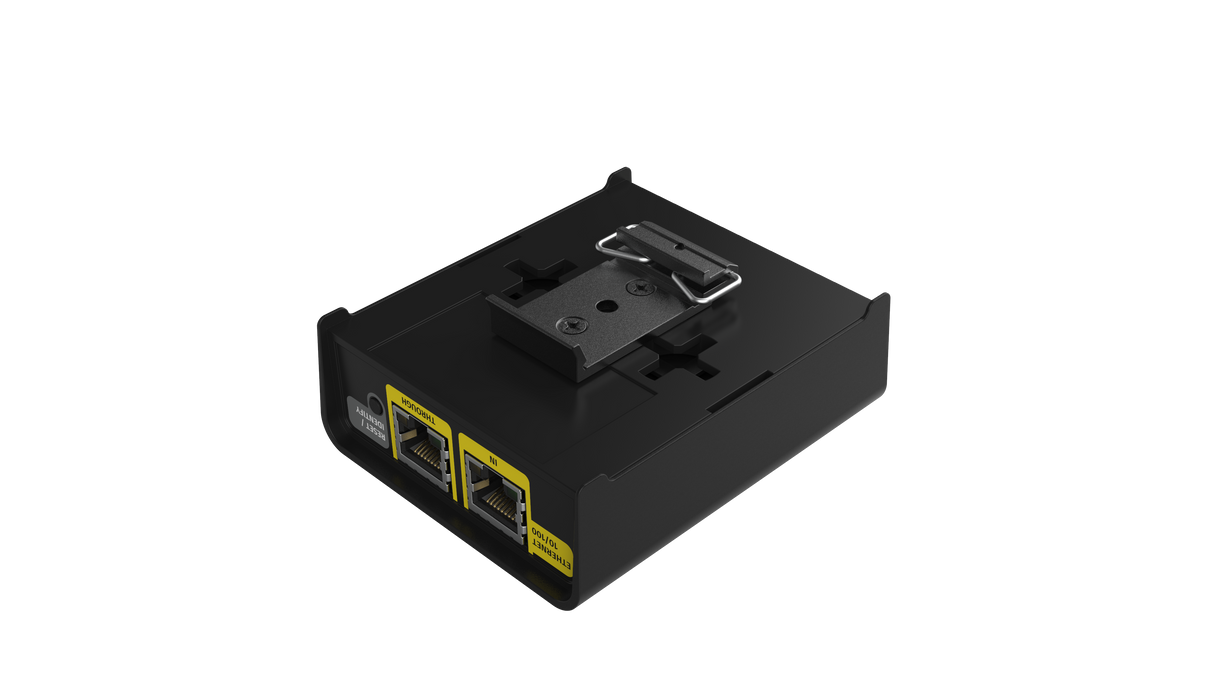

Designed for efficient installation, the OCTO Lite features a wide 5–60V DC input range and can be powered directly from the connected LED pixel strip or nodes via either output port, reducing wiring and eliminating the need for separate power supplies. The durable 4-DIN enclosure supports TS35 DIN rail or surface mounting, making it suitable for control panels and compact setups.

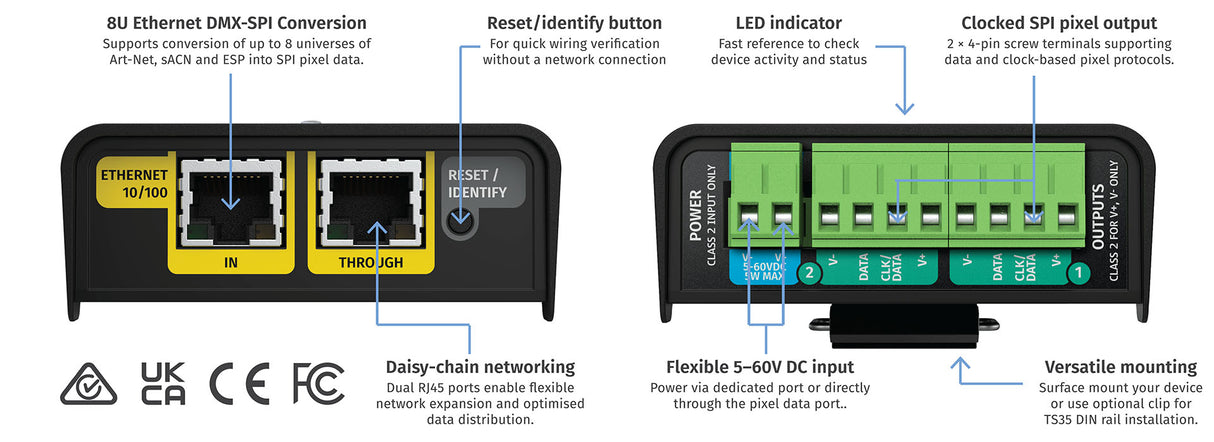

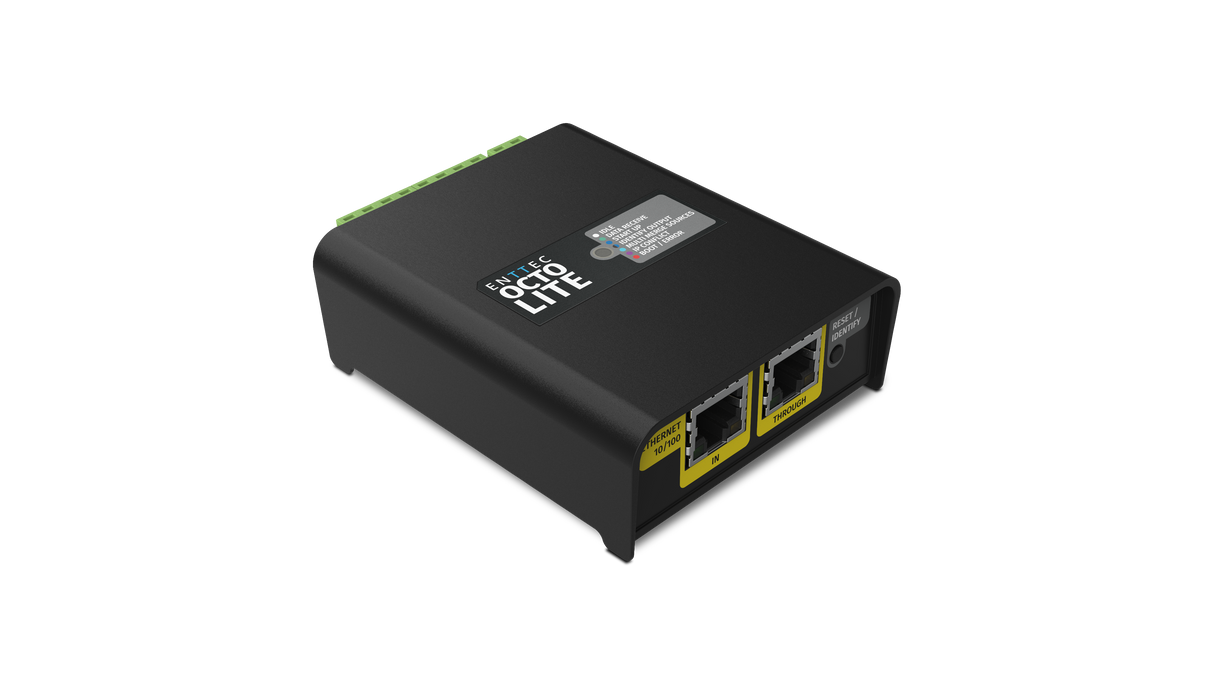

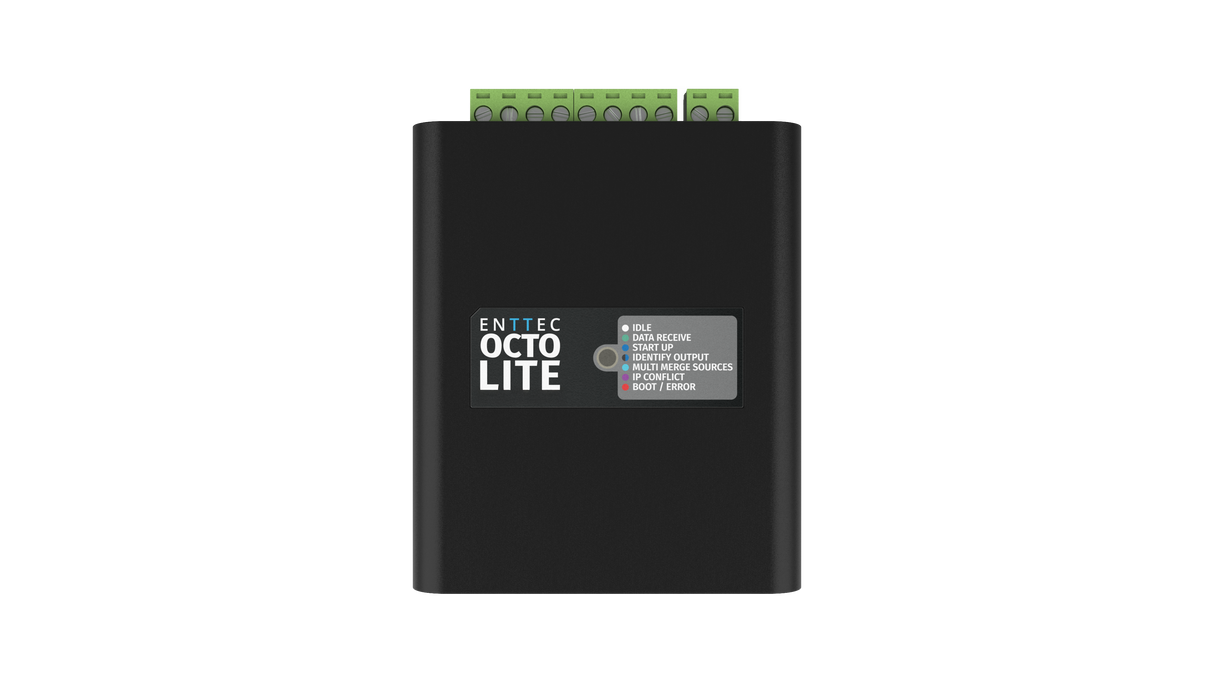

Configuration and monitoring are handled through a web-based interface with support for firmware updates, real-time data monitoring, and network diagnostics. A front LED status indicator shows device activity, while the Identify/Reset button outputs a full signal for 10 seconds to verify wiring without an active network connection. Dual RJ45 ports support 10/100Mbps Ethernet with link and activity indicators for stable connectivity.

Here are some key features of the OCTO Lite pixel controller:

8-Universe Output Capacity: Delivers up to 8 universes, supporting up to 1,360 RGB or 1,024 RGBW pixels, with 4 universes per port for flexible output configuration.

Custom Protocol Creation: Supports 20+ pixel protocols and allows users to create custom protocols directly, without requiring firmware updates.

Powered by Your Pixel: Operates on 5–60V DC and can be powered directly from the LED pixel strip or nodes via either port, reducing installation complexity and extra wiring.

Easy Daisy-Chaining: Dual RJ45 Ethernet ports allow chaining of up to 8 units for synchronized output, with 10/100Mbps network support and link/activity indicators.

Installer Friendly Design: Supports DIN rail or surface mounting, includes front LED status indicator, and features an Identify/Reset button for quick wiring checks. The web interface simplifies setup, monitoring, and troubleshooting.

International Compliance: Meets international safety and compliance standards for reliable use in professional lighting installations.

General specifications

• Input voltage: 5-60V DC
• Power draw: 5W
• Heat dissipation: 4.5W
• Output voltage: 5V
• Output current: 50mA
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• Operating humidity: 5 to 95% (non-condensing)
• Connectors: 2 x Network (RJ45), 2 x Data port (4Pin Screw Terminal), 1 x Power Port (2Pin Screw Terminal)
• eDMX input protocol: Art-Net / sACN / ESP
• Network speed: 10/100Base-T
• Network discovery: ENTTEC’s EMU software
• Network configuration: Static (Default 192.168.0.10) / DHCP
• Recommended network device quantity per chain: Chains of up to 8 devices give optimum synchronization between outputs
• Data output: SPI (NZR)
• eDMX -> pixel conversion per device: 8 Universes (4,096 channels)
• Pixels controllable per device:
  • RGB: 1,360 (680 per port)
  • RGBW: 1,024 (512 per port)
• Frame rate: 100fps
• Environmental protection: IP20
• Mounting options: Surface & TS35 DIN Rail mount
• Body material: ABS
• Unit dimensions: 100.5 x 77.9 x 31mm (3.96” × 3.07” × 1.22”)
• Warranty: 3 Years

Downloads

• Octo Lite cut sheet
• Octo Lite user manual
• Dimensions and mounting diagrams
