Automatic Gate and Door Controller ~ gateBox Pro by Blebox

Controller only ~ all accessories are sold separately

Description

The gateBox Pro is an advanced automatic gate and door controller that allows users to open and close gates or doors via a Wi-Fi network from anywhere in the world using a smartphone or tablet. This smart device provides convenience and security by enabling remote operation of swing gates, sliding/rolling gates, garage doors, and other doors. The module also allows users to check the status of their gates or doors, providing peace of mind.

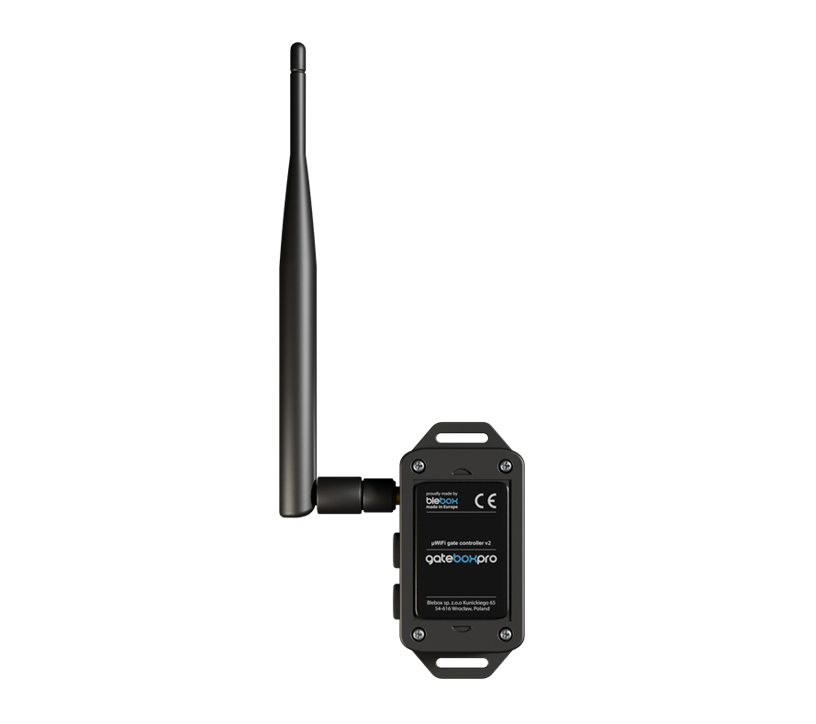

The gateBox Pro includes an RP-SMA antenna connector and antenna that optionally can be connected to extend the range of the controller, allowing installation at a greater distance from the WiFi network. If you need even greater range, you can connect your own antenna to the controller. If you want to install the antenna away from the controller – for example, to hide the controller inside the motor case – you can use an RP-SMA pigtail to locate the antenna separately to the controller.

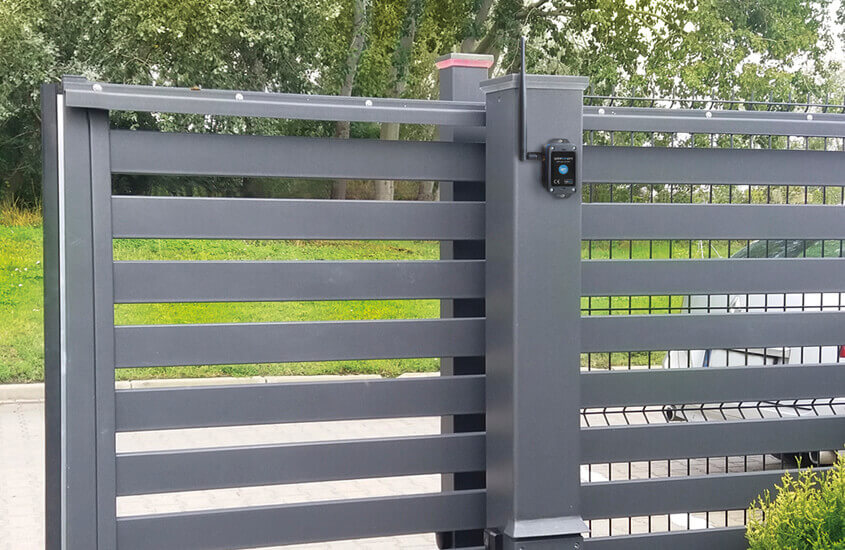

Designed for durability, the gateBox Pro features a waterproof housing, making it suitable for outdoor installation on fence posts or building walls without additional protection.

This automatic gate and door controller combines advanced technology with practical functionality, ensuring reliable performance and ease of use for all users.

General Specifications

• Supply voltage: 12–24V AC / DC
• Power consumption: Less than 1W
• Number of outputs: 2
• Output type: Open collector
• Maximum output current: 20mA (per channel)
• Number of inputs: 2
• Input type: Logical
• Input voltage: 12–24V AC / DC
• Inputs polarization: Detected automatically
• Galvanic isolation: Yes, optical
• Dimensions:
  • Without antenna: 50 x 92 x 28 mm (1.97" x 3.62" x 1.10")
  • With antenna located vertically: 85 x 230 x 28 mm (3.35" x 9.06" x 1.10")
  • Antenna length: 197 mm (7.76")
• Protection Rating: IP54
• Operating temperature: -20 – +50°C (-4 – 122°F)
• Communication standard: μWiFi, compatible with WiFi
• Communication mode: Direct connection (as access point), Wi-Fi connection via a standard router, connection with access from any location in the world (requires access to the Internet)

Warranty details

Downloads

• gateBox Pro instructions
• Gate controller wiring diagrams
• Blebox App Quick Start Guide
• Google Home User Guide
• Alexa User Guide App Quick Start Guide
