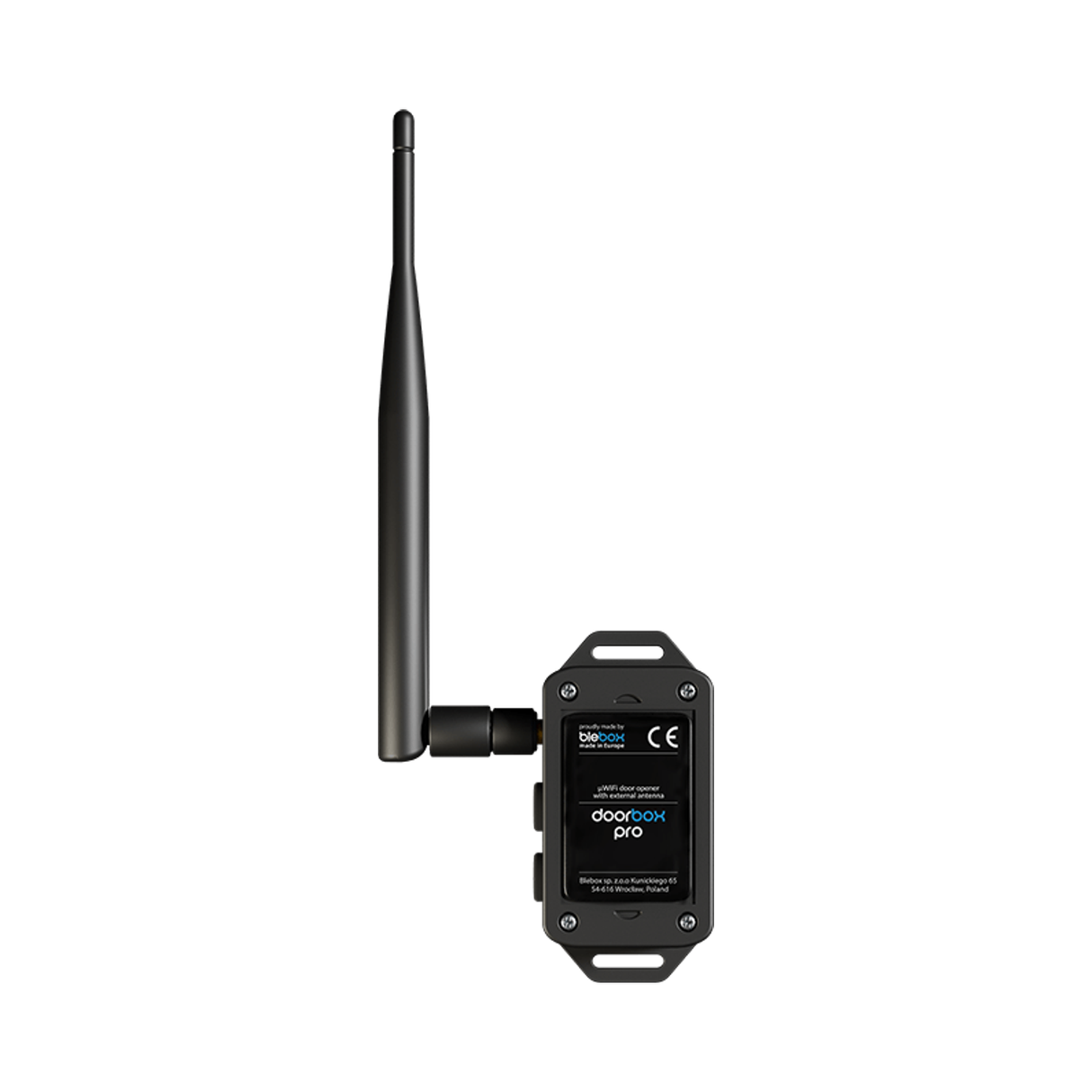

Smart Wi-Fi Gate and Door Controller ~ doorBox Pro by Blebox

Controller only ~ all accessories are sold separately

Description

doorBox Pro is a smart Wi‑Fi controller designed for remote access and monitoring of doors, gates, locks, and electric strikes from anywhere in the world. It supports three modes of control – direct, local, and remote – using the free wBox app on smartphones or computers.

Real-time door and gate status monitoring is enabled through compatible sensors, including NO-type reed switches and inductive sensors. With push notifications, users receive alerts when a door opens, closes, or a doorbell is triggered.

doorBox Pro operates on a safe 12–24V AC/DC supply and includes an external, replaceable WiFi antenna for improved range. Its waterproof housing allows for outdoor installation or use in challenging environments like garages or metal cabinets. Scheduling functions are built-in, with support for astronomical clock settings based on sunrise and sunset times, allowing for precise automation of opening and closing cycles.

This smart gate and door controller features volt-free relay outputs (5–30V DC / 5–230V AC), making it compatible with electric strikes, magnetic locks, and bolts. It also includes configurable ELV signal inputs (12–24V AC/DC) for additional functionality like doorbell triggers or manual open buttons. Integration with other BleBox devices is seamless – allowing you to trigger lighting, doorbells, or other smart devices based on door activity.

The doorBox Pro controller supports access sharing through the BleBox cloud and allows local user account management for offline operation. It can be paired with μWiFi-based remotes and wireless buttons, enabling flexible, network-independent control.

Voice assistant compatibility with Google Home and Amazon Alexa adds another layer of convenience for hands-free operation. Designed for durability, flexibility, and smart automation, doorBox Pro is a comprehensive solution for modern access control systems.

General specifications

• Supply voltage: 12-24V AC / DC
• Energy consumption: <1W
• Number of outputs: 1
• Output type: Relay, normally open, separated
• Maximum current: 5A
• Maximum power: 1150 VA @ 230V AC (1150W resistive load), 150W @ 30V DC
• Number of inputs: 3
• Input type: Logical (pushbutton), common negative or positive
• Antenna connector type: RP-SMA
• Antenna: omnidirectional, 5dB gain - included in the kit
• Communication standard: μWiFi, compatible with WiFi, 802.11g

• Protection rating: IP54
• Mounting method: Mounting holes or self-adhesive tape
• Dimensions:
  • 50 x 92 x 28 mm (1.97" x 3.62” x 1.10") (without antenna)
  • 85 x 230 x 28 mm (3.35" x 9.06” x 1.10") (with the antenna located vertically)
• Controller operating temperature: -20°C to 50°C (-4°F to 122°F)


Downloads

• doorBox Pro instructions
• Blebox App Quick Start Guide
• Google Home User Guide
• Alexa User Guide App Quick Start Guide

Important notes
