WiFi LED Controller and Plug-in Driver Kit (24V) ~ Blebox wLightBox + EnoLED ELD

Description

If you want an all-in-one kit for power and Blebox control of your LEDs, this is (probably!) the kit for you.

It includes a Blebox Wifi LED controller, a suitable plug-in driver, and the commonly needed wiring accessories.

The controller is a good all-round Blebox controller, the Blebox wLightBox, which we recommend as the controller for most Blebox-controlled projects.

The driver is our recommended 24V non-dimmable plug-in LED driver, the EnoLED ELD series. It's a solid choice: it's compact, UL Listed, and affordable.

If you already have a controller, we have a kit like this without the controller; or you can contact us and we'll supply everything you need.

Besides the driver and controller, the kit includes commonly needed wiring accessories. There is 6ft of quality 2-core wire for connecting the driver to the controller, and 2 x 2-way Wago wire connectors for connecting it to the driver's output. There is also a 3-way Wago connector for splicing the controller into the positive DC line between the driver and the strip (this is because of how the Blebox controller is wired).

Note: If you need more than 200W, we can provide this kit with a larger driver. Just contact us with your needs and we'll make it happen!

General specifications

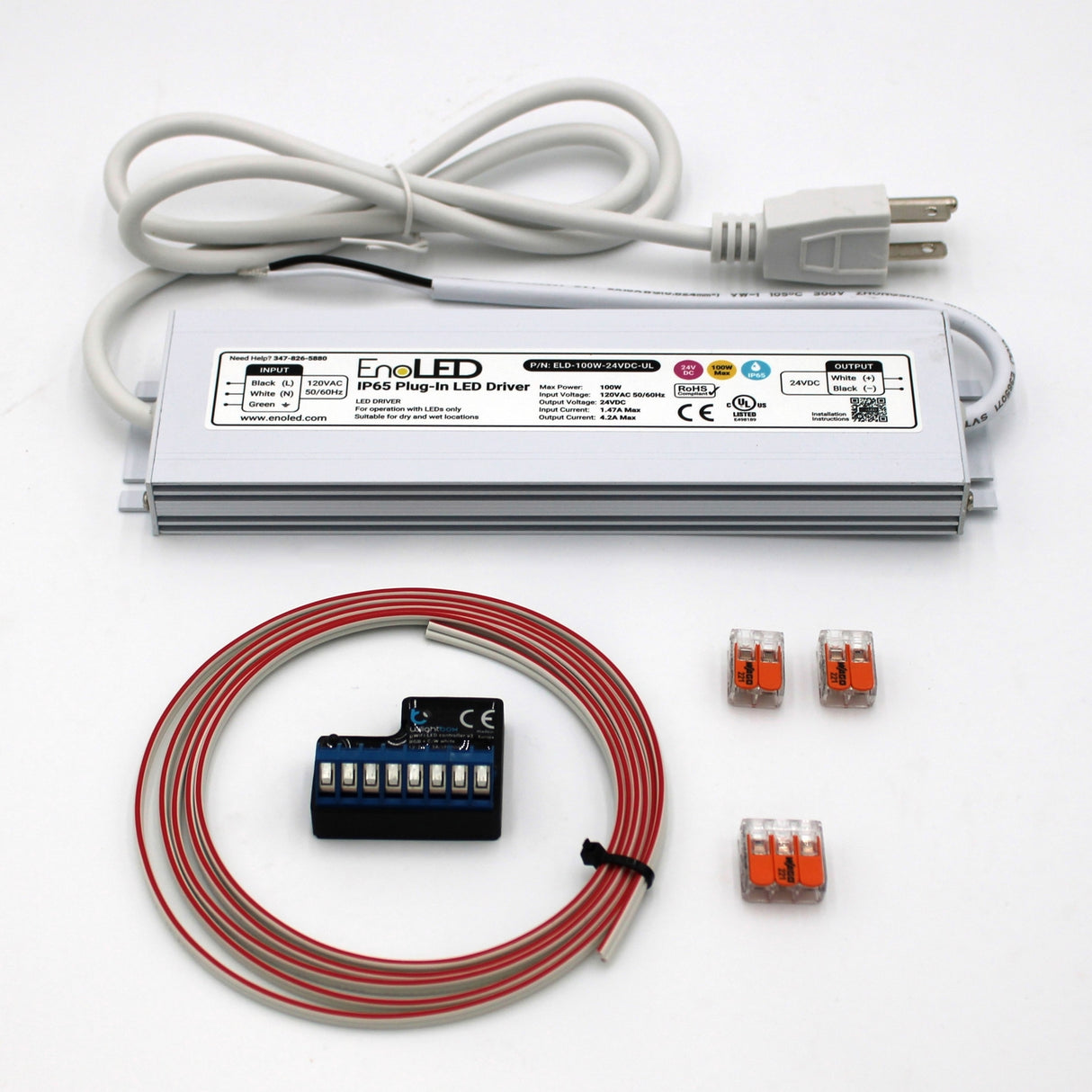

• Contents:
  • 1 x Blebox wLightBox
  • 1 x EnoLED ELD driver, 24V
  • 6ft x 2-core wire
  • 2 x 2-way Wago lever-nut wire connectors
  • 1 x 3-way Wago lever-nut wire connector
• Control capabilities:
  • Blebox LED controller (included): Full control via Blebox app and ecosystem
• Supply voltage: 120V AC
• Output voltage: 24V DC
• Max power output: 100W, 200W (more powerful drivers available on request)

Downloads

• Driver (ELD series) cut sheet
• Controller (Blebox wLightBox) cut sheet

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
