AC Dimmable Hardwired LED Driver Kit (24V) ~ EnoLED XRD

Description

If you simply want to control your LED strip lights using a standard wall dimmer, this is (probably!) the kit for you.

It includes an AC-dimmable driver and the commonly needed wiring accessories.

The driver is our recommended 24V AC-dimmable LED driver, the EnoLED XRD series. It's a solid choice: it's compact, has an integrated junction-box, and is UL Listed.

The XRD is dimmable via the standard wall dimmers you will find at most hardware stores. You can also use it with just a plain on/off wall switch, but if that is all you need you can rather use a non-dimmable driver, which will usually be cheaper. We have a kit with the EnoLED PicoDrive series of non-dimmable drivers for that; they're excellent all-rounders.

Note: If you want control via a dedicated LED controller (e.g., with a smartphone app or remote), don't use this kit: you need a non-dimmable driver. We have kits with Casambi and Blebox controllers and the correct drivers; or you can contact us and we'll supply everything you need.

Besides the driver, the kit includes commonly needed wiring accessories. There is 6ft of quality 2-core wire for connecting the driver to your strip. Then there are 4 x 2-way Wago wire connectors: 2 for connecting the driver to your AC supply, and 2 for connecting the driver's output to the included wire or your strip's lead wire.

Note: If you need more than 96W, we can provide this kit with a larger driver. Just contact us with your needs and we'll make it happen!

General specifications

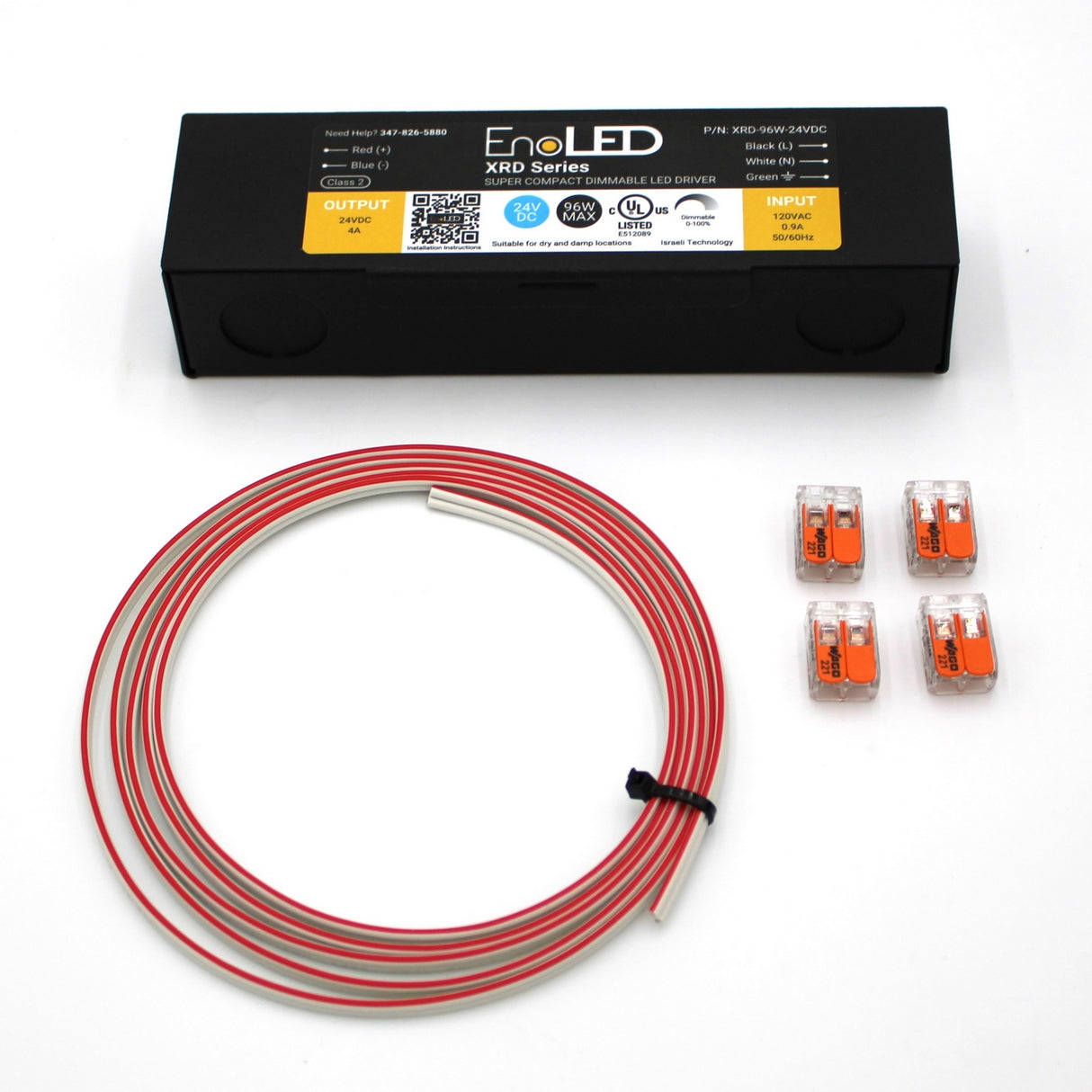

• Contents:
  • 1 x EnoLED XRD driver, 24V
  • 6ft x 2-core wire
  • 4 x 2-way Wago lever-nut wire connectors
• Control capabilities:
  • Standard wall dimmer (not included): Dimming
  • Standard wall switch (not included): On/off only – But we recommend using a kit with a non-dimmable driver if this is all you need; it's significantly cheaper.
• Supply voltage: 120V AC
• Output voltage: 24V DC
• Max power output: 60W, 96W (more powerful drivers available on request)

Downloads

• Driver (XRD series) cut sheet
• Dimmer compatibility list

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
