Non-Dimmable Plug-In LED Driver (24V) ~ EnoLED ELD Series

LED power supply ~ LED strip and all other components are sold separately

Description

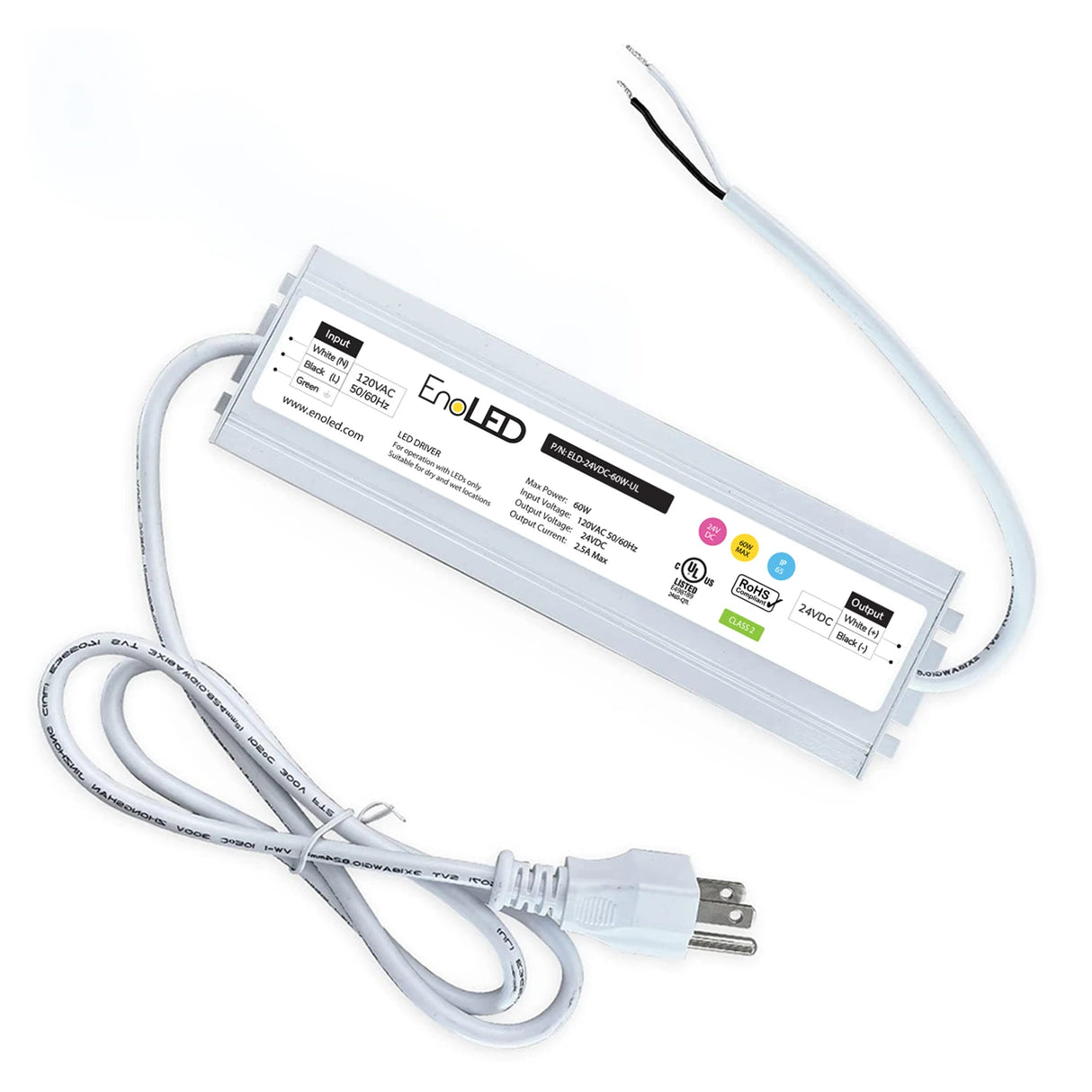

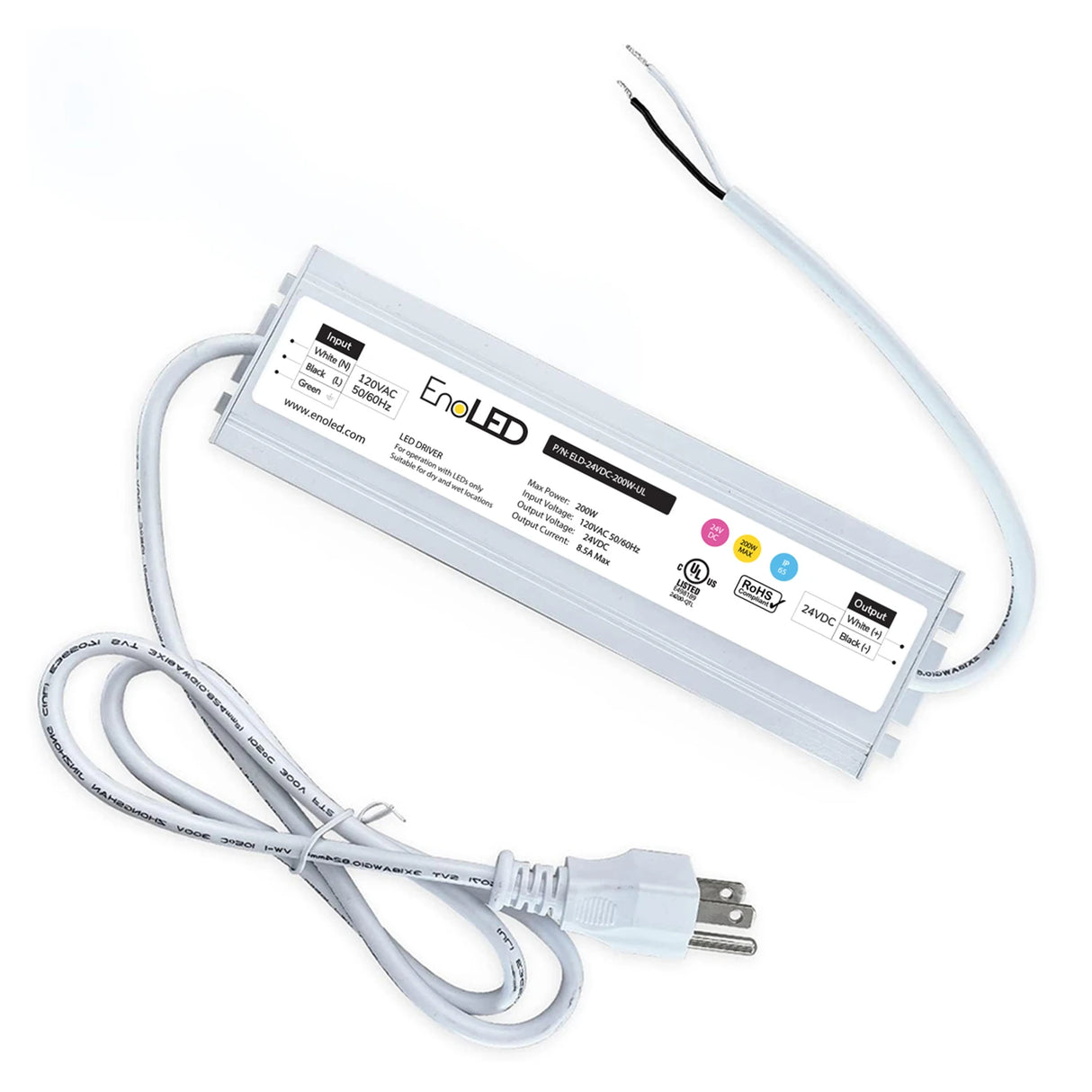

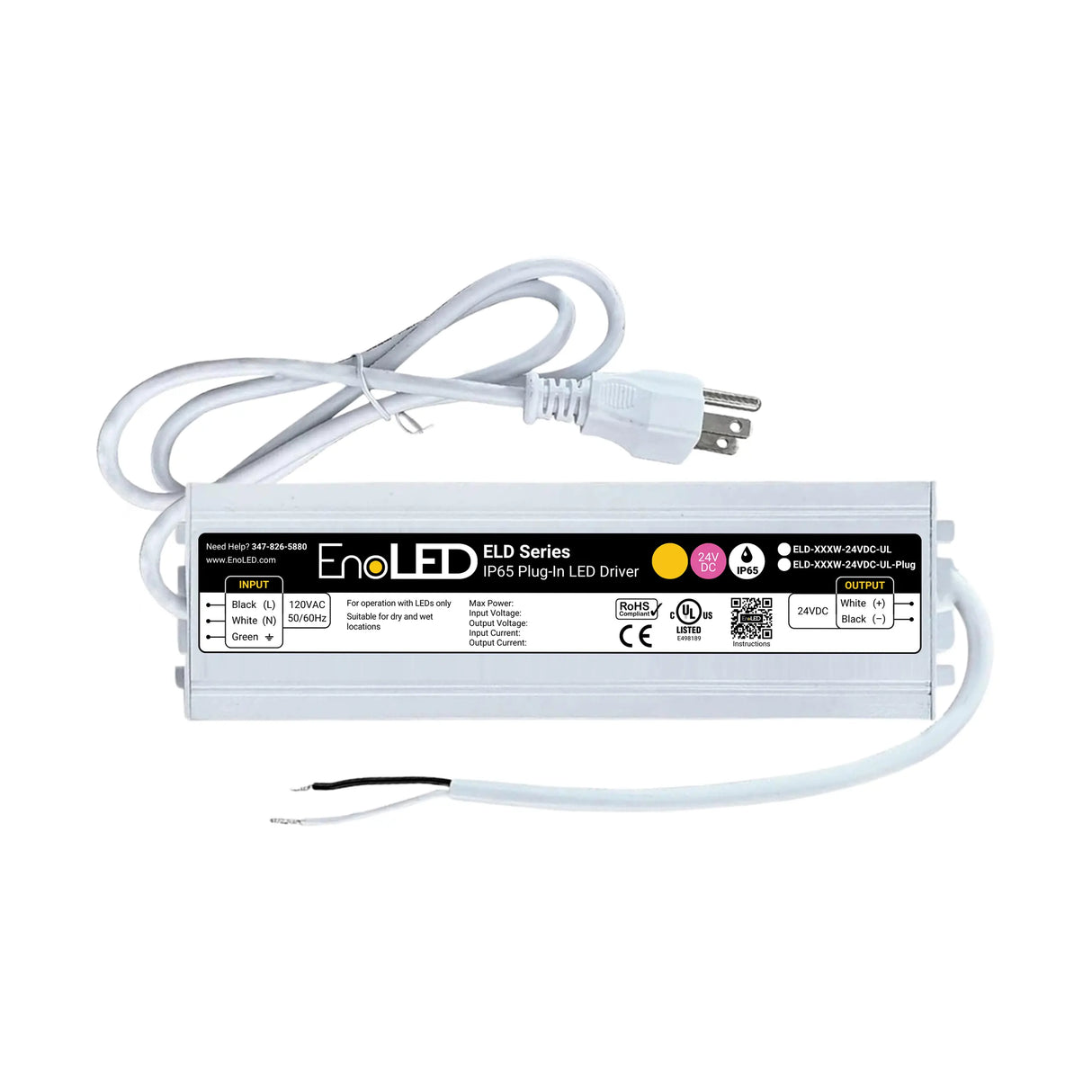

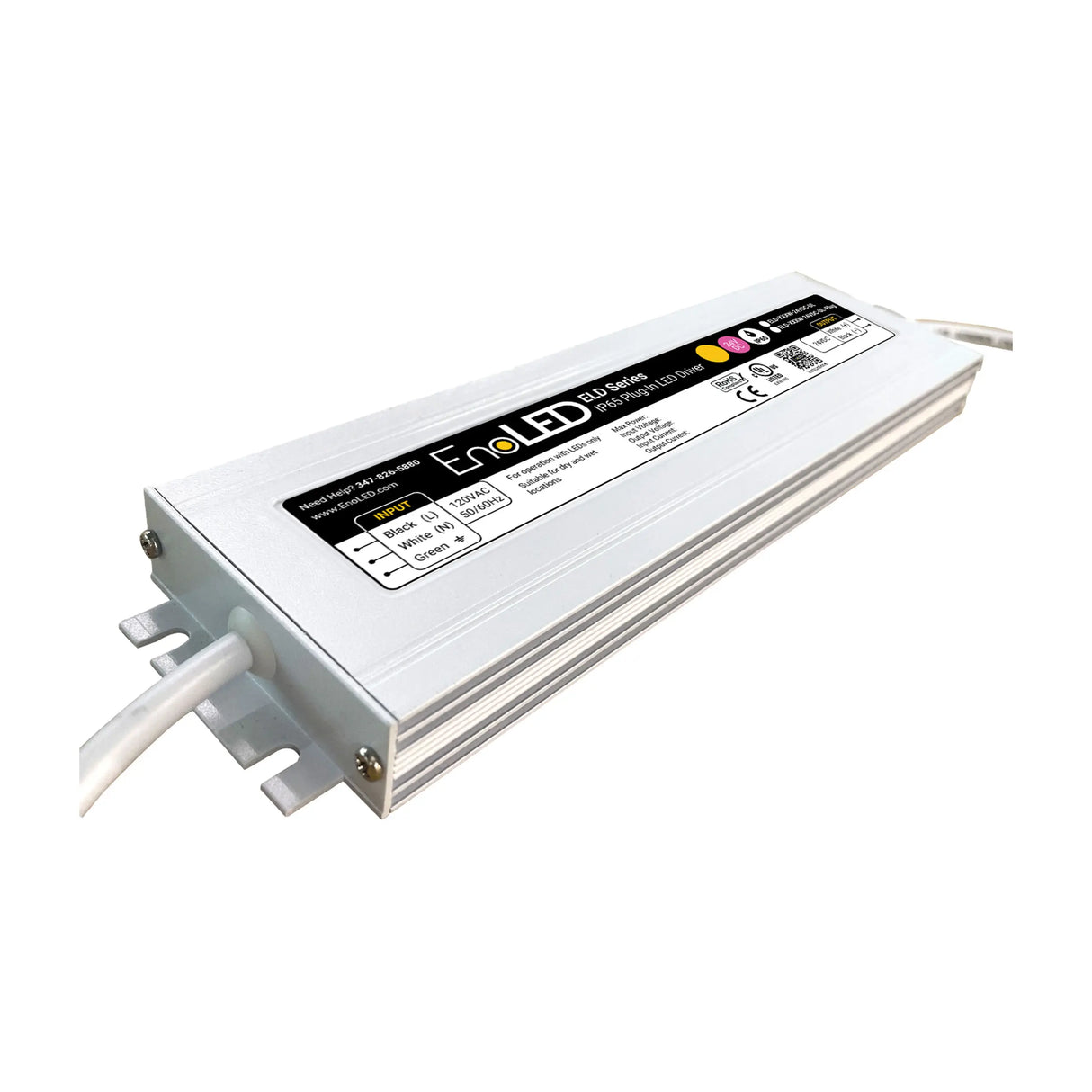

The ELD series is a non-dimmable, plug-in LED driver designed for easy installation in both residential and commercial applications. With a built-in 120V AC input plug, no electrician is required for setup. This driver is UL-listed, ensuring safety and reliability in various environments, and is IP65 rated, making it suitable for both wet and dry locations. It delivers over 89% efficiency at full load, ensuring optimal performance while maintaining energy savings.

The compact design – the 100W version is less than 0.8 inches high – makes it ideal for installation in tight spaces. The ELD series is compatible with any 24V DC LED application, offering flexibility for different LED lighting setups. Additionally, it features overload and over-temperature protection, with an automatic reset function to prevent damage and ensure long-term durability.

General specifications

• Input voltage: 100–264V AC (universal full range)
• Output voltage: 24V DC
• Max power: 100W, 200W, 300W
• Efficiency @ full load: 89%
• Dimmable: No
• Operating temperature: -40°F – 104°F (-40°C – 40°C)
• IP rating: IP65
• Certification: UL Listed
• Dimensions:

  • 100W: 182 x 63 x 18 mm (7.16" x 2.48" x 0.72")

  • 200W: 238 x 58 x 32 mm (9.37" x 2.28" x 1.25")
  • 300W: 228 x 72 x 32 mm (8.97" x 2.83" x 1.25")
• Warranty: 6 years

Downloads

• ELD cut sheet
• Installation guide

Important notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States.
• Bulk pricing is available on request.
