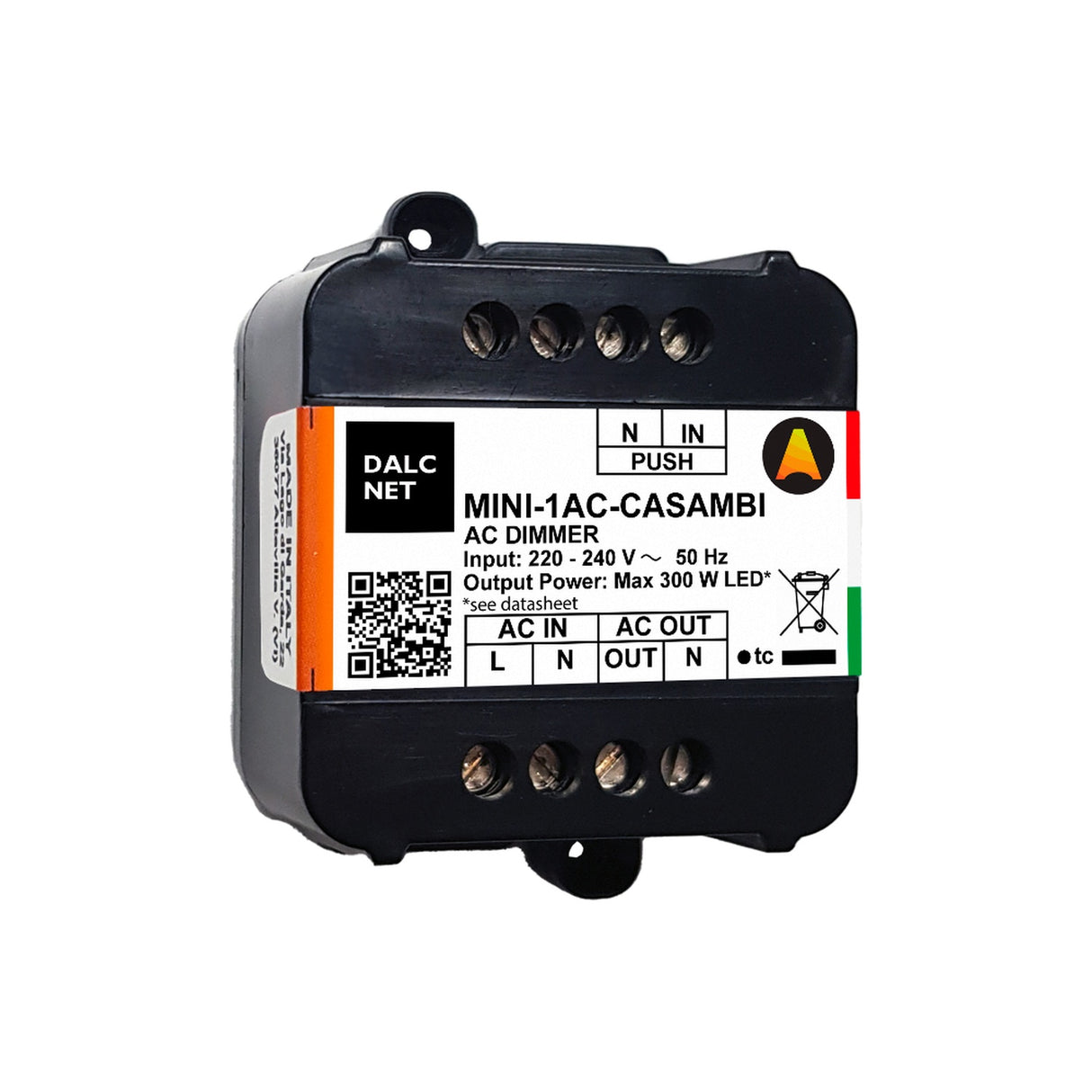

Miniature AC Dimmer with Casambi ~ Model MINI-1AC-CASAMBI

controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The MINI-1AC-CASAMBI is a single-channel AC Trailing Edge dimmer for controlling single-color AC loads, including incandescent, halogen, LED switching lamps, LED strips, and dimmable drivers. It operates on 230 Vac with a 1 A internal fuse, supporting up to 350 W output, and includes short-circuit, open-circuit, and input fuse protections.

This MINI-1AC-CASAMBI supports local control via a push-button and remote control via Bluetooth Low Energy (BLE) with the CASAMBI© app. Users can set maximum and minimum brightness, dimming curves, timers, animations, and scenarios, with memory to store the last brightness level and smooth ON/OFF dimming.

Designed for dry locations, the MINI-1AC-CASAMBI offers over 95% efficiency, extended temperature operation, and is fully tested for reliable performance in professional and residential lighting systems.

General specifications

• Model: MINI-1AC-CASAMBI
• Input voltage: 230V AC
• Frequency rate: 50 Hz
• Max output power: 350 W
• Output channels: 1
• Working temperature range: -10/+60°C (14 ~ 140°F)
• Protection rating: IP20
• Dimensions: 44 x 57 x 25mm (1.73” x 2.24” x 0.98”)
• Warranty: 5years

Downloads

• MINI-1AC-CASAMBI cut sheet

Important Notes

• Items in stock are shipped the same day from Knoxville, Tennessee, United States
• Bulk pricing is available on request
