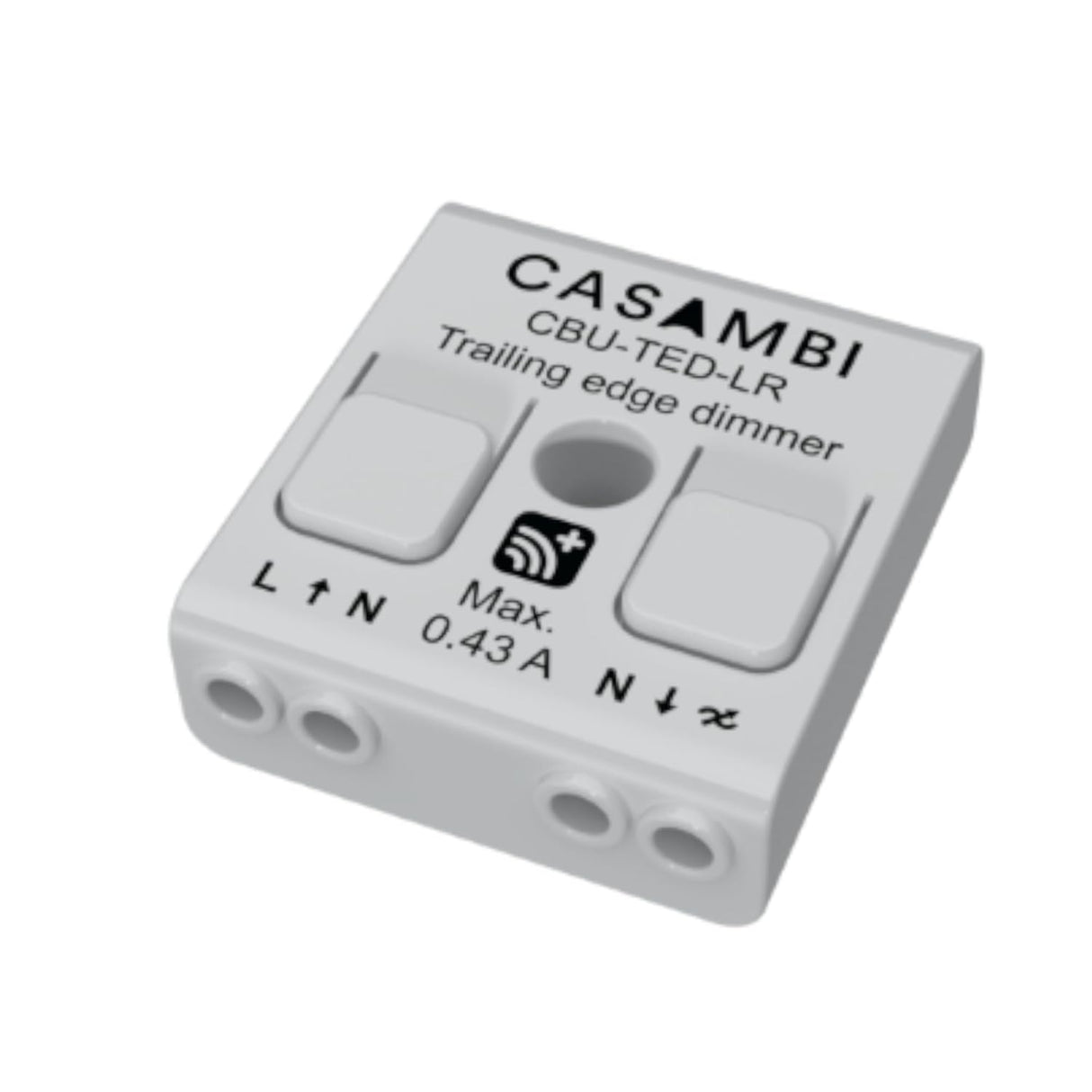

Casambi Bluetooth AC Dimming Controller ~ Model CBU-TED-LR
Product details

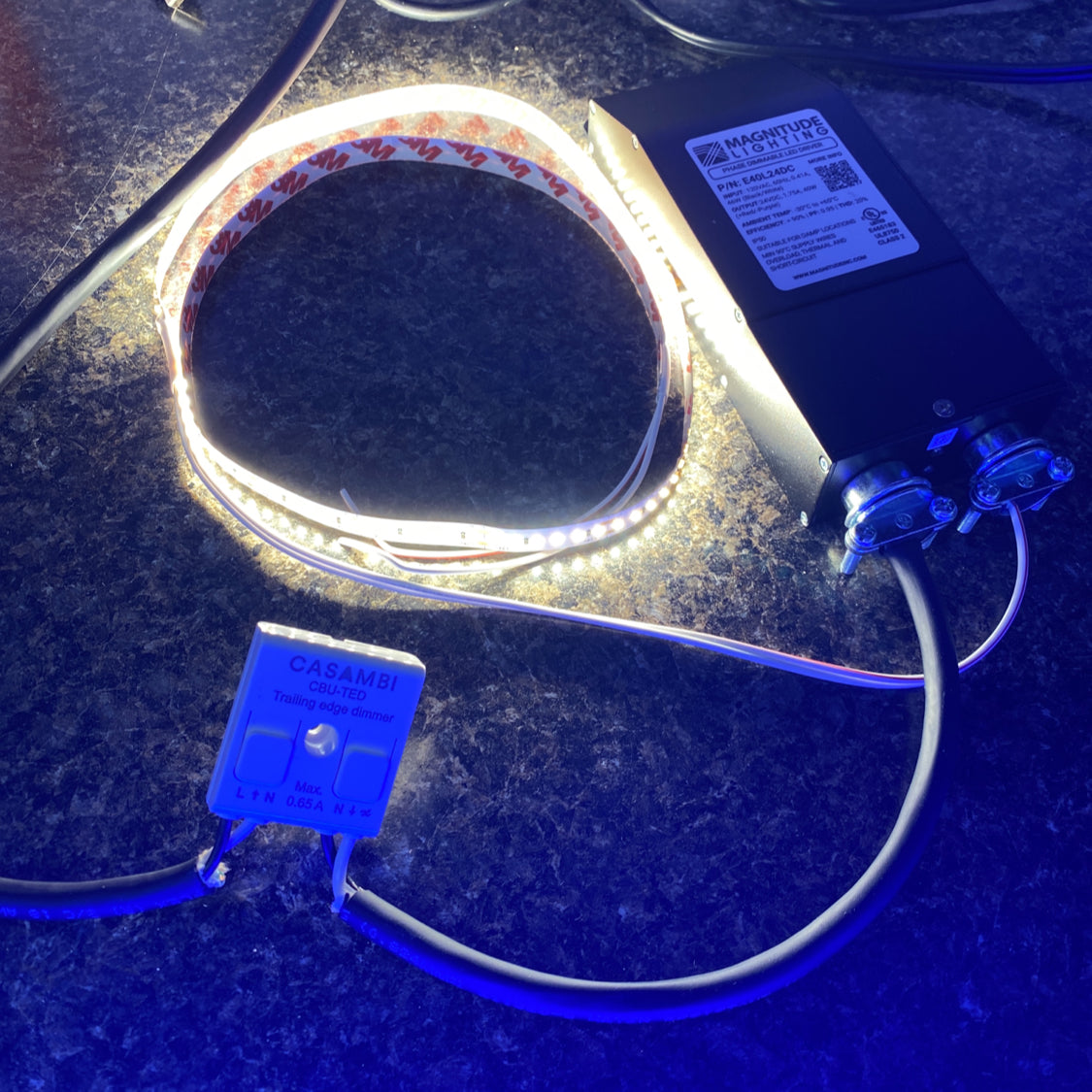

Casambi Bluetooth Controller only ~ LEDs and all other accessories are excluded
Description
CBU-TED-LR is a Bluetooth-controlled, long-range Casambi-enabled AC trailing-edge dimmer designed for dimmable LED lamps, incandescent lamps, and dimmable LED control gear. It allows seamless integration into a Casambi mesh network, enabling wireless lighting control without rewiring. Ideal for residential, commercial, and architectural lighting applications.
The smart dimmer CBU-TED-LR supports loads up to 50W at 120VAC and features built-in overcurrent and over-temperature protection for safe operation. It is compatible with the Casambi App, available on iOS and Android, allowing wireless dimming and control. It can also be operated via traditional wall switches for added flexibility.
As part of the Casambi ecosystem, the CBU-TED-LR can be used in scalable installations—from controlling a single luminaire to managing up to 250 nodes in a smart mesh network. The controller ensures reliable communication and energy-efficient lighting management across long distances.
General Specifications
- Model: CBU-TED-LR
- Input Voltage Range: 120V AC
- Frequency: 60 Hz
- mains current: 0.43A
- No-load standby power: < 0.3W
- Dimming method: Trailing-edge phase control
- output power: 50W @ 120V AC
- output current: 0.43A
- load requirement: 1W
- load inrush current: 10A, 100 ms
- Protection rating: IP20
- Operating temperature: -4°F to +113°F (-20° to +45°C)
- Dimensions: 40.4 x 36.3 x 14mm (1.59” x 1.43” x 0.55”)
- Certifications: FCC ID: 2ALA3-CBUASR IC: 22496-CBUASR UL: UL Listed UL Plenum Rated (UL 2043)
