Miniature 1-Channel LED Dimmer with Casambi ~ Model MINI-1CV-CASAMBI

Controller only ~ power supply, LEDs and all other components are sold separately.

Description

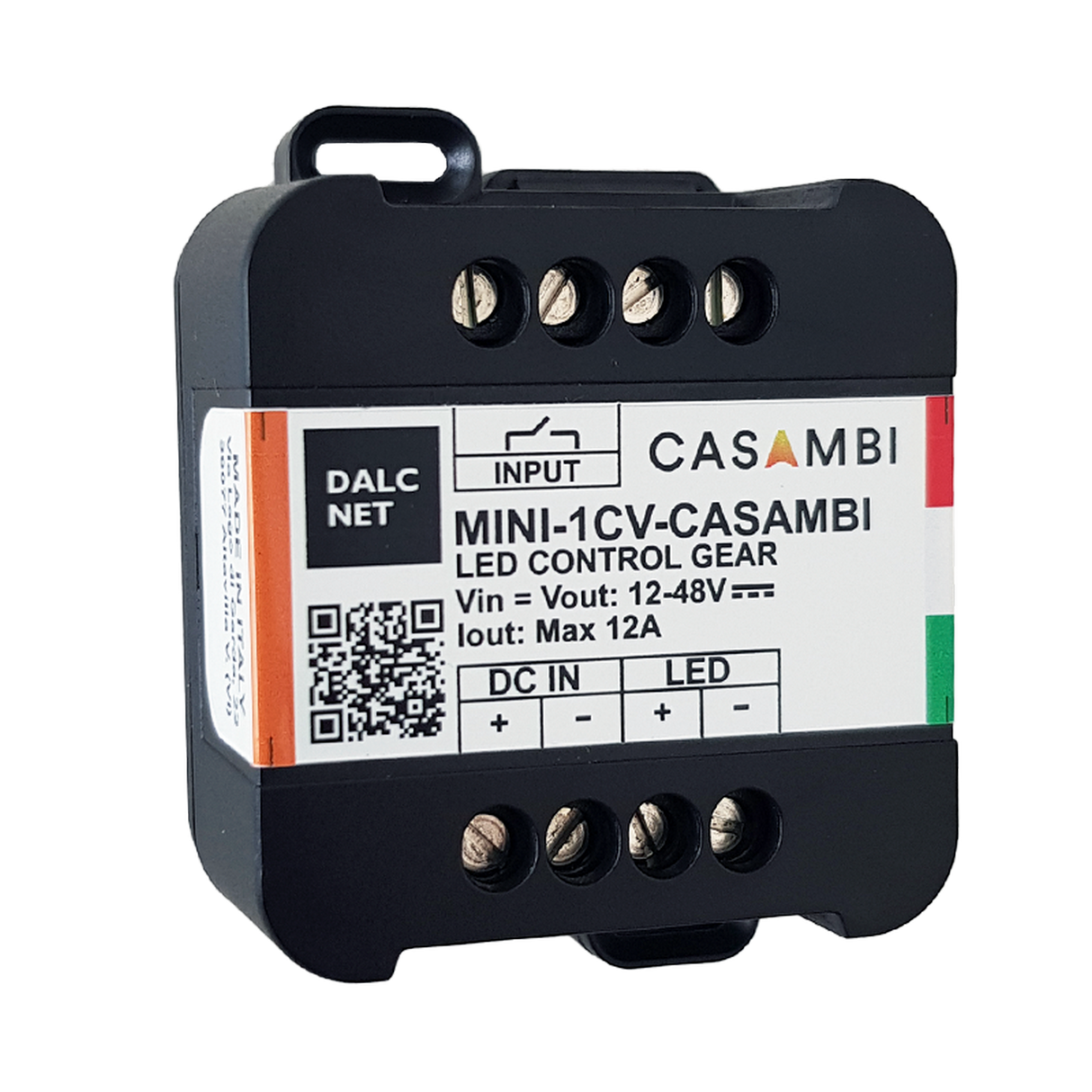

Miniature wireless dimmer by Dalcnet is the latest addition to our lineup with exceptional features tailored for your lighting needs. This compact dimmer offers a range of unique capabilities that set it apart from the rest.

With a single channel design and a voltage range of 12-48V, the MINI-1CV-CASAMBI Dimmer can handle up to 12A, providing reliable and efficient control over your LED lighting.

Experience smooth and flicker-free dimming with a PWM frequency of 4 kHz, ensuring high-quality lighting performance. Despite its powerful capabilities, the dimmer maintains a compact size of 46x46x25mm, making it easy to integrate into your lighting setup.

The Casambi App offers a user-friendly interface for quick and efficient control. Enjoy fast tap reading and writing, customizable control types (including on/off, dimming, sequence, or animation), adjustable dimming curves, min-max level settings, fade time control, password protection, and firmware updates to keep your dimmer up to date.

General specifications

• Model: MINI-1CV-CASAMBI
• Input Range: 12-48V DC
• Max Output Power: 1x12A
• Channels Output: 1
• Analog Input: PUSH BUTTON
• Bus: CASAMBI
• Working Temperature Range: -10/+60°C
• Dimension: 44 x 57 x 25mm (1.73" x 2.50" x 0.98")

• Warranty: 5years

Downloads

• MINI-1CV-CASAMBI cut sheet
