0-10VDC to Casambi Wireless 2-Channel Dimmer ~ Model 10cas
Shipping notes
Items over 2.4m (8ft) in length require LTL freight shipping which is more expensive than regular parcel service. Please refer to our Shipping Policy for further information.
interface module only ~ power supply and other accessories are sold separately
Description
The 10cas interface allows to to control two Casambi-enabled dimmer channels from hardwired analog 0-10V DC signals. This means you can easily convert simple legacy analog 0-10V DC control signals to wireless Bluetooth control signals.

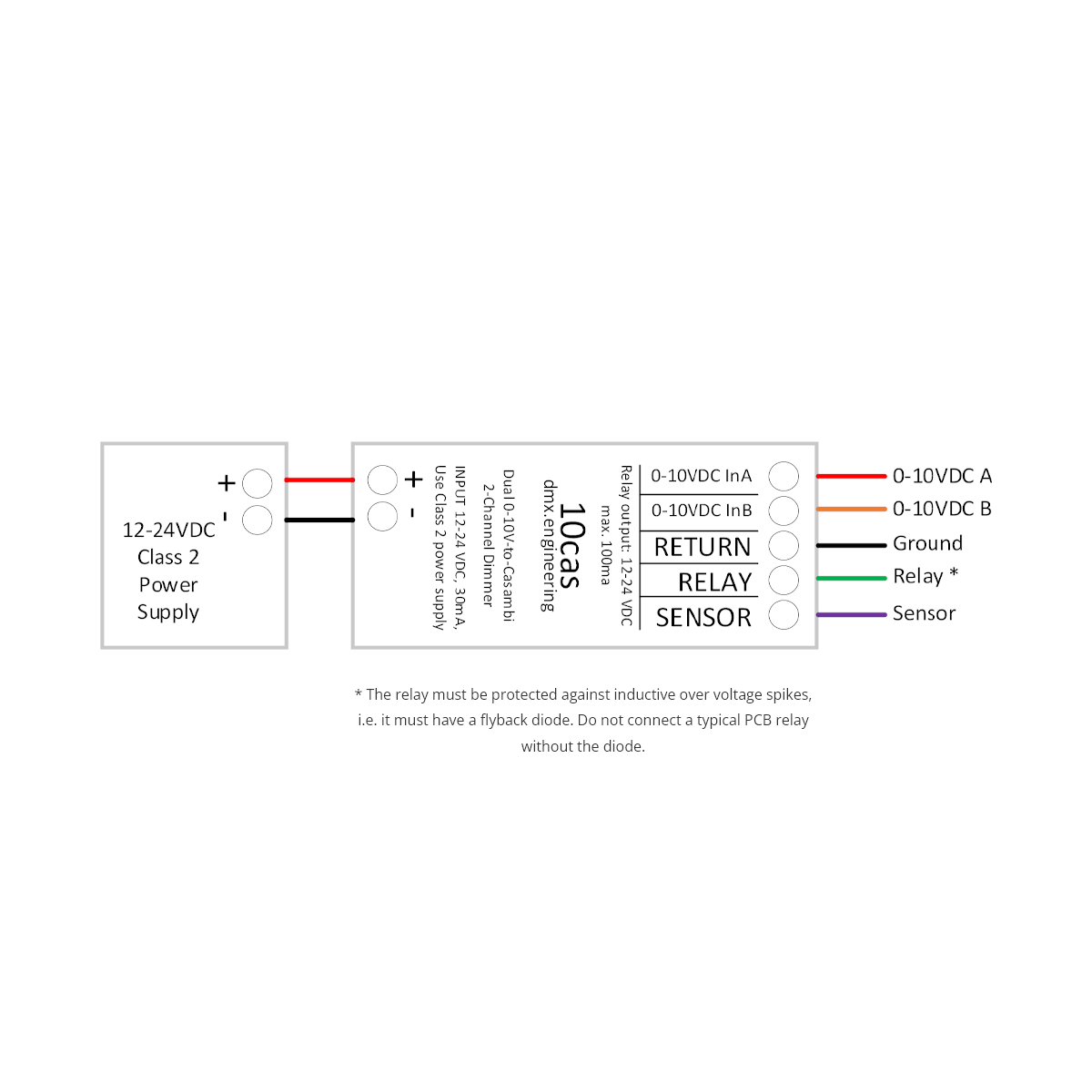

Simply connect your 10cas to a 12-24V DC power supply and one or two 0-10V DC control signals, then use the free Casambi smartphone app to configure which wireless lighting fixtures you want those signals to control. The 10cas wireless dimmer can control two independent dimming channels, or one tunable white (CCT) pair. If you need to control additional fixtures, simply add another 10cas device to your Casambi network.
Casambi is an intelligent home automation network ecosystem with a wide selection of devices for almost every application. The 10cas 0-10V DC interface allows you to control Casambi-enabled fixtures with analog 0-10V DC hardwired signals.
General specifications
- Ecosystem: Casambi (Bluetooth mesh)
- Power supply: 12-24V DC Class 2
- Outputs:
- Casambi wireless
- Inputs:
- 2x 0-10V DC (two-wire signal, common ground)
- Control channels: 2 channels
- Applications: 2x dimming, 1x tunable white

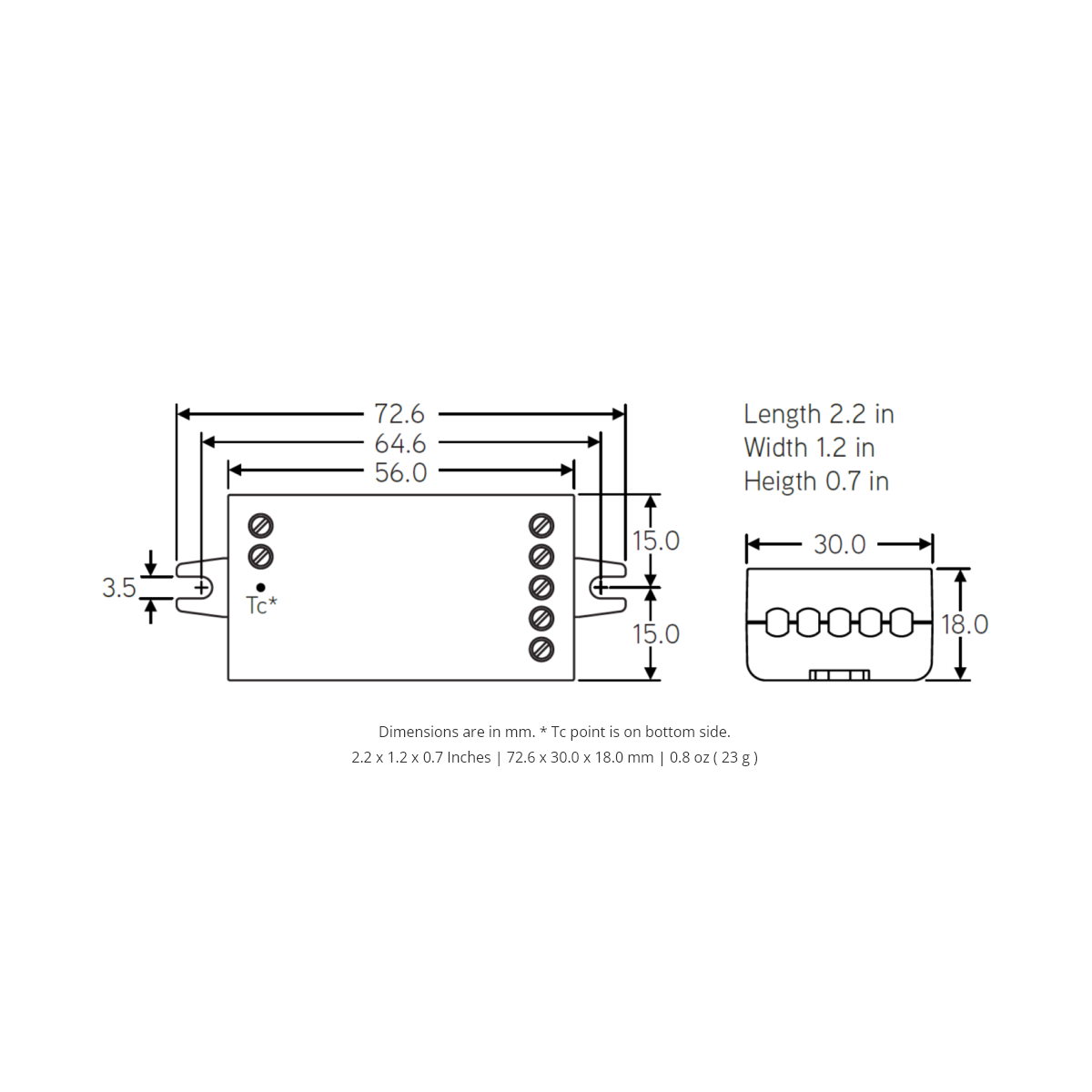

- Dimensions: 73 x 30 x 18mm (2.2 x 1.2 x 0.7")
- Note: To ensure effective Bluetooth signal, the 10cas should not be installed in a metal junction box
- Approvals: ETL Listed, UL 916 Listed, FCC Approved
- Designed and manufactured in the USA
