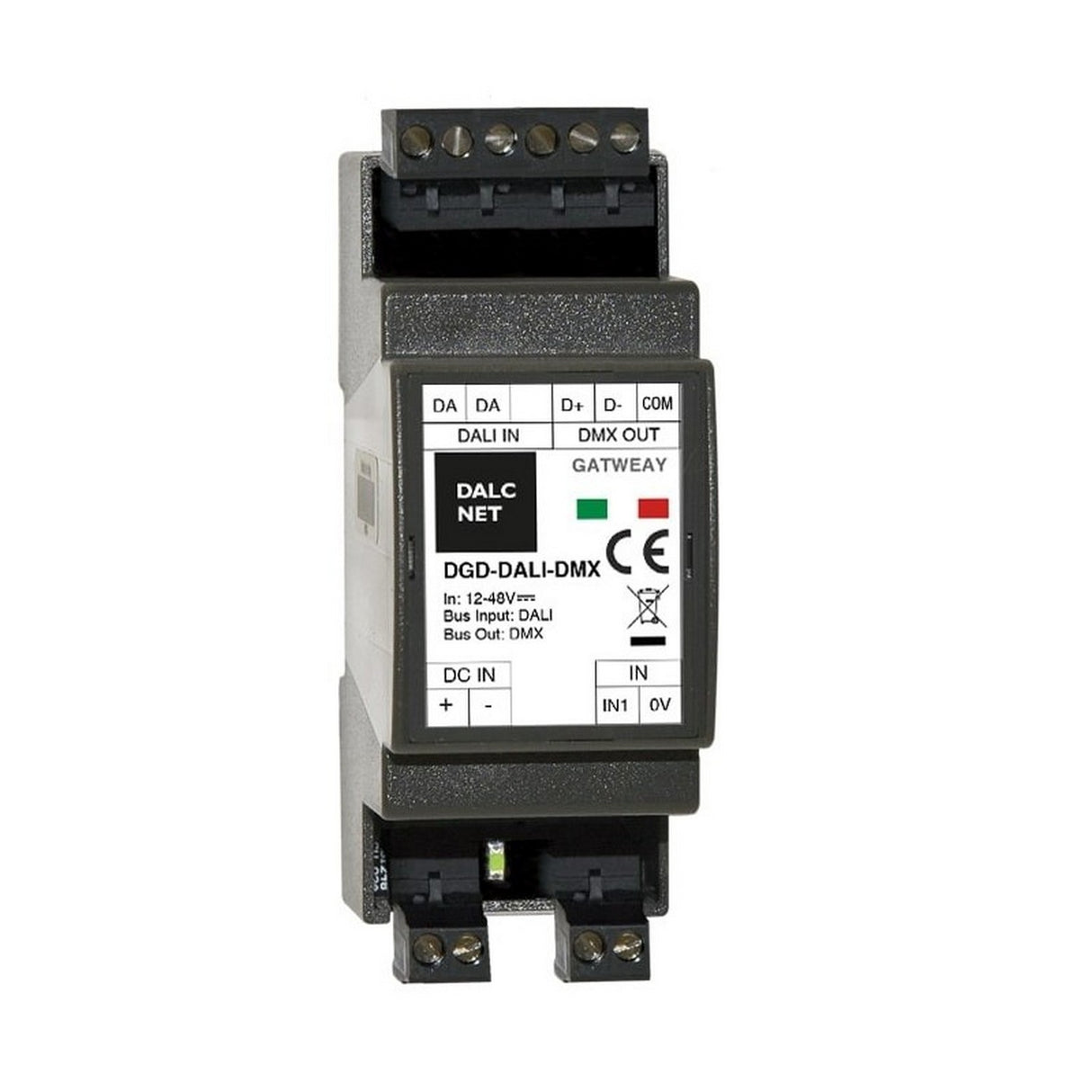

Network Gateway with DALI to DMX Converter ~ Model DGD-DALI-DMX

Controller only ~ power supply, LEDs and all other accessories are sold separately

Description

The DGD-DALI-DMX gateway for lighting networks is an efficient two-way lighting bus converter that seamlessly converts from DALI to DMX-512 protocols. Designed to integrate DALI and DMX LED lighting control systems, this converter enables you to control DMX devices from a DALI lighting system, expanding your network control capabilities.

This panel-mounted bus converter is the solution you need when you have to add DMX-512 devices into a lighting control system that is based on the DALI network. The gateway offers a versatile DC input range of 12-24-48V DC, ensuring compatibility with most common power sources. The DIN-rail form factor of this DALI-DMX lighting protocol converter makes it easy to include alongside existing building automation installations. Additionally, the N.O. push button input provides a convenient local control option for manual operation.

The DGD-DALI-DMX converter also features an extended temperature range, making it suitable for a wide range of environments. Each unit undergoes a rigorous 100% functional test, guaranteeing reliability and performance. Upgrade your lighting control system for seamless integration and expanded control options.

General specifications

• Model: DGD-DALI-DMX
• Supply Voltage: 12-48V DC
• Conversion channels: 1 bus, 64 addresses
• Local Input: 1x Push Button (N.O.)
• Input Bus: DALI
• Output Bus: DMX512
• Working Temperature Range: -10/+40°C
• Dimensions: 92 x 36 x 62mm (3.62 x 1.41" x 2.44")
• Warranty: 5 years

Downloads

• DGB-DALI-DMX cut sheet

Videos
