SKU: LED-RUNNING-LIGHT

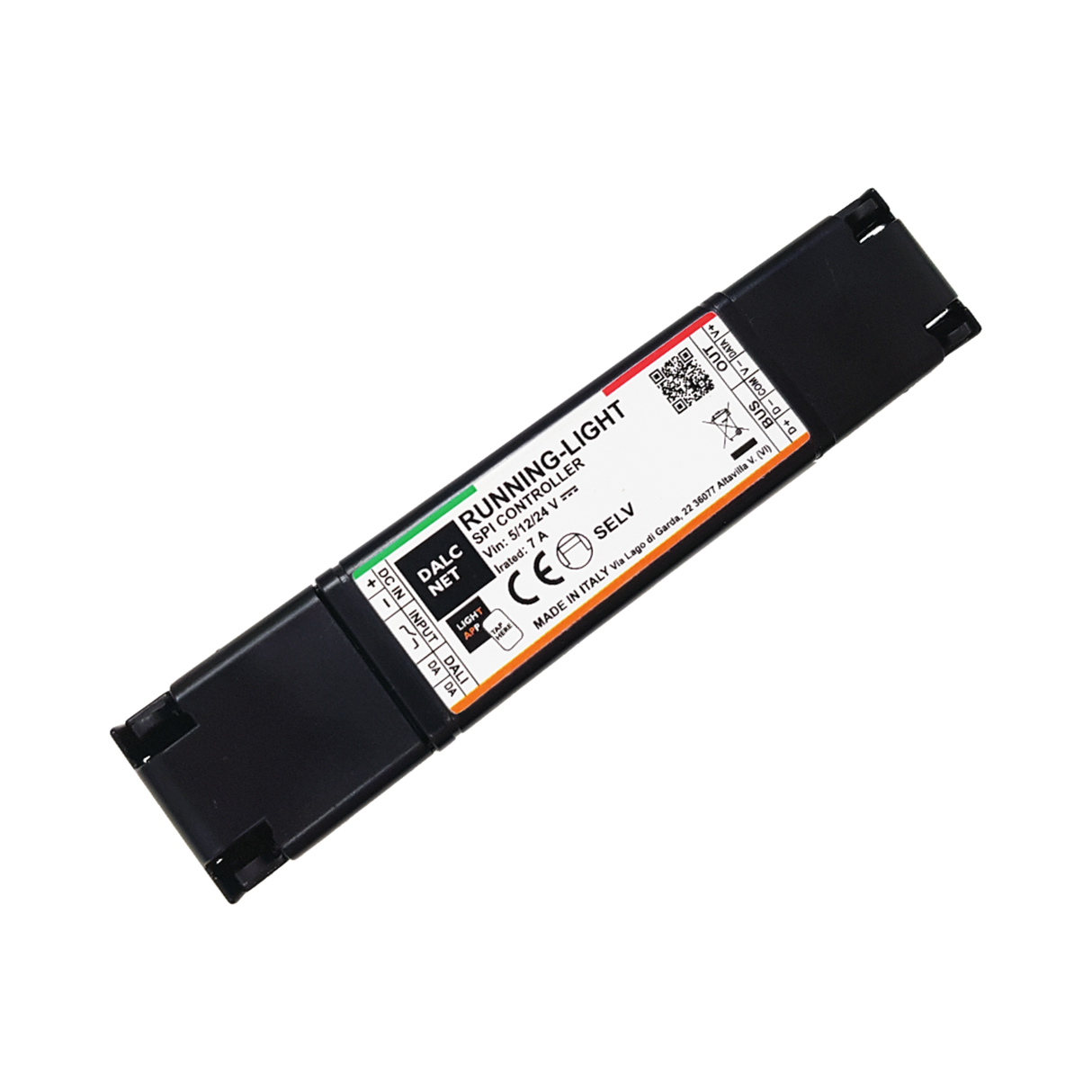

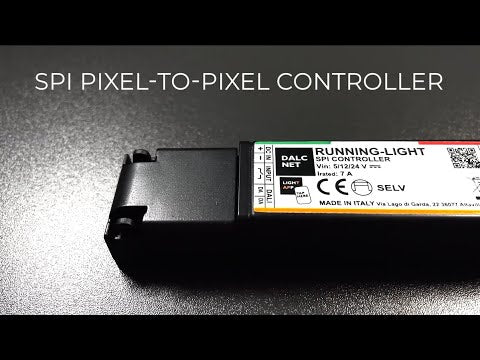

SPI Controller for Pixel Digital LED Strip ~ Model RUNNING-LIGHT

$120.69 USD
Shipping calculated at checkout.

Product details

Controller only ~ profile, LEDs, channels, power supplies and all other accessories are sold separately

Description

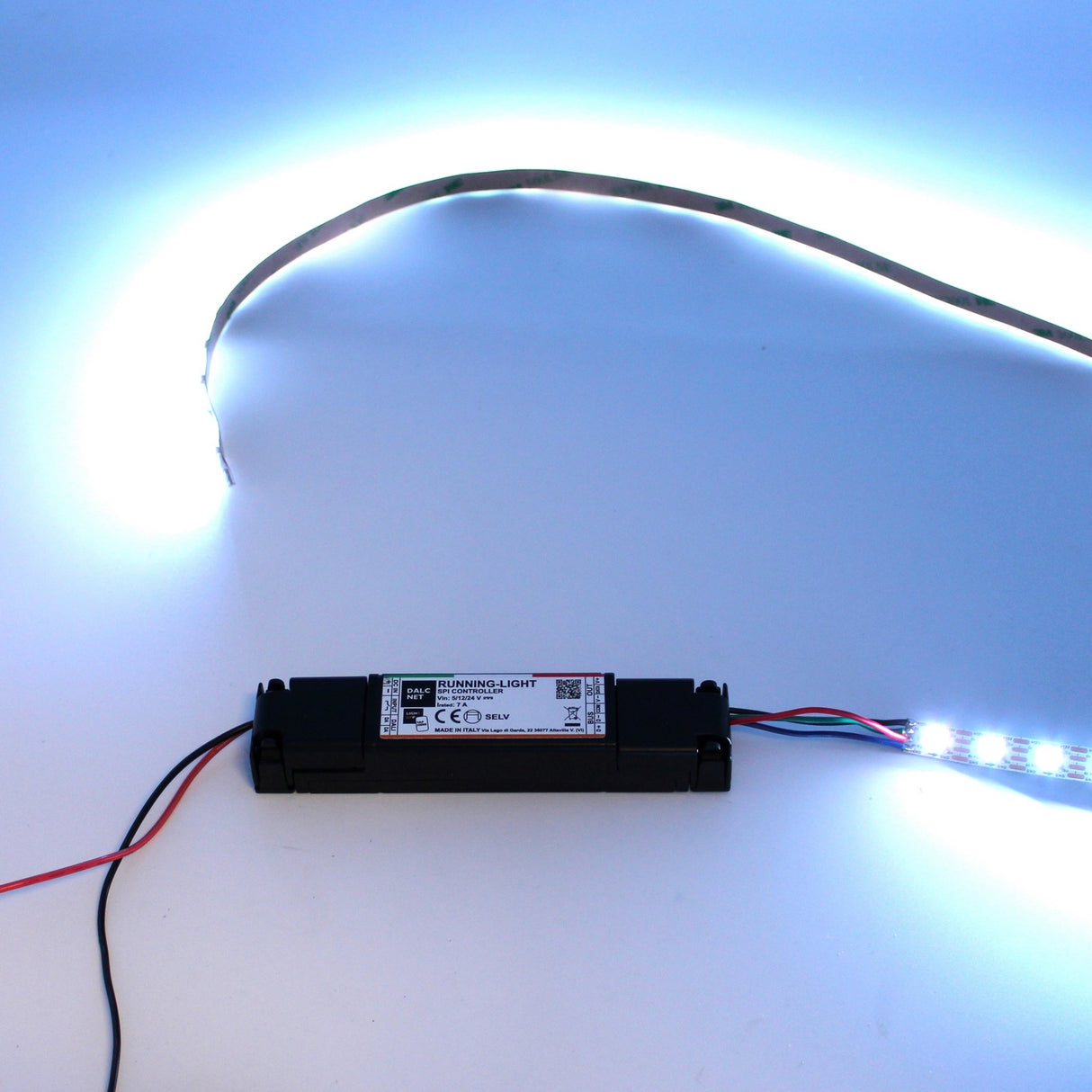

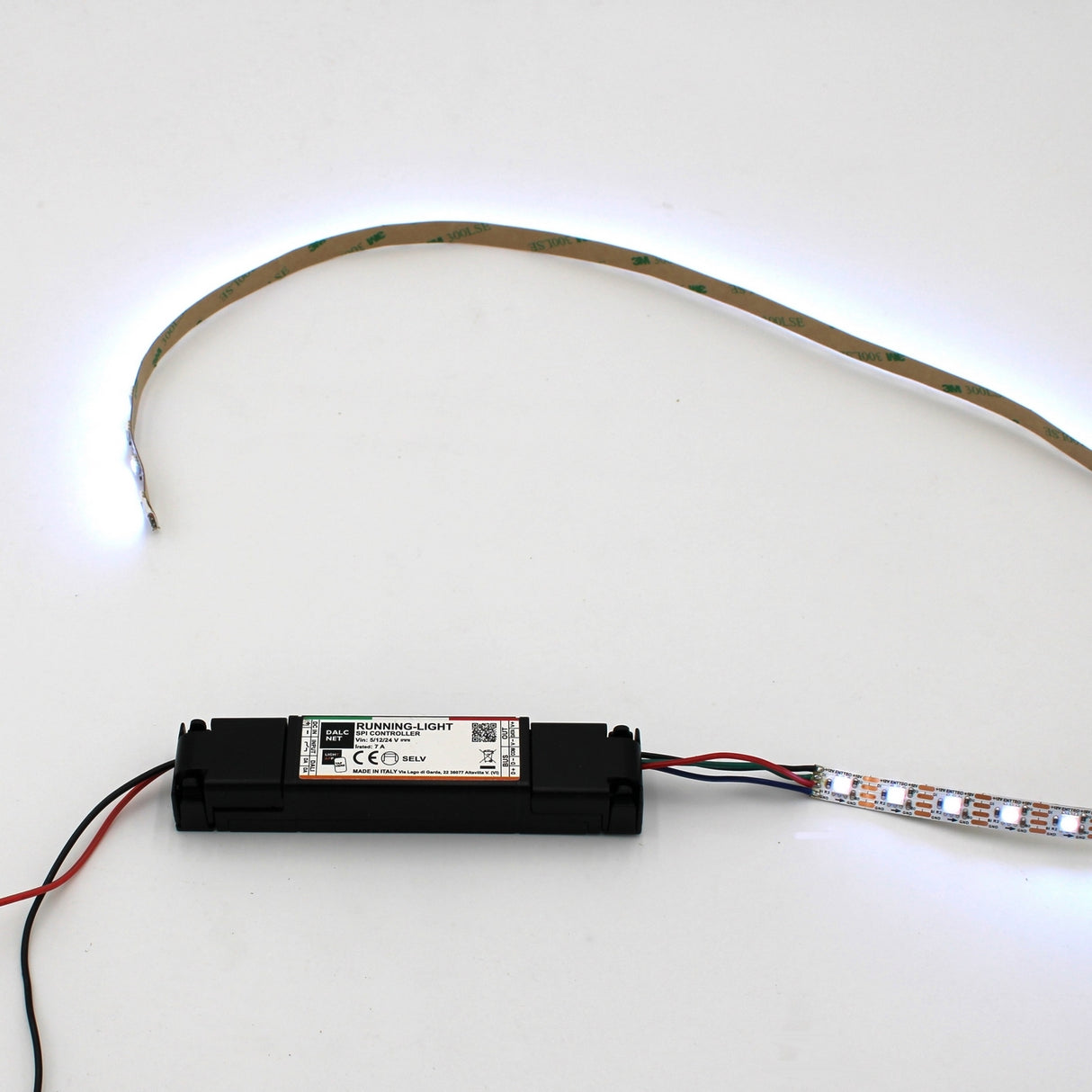

The RUNNING-LIGHT from Dalcnet is an SPI controller made for pixel-to-pixel LED control on digital (programmable/addressable) LED strips, designed to create different dynamic moving light effects. This controller works with SELV constant voltage power supplies ranging from 5V to 24V DC, making it suitable for driving a wide range of digital LED strips or modules. The controller can be configured to drive digital RGB or WWW LED strips with almost any common control chip type.

The Dalcnet RUNNING-LIGHT controller offers compelling features for easily creating moving RGB pixel effects:

  • Flexible: Supports 10 customizable dynamic pixel effects

  • Compatible: Supports 7 common pixel control ICs

  • Expandable: Master/slave bus for grouping controllers

  • Predictable: Programmable power-on state

  • Reliable: Isolated DALI bus and Over-voltage, Under-voltage & Reverse polarity protected.

  • Easy to integrate: Effect selection via DALI or local pushbutton

  • Easy to program: NFC programming with Dalcnet LightApp

Compatible with both RGB and WWW LED modules, this digital LED controller offers flexible control options through a local pushbutton or DALI protocol integration. The controller can be connected additional controllers via a control signal bus to create larger coordinated pixel LED installations with a single point of control.

The controller delivers reliable performance with a maximum output current of 7A, while featuring comprehensive safety measures including over-voltage, under-voltage, reverse polarity, and input fuse protection. For digital pixel loads requiring a supply current over 7A, the supply for the strip can be wired directly from the system power supply.

The RUNNING-LIGHT controller's standout feature is its easy programmability through the free Dalcnet LightApp© mobile application. Using NFC technology, users can customize up to 10 different light effects, adjusting parameters such as color schemes, animation speed, direction, pixel length, and transition effects. The app is readily available on both iOS and Android platforms.

General Specifications

  • Model: RUNNING-LIGHT
  • Voltage range: 5-24V DC
  • Output channel:1
  • Working temperature range: -10/+60°C (14 ~ 140°F)
  • Maximum total current: 7A
  • Connector type: Push-in terminals
  • Protection rating: IP20
  • Dimensions: 136 x 29 x 22mm (5.35" x 1.15" x 0.87")
  • Compatible control IC: WS2811, WS2812, WS2815, UCS1603, UCS1903, GS8206, TX1818
  • Made in Italy
  • Warranty: 5years
