Plaster Board Wall Wash LED Channel ~ Model Alu-Cove1

Profile only ~ diffusers and all other accessories are sold separately

Description

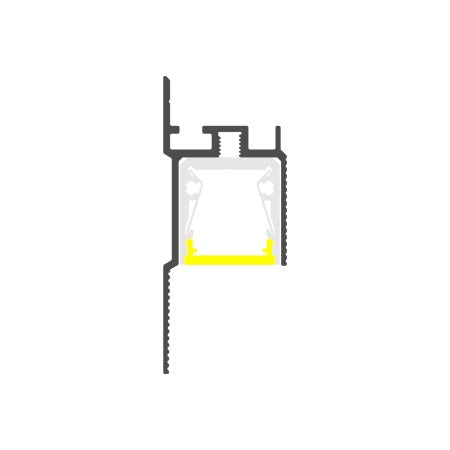

Plaster Board Wall Wash LED Channel Alu-Cove1

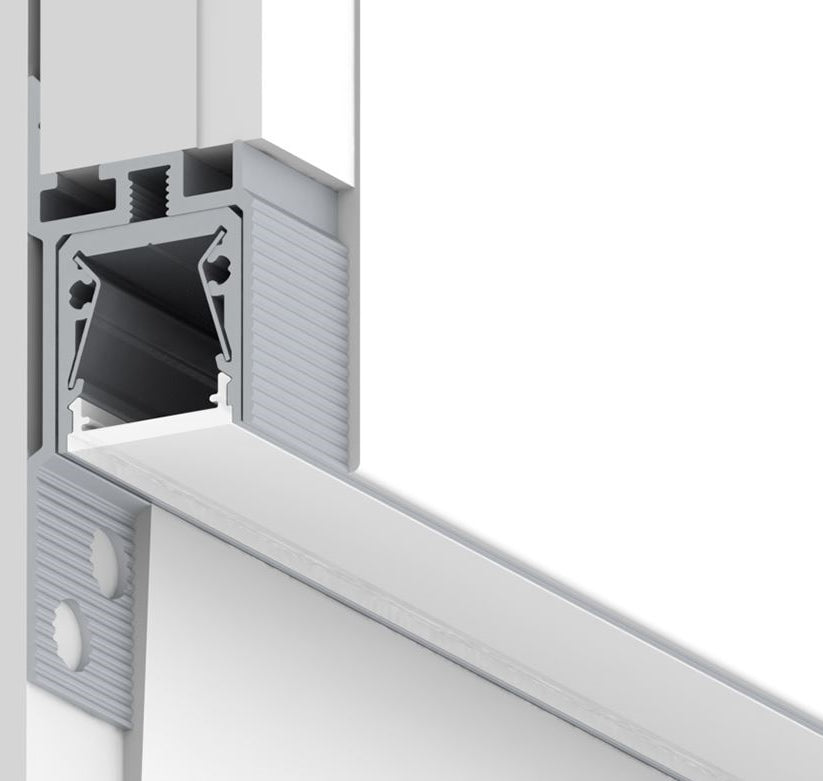

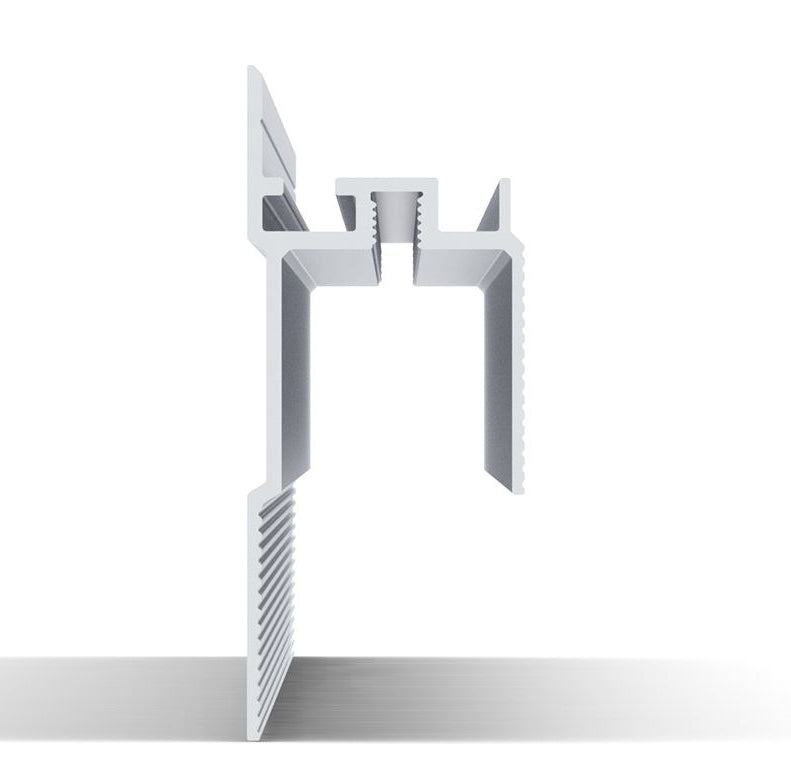

Made of high-quality raw aluminum, designed to be recessed into wall-ceiling. It is designed to be used together with ‘SL15 FL’ as a slide-in insert. Using perforated edges, the installer screws the base into the wall and ceiling and plaster it, then slides in the insert profile and secures it with an M4 screw, simplifying the installation process into a two-step procedure.

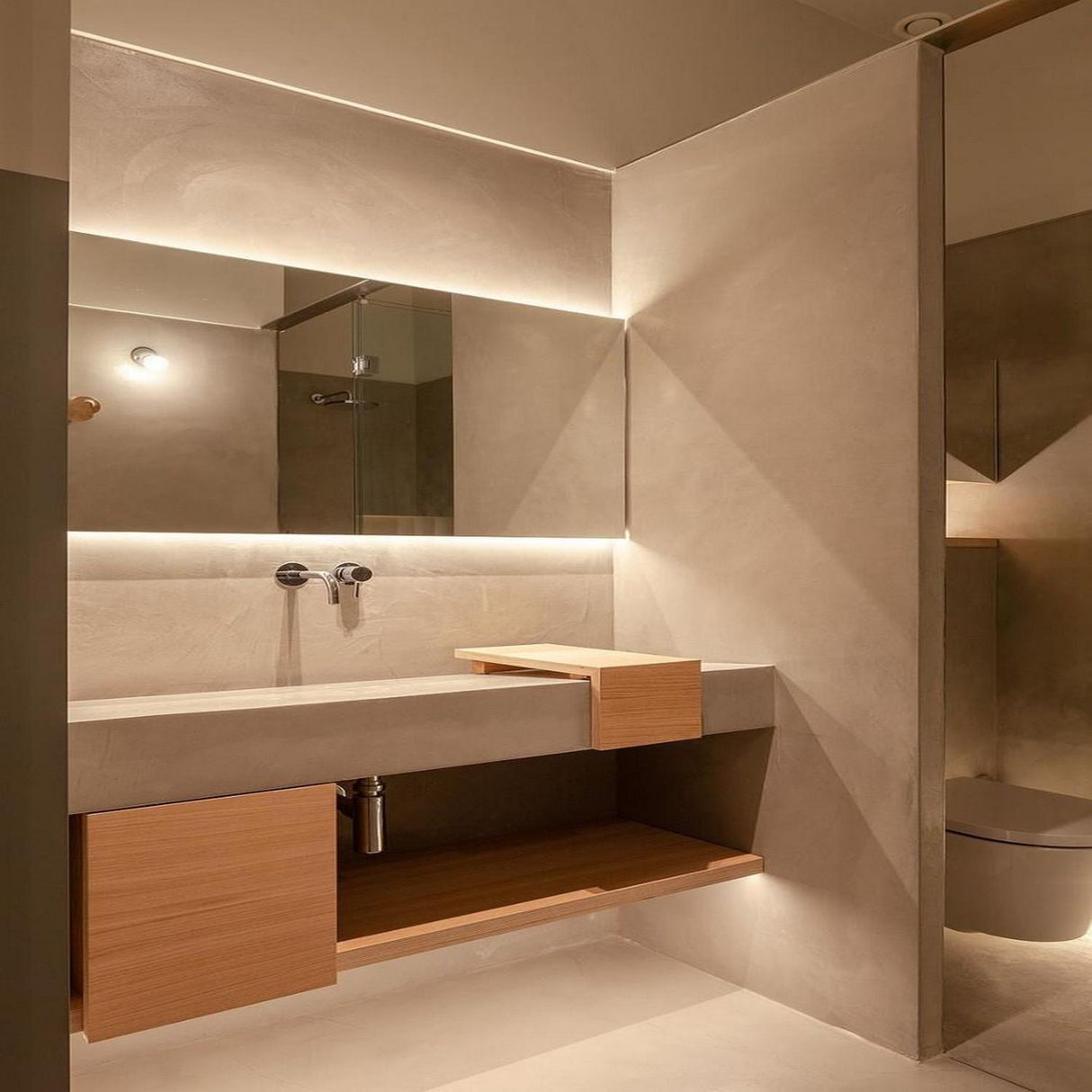

Additionally, the Plaster Board Wall Wash LED Channel Alu-Cove1 is suitable for linear connectors allowing it to create a uniform line of light up to a desired length. All above features provide the ability to wash down a wall with homogeneous light, without a complicated installation process.

What to consider before starting your plaster-in LED channel project.

General specifications

• Material: Aluminum

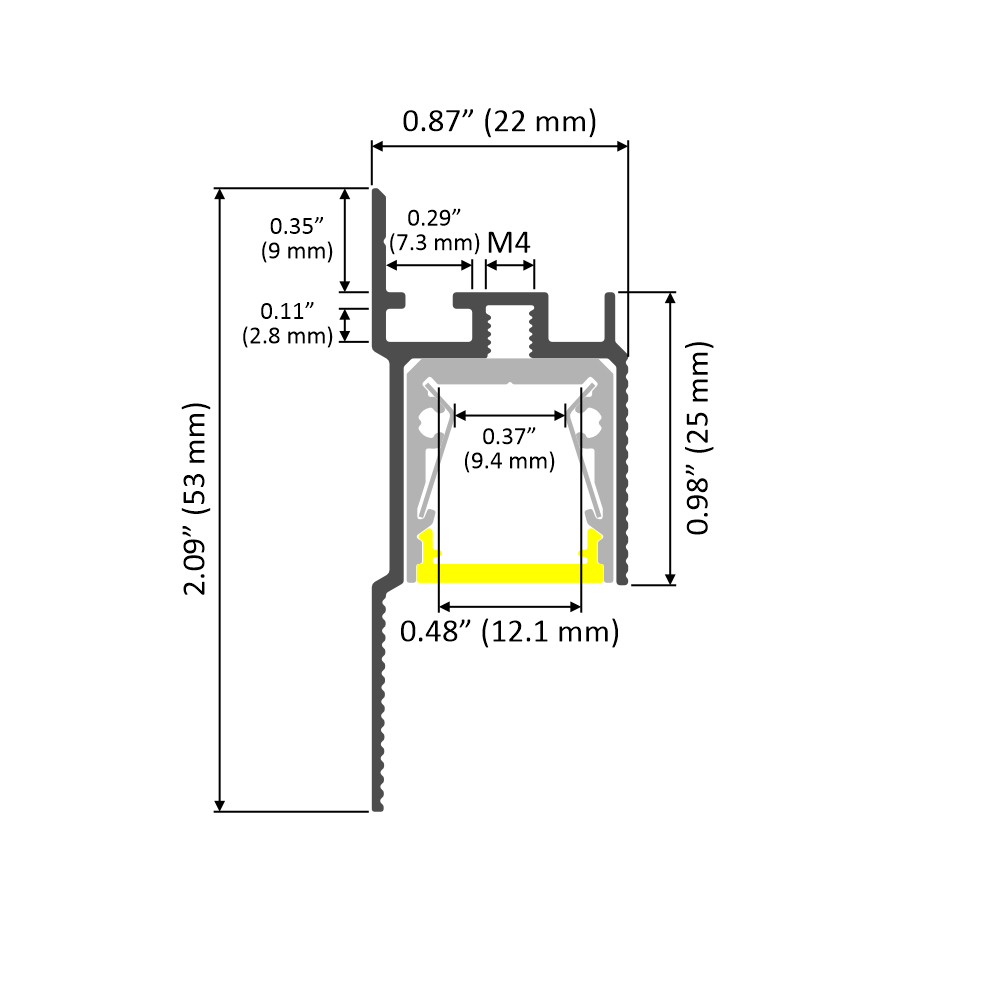

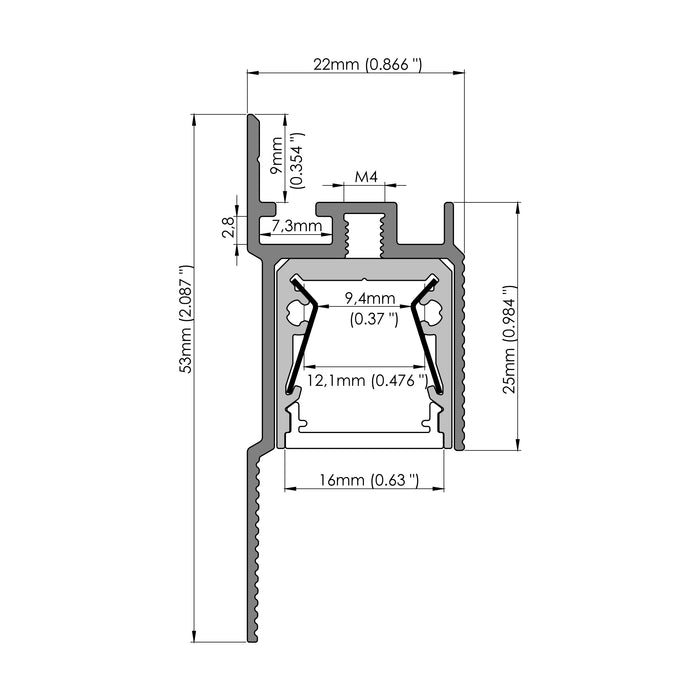

• Overall dimensions: 53mm x 22mm (2.08" x 0.86")

Downloads

• Alu-Cove 1 cut sheet

Important notes

• We sell LED strips, covers, mounting brackets, end caps, shelf/sign panels and other accessories separately from the aluminum profile. Please select the available components below.

• Please note that in outdoor applications, raw or natural profiles or channels will oxidize over time unless they are coated or painted, as they are not anodized.

• You can easily cut LED profiles by hand or by machine.

• For your convenience Wired4Signs USA can cut LED profiles according to your requirements. Please leave instructions in the order comment box.

• We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.

• We ship items in stock the same day from Knoxville, Tennessee, United States. Additionally, our team dedicates themselves to carefully packing and safely delivering all packages to their destination.

• Bulk pricing is available on request. Moreover, for larger orders, we offer additional discounts and customized pricing to fit your project needs.
