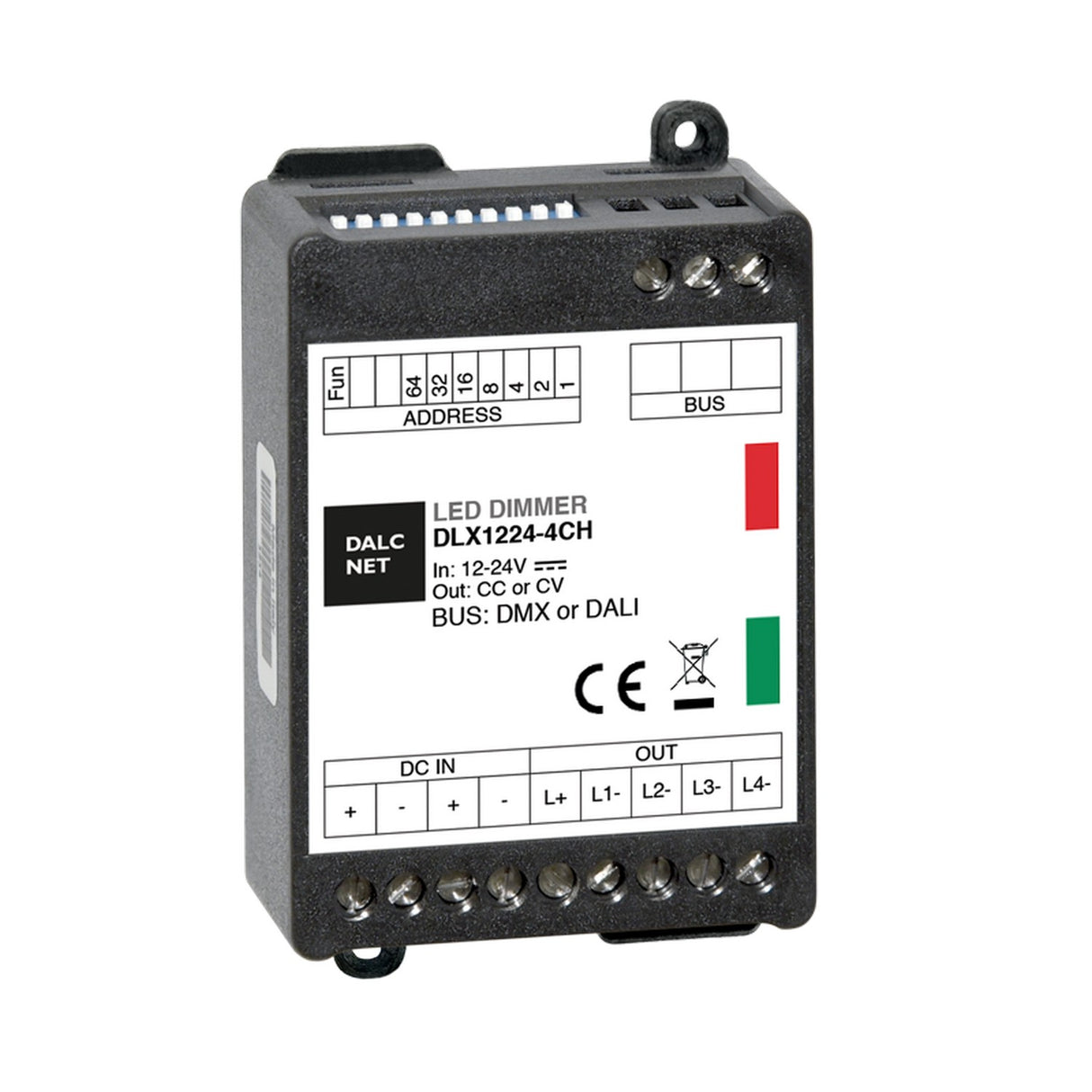

RGBW 4-Ch Constant Current LED Controller with DALI (500mA) ~ Model DLX1224-4CC500-DALI
Controller only ~ power supply, LEDs and all other accessories are sold separately
Description
DLX1224-4CC500-DALI LED controller is a high-efficiency device specially designed to power LEDs directly in constant current, delivering an output of 4x500mA. It operates with a DC input range of 12-24 Vdc and supports both DMX512+RDM and DALI bus commands for versatile control.
The LED controller allows for RGB or RGBW color management and offers local standalone functionality via Dip Switch settings. It features soft start and stop capabilities, ensuring smooth brightness adjustments, including complete dimming. With a typical efficiency greater than 95%, an optimized output curve, and an extended temperature range, this controller is rigorously tested and comes with a 5-year warranty, making it a reliable solution for LED applications.
General Specifications
- Dimensions: 88 x 54 x 26mm (3.46” x 2.13” x 1.02)
- Model: DLX1224-4CC500-DALI
- Voltage Range: 12-48V DC
- Max Output Power: 4 x 500mA
- Output Channels: 4
- Control: RGB or RGBW Color
- Bus: DMX
- Working Temperature Range: -10/+40°C
Downloads
Important Notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States
- Bulk pricing is available on request
