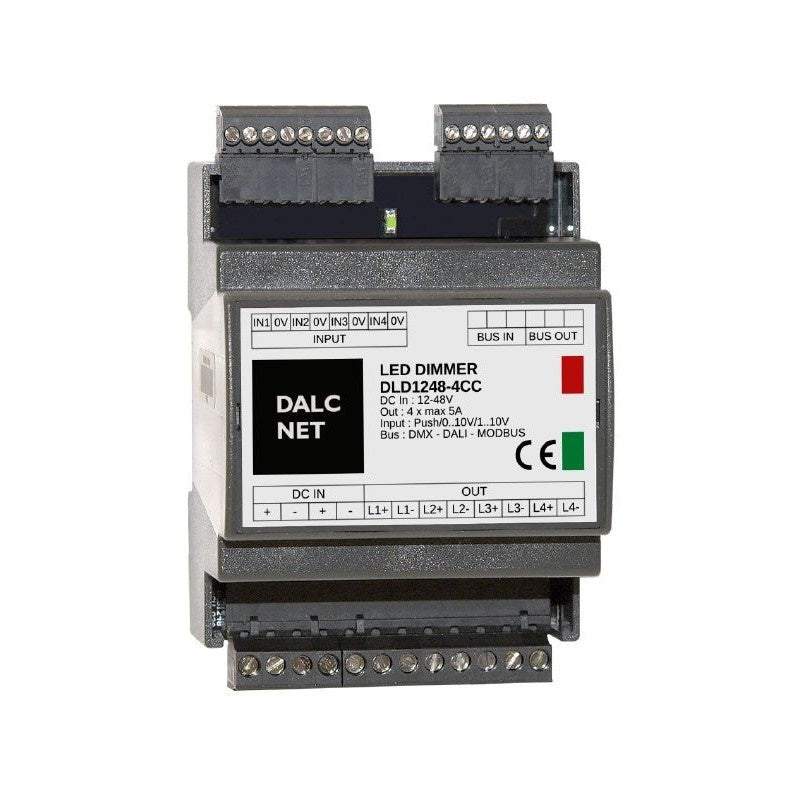

DIN-rail 4-Channel Constant Current LED Dimmer with DALI ~ Model DLD1248-4CC-DALI

Controller only ~ power supply, LEDs and all other accessories are sold separately

Description

4-Channel Constant Current LED Dimmer with Dali is a cutting-edge LED dimmer designed for professional applications. This LED dimmer is DIN-rail mounted for installation in standard electrical distribution boxes.

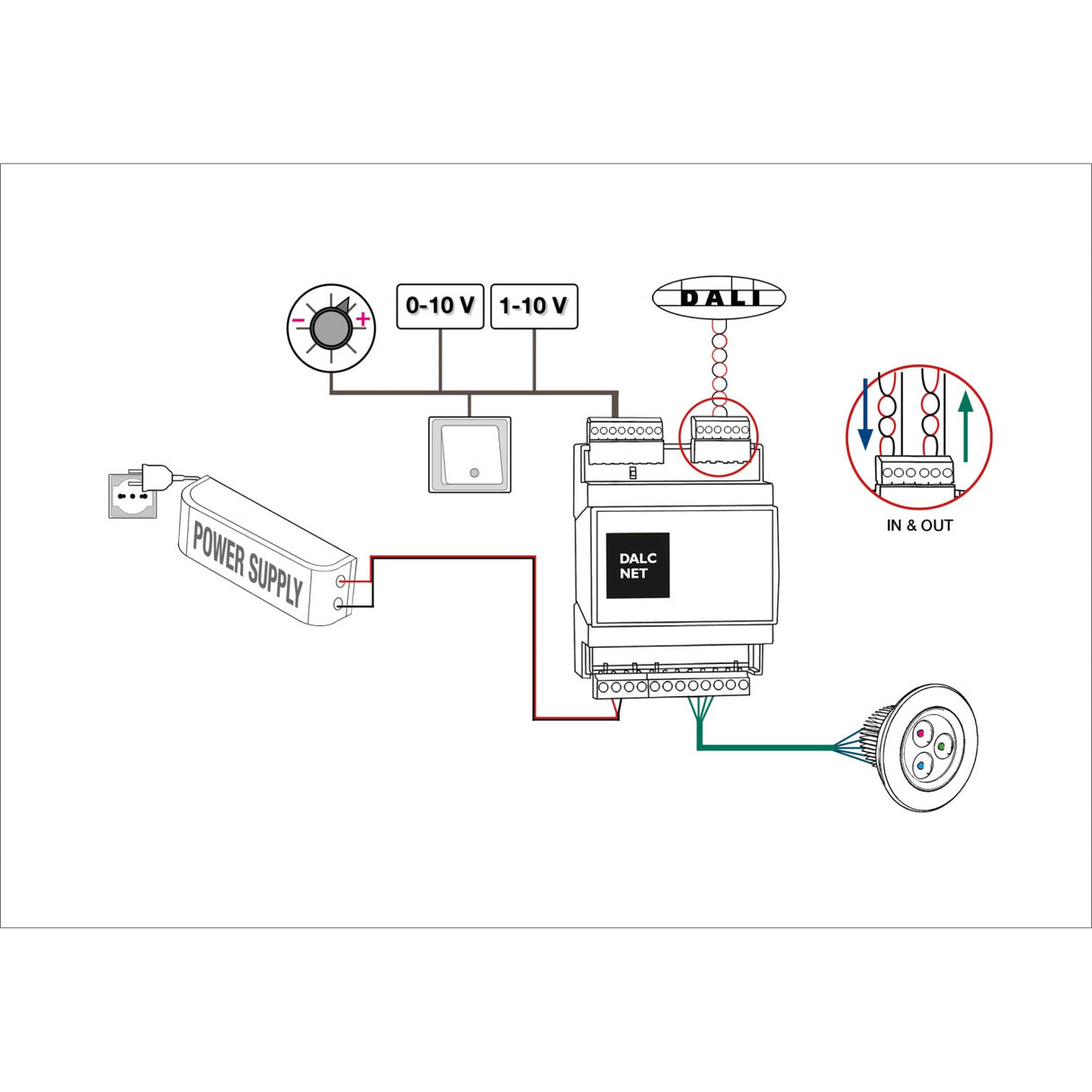

With support for BUS command DALI or local N.O. push, 0-10V, 1-10V, or potentiometer, you have flexible control options at your fingertips.

Experience precise brightness adjustments from dim to dark, with an impressive minimum brightness of 0.1% (1% in push mode). The dimmer provides four output channels, each capable of delivering optimized linear, quadratic, or exponential curves to achieve the desired lighting effects.

To streamline your lighting setup, the dimmer includes a master-slave function, allowing synchronization across multiple units. Additionally, the D-PWM modulation with frequencies of 300, 600, or 1200 Hz ensures smooth and flicker-free lighting performance.

General specifications

• Model: DLD1248-4CC-DALI
• Input Range: 12-48V DC
• Output Current: 1x 1.0-2.8A or 4x 250-700mA
• Channels Output: 4-Channel
• Bus Command: DALI
• Local Command: 4x N.O. push button (with or without memory), 0-10V, 1-10V and Potentiometer 10K Ohm
• Control modes: Dimmer, Dim to Warm, Tunable White, RGB, RGBW
• Adjusting D-PWM frequency: 300 / 600 / 1200 Hz
• Adjusting output curve: Linear / Quadratic / Exponential
• Constant current dimmer: use with constant current LED strip.
• Dimensions: 72 x 92 x 62mm (2.83" x 3.62" x 2.44")

Downloads

• DLD1248-4CC-DALI cut sheet
